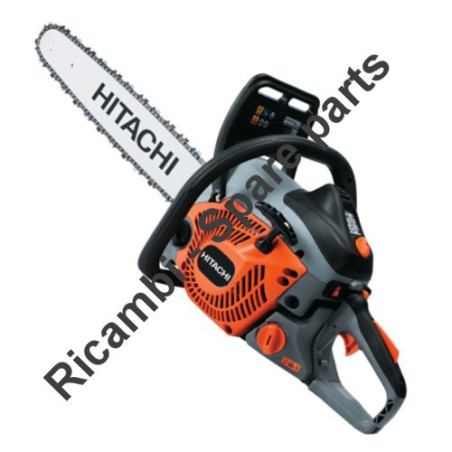

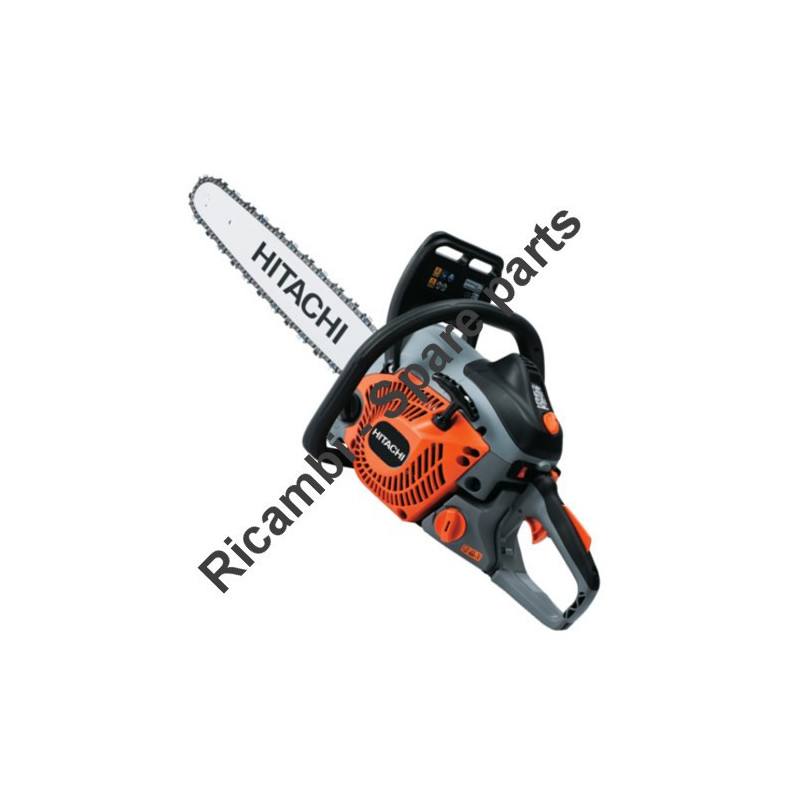

Hitachi Spare Parts for Engine Chainsaw CS51EAP
€9.29
Tax included
Hitachi Spare Parts for Engine Chainsaw CS51EAP
We are Hitachi-HIKOKI-TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Chainsaw CS51EAP.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Engine Chainsaw CS51EAP
We are Hitachi-HIKOKI-TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Chainsaw CS51EAP.
In the following table, look for the model of the Chainsaw and ripettivo spare part.
| Hitachi HIKOKI CHAINSAW CS51EAP Parts List | ||
| # | Part Num. | Description |
| 1 | 6698919 | START LABEL (C51) (EX) |
| 2 | 6698568 | CLEANER COVER (C51) |
| 3 | 6698569 | SHUTTER PLATE |
| 4A | 6699189 | COVER SET BOLT (B) |
| 5 | 6698708 | CYLINDER COVER (C51) |
| 6 | 6698595 | CLEANER KNOB (VERMILLION) |
| 7 | 6698570 | KNOB PACKING |
| 8 | 6698563 | CLEANER ELEMENT (B) |
| 9 | 6698562 | CLEANER ELEMENT (A) |
| 10 | 6698449 | NUT M6 |
| 11 | 949432 | BOLT WASHER M6 |
| 12 | 6698429 | SPRING HOLDER |
| 13 | 881722 | HEX. SOCKET HD. BOLT (W/FLANGE) M6X20 |
| 14 | 6698428 | ANTIVIBRATION SPRING |
| 15 | 6685413 | DAMPER SET BOLT |
| 16 | 6696835 | SEAL LOCK SCREW M4X10 |
| 16A | 324082 | SEAL LOCK SCREW M4X10 |
| 17 | 6698539 | SCAVENGING COVER (B) |
| 18 | 6698540 | COVER PACKING (C51) |
| 19 | 6698903 | EXHAUST PIPE (C51) |
| 20 | 6698575 | MUFFLER GAUZE (C51) |
| 21 | 305558 | TAPPING SCREW (W/FLANGE) D5X25 (BLACK) |
| 22A | 6699026 | FRONT HANDLE (B) (C51) |
| 23 | 302089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) |
| 24 | 949812 | HEX. SOCKET HD. BOLT M4X10 |
| 25 | 323210 | BOLT WASHER M4 (BLACK) |
| 26 | 6698904 | MUFFLER PROTECTOR |
| 27 | 6698905 | MUFFLER PROTECTOR GAUZE |
| 28 | 949219 | MACHINE SCREW M4X16 |
| 29 | 6698900 | OIL PIPE (CS40) |
| 30 | 6698554 | OIL PUMP |
| 31 | 6685311 | CLIP |
| 32 | 6685412 | SEAL LOCK HEX. SOCKET HD. BOLT M5 |
| 33 | 6698901 | SEAL LOCK SCREW M5X12 |
| 34 | 6685400 | SPIKE |
| 35 | 6698902 | SEAL LOCK HEX. SOCKET HD. BOLT M5X45 |
| 36 | 6698706 | MUFFLER CAP |
| 37 | 6698899 | SEAL LOCK HEX. SOCKET HD. BOLT M6X20 |
| 38 | 6696836 | HEX. SOCKET HD. BOLT M5X12 (PRECOAT) |
| 39 | 6698573 | MUFFLER (C51) |
| 40 | 6698576 | MUFFLER PACKING (C51) |
| 41A | 6699944 | GROMMET |
| 43 | 6685267 | FUEL PIPE 2.5X4X90 |
| 44 | 6685139 | PRIMING PUMP COMP. |
| 45 | 6698541 | DECOMP. |
| 46 | 6685782 | SPARK PLUG BPMR7A |
| 47 | 6698549 | INTAKE PACKING (C51) |
| 48 | 6698906 | INTAKE (CS51) |
| 49 | 6698551 | CAB. INSULATOR RUBBER |
| 50 | 6698552 | CARBURETOR INSULATOR (C51) |
| 51 | 6698907 | FUEL PIPE (FKM) |
| 52 | 6698705 | CARBURETOR ASS'Y |
| 53 | 6685210 | SCREW |
| 54 | 6685212 | PUMP GASKET |
| 55 | 6685213 | PUMP DIAPHRAGM |
| 56 | 6684700 | INLET SCREEN |
| 57 | 6685215 | NEEDLE VALVE |
| 58 | 6690873 | VALVE SPRING |
| 59 | 6685220 | DIAPHRAGM PACKING-METERING |
| 60 | 6684690 | METERING DIAPHRAGM |
| 61 | 6685222 | DIAPHRAGM COVER-METERING |
| 62 | 6690766 | IDLE ADJUST SPRING |
| 63 | 6685298 | IDLE ADJUST SCREW |
| 64 | 6685218 | HINGE PIN SET SCREW |
| 65 | 6685217 | CONTROL LEVER |
| 66 | 6685219 | HINGE PIN |
| 67 | 6685223 | SET SCREW |
| 68 | 6698908 | FUEL PIPE |
| 69 | 6685408 | WASHER 5 |
| 70 | 6696317 | HEX. SOCKET HD. BOLT M5X45 |
| 71A | 6698553 | CLEANER SUPPORT (C51) |
| 72 | 6698721 | FUEL PIPE |
| 73 | 6698537 | CYLINDER |
| 74 | 6698538 | SCAVENGING COVER (A) |
| 75 | 6698542 | CYLINDER PACKING (C51) |
| 76 | 6698534 | PISTON RING |
| 77 | 6698909 | PISTON (44) (M) |
| 78 | 6696854 | CIR CLIP |
| 79 | 6698910 | PISTON PIN COLLAR (C51) |
| 80A | 6699945 | ENGINE CASE (B) ASS'Y |
| 81 | 6698914 | OIL SEAL |
| 82 | 6202C3 | BALL BEARING 6202C3 |
| 83 | 6698532 | CRANK SHAFT |
| 84 | 6698535 | CRANK CASE PACKING (C51) |
| 85 | 6696855 | PISTON PIN |
| 86 | 6698911 | NEEDLE BEARING (A) |
| 87 | 6698530 | ENGINE CASE (A) ASS'Y |
| 88 | 6698709 | REAR DAMPER (C51) |
| 89 | 6698572 | BRAKE HANDLE |
| 91 | 6698912 | BRAKE LEVER SPRING (B) |
| 92 | 6685369 | CHOKE ROD RUBBER |
| 93 | 6698593 | CHOKE BUTTON (VERMILION) |
| 94 | 6698565 | OPERATION PLATE |
| 95 | 6696940 | STOP SWITCH |
| 96 | 6698988 | HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 |
| 98 | 6699029 | CHAIN BAR BOLT |
| 112 | 6698581 | FLANGE NUT M8 |
| 112A | 6699028 | FLANGE NUT (B) M8 |
| 113A | 6698585 | SIDE CASE SUB |
| 114 | 6698591 | CHAIN PULLER BOLT |
| 115 | 6687296 | SAW CHAIN 16 INCH |
| 115 | 6687284 | SAW CHAIN 18 INCH |
| 115 | 6698710 | SAW CHAIN 20 INCH 0.325 |
| 116 | 6698592 | GUIDE PLATE (B) |
| 117 | 6696983 | CHAIN BAR 16 INCH |
| 117 | 6696982 | CHAIN BAR 18 INCH |
| 117 | 6698641 | CHAIN BAR 20 INCH |
| 118 | 6696868 | OIL GROMMET (A) |
| 119 | 6698719 | FUEL PIPE |
| 120 | 6685407 | BOLT WASHER D5 |
| 121 | 6698455 | OIL FILTER |
| 122 | 6698536 | OIL FILTER BODY |
| 123 | 6698561 | GUIDE PLATE (A) |
| 124 | 6698913 | DAMPER (C51) |
| 125A | 6699027 | CHAIN CATCHER |
| 126 | 6698587 | BRAKE LINK |
| 127 | 6698588 | BRAKE SPRING |
| 128 | 6698589 | BRAKE BAND |
| 129 | 6685391 | NEEDLE ROLLER D3 |
| 130 | 6698590 | BRAKE LINK COVER |
| 131 | 6698560 | CLUTCH ASS'Y |
| 132 | 6696882 | CLUTCH WASHER (B) |
| 133 | 6698558 | CLUTCH HOUSING |
| 134 | 6696884 | NEEDLE BEARING |
| 135 | 6698557 | RIM SPROCKET |
| 136 | 6698556 | CLUTCH WASHER |
| 137 | 6698555 | OIL PUMP COVER (C51) |
| 138 | 6696886 | WORM |
| 139 | 6685371 | AIR VENT SPONGE |
| 140 | 6685370 | AIR VENT VALVE (B) |
| 141 | 305812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
| 142 | 6698805 | REAR HANDLE GRIP |
| 143 | 6685350 | TRIGGER LOCKOUT (VERMILION) |
| 144A | 6600341 | THROTTLE LEVER SPRING |
| 146 | 6698579 | REAR HANDLE |
| 147 | 6685282 | SPRING PIN 5X25 |
| 148 | 6698564 | THROTTLE ROD |
| 149 | 6698916 | THROTTLE LEVER (VERMILION) |
| 150 | 6698580 | AIR VALVE CAP |
| 151 | 6685351 | INNER CAP |
| 152 | 6696167 | FUEL GROMMET |
| 153 | 6692285 | PUMP FILTER BODY |
| 154 | 6696873 | FRONT DAMPER |
| 155 | 6698409 | SPRING HOLDER |
| 156 | 6696872 | FLANGED TAPPING SCREW D6 |
| 157 | 6698408 | ANTIVIBRATION SPRING |
| 158 | 6698921 | TANK MARK LABEL (50:1) |
| 159 | 6685179 | TANK CAP PACKING |
| 160 | 6698854 | FUEL TANK CAP ASS'Y (VERMILION) |
| 161 | 988054 | CABLE TIE |
| 162 | 6698548 | PLUG CAP |
| 163 | 6698545 | CORD (A) |
| 164 | 6698546 | CORD (B) |
| 165A | 6699180 | METAL OF PLUG CAP (60) (B) |
| 166 | 6698544 | IGNITION COIL |
| 167 | 6696326 | HEX. SOCKET HD. BOLT (W/FLANGE) M4X18 |
| 168 | 6698918 | MAGNETO ASS'Y |
| 169 | 6698543 | MAGNETO ROTOR |
| 170A | 6699405 | STARTER PAWL SPRING (B) |
| 171 | 6696857 | WASHER 0.8 |
| 172 | 6696877 | STARTER PAWL |
| 173 | 6696434 | SHIM |
| 174 | 6696878 | STEP BOLT |
| 175 | 6698571 | AIR DEFLECTOR |
| 176A | 6699421 | RECOIL STARTER |
| 179 | 6698358 | FUEL TANK CAP ASS'Y (BLACK) |
| 180 | 6699477 | SET SCREW |
| 181 | 6699474 | WASHER |
| 182 | 6699482 | REEL |
| 183 | 6699480 | SPIRAL SPRING CASE |
| 184 | 6699470 | STARTER ROPE |
| 185 | 6699466 | STARTER KNOB |
| 186 | 6699472 | STARTER HANDLE ASS'Y |
| 187 | 6699488 | FAN CASE |
| HGA781246 | BAR + CHAIN SET cm 40 16'' - .325'' NK - 66 LINKS. 1,3 mm/0.50'' | |
| HGA781248 | BAR + CHAIN SET cm 45 18'' - ,325'' - 72 LINKS. 1,3 mm/0.50'' | |
| HGA781135 | CHAIN X BAR 15"-38CM - .325" . NK - 64 LINKS 1,3 MM/0,50" | |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
