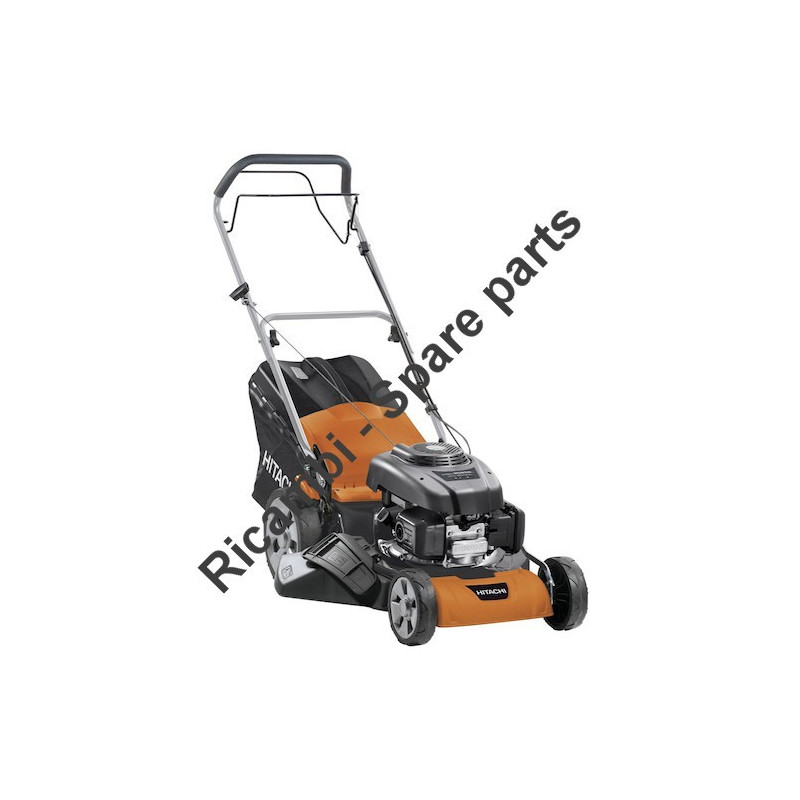

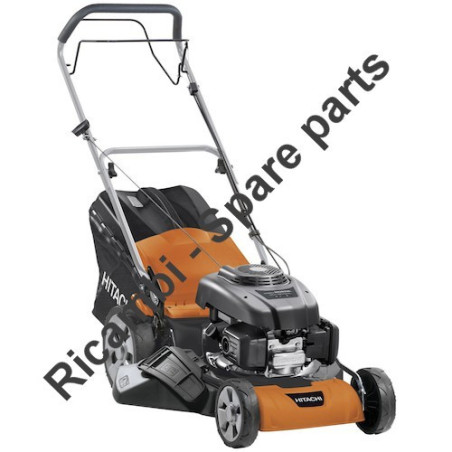

Hitachi Spare Parts for Lawnmower ML53SHS
€15.46
Tax included
Hitachi Spare Parts for Lawnmower ML53SHS
We supply original Hitachi HIKOKI Tanaka spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower ML53SHS.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Lawnmower ML53SHS
We supply original Hitachi HIKOKI Tanaka spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower ML53SHS.In the following table, look for the model of the Lawnmower and ripettivo spare part.
| Rasaerba Hitachi ML53SHS Pag.1 | ||
| 1.01 SCOCCA / TAPPO MULCHING / CARTER CINGHIA / CONVOGLIATORE | ||
| Pos. | Codice | Description |
| 1 | 3810048290 | DECK - GRAY |
| 2 | 3221083080 | FRONT BAFFLE |
| 3 | 1127286990 | SCREW |
| 4 | 3221083020 | REAR BAFFLE |
| 5 | 1127286990 | SCREW |
| 6 | 3225452130 | PLATE |
| 7 | 3810051670 | LEFT BRACKET |
| 8 | 1127278010 | SCREW |
| 9 | 3810051650 | RIGHT BRACKET |
| 10 | 3220602501 | BELT COVER |
| 11 | 3221402441 | MULCHING CAP |
| 12 | 1127285300 | SCREW |
| 1.02 ALZARUOTA / ASSI RUOTE Pag.2 | ||
| 1 | 3813028530 | FRONT WHEEL AXLE |
| 2 | 3225451420 | PLATE |
| 3 | 1127286980 | SCREW |
| 4 | 1125213500 | WASHER |
| 5 | 1121550000 | NUT |
| 6 | 1124360510 | PLATE |
| 7 | 3228696790 | HEIGHT ADJUST CONTROL ROD |
| 8 | 1225198230 | PIN |
| 9 | 1224461930 | SPRING |
| 11 | 1127286980 | SCREW |
| 12 | 3225451520 | PLATE |
| 13 | 3813028490 | REAR WHEEL AXLE |
| 14 | 1225341310 | PIN |
| 15 | 3810033570 | HEIGHT ADJUST LEVER - CENTRALIZED |
| 16 | 1224461920 | SPRING |
| 17 | 1121545100 | NUT M6 |
| 18 | 3226002400 | Inner Wheel Cover |
| 21 | 1125213500 | WASHER |
| 22 | 1121550000 | NUT |
| 1.03 MASCHERINA FRONTALE Pag.3 | ||
| 1 | 3222262390 | FRONT MASK - ORANGE |
| 2 | 1127286980 | SCREW |
| 1.04 MANICO INFERIORE Pag.4 | ||
| 1 | 3810067910 | HANDLE, LOWER PART GRAY |
| 2 | 1128191100 | SCREW |
| 3 | 1226716510 | WASHER |
| 4 | 1223999000 | KNOB |
| 5 | 1122932000 | NUT |
| 7 | 1128189000 | SCREW |
| 9 | 1223999000 | KNOB |
| 10 | 1122932000 | NUT |
| 11 | 1121550000 | NUT |
| 12 | 1125213500 | WASHER |
| 13 | 1123695000 | SPRING WASHER |
| 14 | 1127606050 | SCREW |
| 15 | 3810086910 | SCREW OUTFIT |
| 1.05 MANICO SUPERIORE / CAVI Pag.5 | ||
| 1 | 3810075061 | HANDLE, GRAY UPPER PART |
| 2 | 1224303130 | SPRING GUIDE |
| 3 | 1125213300 | WASHER |
| 4 | 1121545100 | NUT M6 |
| 5 | 1183900200 | CABLE CLIP |
| 6 | 1810033631 | ENGINE BRAKE LEVER - BLACK |
| 7 | 1810300880 | ENGINE BRAKE CABLE |
| 8 | 1127277830 | SCREW |
| 9 | 1121545100 | NUT M6 |
| 10 | 1810033640 | TRACTION CONTROL LEVER |
| 11 | 3810300510 | TRACTION CABLE |
| 12 | 3225516400 | PLATE |
| 1.06 TRAZIONE / CINGHIA Pag.6 | ||
| 1 | 1126086000 | SEEGER FOR SHAFT D = 12 UNI 7435 C60 |
| 2 | 1225701340 | LEFT PINION ML53 |
| 3 | 1225701330 | RIGHT PINION ML53 |
| 4 | 3220420670 | TRACTION AXLE BUSH |
| 5 | 1125213710 | WASHER |
| 6 | 1810030920 | GEAR CASE ASS'Y |
| 7 | 1226019090 | PULLEY |
| 8 | 1126457050 | SPRING PIN |
| 9 | 1220332830 | ADJUST ROD |
| 10 | 1350641960 | V-BELT |
| 11 | 1220419571 | SLEEVE |
| 12 | 1224500630 | SPRING |
| 13 | 3226800090 | WASHER |
| 14 | 1121545100 | NUT M6 |
| 15 | 1221102300 | HUBCAP |
| 16 | 1227530000 | PLUG |
| 1.07 RUOTE Pag.7 | ||
| 1 | 3810074162 | FRONT WHEEL CPL. |
| 2 | 1192160350 | BALL BEARING 6001 2RS (12X28X8) |
| 3 | 3221106430 | FRONT WHEEL COVER ML53 |
| 5 | 3810074172 | REAR WHEEL ML53 CPL. |
| 9A | 3810074720 | REAR WHEEL |
| 6 | 1192160350 | BALL BEARING 6001 2RS (12X28X8) |
| 7 | 1127287060 | SCREW |
| 8 | 3810074722 | WHEEL ASS'Y |
| 9 | 3221106440 | REAR WHEEL COVER ML53 |
| 1.08 SCARICO LATERALE Pag.8 | ||
| 1 | 3221083091 | SIDE BAFFLE |
| 2 | 3226003140 | EXIT GUARD |
| 3 | 1127278030 | TORX SCREW M6X14 |
| 4 | 3228066390 | PIN |
| 5 | 1121545100 | NUT M6 |
| 6 | 1182038530 | CAP |
| 7 | 1224504560 | SPRING |
| 8 | 1225178691 | FULCRUM PIN |
| 9 | 1126048960 | WASHER D6 |
| 1.09 MOZZO LAMA / LAMA Pag.9 | ||
| 1 | 1126911150 | SCREW |
| 2 | 1224656083 | BLADE HUB |
| 3 | 1810044590 | MULCHING BLADE |
| 4 | 1221604000 | SPRING WASHER |
| 5 | 1125230800 | WASHER |
| 6 | 1127356980 | SCREW BLADE |
| 7 | 1121391500 | WOODRUFF KEY |
| 8 | 1121542100 | NUT |
| 1.10 PARASASSI / SACCO Pag.10 | ||
| 1 | 3227853310 | BAFFLE HOLDER (BLACK) |
| 2 | 1224504640 | SPRING BAFFLE |
| 3 | 3221095770 | STONE GUARD COVER, ORANGE |
| 4 | 1127286990 | SCREW |
| 5 | 3226003310 | STONE GUARD ORANGE ML48 |
| 6 | 3223936440 | GRASS BAG HANDLE |
| 7 | 3814860180 | GRASS BAG, BLACK TOP |
| 8 | 1226085610 | LOWER REINFORCEMENT |
| 9 | 1127286920 | SCREW |
| 10 | 3225451590 | PLATE |
| 11 | 1810023180 | BLACK COLLECTION BAG |
| 1.11 ETICHETTA Pag.11 | ||
| 1 | 1143691360 | FRONT LABEL HITACHI |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
