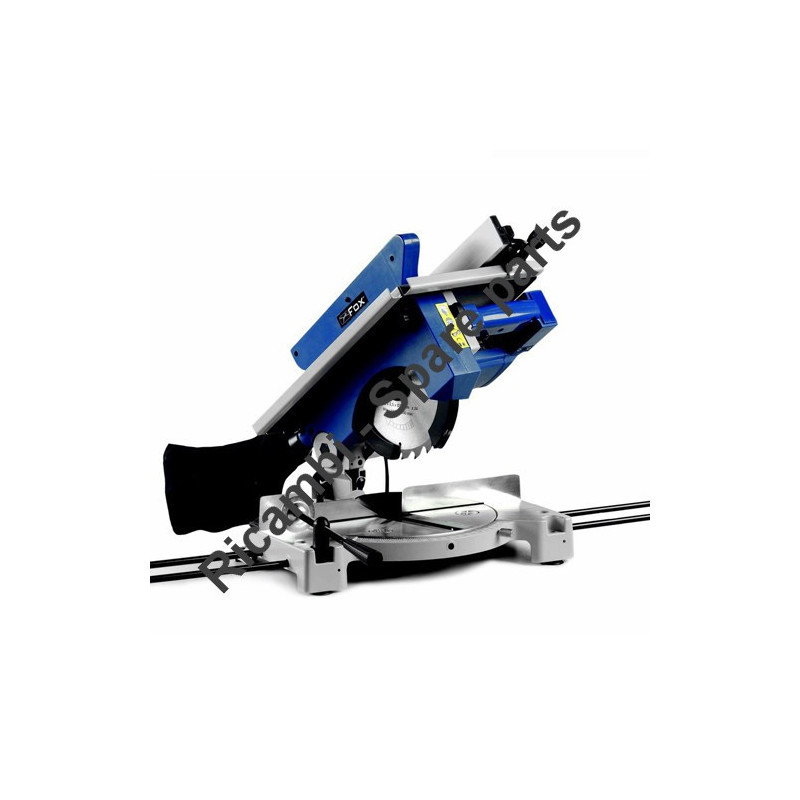

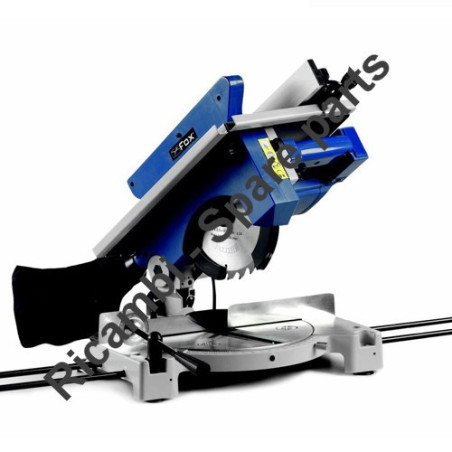

Fox Spare Parts for Wood Mitre Saw F36-075
€4.20
Tax included
Fox Spare Parts for Wood Mitre Saw F36-075
We are FEMI original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Mitre Saw F36-075.- ONLY FOR MACHINES FEMI S.P.A. NOT SUITABLE FOR "MADE IN DELTA FRANCE"
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Fox Spare Parts for Wood Mitre Saw F36-075
We are FEMI original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Mitre Saw F36-075.
- ONLY FOR MACHINES FEMI S.P.A. NOT SUITABLE FOR "MADE IN DELTA FRANCE"
In the following table, look for the model of the Mitre Saw and the respective parts of the code.
| Miter Saw Fox F36-075 | ||
| # | Part Number | Description |
| 004 | F36075-004 | RUBBER FEET |
| 006 | F36075-006 | LOCATED SPRING |
| 007 | F36075-007 | STEEL BALL D.8 |
| 012 | F36075-012 | TIGHTED BOLT |
| 014 | F36075-014 | BASE |
| 016 | F36075-016 | EXTENTIONAL FEET |
| 019 | F36075-019 | ROUND BASE |
| 021 | F36075-021 | TABLE COVER |
| 022 | F36075-022 | RIP FENCE |
| 024 | F36075-024 | BLADE PROTECTOR |
| 025 | F36075-025 | SHORT AXES |
| 026 | F36075-026 | SUPPORTER |
| 028 | F36075-028 | TIGHTED SCREW |
| 030 | F36075-030 | BAR HOLDER |
| 031 | F36075-031 | INCLINED CUTTING POINTER |
| 032 | F36075-032 | TIGHTED SPANNER |
| 033 | F36075-033 | SPRING |
| 039 | F36075-039 | FRAME PROTECTER |
| 040 | F36075-040 | DUST TIE-IN |
| 041 | F36075-041 | BOLT SX |
| 042 | F36075-042 | WASHER |
| 043 | F36075-043 | OUTSIDE FLANGE |
| 045 | F36075-045 | INSIDE FLANGE |
| 047 | F36075-047 | TRANSPARENT GUARD BAFFLE |
| 049 | F36075-049 | FRONT TRANSPARENT GUARD |
| 050 | F36075-050 | UPPER CONNECT BAR |
| 060 | F36075-060 | BEARING |
| 062 | F36075-062 | BEARING HOUSE |
| 063 | F36075-063 | GEAR |
| 064 | F36075-064 | PRINCIPA LAXIS |
| 067 | F36075-067 | NEEDLE BEARIN GHK 0910 |
| 068 | F36075-068 | PUSHER |
| 080 | F36075-080 | KNIFE SUPPORT |
| 081 | F36075-081 | BLADE FELLOW |
| 084 | F36075-084 | FRAME PRESS BOARD |
| 086 | F36075-086 | FRAME |
| 087 | F36075-087 | BEARING 6200 |
| 088 | F36075-088 | ARMATURE |
| 094 | F36075-094 | STATOR |
| 096 | F36075-096 | HOUSING |
| 097 | F36075-097 | BRUSH HOLDER |
| 098 | F36075-098 | COPPER SET |
| 099 | F36075-099 | CARBON BRUSH SET |
| 100 | F36075-100 | HOUSING COVER |
| 104 | F36075-104 | UPPER HANDLE |
| 105 | F36075-105 | LOWER HANDLE |
| 107 | F36075-107 | SWITCH |
| 108 | F36075-108 | CAPACITANCE |
| 110 | F36075-110 | LOCKING PIN BUTTON |
| 111 | F36075-111 | JUNCTION BOX |
| 116 | F36075-116 | SQUARE SHAPED INDUCTOR |
| 117 | F36075-117 | JUNCTION BOX COVER |
| 122 | F36075-122 | MAIN SWITCH |
| 130 | F36075-130 | TOP TABLE |
| 131 | F36075-131 | TABLE LINING PLATE |
| 132 | F36075-132 | TABLE TIGHTED KNOB |
| 133 | F36075-133 | TABLE TIGHTED SCREW |
| 134 | F36075-134 | SCALE LABEL |
| 135 | F36075-135 | RIGHT TABLE COVER |
| 147 | F36075-147 | PROTECTING PLUG BOARD |
| 148 | F36075-148 | COVER |
| 149 | F36075-149 | COMPLETE PROTECTION |
| 150 | F36075-150 | COMPLETE LEVER |
| 151 | F36075-151 | COMPLETE GONIOMETER |
| 152 | F36075-152 | COMPLETE MOTOR |
| 153 | F36075-153 | COMPLETE VICE |
| 156 | F36075-156 | THERMIC PROTECTION |
| 158 | F36075-158 | COMPLETE PROTECTION+LEVERS |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fox websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fox F36-075
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- MORE INFO:
- PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
