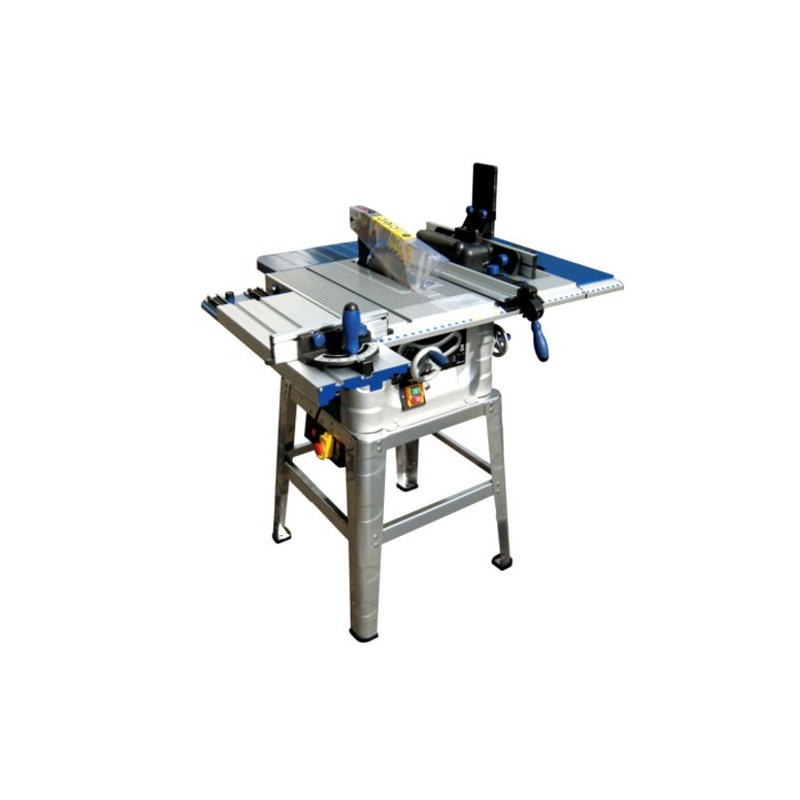

Bench Saw 3 Functions Fox F36-527C

Bench Saw 3 Functions Fox F36-527C

Designed for all cutting jobs and trimming. The cart squaring facilitates the processing of large workpieces. It comes with a mounting kit for milling machines, complete with control panel of security (CE conformity).
- Work top in cast aluminum.
- Robust cart squaring supported by reinforcements.
- Frame in bent sheet metal for a good rigidity.
- Parallel reversible, on the right or left side of the blade.
- Goniometer for the cut according to the desired angle.
- Knob lowering and lifting of the blade on the front of the machine.
- Knob tilt for precise adjustment of the blade.
- Powerful motor 1500 W perfectly suited to any type of cut.
- Mounting kit for milling machine complete with control panel and double safety switch.

Technical Features
Engine:	1500 W – 230 V
Blade diameter:	254 mm
Hole of the blade:	30 mm
Speed:	4500 min-1
Cutting capacity
Maximum cutting height at 90 °:	80 mm
Maximum cutting height at 45 °:	55 mm
Table dimensions:	650 x 520 mm
Table dimensions with extensions:	1210 x 705 mm
Race saw before and after the blade:	da 500 a 880 mm
Maximum size cart including:	1490 x 705 mm
Package dimensions:	630 x 970 x 380 mm
Weight:	38 kg

Included: rip fence, goniometer, guide milling machine, basement, two extensions of the basic work, with knife blade guard transparent partition, keys kit, laser pointer and squaring cart.
