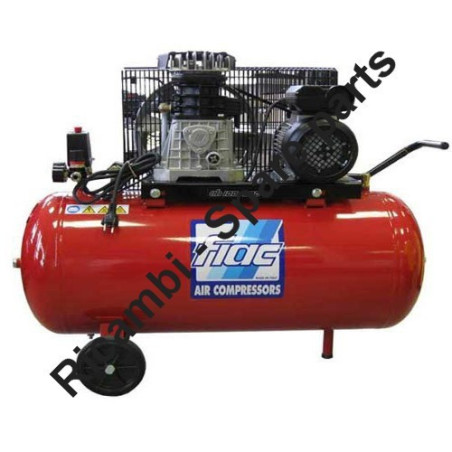

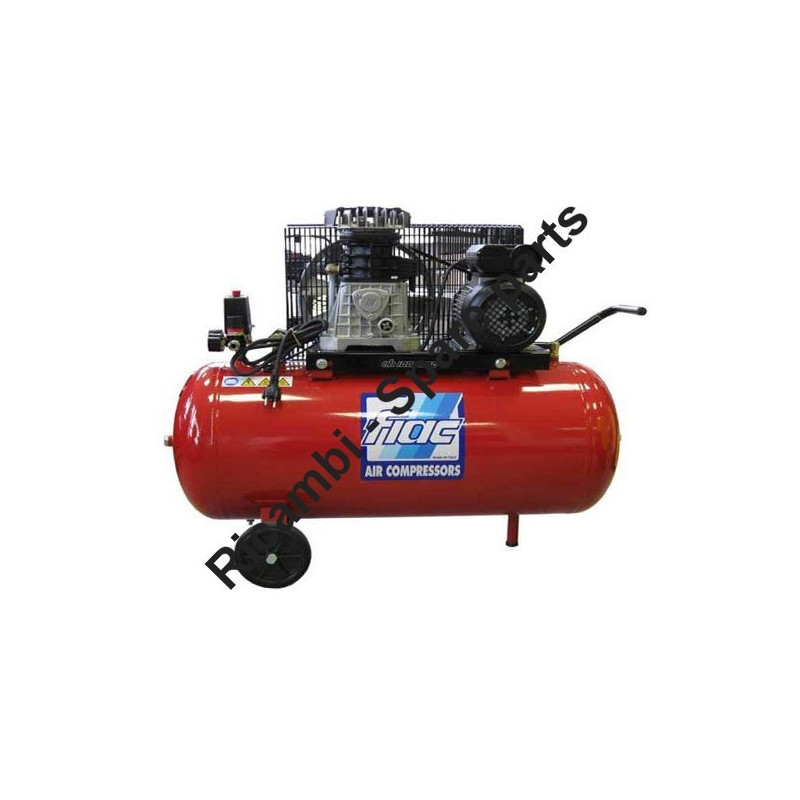

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300 510 + Wheels validity date from 16/05/2003.
In the following table, look for the type of the Air Compressor and the respective parts of the code.![]()
| AB 300 510 + Wheels validity date from 16/05/2003 | ||
| Rif. | Cod. | Descrizione |
| 1 | 7030040000 | Washer Ø10 UNI-6592 |
| 2 | 7011170000 | Screw M10x35 UNI-5739 |
| 3 | 7380840000 | Three-phase motor |
| 4 | 7370120000 | 3V V-630 Belt |
| 5 | 7408580000 | Pulley OP170 1"3V HOLE 28 |
| 6 | 5010460008 | basis |
| 7 | 5140140008 | handle |
| 8 | 7020080000 | Nut M10 UNI-5588 |
| 9 | 7030040000 | Washer Ø10 UNI-6592 |
| 10 | 7011160000 | Screw M10x30 UNI-5739 |
| 11 | 7030060000 | Washer Ø10X30 UNI-6593 |
| 12 | 7085030000 | Fitting 1"-1/2 MM |
| 13 | 7190010000 | Check valve FM 1/2X1/2 |
| 14 | 3020400000 | Pump unit AB 510 - Substituited by AB515 1123020004 |
| 14 | 3030050000 | Kit Adjustment for AB 515 - 300LT. for Pump Unit Fiac AB510 300LT. |
| 15 | 7011120000 | Screw M10x45 UNI-5739 |
| 16 | 7230010000 | Rilsan tube Ø6X4 |
| 17 | 7100440000 | Pressure reducer |
| 18 | 7081170000 | Fitting 1/2" |
| 19 | 7130150000 | MF ball valve 1/2" |
| 20 | 7020100000 | Nut M12 UNI-5588 |
| 21 | 7030140000 | Washer Ø12 UNI-6592 |
| 22 | 4170050000 | belt guard Kit |
| 23 | 7260030000 | Rotate pivot Ø100X24 |
| 24 | 7011230000 | Screw M12x80 UNI-5739 |
| 25 | 7030200000 | Washer Ø12X36X2,5 UNI-6593 |
| 26 | 7330010000 | wheel spacer |
| 27 | 7260080000 | Wheel Ø250X70 F20 |
| 28 | 7030140000 | Washer Ø12 UNI-6592 |
| 29 | 7020100000 | Nut M12 UNI-5588 |
| 30 | 7130160000 | Draining tap M3/8" |
| 31 | 7090030000 | Cap M1/2" |
| 32 | 7030060000 | Washer Ø10X30 UNI-6593 |
| 33 | 7020080000 | Nut M10 UNI-5588 |
| 34 | 7328690000 | Cable Pressure Switch / Motor |
| 35 | 7328700000 | power cable |
| 36 | 7082690000 | A fitting "T" 8.3 MFM |
| 37 | 7110060000 | manometer |
| 38 | 7192090000 | Valve Sic. 3.8"10,4BAR |
| 39 | 7250490000 | pressure Switch |
| 40 | 7085460000 | Fitting 1/2"F-3/8" M |
| 41 | 7235240000 | tube feeding |
| 42 | 7085020000 | Fitting 1/2"-3/8" MF |
| 43 | 5159560008 | 270lt tank |
| 44 | 7090070000 | Cap M1/4" |
| 017A | 7100230000 | Pressure reducer Ted |
| 017B | 7100240000 | Pressure reducer Orion |
