Femi Spare Parts for Wood Mitre Saw TR 250-8426125

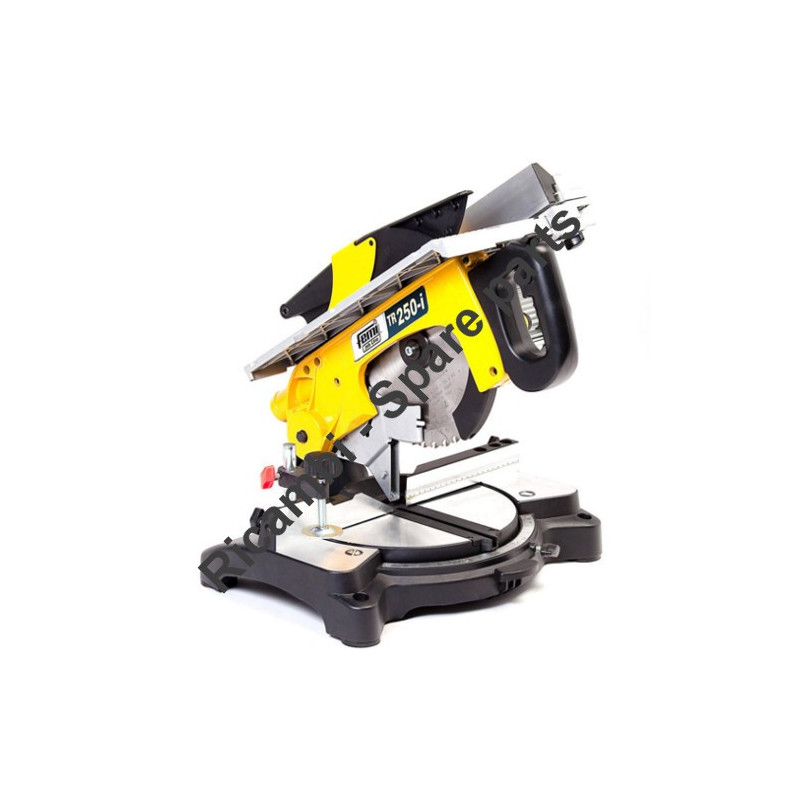

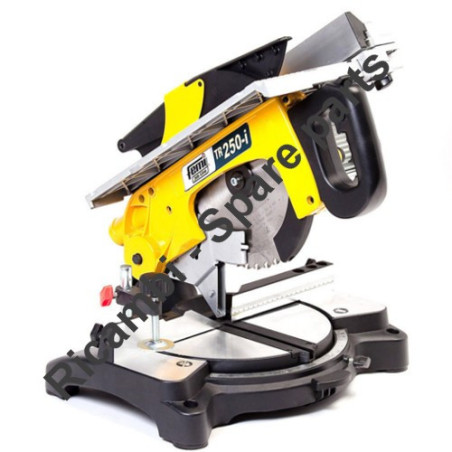

Femi genuine spare parts for replacing or repairing Mitre Saw for Wood TR 250-8426125.Mitre saws with shelf Ø 250 mm Femi TR250.
Suitable for cutting various types of wood with dimensions of maximum cutting WxH 150 x 50 mm and make longitudinal cuts of a maximum height of 40 mm
- Longitudinal cuts
- Precise cuts
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Wood Mitre Saw TR 250-8426125
Femi genuine spare parts for replacing or repairing Wood Mitre Saw TR 250-8426125
In the following table, look for the model of the Mitre Saw and the respective parts of the code.
| Wood Mitre Saw TR 250-8426125 | ||
| # | Part Num. | Description |
| 1 | 4130420 | UPPER TABLE |
| 6 | 5130421 | SQUARE |
| 8 | 5871040 | CABLE |
| 10 | 5130417 | SQUARE |
| 12 | 5130433 | GUIDE |
| 13 | 5130432 | BRACKET |
| 14 | 0107004 | WING NUT |
| 16 | 5100143 | SPACER |
| 18 | 7130587 | LINKAGE ASS'Y |
| 19 | 5080130 | SPRING |
| 24 | 5182543 | SWITCH COVER |
| 25 | 7820118 | ELECTRONIC CARD |
| 26 | 5182858 | SWITCH BOX |
| 27 | 5182850 | MOTOR COVER |
| 29 | 5042794 | MITRE-SAW BODY |
| 32 | 5154103 | CABLE LOCKING DEVICE |
| 33 | 5137847 | RIVING KNIFE SUPPORT |
| 34 | 5183068 | RIVING KNIFE |
| 35 | 5130767 | UPPER TABLE REAR GUIDE |
| 38 | 5133008 | RIVING KNIFE PLATE |
| 39 | 0120206 | WASHER |
| 40 | 0107004 | KNOB |
| 41 | 5100147 | NUT |
| 42 | 5120655 | SPACER |
| 43 | 0151136 | SNAP RING |
| 44 | 0155148 | THICKNESS WASHER |
| 45 | 7130586 | LEVER AND PROTECTION ASS'Y |
| 47 | 5182827 | CONDENSATOR COVER |
| 48 | 5063026 | BUSHING |
| 49 | 0526203 | BALL BEARING |
| 50 | 0151040 | SNAP RING |
| 51 | 0840029 | CONDENSATOR |
| 53 | 0151512 | SPRING RING |
| 54 | 5112027 | MOTOR FAN |
| 55 | 5081024 | SPRING |
| 56 | 5152066 | BRAKE PIN |
| 57 | 0526201 | BALL BEARING |
| 60 | 5050126 | HANDLE GRIP ASS'Y (5050145+5050146+5143018 ) |
| 61 | 7801074 | MOTOR BODY |
| 62 | 0802611 | SWITCH |
| 63 | 5142071 | LEVER |
| 64 | 5143015 | RELEASE BUTTON |
| 65 | 5081022 | SPRING |
| 66 | 5143016 | SAFETY BUTTON |
| 67 | 5143014 | SAFETY BUTTON |
| 68 | 5050127 | (included into code 5050145+5050146+5143018 ) |
| 69 | 7013141 | ROTOR |
| 70 | 5061037 | BLADE BUSHING |
| 71 | 5190291 | WHEEL FLANGE |
| 72 | 0120714 | PLAIN WASHER |
| 73 | 0120308 | WASHER |
| 74 | 0320826 | SOCKET HEAD SCREW |
| 75 | 5120649 | SPACER |
| 76 | 5080129 | SPRING |
| 78 | 5138012 | UPPER TABLE RACK |
| 79 | 5401404 | GRADUATE PLATE |
| 80 | 7130586 | LEVER AND PROTECTION ASS'Y |
| 81 | 5170001 | PROTECTION LOCKING PIN |
| 82 | 5100146 | NUT |
| 85 | 0151405 | SNAP RING |
| 86 | 5081016 | SPRING |
| 87 | 5141009 | ADJUSTING HANDWHEEL |
| 89 | 5181665 | UPPER PROTECTION |
| 91 | 5181670 | MOBILE PROTECTION |
| 93 | 5137846 | JOINT |
| 94 | 5124042 | WASHER |
| 95 | 5182900 | PLASTIC COVER |
| 97 | 7130623 | JOINT ASS'Y |
| 98 | 5063031 | BUSH |
| 99 | 5080121 | SPRING |
| 100 | 0150616 | CYLINDRIC PIN |
| 101 | 5181644 | PROTECTION |
| 103 | 0147006 | HAND LEVER |
| 104 | 5120646 | SPACER |
| 105 | 0450880 | TIE ROD |
| 107 | 5181673 | PROTECTION |
| 109 | 5159514 | JOINT INDEX |
| 110 | 5170530 | JOINT PIN |
| 111 | 0152319 | SPRING PIN |
| 112 | 0140078 | WING NUT |
| 114 | 5181643 | PROTECTION |
| 117 | 0063035 | BUSHING |
| 119 | 5182569 | SUPPORT COVER |
| 120 | 5138002 | SWIVEL SUPPORT |
| 123 | 5121552 | SPACER |
| 124 | 5137793 | REST FOOT |
| 126 | 5133003 | SLIDING BRACKET |
| 127 | 5142096 | RELEASE LEVER |
| 128 | 5171077 | SWIVEL SUPPORT PIN |
| 130 | 5081012 | SPRING |
| 131 | 5401349 | GRADUATE PLATE |
| 134 | 5133733 | MITRE SAW BASE |
| 136 | 0080257 | SPRING WASHER |
| 140 | 5137902 | ANGULAR BRACKET |
| 186 | 0106115 | SELF-LOCKING RING NUT |
| 500 | 7130661 | Short Upper Guide Assy include: 5130421-5130417-5130433 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi TR 250 - 8426125
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
