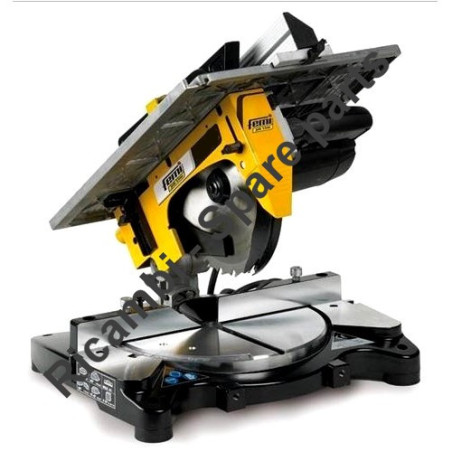

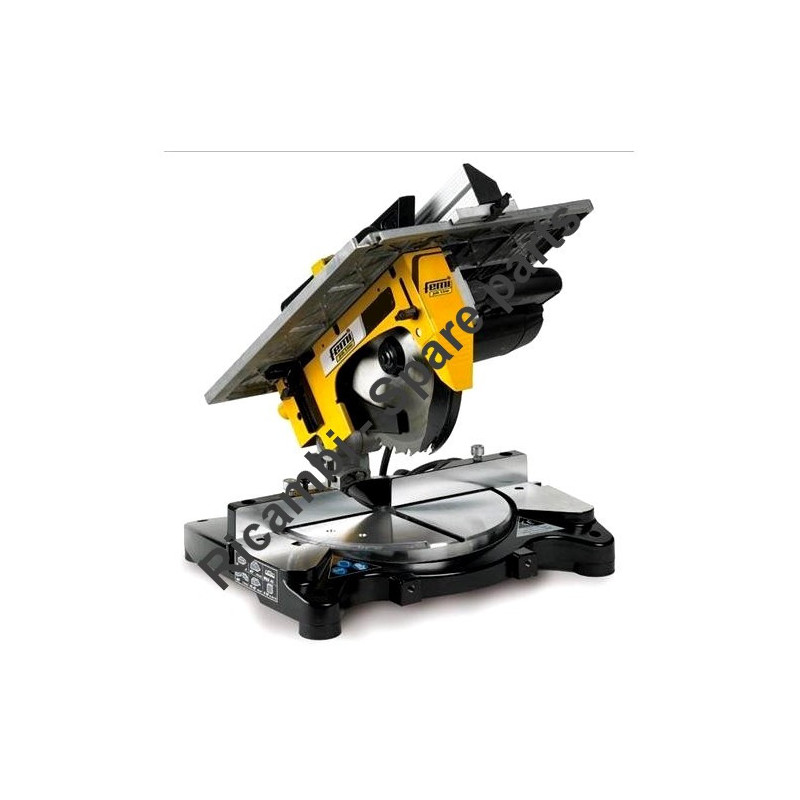

Femi Spare Parts for Wood Mitre Saw TR 300-8436124
€41.73
Tax included
Femi Spare Parts for Wood Mitre Saw TR 300 - 8436124
We supply original FEMI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Mitre Saw TR 300 - 8436124.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Wood Mitre Saw TR 300 - 8436124
We supply original FEMI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Mitre Saw TR 300 - 8436124.
In the following table, look for the model of the Mitre Saw and the respective parts of the code.
| Wood Mitre Saw TR 300 - 8436124 | ||
| # | Part Num. | Description |
| 1 | 4130441 | UPPER TABLE |
| 6 | 5130421 | SQUARE |
| 8 | 5871040 | CABLE |
| 10 | 5130417 | SQUARE |
| 12 | 5130433 | GUIDE |
| 13 | 5130432 | BRACKET |
| 14 | 0107004 | WING NUT |
| 16 | 5100143 | SPACER |
| 18 | 7130587 | LINKAGE ASS'Y |
| 19 | 5080130 | SPRING |
| 24 | 5182543 | SWITCH COVER |
| 25 | 7820118 | ELECTRONIC CARD |
| 26 | 5182858 | SWITCH BOX |
| 27 | 5182850 | MOTOR COVER |
| 29 | 5042769 | MITRE-SAW BODY |
| 32 | 5154103 | CABLE LOCKING DEVICE |
| 33 | 5137847 | RIVING KNIFE SUPPORT |
| 34 | 5183068 | RIVING KNIFE |
| 35 | 5130767 | UPPER TABLE REAR GUIDE |
| 38 | 5133008 | RIVING KNIFE PLATE |
| 39 | 0120206 | WASHER |
| 40 | 0140070 | KNOB |
| 41 | 5100147 | NUT |
| 42 | 5120655 | SPACER |
| 43 | 0151136 | SNAP RING |
| 44 | 0155148 | THICKNESS WASHER |
| 45 | 7130586 | LEVER AND PROTECTION ASS'Y |
| 47 | 5182827 | CONDENSATOR COVER |
| 48 | 5063026 | BUSHING |
| 49 | 0526203 | BALL BEARING |
| 50 | 0151040 | SNAP RING |
| 51 | 0840029 | CONDENSATOR |
| 53 | 0151512 | ELASTIC RING |
| 54 | 5112027 | MOTOR FAN |
| 55 | 5081024 | SPRING |
| 56 | 5152066 | BRAKE PIN |
| 57 | 0536201 | BALL BEARING |
| 60 | 5050145 | RIGHT HANDLE |
| 61 | 7801074 | MOTOR BODY |
| 62 | 0802611 | SWITCH |
| 63 | 5142071 | LEVER |
| 64 | 5143015 | RELEASE BUTTON |
| 65 | 5081022 | SPRING |
| 66 | 5143016 | SAFETY BUTTON |
| 67 | 5143014 | SAFETY BUTTON |
| 68 | 5050146 | LEFT HANDLE |
| 69 | 7013141 | ROTOR |
| 70 | 5061037 | BLADE BUSHING |
| 71 | 5190291 | WHEEL FLANGE |
| 72 | 0120714 | PLAIN WASHER |
| 73 | 0120308 | WASHER |
| 74 | 0320826 | SOCKET HEAD SCREW |
| 75 | 5120649 | SPACER |
| 76 | 5080129 | SPRING |
| 78 | 5138012 | UPPER TABLE RACK |
| 80 | 7130586 | LEVER AND PROTECTION ASS'Y |
| 81 | 5170001 | PROTECTION LOCKING PIN |
| 82 | 5100146 | NUT |
| 85 | 0151405 | SNAP RING |
| 86 | 5081016 | SPRING |
| 87 | 5141009 | ADJUSTING HANDWHEEL |
| 89 | 5181665 | UPPER PROTECTION |
| 91 | 5181670 | MOBILE PROTECTION |
| 93 | 5137846 | JOINT |
| 94 | 5124042 | WASHER |
| 95 | 5182900 | PLASTIC COVER |
| 96 | 5080172 | BRAKE SPRING |
| 97 | 7130623 | JOINT ASS'Y |
| 98 | 5063031 | BUSHING |
| 99 | 5080121 | SPRING |
| 100 | 0150616 | CYLINDRIC PIN |
| 101 | 5181644 | PROTECTION |
| 103 | 0147006 | HAND LEVER |
| 104 | 5120646 | SPACER |
| 105 | 0450880 | TIE ROD |
| 107 | 5181819 | LOWER PROTECTION |
| 109 | 5159514 | JOINT INDEX |
| 110 | 5170530 | JOINT PIN |
| 111 | 0152319 | ELASTIC PIN |
| 112 | 0140078 | WING NUT |
| 113 | 0151116 | SNAP RING |
| 114 | 5181643 | PROTECTION |
| 117 | 0063035 | BUSHING |
| 119 | 5182569 | SUPPORT COVER |
| 120 | 5138002 | SWIVEL SUPPORT |
| 123 | 5121552 | SPACER |
| 124 | 5137793 | REST FOOT |
| 126 | 5133003 | SLIDING BRACKET |
| 127 | 5142096 | RELEASE LEVER |
| 128 | 5171077 | SWIVEL SUPPORT PIN |
| 130 | 5081012 | SPRING |
| 131 | 5401349 | GRADUATE PLATE |
| 134 | 5133733 | MITRE SAW BASE |
| 136 | 0080257 | SPRING WASHER |
| 138 | 5121551 | SPACER |
| 139 | 5001561 | SHAFT |
| 140 | 5137902 | ANGULAR BRACKET |
| 141 | 5183067 | RIVING KNIFE |
| 142 | 7130575 | LEVERS ASS'Y |
| 143 | 5182852 | BOX COVER |
| 144 | 5154501 | CABLE LOCKING DEVICE |
| 145 | 5182572 | CABLE COVER |
| 147 | 7820118 | ELECTRONIC CARD |
| 149 | 5182539 | COVER |
| 150 | 5155159 | BRAKE DEVICE |
| 152 | 5182572 | CABLE COVER |
| 155 | 5042825 | MITRE SAW ARM |
| 156 | 5182862 | ARM PROTECTION |
| 157 | 5181666 | LOWER PROTECTION |
| 158 | 0840028 | CAPACITOR |
| 160 | 5182853 | CAPACITOR COVER |
| 163 | 7801090 | MOTOR BODY |
| 164 | 7013151 | ROTOR |
| 166 | 7130585 | LEVER AND PROTECTION ASS'Y |
| 168 | 5190295 | WHEEL FLANGE |
| 170 | 5130797 | FRONT GUIDE |
| 171 | 5181682 | UPPER PROTECTION |
| 173 | 5181821 | FIX PROTECTION |
| 175 | 0120708 | PLAIN WASHER |
| 176 | 5001560 | JOINT SHAFT |
| 177 | 5137872 | JOINT |
| 178 | 5155156 | RUBBER DAMPER |
| 179 | 5159506 | JOINT INDEX |
| 182 | 5124051 | RING |
| 183 | 5080135 | SPRING |
| 184 | 5181822 | FIX PROTECTION |
| 186 | 0106115 | SELF-LOCKING RING NUT |
| 187 | 0080256 | SPRING WASHER |
| 188 | 7130624 | JOINT ASS'Y |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi TR 300 - 8436124
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
