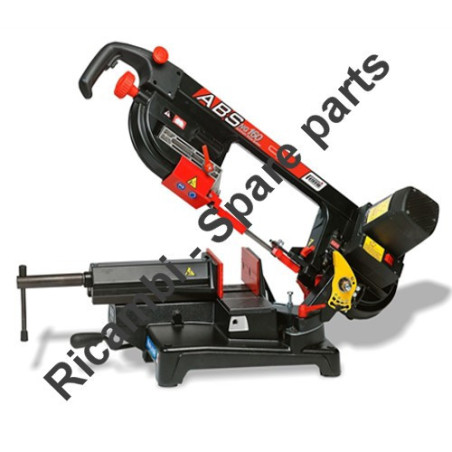

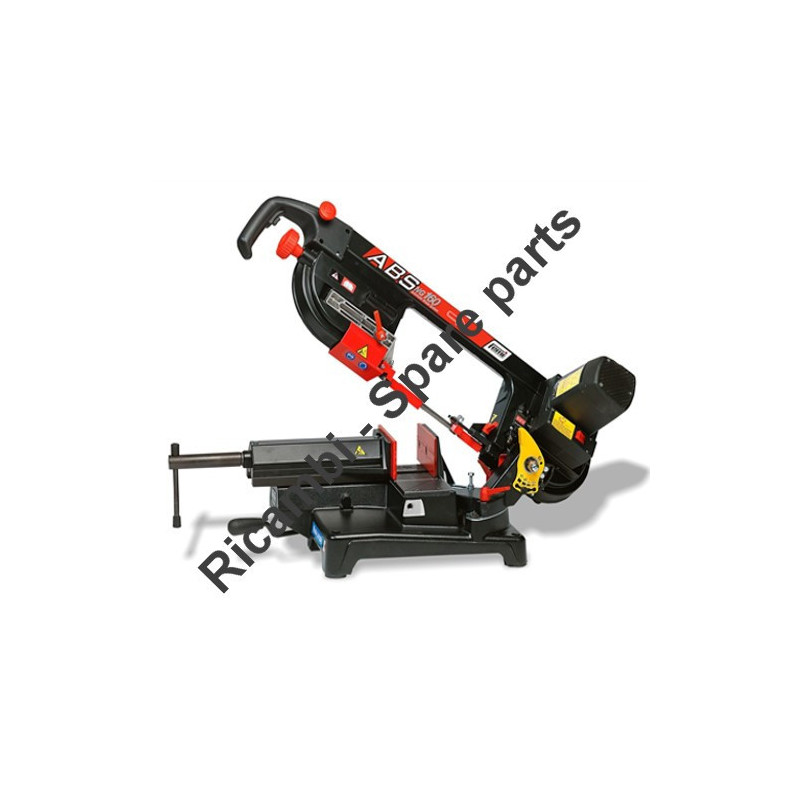

Femi Spare Parts for Transportable Bandsaw ABS NG160-8486080
€6.82
Tax included
Femi Spare Parts for Transportable Band Saws ABS NG160-8486080
Femi original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Transportable Band Saw ABS NG160-8486080.Fully autonomous cutting cycle, push-click system
- Fully autonomous cutting cycle without operator
- Push-click 4 downfeed speeds with mechanical selector
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Transportable Band Saws ABS NG160-8486080
Femi original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Transportable Band Saw ABS NG160-8486080.
In the following table, look for the model of the Band Saw and the respective parts of the code.
| Band Saw ABS NG160-8486080 | ||
| # | Part Num. | Description |
| 3 | 0063040 | BUSHING |
| 4 | 5124050 | WASHER |
| 5 | 0147003 | HAND LEVER |
| 6 | 5042782 | SLIDING VICE |
| 11 | 5159513 | BASE INDEX |
| 12 | 0063037 | BUSHING |
| 13 | 0120718 | PLAIN WASHER |
| 15 | 7130552 | ROD STOP GROUP |
| 16 | 5133684 | BAND SAW BASE |
| 18 | 5124029 | ECCENTRIC |
| 19 | 5404012 | SLIDING SUPPORT PLATE |
| 20 | 0402905 | RIVET |
| 21 | 0144003 | HANDGRIP |
| 23 | 5137796 | BASE |
| 25 | 5130834 | VICE SCREW SUPPORT |
| 26 | 5100329 | SCREW |
| 27 | 5130393 | VICE GUIDE |
| 29 | 5137778 | BRACKET |
| 30 | 5137793 | REST FOOT |
| 31 | 5124056 | WASHER |
| 32 | 5171056 | BUSHING |
| 33 | 0152630 | ELASTIC PIN |
| 34 | 5142080 | VICE LEVER |
| 35 | 0140073 | HANDGRIP |
| 39 | 5130394 | SLIDING VICE GUIDE |
| 40 | 5124048 | WASHER |
| 41 | 0063039 | BUSHING |
| 42 | 0140059 | LEVER COVER |
| 43 | 5130744 | VICE SCREW BRACKET |
| 44 | 5142023 | LEVER |
| 45 | 0152631 | ELASTIC PIN |
| 47 | 5182829 | VICE COVER |
| 50 | 7213008 | FIRST GEAR GROUP |
| 51 | 0606205 | BALL BEARING |
| 54 | 0586200 | BALL BEARING |
| 56 | 0150139 | FEATHER |
| 57 | 5154103 | CABLE LOCKING DEVICE |
| 59 | 5214022 | DRIVING WHEEL |
| 63 | 5001558 | SHAFT |
| 64 | 5137808 | SLIDING DEVICE |
| 65 | 0155149 | THICKNESS WASHER |
| 66 | 0606204 | BALL BEARING |
| 67 | 0155116 | THICKNESS WASHER |
| 69 | 5181736 | PROTECTION |
| 71 | 0140087 | WING NUT |
| 73 | 5124047 | WASHER |
| 75 | 7130593 | BLADE TENSIONING DEVICE GROUP |
| 77 | 0590624 | BALL BEARING |
| 78 | 5181738 | BLADE CLEANER |
| 82 | 5100504 | BLADE TENSIONING SCREW |
| 83 | 5081005 | SPRING |
| 85 | 5130734 | WHEEL GUIDE |
| 86 | 0080259 | SPRING WASHER |
| 88 | 5181737 | CABLE PROTECTION |
| 89 | 5871048 | CABLE |
| 90 | 0802324 | SWITCH |
| 91 | 5181883 | ADDITIONAL PROTECTION SUPPORT |
| 92 | 5181884 | ADDITIONAL FRONT PROTECTION |
| 93 | 5181004 | RUBBER CABLE PROTECTION |
| 95 | 0179901 | NEEDLE |
| 96 | 5042886 | BAND SAW ARM |
| 97 | 7130708 | COMPLETE FRONT BLADE GUIDE |
| 98 | 0147000 | HAND LEVER |
| 99 | 0120706 | PLAIN WASHER |
| 102 | 0120718 | PLAIN WASHER |
| 103 | 0147006 | HAND LEVER |
| 104 | 5130774 | BLADE GUIDE |
| 105 | 0174016 | NEEDLE |
| 106 | 0129004 | INOX STEEL WASHER |
| 107 | 0590634 | BALL BEARING |
| 110 | 0600607 | BALL BEARING |
| 111 | 5100075 | SCREW |
| 112 | 7132524 | COMPLETE REAR BLADE GUIDE |
| 113 | 5120638 | SPACER |
| 114 | 5100074 | SCREW |
| 116 | 5100064 | SCREW |
| 117 | 5100065 | SCREW |
| 118 | 5130771 | GUIDE |
| 120 | 7213004 | GEAR ASSY |
| 121 | 0424060 | SCREW |
| 122 | 5182519 | MOTOR COVER |
| 124 | 7820153 | ex 7820105 ELECTRONIC SPEED REGULATOR |
| 125 | 5850111 | FAN WITH MAGNETIC RING |
| 126 | 5870886 | CABLE |
| 127 | 7801646 | MOTOR 93 H50 230 Hz50 C/K FEMI 100899 (ROV) |
| 129 | 5154501 | CABLE LOCKING DEVICE |
| 132 | 5850006 | CARBON BRUSHE HOLDER |
| 133 | 0802316 | SWITCH |
| 135 | 5182504 | SWITCH COVER |
| 136 | 0168507 | PLASTIC CAP |
| 137 | 0801101 | MICROSWITCH |
| 138 | 5081008 | SPRING |
| 139 | 0168513 | PLASTIC CAP |
| 141 | 5130833 | MICROSWITCH BRACKET |
| 142 | 5130806 | BRACKET GUIDE |
| 145 | 0816004 | RADIO INTERFERENCE SUPPRESSOR |
| 148 | 5182505 | GEAR COVER |
| 149 | 7013145 | ROTOR ARMATURE |
| 151 | 5182839 | MOTOR COVER |
| 152 | 0586200 | BALL BEARING |
| 157 | 7213005 | GEAR ASSY |
| 158 | 0731212 | NEEDLE BEARING |
| 159 | 0124026 | THICKNESS WASHER |
| 162 | 5850110 | CARBON BRUSHE SET |
| 164 | 5080129 | SPRING |
| 165 | 5171090 | SELECTOR PIN |
| 167 | 5130494 | CAM SUPPORT |
| 168 | 5130495 | THROTTLE SUPPORT |
| 170 | 0801211 | END-RUN MICROSWITCH - 0801216 |
| 171 | 7130704 | HANDLE COMPLETE GROUP |
| 173 | 5124091 | RUBBER WASHER |
