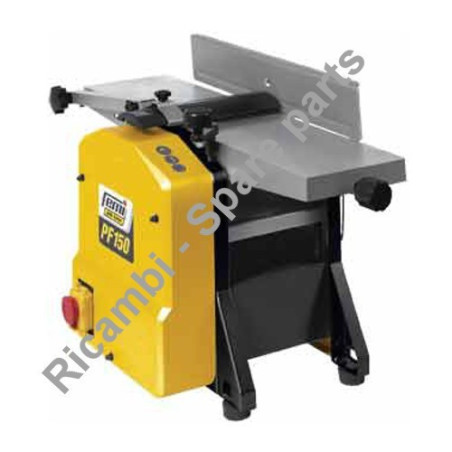

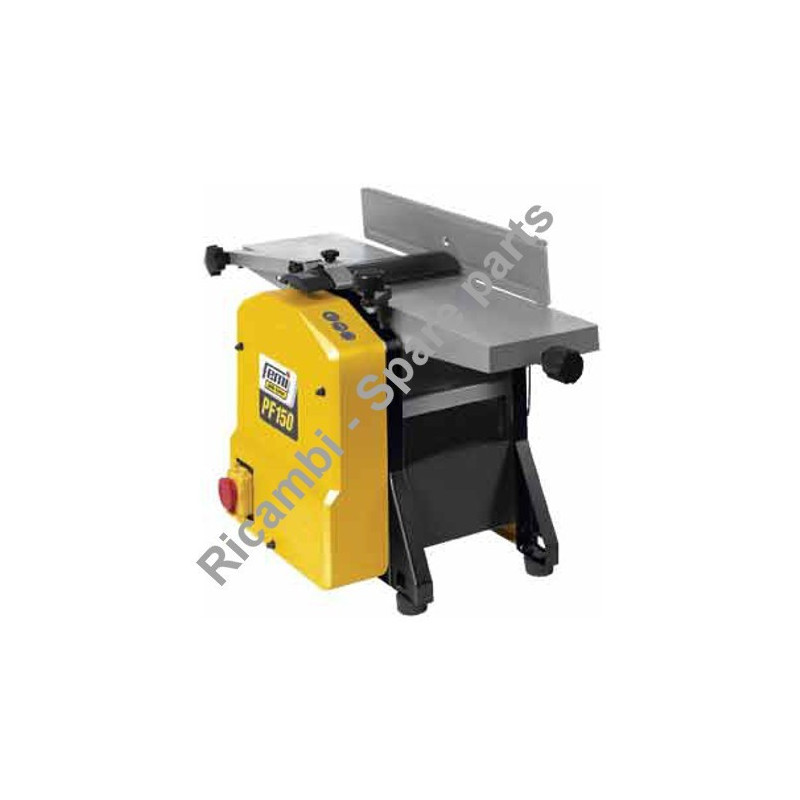

Spare Parts for Thickness Planer FEMI PF150
€1.10
Tax included
Spare Parts for Thickness Planer FEMI PF150
Femi Genuine spare parts or replacement parts for to repair Surface Tickness Planer PF150 - 8446121.Fix Your Surface Tickness Planer PF150. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Spare Parts for Thickness Planer FEMI PF150
Fix Your Surface Tickness Planer PF150 - 8446121. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the type of the Planer and theirs spare parts code.
| Thickness Planer FEMI PF150 - 8446121 | ||
| # | Part Num. | Description |
| 2 | 5130890 | CABLE SUPPORT |
| 3 | 5133739 | RIGHT PANEL |
| 3-1 | 5182891 | RIGHT PANEL COVER |
| 6 | 5133568 | RUBBER FOOT |
| 7 | 5133728 | BASE |
| 13 | 5130469 | ADJUSTING DEVICE |
| 14 | 5100081 | SCREW |
| 15 | 5213100 | CHAIN |
| 16 | 5141014 | ADJUSTING HANDWHEEL ex 5044000 |
| 17 | 5044000 | HANDWHEEL CAP |
| 18 | 5100341 | SCREW |
| 19 | 5130466 | MOBILE WORKING TABLE |
| 19-1 | 5301121 | BASE INSERT |
| 19-2 | 5301024 | BASE INSERT |
| 20 | 5159521 | INDEX |
| 24 | 5213000 | CHAIN WHHEL |
| 29 | 5063050 | BUSHING |
| 31 | 5133727 | LEFT PANEL |
| 32 | 5402002 | GRADUATE PLATE |
| 40 | 5121561 | SPACER |
| 42 | 5153505 | CABLE LOCKING DEVICE |
| 44 | 0215112 | BELT |
| 48 | 5121562 | SPACER |
| 48-1 | 5121563 | SPACER |
| 51 | 5871075 | CABLE |
| 52 | 5100155 | RING NUT |
| 53 | 5100002 | SCREW |
| 54 | 5063013 | BUSHING |
| 54-1 | 5124003 | SPACER |
| 54-2 | 5080164 | SPRING |
| 54-3 | 5171003 | PROTECTION PIN |
| 54-4 | 5063019 | BUSHING |
| 54-5 | 5402220 | GRADUATE PLATE |
| 57 | 5871008 | CABLE |
| 58 | 5182892 | LEFT PANEL COVER |
| 58-1 | 5182895 | TOOL BOX |
| 58-2 | 5182567 | TOOL BOX COVER |
| 59 | 5182893 | SWITCH BOX |
| 61 | 0816002 | THERMAL RELAY |
| 66 | 0802624 | SWITCH |
| 66 | 0802617 | SWITCH |
| 69 | 5124087 | WASHER |
| 70 | 5213002 | CHAIN WHHEL |
| 71 | 5066000 | BUSHING |
| 72 | 5090100 | WHEEL GEAR |
| 74 | 5090101 | WHEEL GEAR |
| 74-2 | 5063051 | BUSHING |
| 75 | 5130893 | GEAR BRACKET |
| 76 | 5081031 | SPRING |
| 77 | 5171004 | WHEEL PIN |
| 81 | 5213001 | CHAIN WHHEL |
| 82 | 5213101 | CHAIN |
| 83 | 5171031 | WHEEL PIN |
| 86 | 0214100 | BELT |
| 87 | 5130894 | BRACKET |
| 91 | 5214000 | DRIVING WHEEL |
| 92 | 7801618 | MOTOR |
| 94 | 5182897 | BEARING PROTECTION |
| 97 | 5130903 | SHAFT |
| 100 | 5130904 | ROLLER |
| 102 | 5130888 | ROLLER |
| 103/116 | 5081030 | SPRING |
| 104 | 5066002 | SPECIAL BEARING |
| 107 | 5159014 | RATCHETS |
| 109 | 5130892 | KNIFE BRACKET |
| 111 | 5130891 | KNIFE ROLLER |
| 111-2 | 5001503 | KNIVES HOLDER SHAFT |
| 112 | 5100004 | BLADE SCREW |
| 115 | 5182806 | KNIFE PROTECTION |
| 117 | 5159520 | INDEX |
| 118 | 5130467 | FRONT WORKING TABLE |
| 121 | 5140003 | HANDLE |
| 122 | 5130897 | KNIFE PROTECTION GUIDE |
| 123 | 5140004 | HANDLE |
| 124 | 5401999 | GRADUATE PLATE |
| 125 | 5100082 | SCREW |
| 126 | 5044031 | SIDE CAP |
| 127 | 5137985 | KNIFE PROTECTION SUPPORT |
| 127-1 | 5044030 | SIDE CAP |
| 128 | 5124086 | WASHER |
| 129 | 5140005 | HANDLE |
| 131 | 0801205 | SAFETY MICROSWITCH |
| 132 | 5130471 | MICROSWITCH BRACKET |
| 133 | 5100083 | SCREW |
| 134 | 5171001 | END RUN PIN |
| 135 | 5100340 | SCREW |
| 139 | 5130468 | REAR WORKING TABLE |
| 140 | 5181809 | KNIFE PROTECTION |
| 141 | 5140057 | KNOB |
| 152 | 7130644 | COMPLETE UPPER GUIDE (ALU) |
| 153 | 5182566 | KNOB SUPPORT |
| 157 | 5182281 | CONVEYOR |
| 158 | 0140102 | MICROSWITCH KEY |
| 159 | 5182565 | CONVEYOR COVER |
| 162 | 3649504 | KEY |
| 500 | 0850103 | CARBON BRUSCHES PAIR |
| 501 | 3280014 | KNIVES |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
FEMI PF150 - 8446121
