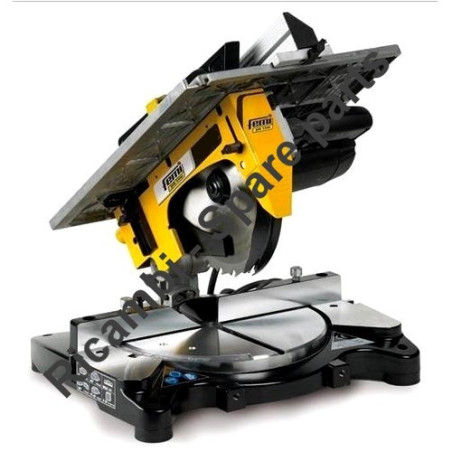

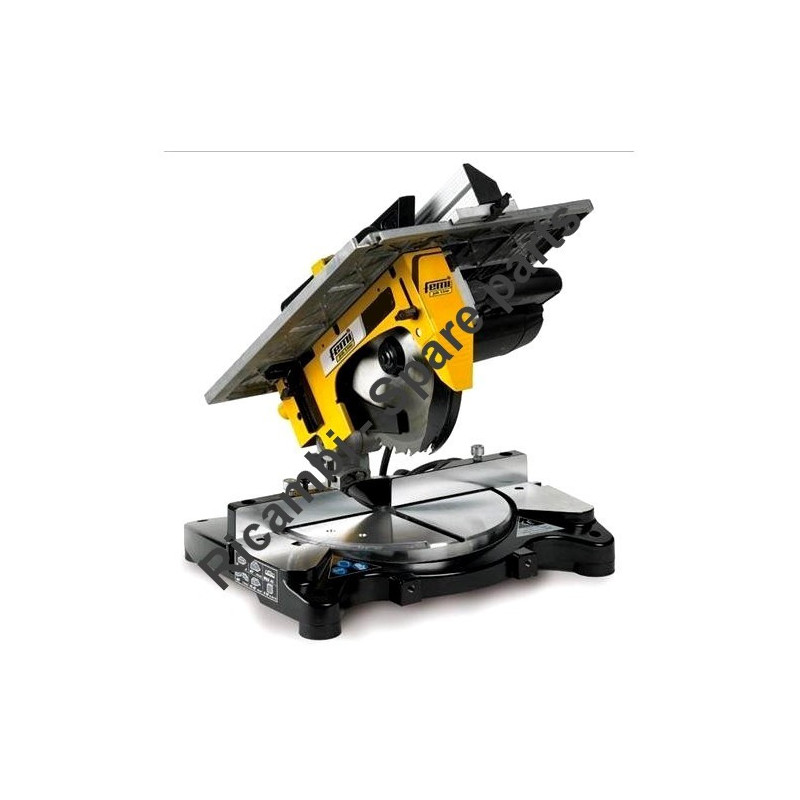

Femi Spare Parts for Mitre Saw TR300-TR300 Alu-8436120-8436220
€133.82
Tax included
Femi Spare Parts for Mitre Saw TR300-TR300 Alu-8436120-8436220
We supply original FEMI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Miter Saw TR300-TR300 Alu-8436120-8436220.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Mitre Saw TR300-TR300 Alu-8436120-8436220
We supply original FEMI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Wood Miter Saw TR300-TR300 Alu-8436120-8436220.
In the following table, look for the model of the Mitre Saw and the respective parts of the code.
<
| TR300_TR300 Alu-8436120_8436220 | ||
| # | Part Num. | Description |
| 1 | 4130420 | UPPER TABLE |
| 6 | 4130451 | UPPER TABLE GUIDE |
| 8 | 5871040 | CABLE |
| 10 | 5130417 | SQUARE |
| 12 | 5130433 | GUIDE |
| 13 | 5130432 | BRACKET |
| 14 | 0107004 | WING NUT |
| 16 | 5100143 | SPACER |
| 17 | 7130575 | LEVERS ASS'Y |
| 18 | 5183067 | RIVING KNIFE |
| 19 | 5080130 | SPRING |
| 20 | 5182852 | BOX COVER |
| 21 | 5154501 | CABLE LOCKING DEVICE |
| 24 | 7820119 | ELECTRONIC BRAKE CARD |
| 26 | 5182539 | COVER |
| 27 | 5181682 | UPPER PROTECTION |
| 29 | 5182540 | CABLE PROTECTION |
| 32 | 0106115 | SELF-LOCKING RING NUT |
| 34 | 5182874 | ARM PROTECTION |
| 35 | 5130767 | UPPER TABLE REAR GUIDE |
| 37 | 5181666 | LOWER PROTECTION |
| 38 | 5133008 | RIVING KNIFE PLATE |
| 40 | 0140070 | KNOB |
| 41 | 5100147 | NUT |
| 42 | 5120655 | SPACER |
| 43 | 0151136 | SNAP RING |
| 44 | 0155148 | THICKNESS WASHER |
| 45 | 0526203 | BALL BEARING |
| 46 | 0151040 | SNAP RING |
| 48 | 0840028 | CAPACITOR |
| 49 | 7801068 | MOTOR BODY |
| 50 | 5130798 | REAR GUIDE |
| 51 | 5042795 | MITRE-SAW BODY |
| 52 | 0140084 | KNOB |
| 53 | 5182850 | MOTOR COVER |
| 55 | 0151512 | ELASTIC RING |
| 56 | 5112027 | MOTOR FAN |
| 57 | 0526201 | BALL BEARING |
| 60 | 5050126 | HANDLE GRIP ASS'Y (5050145+5050146+5143018 ) |
| 62 | 0802611 | SWITCH |
| 63 | 5142071 | LEVER |
| 64 | 5143007 | (included into code 5143015) |
| 65 | 5081022 | SPRING |
| 66 | 5143009 | (included into code 5143016) |
| 67 | 5143006 | (included into code 5143014) |
| 68 | 5050127 | (included into code 5050145+5050146+5143018 ) |
| 69 | 7013140 | ROTOR |
| 70 | 5061037 | BLADE BUSHING |
| 71 | 7130585 | LEVER AND PROTECTION ASS'Y |
| 72 | 0120714 | PLAIN WASHER |
| 74 | 0320826 | SOCKET HEAD SCREW |
| 75 | 5182853 | CAPACITOR COVER |
| 76 | 5080129 | SPRING |
| 77 | 5130797 | FRONT GUIDE |
| 78 | 5080122 | SPRING |
| 79 | 5130766 | UPPER TABLE FRONT GUIDE |
| 80 | 5401404 | GRADUATE PLATE |
| 81 | 5170001 | PROTECTION LOCKING PIN |
| 82 | 5100146 | NUT |
| 83 | 7130585 | LEVER AND PROTECTION ASS'Y |
| 85 | 0151405 | SNAP RING |
| 86 | 5081016 | SPRING |
| 87 | 5141009 | ADJUSTING HANDWHEEL |
| 89 | 5181665 | (included into code 5181881) |
| 91 | 5181670 | MOBILE PROTECTION |
| 93 | 0155150 | THICKNESS WASHER |
| 94 | 5001560 | JOINT SHAFT |
| 95 | 5155157 | RUBBER DAMPER |
| 96 | 5137872 | JOINT |
| 97 | 5159506 | JOINT INDEX |
| 101 | 0080256 | SPRING WASHER |
| 102 | 5063031 | BUSH |
| 103 | 5124051 | RING |
| 104 | 5080135 | SPRING |
| 105 | 5181669 | (included into code 5181822) |
| 107 | 0147006 | HAND LEVER |
| 108 | 5120646 | SPACER |
| 109 | 0450880 | TIE ROD |
| 111 | 5181673 | PROTECTION |
| 114 | 5170530 | JOINT PIN |
| 116 | 5181668 | (included into code 5181821) |
| 118 | 0063035 | BUSHING |
| 120 | 5137848 | SWIVEL SUPPORT |
| 121 | 0147007 | HAND LEVER |
| 122 | 0151116 | SNAP RING |
| 123 | 5121552 | SPACER |
| 124 | 5137793 | REST FOOT |
| 126 | 5133003 | SLIDING BRACKET |
| 127 | 5142072 | LEVER |
| 128 | 5171023 | SWIVEL SUPPORT PIN |
| 129 | 0152319 | SPRING PIN |
| 130 | 5081012 | SPRING |
| 131 | 5401349 | GRADUATE PLATE |
| 133 | 5401417 | GRADUATE PLATE |
| 134 | 5133692 | (not more available) |
| 137 | 0080258 | SPRING WASHER |
| 138 | 5121551 | SPACER |
| 129 | 0140084 | KNOB |
| 139 | 5182544 | COVER |
| 142 | 7130624 | JOINT ASS'Y |
| 144 | 5190295 | WHEEL FLANGE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi TR300 8436120 - 8436220
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
