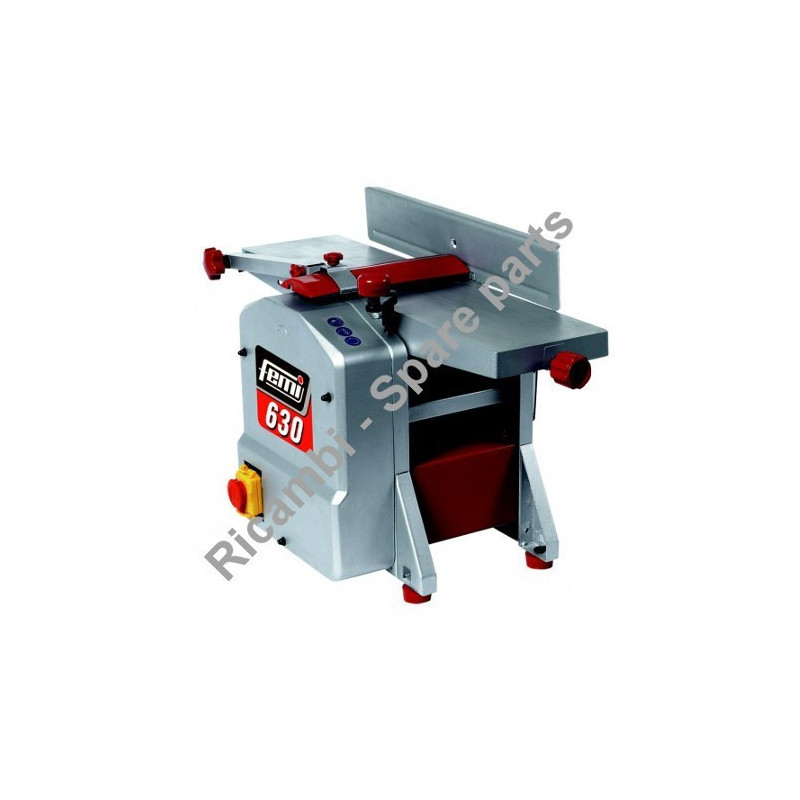

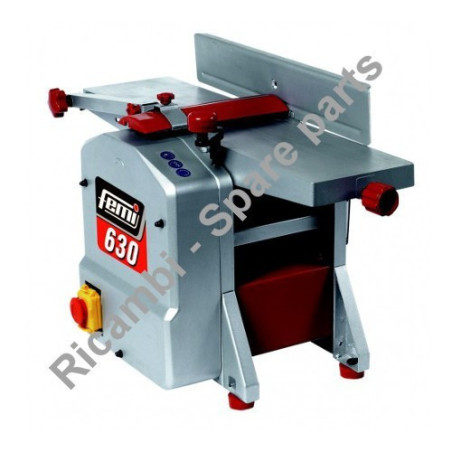

Spare Parts for Thickness Planer FEMI 630
€2.40
Tax included
Spare Parts for Thickness Planer FEMI 630
Femi Original spare parts at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Surface Tickness Planer FEMI 630 - 8440022.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Spare Parts for Thickness Planer FEMI 630
Femi Original spare parts at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Surface Tickness Planer FEMI 630 - 8440022.
In the following table, look for the type of the Planer and theirs spare parts code.
| Thickness Planer FEMI 630 | ||
| # | Part Num. | Description |
| 6 | 5133568 | RUBBER FOOT |
| 7 | 5133740 | BASE |
| 13 | 5130469 | ADJUSTING DEVICE |
| 14 | 5100081 | SCREW |
| 15 | 5213103 | CHAIN |
| 16 | 5141014 | ADJUSTING HANDWHEEL |
| 17 | 5044000 | HANDWHEEL CAP |
| 18 | 5100342 | SCREW |
| 19 | 5130477 | MOBILE WORKING TABLE |
| 19-1 | 5301122 | BASE INSERT |
| 19-2 | 5301025 | BASE INSERT |
| 20 | 5159522 | INDEX |
| 24 | 5213003 | CHAIN WHHEL |
| 29 | 5063054 | BUSHING |
| 31 | 5133741 | LEFT PANEL |
| 32 | 5402252 | GRADUATE PLATE |
| 40 | 5121565 | SPACER |
| 42 | 5153506 | CABLE LOCKING DEVICE |
| 44 | 0215114 | BELT |
| 48 | 5121566 | SPACER |
| 51 | 5871082 | CABLE |
| 52 | 5100155 | RING NUT |
| 53 | 5100002 | SCREW |
| 54 | 5063055 | BUSHING |
| 54-1 | 5124089 | WASHER |
| 54-2 | 5080166 | SPRING |
| 54-3 | 5171079 | PIN |
| 54-4 | 5063056 | BUSHING |
| 54-5 | 5402253 | GRADUATE PLATE |
| 57 | 5871009 | CABLE |
| 58 | 5182904 | LEFT SIDE PROTECTION |
| 59 | 5182893 | SWITCH BOX |
| 61 | 0816002 | THERMAL RELAY |
| 66 | 0802617 | INT.PULS.CABL.230V C / CONT.AUS + MUSHROOM |
| 66 | 0802624 | SWITCH |
| 69 | 5124087 | WASHER |
| 70 | 5213002 | CHAIN WHHEL |
| 71 | 5066000 | BUSHING |
| 72 | 5090100 | WHEEL GEAR |
| 74 | 5090101 | WHEEL GEAR |
| 74-2 | 5063051 | BUSHING |
| 66 | 0802617 | SWITCH |
| 75 | 5130893 | GEAR BRACKET |
| 76 | 5081031 | SPRING |
| 77 | 5171004 | WHEEL PIN |
| 81 | 5213001 | CHAIN WHHEL |
| 82 | 5213101 | CHAIN |
| 83 | 5171031 | WHEEL PIN |
| 86 | 0214100 | BELT |
| 87 | 5130894 | BRACKET |
| 91 | 5214000 | DRIVING WHEEL |
| 92 | 7801619 | MOTOR |
| 94 | 5182906 | BEARING PROTECTION |
| 97 | 5130903 | SHAFT |
| 100 | 5130904 | ROLLER |
| 102 | 5130905 | ROLLER |
| 103/116 | 5081030 | SPRING |
| 104 | 5066002 | SPECIAL BEARING |
| 107 | 5159014 | RATCHETS |
| 109 | 5130907 | KNIFE BRACKET |
| 111 | 5130908 | KNIFE ROLLER |
| 111-2 | 5001503 | KNIFE SUPPORT SHAFT |
| 112 | 5100004 | BLADE SCREW |
| 114 | 5182907 | BEARING PROTECTION |
| 115 | 5182830 | KNIFE PROTECTION |
| 117 | 5159520 | INDEX |
| 118 | 5130460 | FRONT WORK TABLE |
| 121 | 5140003 | HANDLE |
| 122 | 5130897 | KNIFE PROTECTION GUIDE |
| 123 | 5140004 | HANDLE |
| 124 | 5402254 | GRADUATE PLATE |
| 125 | 5100082 | SCREW |
| 127 | 5137985 | KNIFE PROTECTION SUPPORT |
| 127-1 | 5044030 | SIDE CAP |
| 128 | 5124086 | WASHER |
| 129 | 5140005 | HANDLE |
| 131 | 0801205 | SAFETY MICROSWITCH |
| 132 | 5130471 | MICROSWITCH BRACKET |
| 133 | 5100083 | SCREW |
| 134 | 5171001 | END RUN PIN |
| 135 | 5100343 | SCREW |
| 139 | 5130461 | REAR WORKING TABLE |
| 140 | 5181807 | KNIFE PROTECTION |
| 141 | 5140058 | KNOB |
| 152 | 7130646 | COMPLETE UPPER GUIDE (STEEL) |
| 153 | 5182566 | KNOB SUPPORT |
| 157 | 5182282 | CONVEYOR |
| 158 | 0140102 | MICROSWITCH KEY |
| 159 | 5182570 | CONVEYOR COVER |
| 162 | 3649504 | KEY |
| * | 0850103 | CARBON BRUSH PAIR |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
FEMI 630 - 8440022
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
