Femi Spare Parts for Stationary Band Saw 792
€7.02
Tax included

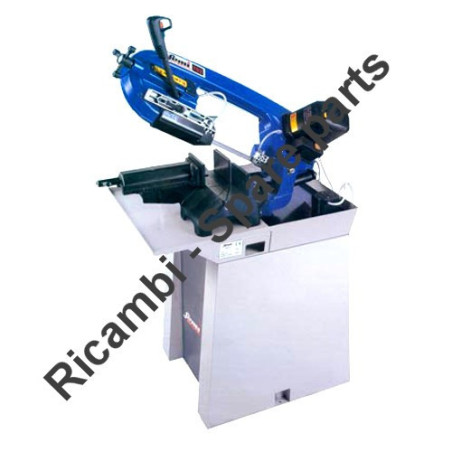

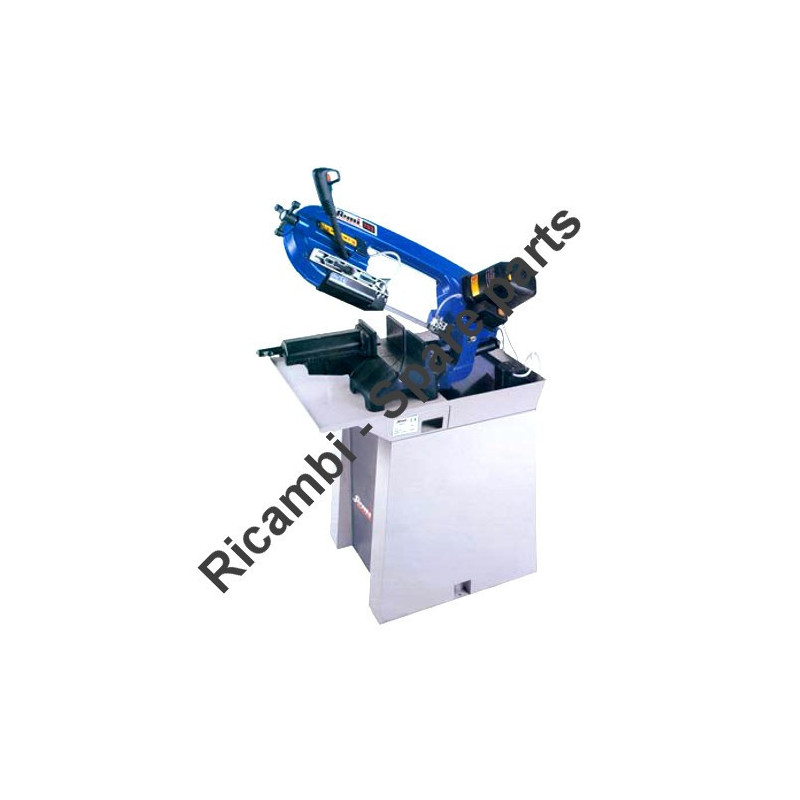

Femi Spare Parts for Stationary Band Saw 792
Femi original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Stationary Band Saw 792 - 8482020.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Stationary Band Saw 792
Femi original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Stationary Band Saw 792 - 8482020.
In the following table, look for the model of Band Saw and the respective parts of the code.
| Stationary Band Saw 792 - 8482020 | ||
| # | Part Num. | Description |
| 1 | 5130796 | STOP PLATE |
| 3 | 0147007 | HAND LEVER |
| 6 | 0147012 | HAND LEVER |
| 7 | 5182532 | COVER |
| 8 | 5152595 | VICE JAW |
| 9 | 5152594 | VICE JAW |
| 11 | 5130800 | VICE SCREW SUPPORT |
| 12 | 5043559 | VICE BODY |
| 14 | 0152630 | ELASTIC PIN |
| 16 | 5152593 | VICE JAW |
| 17 | 5130803 | SLIDING VICE |
| 20 | 0140059 | LEVER COVER |
| 21 | 5152071 | VICE GUIDE |
| 22 | 5171040 | PIN |
| 23 | 5142023 | LEVER |
| 24 | 5100323 | SCREW |
| 25 | 0140073 | HANDGRIP |
| 26 | 5142057 | LEVER |
| 27 | 5171035 | BUSHING |
| 28 | 0152424 | ELASTIC PIN |
| 30 | 5124033 | WASHER |
| 31 | 0120708 | PLAIN WASHER |
| 34 | 5133655 | TANK BASE |
| 35 | 7113524 | ELECTRIC PUMP |
| 36 | 5871038 | CABLE |
| 37 | 7130536 | ROD STOP GROUP |
| 38 | 5182533 | PUMP SUPPORT |
| 39 | 5182534 | TANK FILTER |
| 40 | 5124056 | WASHER |
| 41 | 5130801 | VICE SCREW SUPPORT |
| 42 | 5401661 | PLATE |
| 43 | 0402905 | RIVET |
| 44 | 0124032 | PLAIN WASHER |
| 46 | 5171038 | VICE PIN |
| 47 | 0101716 | SELF-LOCKING NUT |
| 49 | 0606203 | BALL BEARING |
| 50 | 5137868 | SWIVEL SUPPORT |
| 51 | 0606306 | BALL BEARING |
| 52 | 5171039 | JOINT PIN |
| 53 | 5063036 | BUSHING |
| 57 | 5124060 | WASHER |
| 58 | 0606204 | BALL BEARING |
| 60 | 5214224 | FREE WHEEL |
| 61 | 5130746 | GUIDE |
| 62 | 5001562 | SHAFT |
| 63 | 5081007 | SPRING |
| 64 | 5142058 | LEVER |
| 65 | 5100505 | BLADE TENSIONING SCREW |
| 66 | 5120661 | SPACER |
| 68 | 5122017 | SPRING CONTEINER |
| 69 | 5124030 | WASHER |
| 70 | 0064002 | BEARING FIFTH WHEEL |
| 71 | 0711528 | CAGE BEARING |
| 72 | 0140058 | HANDWHEEL |
| 73 | 0080260 | SPRING WASHER |
| 75 | 5222009 | SPRING DUST PROTECTION |
| 76 | 5066016 | BUSHING |
| 77 | 0801101 | MICROSWITCH |
| 78 | 5182842 | SWITCH BOX |
| 80 | 5143005 | MICROSWITCH BUTTON |
| 81 | 5142059 | LEVER |
| 82 | 5182523 | LIGHT PILOT COVER |
| 84 | 0106120 | SELF-LOCKING RING NUT |
| 86 | 5214026 | DRIVING WHEEL |
| 87 | 0155149 | THICKNESS WASHER |
| 88 | 5130795 | WHEEL SUPPORT |
| 90 | 0606204 | BALL BEARING |
| 92 | 0894007 | LIGHT PILOT |
| 93 | 7213006 | GEAR ASSY |
| 94 | 0150139 | WOODRUFF |
| 95 | 0586200 | BALL BEARING |
| 96 | 5024112 | STATOR - FIELD |
| 97 | 5871036 | CABLE |
| 98 | 0606007 | BALL BEARING |
| 99 | 5124054 | SPACER |
| 100 | 5042717 | BANDSAW BODY |
| 101 | 7213005 | GEAR ASSY |
| 102 | 0731212 | NEEDLE BEARING |
| 103 | 0124026 | THICKNESS WASHER |
| 104 | 7213004 | GEAR ASSY |
| 105 | 5850006 | CARBON BRUSHE HOLDER |
| 105A | 5850110 | CARBON BRUSHE SET |
| 106 | 1180304 | MICROSWITCH LEVER |
| 107 | 0168513 | PLASTIC CAP |
| 108 | 0168515 | PLASTIC CAP |
| 109 | 0816004 | RADIO INTERFERENCE SUPPRESSOR |
| 110 | 5182823 | SWITCH BOX |
| 111 | 5081008 | SPRING |
| 112 | 5182843 | MOTOR COVER |
| 113 | 5850111 | FAN WITH MAGNETIC RING |
| 114 | 7820107 | ELECTRONIC SPEED REGULATOR |
| 115 | 5182525 | COVER |
| 117 | 7801611 | MOTOR ASSEMBLY |
| 119 | 0816005 | RADIO INTERFERENCE SUPPRESSOR |
| 120 | 5061041 | RUBBER BUSHING |
| 121 | 7013134 | ROTOR |
| 122 | 5061038 | RUBBER BUSHING |
| 124 | 0181018 | FAIRLEAD |
| 125 | 0181021 | FAIRLEAD |
| 127 | 5154501 | CABLE LOCKING DEVICE |
| 129 | 5182504 | SWITCH COVER |
| 130 | 0802319 | SWITCH |
| 131 | 0140077 | WING NUT |
| 132 | 5181648 | BLADE PROTECTION |
| 133 | 0123315 | RUBBER WASHER |
| 134 | 1855803 | COOLING LIQUID PIPE |
| 135 | 5181688 | CABLE PROTECTION |
| 138 | 5152596 | PROTECTION FIXING DEVICE |
| 139 | 7130567 | INTERNAL BEARING GROUP |
| 141 | 5871056 | CABLE |
| 142 | 5050121 | HANDLE |
| 143 | 0802317 | SWITCH |
| 144 | 5050122 | HANDLE COVER |
| 145 | 0241367 | PIPE FITTING |
| 146 | 5871060 | CABLE |
| 148 | 5154103 | CABLE LOCKING DEVICE |
| 150 | 5171037 | PROTECTION PIN |
| 151 | 5142069 | LEVER |
| 153 | 0241443 | PIPE FITTING |
| 154 | 1855805 | COOLING LIQUID PIPE |
| 155 | 0241366 | PIPE FITTING |
| 156 | 5142030 | LEVER |
| 159 | 5151506 | DAMPER FULCRUM |
| 161 | 5171041 | DAMPER PIN |
| 165 | 5173027 | TIE ROD |
| 166 | 5155155 | DAMPER |
| 167 | 5040010 | DAMPER BODY |
| 168 | 5124061 | WASHER |
| 169 | 5080124 | SPRING |
| 170 | 5124038 | WASHER |
| 171 | 7130572 | COMPLETE DAMPER GROUP |
| 173 | 5181627 | PROTECTION |
| 174 | 5181017 | BLADE CLEANER |
| 176 | 0241442 | PIPE FITTING |
| 179 | 5120638 | SPACER |
| 180 | 0600607 | BALL BEARING |
| 181 | 5100070 | SCREW |
| 182 | 5130747 | SUPPORT |
| 183 | 0600626 | BALL BEARING |
| 185 | 0124027 | THICKNESS WASHER |
| 186 | 5130742 | BLADE GUIDE |
| 187 | 5100069 | SCREW |
| 188 | 0063025 | BUSHING |
| 189 | 0124029 | PLAIN WASHER |
| 190 | 0147002 | HAND LEVER |
| 191 | 5181683 | SLIDING PROTECTION |
| 192 | 5181018 | BLADE CLEANER |
| 193 | 5181628 | PROTECTION |
| 195 | 5130747 | SUPPORT |
| 196 | 7820110 | BLADE TENSIONING DEVICE COVER |
| 197 | 0840202 | TRANSFORMER |
| 198 | 0810003 | MAGNETOTHERMIC SWITCH |
| 199 | 5137884 | CONTROL PANEL BASE |
| 200 | 5401565 | ELECTRIC BOX PANEL |
| 201 | 0820010 | SPEED COMMUTATOR |
| 202 | 5137883 | CONTROL PANEL BASE |
| 203 | 5070001 | CONTROL PANEL SUPPORT |
| 204 | 0806007 | PUSH BUTTON WITH LOCK |
| 205 | 7213012 | GEAR GROUP |
| 206 | 0586200 | BALL BEARING |
| 207 | 5090119 | WHEEL GEAR |
| 211 | 5182545 | GEAR COVER |
| 213 | 7013626 | ROTOR |
| 214 | 5182866 | SWITCH BOX |
| 215 | 5081008 | SPRING |
| 217 | 0801101 | MICROSWITCH |
| 218 | 7801076 | MOTOR BODY |
| 219 | 0112014 | MOTOR FAN |
| 220 | 5182849 | FAN COVER |
| 221 | 5182546 | SWITCH COVER |
| 223 | 0806006 | VOLTAGE COIL |
| 224 | 0811001 | MINI-CONTACTOR |
| 225 | 5061042 | BEARING SPACER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi 792 - 8482020
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
