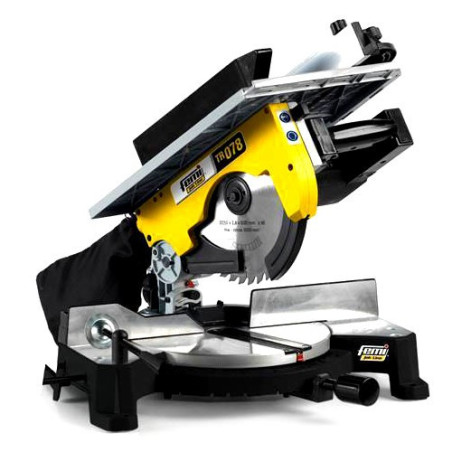

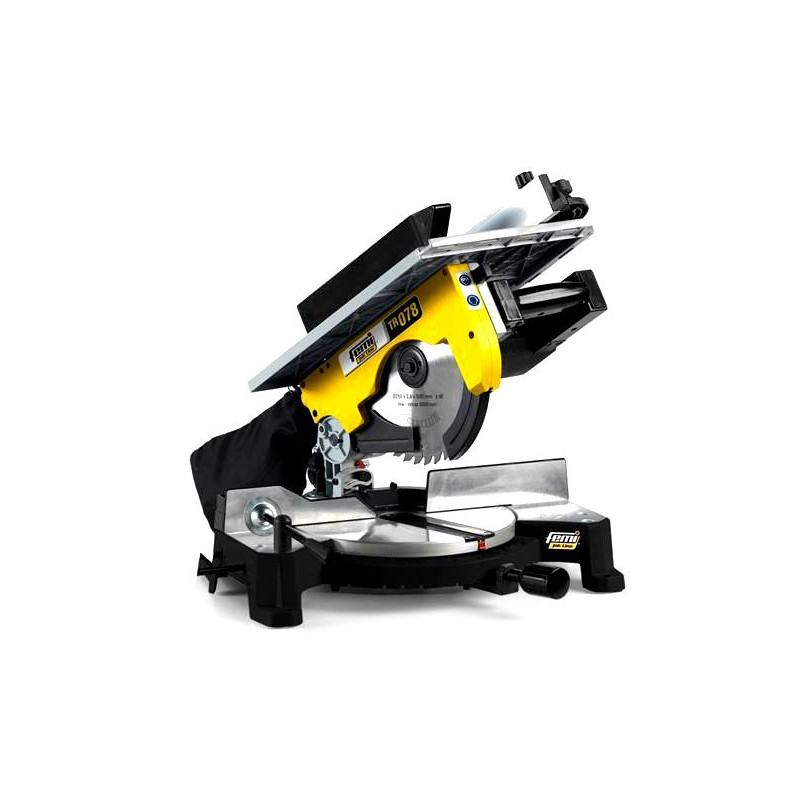

Miter Saw for Wood Femi TR078

Miter Saw for Wood Femi TR078

Upper Table cast aluminum maximum size.

Features:
- Maximum cutting capacity: 145 x 70 mm. at 0 ° and 100 x 70 mm. at 45 °.
- Wide support base rectified cast aluminum,
with easy and convenient adjustment of cutting and additional sidebars
for optimum support also of significant length tables.
- Start-stop button on the handle for easy and safe use
- Large worktop (406x302mm) with top rail
complete with integrated goniometer for also tilted trimming boards.
- With locking adjustable cutting angles every 5 ° and mechanical stop at 0 ° and 45 °.
- Great safety due to anti-recovery system.
- Horizontal clamp pieces including stops.

Technical features
- Motor: 1800W 230V
- Speed: 4500giri / min
- Upper table dimensions: 406x302mm
- Blade size: ø 250 mm x 30 mm hole ø
- Gearing blade: Z 40
- Cross cut at 90 °: 70x145 mm
- 45 ° bevel cut: 70x100 mm
- Cut at 45 °: 45x145 mm
- Cutting compound: 50x55 mm
- The right and left cutting Arrests: 0 ° -45 ° every 5 °
- Arrests of inclination: 0 ° and 45 °
- Weight: 15.5 kg
- Package dimensions: 500x445x350 mm

Inclese:
- wood pusher
- Horizontal clamp
- Built-in protractor ruler
- Side and rear extensions of the plan
