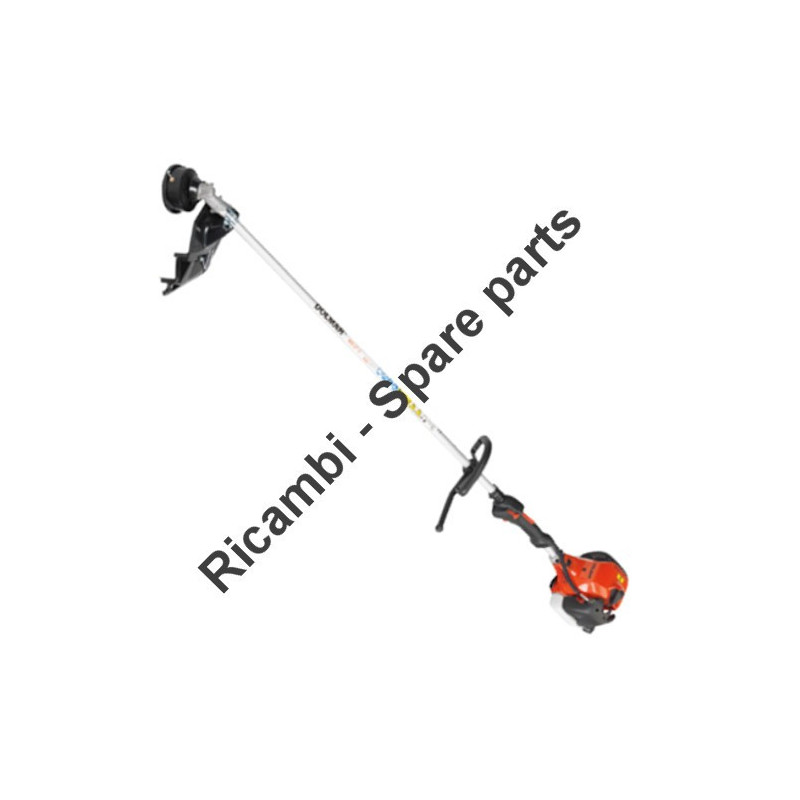

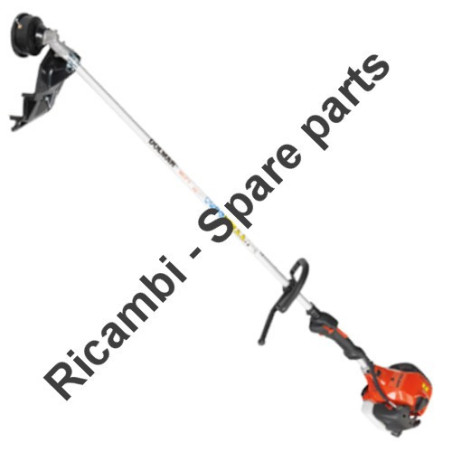

Dolmar Spare Parts for Brush Cutter MS-27C
€3.72
Tax included
Dolmar Spare Parts for Brush Cutter MS-27C
DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brush Cutter MS-27C.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Dolmar Spare Parts for Brush Cutter MS-27C
DOLMAR Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brush Cutter MS-27C.
In the following table, look for the model of the Brush Cutter and the respective parts of the code.
| Brush Cutter MS-27C - pag.1 | ||
| # | Part Num. | Description |
| 1 | DA00000379 | RECOIL STARTER ASS'Y |
| 2 | DA00000380 | STARTER PULLEY |
| 3 | DA00000096 | SCREW |
| 4 | DA00000064 | SEAL OIL |
| 5 | DA00000381 | SEAL OIL |
| 6 | DA00000382 | CARTER 1 |
| 7 | DA00000383 | CARTER 2 |
| 8 | DA00000384 | BEARING |
| 9 | DA00000385 | PIN |
| 10 | DA00000386 | ECCENTRIC SHAFT |
| 11 | DA00000077 | KEY |
| 12 | DA00000387 | PISTON |
| 13 | DA00000388 | PISTON RING |
| 14 | DA00000073 | CAGE ROLLER 8 |
| 15 | DA00000389 | PISTON PIN |
| 16 | DA00000071 | RING PISTON PIN |
| 17 | DA00000390 | SEAL CARTER |
| 18 | DA00000134 | SCREW M5x30 |
| 19 | DA00000391 | SEAL CYLINDER |
| 20 | DA00000392 | CYLINDER |
| 22 | DA00000080 | M5X20 SCREW |
| 23 | DA00000393 | FLYWHEEL |
| 24 | DA00000394 | IGNITION COIL |
| 25 | DA00000395 | COIL HOLDER |
| 26 | DA00000396 | SCREW M4 |
| 27 | DA00000397 | NUT M6 |
| 28 | DA00000398 | WASHER |
| 29 | DA00000399 | CLUTCH |
| 30 | DA00000400 | WASHER |
| 31 | DA00000401 | SCREW CLUTCH |
| 32 | DA00000402 | CLUTCH DRUM |
| 33 | DA00000404 | CLUTCH HOUSING |
| 34 | DA00000092 | ELASTIC RING |
| 35 | DA00000405 | RUBBER RING |
| 36 | DA00000406 | UPPER HOLDER |
| 37 | DA00000407 | LOWER HOLDER |
| 38 | DA00000408 | SPACER HIGHER |
| 39 | DA00000409 | SPACER LOWER |
| 40 | DA00000410 | SCREW M5x12 |
| 41 | DA00000411 | INSULATING PLATE |
| 42 | DA00000412 | INTAKE MANIFOLD |
| 43 | DA00000413 | CABLE MASS |
| 44 | DA00000137 | SCREW M5x25 |
| 45 | DA00000414 | SEAL CARBURETOR |
| 46 | DA00000415 | INSULATING PLATE |
| 47 | DA00000416 | SEAL CARBURETOR |
| 59 | DA00000425 | SEAL MUFFLER |
| 60 | DA00000426 | MUFFLER |
| 61 | DA00000427 | SCREW M5x50 |
| 62 | DA00000428 | FUEL TANK |
| 63 | DA00000122 | TANK CAP |
| 64 | DA00000117 | PIPE L |
| 65 | DA00000116 | TUBE S |
| 66 | DA00000120 | CLAMP |
| 67 | DA00000523 | FUEL FILTER |
| 68 | DA00000118 | CARBURETOR HOSE GROMMET |
| 69 | DA00000429 | RUBBER FOOT |
| 70 | DA00000430 | RUBBER FOOT |
| 71 | DA00000432 | TAPPING SCREW 4X12 |
| 72 | DA00000431 | HOLDER |
| 73 | DA00000434 | COVER CYLINDER |
| 74 | DA00000435 | MUFFLER COVER |
| 124 | DA00000447 | CARTER 1 + PIN |
| 125 | DA00000448 | CARTER 1 COMPLETE |
| 126 | DA00000449 | CARTER 2 COMPLETE |
| 127 | DA00000451 | CLUTCH HOUSING MS27C |
| 153 | DA00000459 | RETAINING |
| Brush Cutter MS-27C - pag.2 | ||
| 3 | DA00000096 | SCREW |
| 48 | DA00000417 | CARBURETOR |
| 49 | DA00000418 | SEAL CARBURETOR |
| 50 | DA00000419 | LEVER AIR |
| 51 | DA00000420 | PLATE FILTER |
| 52 | DA00000421 | PLATE LEVER AIR |
| 53 | DA00000422 | 3X10 SCREW |
| 54 | DA00000106 | PLATE |
| 55 | DA00000107 | M5X63 SCREW |
| 56 | DA00000198 | WASHER |
| 57 | DA00000423 | AIR FILTER |
| 58 | DA00000424 | AIR CLEANER COVER |
| 128 | DA00000452 | PLATE AIR FILTER COMPLETE |
| 137 | 5246001210 | SCREW ADJUST X DBC260U |
| 138 | 413140-9 | WASHER EBH341U |
| 139 | 5266009020 | SCREW X DBC260U |
| 140 | 257964-1 | RETAINING RING E3 EBH341U |
| 141 | 5266009030 | HOLDER CABLE X DBC260U |
| 143 | 442155-9 | SEAL PUMP EBH341U |
| 144 | 168575-6 | DIAPHRAGM PUMP EBH341U |
| 145 | 5266002010 | BODY PUMP X DBC260U |
| 146 | 352010-6 | EBH252L FILTER |
| 147 | 442154-1 | SEAL DIAPHRAGM EBH341U |
| 148 | 168620-7 | DIAPHRAGM FOR BHX2501 |
| 149 | 140988-3 | BODY BREATHER RBC2510 |
| 150 | 424314-7 | PUMP PRIMING EBH341 |
| 151 | 346270-0 | PUMP COVER EBH341U |
| 152 | 266582-4 | SCREW 3x24 EBH341U |
| Brush Cutter MS-27C - pag.3 | ||
| 3 | DA00000096 | SCREW |
| 44 | DA00000137 | SCREW M5x25 |
| 75 | DA00000436 | TRASMISSION SHAFT |
| 77 | DA00000129 | TIE ROD |
| 78 | DA00000130 | NUT M5 |
| 79 | DA00000131 | HOOK SUSPENDER |
| 80 | DA00000437 | ROD |
| 81 | DA00000374 | HANDLE |
| 82 | DA00000438 | HANDLE HOLDER |
| 83 | DA00000439 | LEVER CONTROLS |
| 90 | DA00000144 | FLANGE PROTECTION |
| 91 | DA00000525 | SUPERIOR PROTECTION |
| 92 | DA00000142 | M6X23 SCREW |
| 93 | DA00000143 | SCREW M4x14 |
| 95 | DA00000146 | SCREW M5x40 |
| 96 | DA00000148 | BLADE |
| 97 | DA00000149 | SCREW M5x25 |
| 98 | DA00000150 | ELASTIC RING |
| 99 | DA00000151 | ELASTIC RING |
| 100 | DA00000152 | BEARING 609ZZ |
| 102 | DA00000154 | SCREW M6x8 |
| 103 | DA00000155 | GEAR CASE |
| 104 | DA00000156 | HEAD PROTECTION |
| 105 | DA00000157 | M6X25 SCREW |
| 106 | DA00000158 | BEARING 626ZZ |
| 108 | DA00000160 | 6000DDU BEARING |
| 109 | DA00000161 | ELASTIC RING |
| 110 | DA00000162 | FLANGE |
| 111 | DA00000163 | HEAD COVER |
| 112 | DA00000164 | WASHER HEAD |
| 113 | DA00000165 | HEAD SPRING |
| 114 | DA00000166 | REEL HEAD |
| 115 | DA00000167 | NYLON |
| 116 | DA00000168 | HEAD BASE |
| 118 | DA00000170 | FLANGE |
| 119 | DA00000171 | WASHER |
| 120 | DA00000172 | NUT |
| 129 | DA00000453 | HEAD ANGLE COMPLETE |
| 130 | 122979-6 | HEAD TAP & GO M8X1,25 100MM DIAM. 2,4MM |
| 171 | DA00000378 | GEAR CPL |
| Brush Cutter MS-27C - pag.4 | ||
| 93 | DA00000143 | SCREW M4x14 |
| 154 | DA00000460 | HOUSING SX |
| 155 | DA00000461 | PIN |
| 156 | DA00000462 | SPRING BAND |
| 157 | DA00000463 | LEVER SWITCH |
| 158 | DA00000464 | COVER SWITCH |
| 159 | DA00000465 | 3X16 SCREW |
| 160 | DA00000466 | TORSION SPRING |
| 161 | DA00000467 | ACCELERATOR LEVER |
| 162 | DA00000468 | TORSION SPRING |
| 163 | DA00000469 | LOCKOUT LEVER |
| 164 | DA00000470 | CLAMP 24 |
| 165 | DA00000471 | CABLE HARNESS 1 |
| 166 | DA00000472 | CABLE WIRING 2 |
| 167 | DA00000473 | CONTROL CABLE |
| 168 | DA00000474 | TUBE |
| 169 | DA00000475 | HOUSING DX |
| 170 | DA00000476 | SCREW 4x18 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
