Dolmar Hedge Trimmer HT2276E Parts

Name: Dolmar Hedge Trimmer HT2276E Parts
Brand: Makita
SKU: Dolmar HT2276E
Price: 25.8 EUR
Availability: InStock

€25.80

Tax included

Dolmar Spare Parts for Hedge Trimmer HT2276E

We are DOLMAR original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Hedge Trimmer HT2276E.

CODICE ARTICOLO: 1361410000

1361410000
0301080000
162050000K
164060000K
326100002A
055001000R
351006080K
354060010K
1361420000
054060150K
1360030000
011050200K
XOC0000018
283026000K
028109009A
010030050K
0301100000
1181010000
1181040000
054050160K
054050200K
055060202K
207060130K
0083450000
1361900000
1361160000
6018505200
6018505301
0082480000
0082490000
0082500000
0082470000
0271450000
0566079970
034001300R
1361490000
035002100R
040050301K
1361030000
1361000000
150050000K
1361010000
1361020000
1361040000
054060350K
1361910000
229060000K
5251003000
424447-8
0140059500
5252002002
5212500700
5982500000
5212500801
233976-8-4
442171-1
0119059730
5253500200
141056-5
5253500102
5253010001
0031005000
0119059660
5257001010
5257001020
0140049920
5257500300
324891-8
5237503301
0650149721-10
5238500500
6252500801
267429-5
267817-6
266457-7
6202500000
5253500500
0043705160
5255001000
5255001020
5505001030
5105015050
5105015020
5105015060
5025001010
5235024022
232257-7
5225004020
911218-7
0200070010
5255501200
5503503001
0140059490
0031206000
0011306160
5215500300
5255500001
0043505160
5256012001
5256002000
163447-0
5256025000
452920-8
1181240000
0140059450
6202006000
6165500200
5256007000
5256032000
5253020010
5203004010
0043305650
5253003020
5256501100
5256501200
5256500100
5236018040
266581-6
5256032010
5316005120
5246001010
5026004010
5246001030
WJ00009599
5016004010
5256007010
442154-1
168574-8
5236046060
424314-7
5236046050
266582-4
442177-9
5216008010
5316005450
034000110R
034000120R
034000130R
034000140R
034000150R
6415011060
200541005H
6415011110
6415011120
6415011130
6415011140
6415011150
6415011160
6415011210

Quantity

Usually Ships in: 7/10 Business Days Approx.

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details

Dolmar Spare Parts for Hedge Trimmer HT2276E

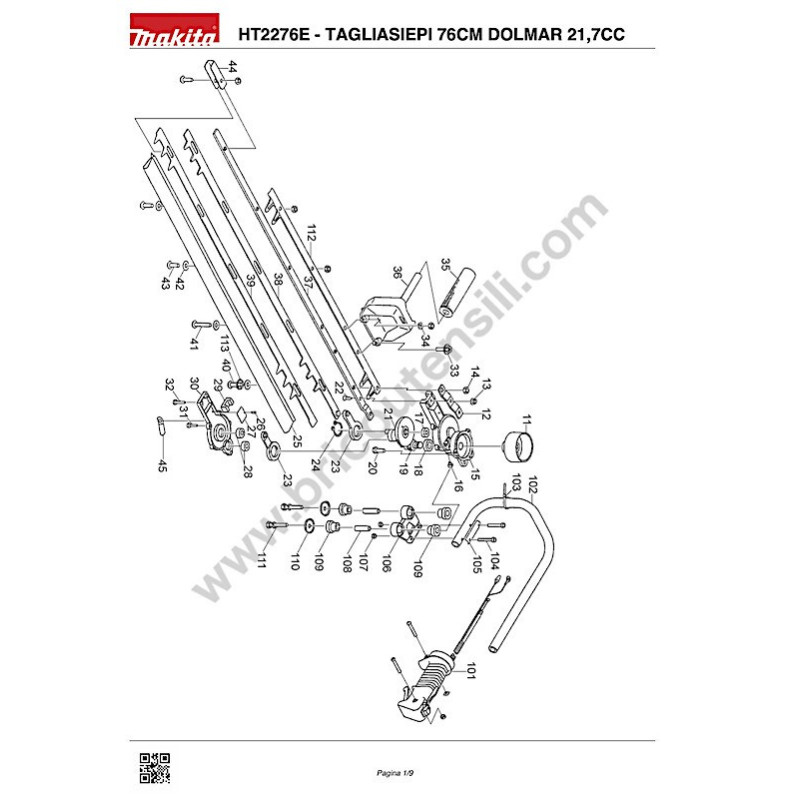

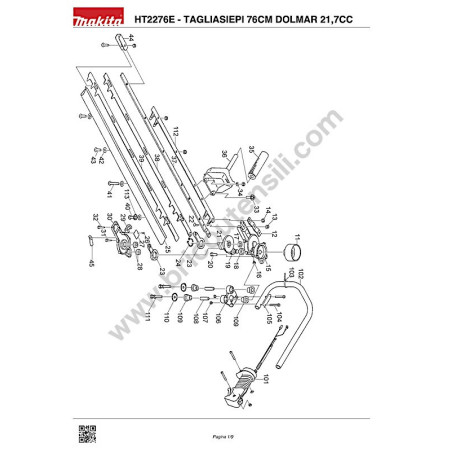

DOLMAR Hedge Trimmer HT2276E Parts
Pag.1
#	Part Num	Description
11	1361410000	DRUM CPL HT2256D-HT2276E
12	0301080000	REINFORCEMENT PLATE HT2256D-
13	162050000K	NUT M5 X HT2256D-HT2276E
14	164060000K	HEX NUT M6 HT2256D
15	326100002A	UPPER CASING
16	055001000R	NUT M6 X HT2256D-HT2276E
17	351006080K	BALL BEARING 608Z HT2256
18	354060010K	BALL BEARING HT2256D
19	1361420000	PINION GEAR HT2256D-
20	054060150K	BOLT M6X15 X HT2256D-HT2276
21	1360030000	CONNECTING ROD GEAR HT2256D -
22	011050200K	SCREW M5X20 HT2276E
23	XOC0000018	CONNECTING ROD HTR5600
24	283026000K	RETAINING RING HT2256D -
25	028109009A	HEDGE CUTTER BLADE COVER
26	010030050K	SCREW M3X5 X HT2256D-HT2276E
27	0301100000	CONNECTING ROD PLATE HT2256D-HT2276E
28	351006080K	BALL BEARING 608Z HT2256
29	1181010000	FELT X HT2256D-HT2276E
30	1181040000	LOWER CASE HT2256D
31	054050160K	BOLT M5X16 X HT2256D-HT2276
32	054050200K	BOLT M5X20 X HT2256D-HT2276
33	055060202K	BOLT M5X20 X HT2276E
34	207060130K	WASHER HT2276E
35	0083450000	HANDLE X HT2276E
36	1361900000	RH HANDLE HT2276E
37	1361160000	GUIDE PLATE HT2276E
38	6018505200	UPPER BLADE HT2276E/EH760
39	6018505301	LOWER BLADE HT2276E/EH760
40	0082480000	BLADE SCREW X HT2256D-HT2276E
41	0082490000	BLADE SCREW (L=29) HT2276E
42	0082500000	WASHER X BLADE SCREW HT2256D-
43	0082470000	BLADE SCREW X HT2256D-HT2276E
44	0271450000	HT2276E SUPPORT
45	0566079970	CLAMP X RBC520
101	034001300R	KNOB COMPL. EH620
102	1361490000	LEFT HANDLE HT2276E
103	035002100R	SPRING X HT2276E
104	040050301K	M5X30 BOLT HT2276E
105	1361030000	HANDLE LOCK HT2276E
106	1361000000	HANDLE LOCK HT2276E
107	150050000K	M5 NUT X HT2276E
108	1361010000	PIN X HT2276E
109	1361020000	ANTI-VIBRATION X HT2276E
110	1361040000	RUBBER WASHER X HT2276E
111	054060350K	M6X35 BOLT HT2276E
112	1361910000	BLADE PROTECTION X HT
113	229060000K	SPRING WASHER X HT2256D
Pag.2
53	5251003000	CRANKCASE CPL X HT2256D
54	424447-8	CASE GASKET RBC2510
55	0140059500	SCREW M5X25 X RBC225-255
56	5252002002	ECCENTRIC SHAFT
57	5212500700	PISTON X RBC221-225
58	5982500000	PISTON RING X RBC221-225
59	5212500801	PIN X RBC221-225
60	233976-8-4	PIN RING EBH252L (4pcs)
61	442171-1	CYLINDER GASKET RBC2510
63	0119059730	BOLT X RBC 260/230/225/255
64	5253500200	INSULATING GASKET X HT2256D
65	141056-5	INSULATOR
66	0140059500	SCREW M5X25 X RBC225-255
67	5253500102	EXHAUST GASKET X HT2256D
68	5253010001	MUFFLER X HT2256D-HT2276E
69	0031005000	WASHER X RBC230/410/RBK410
70	0119059660	BOLT X RBC350-RBC420 -
71	5257001010	POLE WHEEL X HT2256D
72	5257001020	COIL X HT2256D-HT2276E
73	0140049920	SCREW M4X20 X RBC225-255
74	5257500300	RUBBER X HT2256D-HT2276E
75	324891-8	SPRING SPARK PLUG CAP EBH341
76	5237503301	SPRING CAP XRBC225-255
77	0650149721-10	SPRING X RBK250 (pack of 10)
78	5238500500	CLUTCH SPRING X RBC225-255
79	6252500801	CLUTCH SHOES X RBC225-255
80	267429-5	WASHER 6
81	267817-6	WASHER 8 EBH252L
82	266457-7	SCREW M6X25 EBH252L
83	6202500000	SUPPORT X HT2256D-HT2276E
84	5253500500	MUFFLER CAP X HT2256D
85	0043705160	SCREW COMPLETE X HT2256D-HT2276E
86	5255001000	STARTER COMPLETE HT2256D
87	5255001020	SCREW X HT2256D-HT2276E
88	5505001030	CLUTCH PLATE X RBC 310/RBC520
89	5105015050	CLUTCH SPRING X RBC 310/520
90	5105015020	STARTER PAWL X RBC 310/RBC520
91	5105015060	RETURN SPRING X RBC310/RBC520
92	5025001010	STARTER SPOOL X RBC 310
93	5235024022	STARTER ROPE X RBK250-RBC225-2
94	232257-7	SPIRAL SPRING EBH341U
95	5225004020	STARTER KNOB HT2256D
96	911218-7	CYLINDER HEAD SCREW M5X14
97	0200070010	WASHER X HT2256D-HT2276E
98	5255501200	CYLINDER COVER COMPLETE HT2256D
99	5503503001	SPACER X HT2256D-HT2276E
100	0140059490	SCREW X HT2256D-HT2276E
101	0031206000	WASHER G.24/35-RBC225-255
102	0011306160	BOLT X RBC230/260/225/255
103	5215500300	DEFLECTOR PLATE X HT2256D
104	5255500001	POLAR WHEEL HOUSING HT2256D
105	0043505160	SCREW COMPLETE X HT2556D-HT2276E
106	5256012001	TUBE COMPLETE HT2256D-HT2276E
107	5256002000	TANK PLATE COMPLETE HT2256D
108	163447-0	FUEL FILTER X DCS230T
109	0043705160	SCREW COMPLETE X HT2256D-HT2276E
110	5256025000	TANK COMPLETE X HT2256D-HT2276
111	452920-8	TANK CAP
112	1181240000	SPACER X HT2256D-HT2276E
113	0140059450	SCREW M5X18 X RBK250-RBC225/25
114	6202006000	BOLT X RBC310
115	6165500200	GROUND CABLE X HT2276E
116	140436-2	DISK EBH341U
Pag.3
116	5256007000	CARBURETOR X HT2256D-HT2276E
116N	5256032000	CARBURETOR X HT2256D-HT2276E
117	5253020010	FILTER COVER RBC201
118	5203004010	AIR FILTER X HT2256D
119	0043305650	SCREW COMPLETE XHT2256D-HT2276E
120	5253003020	FILTER CARC. COMPL. RBC201
121	5256501100	RING X HT2256D-HT2276E
122	5256501200	SEAL X HT2256D-HT2276E
123	5256500100	CABLE SUPPORT HT2256D-HT2276E
124	5236018040	ACC. CABLE XRBC230-260-310-225-
125	266581-6	SCREW M3X8 EBH341U
126	5256032010	CARBURETOR VALVE X RBL250-
127	5316005120	RING X RBC 260/230/310/225/2
128	5246001010	GASKET X RBC 260/230/310/
129	5026004010	NOZZLE X HT2256D-HT2276E
130	5246001030	GASKET PUMP RBC260-230-310-
131	WJ00009599	DIAPHRAGM PUMP X DCS230T
132	5016004010	CONNECTOR X RBC 260/230/310/225
133	5256007010	COMPLETE PUMP BODY X HT2256D
134	442154-1	GASKET DIAPHRAGM EBH341U
135	168574-8	COMPLETE DIAPHRAGM EBH341U
136	5236046060	COMPLETE AIR FILTER BODY RBC350
137	424314-7	PRIMING PUMP EBH341
138	5236046050	PUMP COVER FOR RBC350-RBC42
139	266582-4	SCREW 3X24 EBH341U
140	442177-9	GASKET
141	5216008010	SCREW CABLE REGULATOR ACC.XRBC260 310
142	5316005450	NUT REGULATOR STOP RBC260/310
Pag.4
16	034000110R	COVER FOR EH760 HT2276E
17	034000120R	COVER TO EH760 HT2276E
18	034000130R	LEVER X EH760 HT2276E
19	034000140R	LEVER X EH760 HT2276E
20	034000150R	KEY X EH760 HT2276E
21	6415011060	CLAMP X EH760 HT2276E
22	200541005H	CABLE SET FOR EH760 HT2276E
23	6415011110	SPRING X EH760 HT2276E
24	6415011120	SPRING X EH760 HT2276E
25	6415011130	SCREW FOR EH760 HT2276E
26	6415011140	NUT X EH760 HT2276E
27	6415011150	SCREW FOR EH760 HT2276E
28	6415011160	NUT X EH760 HT2276E
29	6415011210	CLOSING SCREW X EH760 HT2276E
