Dolmar Brusch Cutter MS4200K Parts

Name: Dolmar Brusch Cutter MS4200K Parts
Brand: Makita
SKU: Dolmar MS4200K
Price: 292.73 EUR
Availability: InStock

€292.73

Tax included

Dolmar Spare Parts for Brusch Cutter MS4200K

We are DOLMAR original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brusch Cutter MS4200K.

ITEM CODE: 108230010N

108230010N
120030310N
120030400N
183631300N
100531210N
XNR0000158
045002800N
035600103N
100530300N
140030200N
035600000N
108230111N
065060800N
065051000N
XNR0000098
140030400N
035600001N
045001002N
045002600N
185031410N
108320100N
122091211N
140220510N
108024010N
045002400N
045001203N
035690102N
119119200N
119119100N
065062600N
162219310N
162219600N
031060000N
XNR0000065
174718000N
XNR0000326
174718100N
182420300N
160010210N
XNR0000075
035620202N
XNR0000070
119110100N
065061800N
176045000N
XNR0000163
115043300N
065051500N
163040100N
186045200N
173441700N
175615900N
119316700N
182412300N
173915700N
XNR0000234
164116500N
173246600N
173246500N
026053500N
030061400N
014102000N
119115810N
065061000N
173246700N
175617000N
031060003N
XNR0000109
099813400N
099830700N
099856800N
099856700N
6115501800
060000019N
060040000N
060000015N
302040600N
099806500N
186055000N
5415001050
5415001060
5245001010
5415001140
5305002110
5415505900
5415504500
5416501201
422060-6
0561139982
125937-1
0641279990
5516500501
5416057000
0230059990
5416503500
5416503600
168587-9
5417001010
0655009940
324891-8
168648-5
6218501500
5607005000
0016706160
0031005000
0200069920
0021705000
0032006000
0043405140
0140059610
0119059630
0119059790
0119059660
0119059940
0119069780
0119069990
5415001220
0140069910
0140059550
0140059560
6412001001
6202500400
267429-5
213546-9
0600159880
5306009160
163519-1
346350-2
5306018020
5306009020
442162-2
5416001110
5416001060
5306009510
8046001530
5416001130
442163-0
140633-0
5416016040
5416016030
5306002410
5306002240
5413503900
5413503502
5413503100
5413500900
0043605580
0630019871
6115503701
B-70203

Quantity

Usually Ships in: 7/10 Business Days Approx.

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details
Attachments

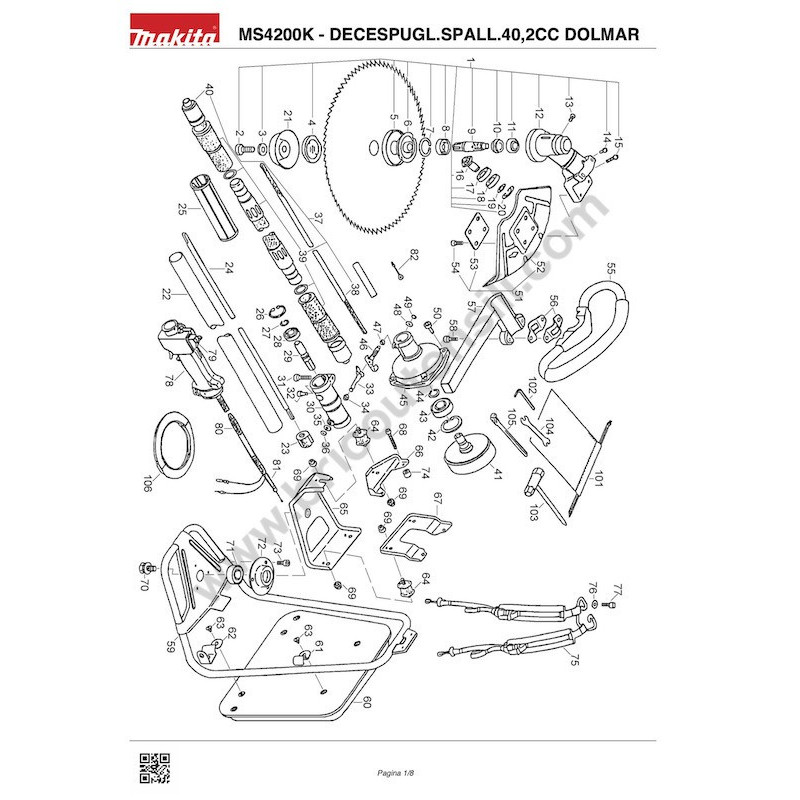

Dolmar Spare Parts for Brusch Cutter MS4200K

Decespugliatore MS4200K
Pag.1
#	Part Num	Description
1	108230010N	GEAR BOX CPL RBK350
2	120030310N	HEX BOLT M8 RBK350
3	120030400N	WASHER X RBK350
4	183631300N	EXTERNAL FLANGE RBK350
5	100531210N	COVER X RBK350
6	XNR0000158	INTERNAL FLANGE RBK350
7	045002800N	RETAINING RING R-28 RBK350
8	035600103N	BALL BEARING 6001LL
9	100530300N	GEAR SHAFT RBK350
10	140030200N	GEAR X RBK350
11	035600000N	BALL BEARING 6000 RBK350
12	108230111N	GEAR BOX RBK350
13	065060800N	TORX SCREW M6X8 RBK350
14	065051000N	TORX SCREW M5X10 RBK350
15	XNR0000098	TORX SCREW M5X20 RBK350
16	140030400N	PINION X RBK350
17	035600000N	BALL BEARING 6000 RBK350
18	035600001N	BALL BEARING 6000Z X RBK
19	045001002N	RETAINING RING S-10 RBK350
20	045002600N	RETAINING RING R-26 RBK350
21	185031410N	BOLT COVER RBK350
22	108320100N	ROD COMPLETE X RBK350
23	122091211N	BUSH CPL X RBK350
24	140220510N	SHAFT X RBK350
25	108024010N	COLLAR X RBK350
26	045002400N	RETAINING RING R-24 RBK350
27	045001203N	RETAINING RING S-12 RBK350
28	035690102N	BALL BEARING 6901ZZ
29	119119200N	JOINT X RBK350
30	119119100N	JOINT COVER X RBK350
31	065062600N	TORX SCREW M6X26 RBK350
32	065051000N	TORX SCREW M5X10 RBK350
33	162219310N	JOINT PIN CPL X RBK350
34	162219600N	PIN SPRING X RBK350
35	031060000N	FLAT WASHER 6 X RBK350
36	XNR0000065	RETAINING RING E-5 RBK350
37	174718000N	FLEXIBLE SHAFT CPL RBK350
38	XNR0000326	FLEXIBLE SHAFT BHK3500
39	174718100N	FLEXIBLE PIPE RBK350
40	182420300N	PIPE COVER X RBK350
41	160010210N	DRUM CLUTCH RBK350
42	XNR0000075	RETAINING RING R-35 RBK350
43	035620202N	BALL BEARING 6202ZZ
44	XNR0000070	RETAINING RING S-15 X RBK350
45	119110100N	CLUTCH CASING RBK350
46	162219310N	PIN JOINT CPL X RBK350
47	162219600N	PIN SPRING X RBK350
48	031060000N	FLAT WASHER 6 X RBK350
49	XNR0000065	RETAINING RING E-5 RBK350
50	065061800N	SCREW TORX M6X18 RBK350
51	176045000N	BRUSHCUTTER PROTECTION
52	XNR0000163	PROTECTION
53	115043300N	PLATE FOR RBK350
54	065051500N	TORX SCREW M5X15 RBK350
55	163040100N	SINGLE HANDLE RBK350
56	186045200N	PROTECTION SUPPORT RBK350
57	173441700N	BRACKET HANDLE RBK350
58	065061800N	TORX SCREW M6X18 RBK350
59	175615900N	ENGINE FRAME FOR RBK350
60	119316700N	BACKREST FOR RBK350
61	182412300N	BACKREST RETAINER RBK350
62	173915700N	BACKREST RETAINER RBK350
63	065051000N	TORX SCREW M5X10 RBK350
64	XNR0000234	ANTI-VIBRATION
65	164116500N	ENGINE SUPPORT FOR RBK350
66	173246600N	FRONT SUPPORT RBK350
67	173246500N	REAR SUPPORT FOR RBK350
68	026053500N	SCREW M5X35 RBK350
69	030061400N	NUT M6 X RBK350
70	014102000N	BOLT M10X20 RBK350
71	035620202N	BALL BEARING 6202ZZ
72	119115810N	BEARING STOP X RBK350
73	065061000N	TORX SCREW M6X10 RBK350
74	173246700N	RETAINER COLLAR RBK350
75	175617000N	BRACES X RBK350
76	031060003N	FLAT WASHER 6 RBK350
77	XNR0000109	TORX BOLT M6X12
78	099813400N	ACCELERATOR LEVER CPL RBK350
79	099830700N	SWITCH X RBK350
80	099856800N	ACCELERATOR TUBE X RBK350
81	099856700N	ACCELERATOR CABLE RBK350
82	6115501800	CABLE X RBK350
101	060000019N	TOOL CASE MS4200K
102	060040000N	ALLEN WRENCH 4MM MS4200K
103	060000015N	SOCKET WRENCH X RBK350
104	302040600N	KEY 8X10 MS4200K
105	099806500N	KEY FOR RBK350
106	186055000N	BLADE PROTECTION FOR MS4200K
Pag.2
63	065051000N	TORX SCREW M5X10 RBK350
64	XNR0000234	ANTI-VIBRATION
65	164116500N	ENGINE SUPPORT X RBK350
66	173246600N	FRONT SUPPORT RBK350
67	173246500N	REAR SUPPORT X RBK350
68	026053500N	M5X35 SCREW RBK350
69	030061400N	M6 NUT X RBK350
70	014102000N	M10X20 BOLT RBK350
71	035620202N	6202ZZ BALL BEARING
72	119115810N	BEARING STOP X RBK350
73	065061000N	TORX SCREW M6X10 RBK350
74	173246700N	FIXING COLLAR RBK350
75	175617000N	BRACES X RBK350
76	031060003N	FLAT WASHER 6 RBK350
77	XNR0000109	TORX BOLT M6X12
78	099813400N	ACCELERATOR LEVER COMPLETE RBK350
79	099830700N	SWITCH X RBK350
80	099856800N	ACCELERATOR TUBE X RBK350
81	099856700N	ACCELERATOR CABLE RBK350
82	6115501800	CABLE FOR RBK350
101	060000019N	TOOL CASE MS4200K
102	060040000N	ALLEN WRENCH 4MM MS4200K
103	060000015N	SOCKET WRENCH FOR RBK350
104	302040600N	KEY 8X10 MS4200K
105	099806500N	KEY FOR RBK350
106	186055000N	PROTECTION BLADE X MS4200K
107	5415001050	RETURN SPRING X RBC/RBK 410
108	5415001060	WASHER X RBC /RBK 410
109	5245001010	SCREW X RBC RBK 410
110	5415001140	STARTER CABLE X RBC 260/410/RBK 410
111	5305002110	STARTER KNOB X RBC260/RBK41
112	5415505900	CYLINDER COVER MS4200
113	5415504500	STARTER HOUSING RBC350-420
114	5416501201	FUEL TANK X RBK420G
115	422060-6	TUBE X RBC 410/RBK410
116	0561139982	TIGHTEN NUT X RBC 410/RBK 410
117	125937-1	TANK CAP CPL RBK350
118	0641279990	FILTER X RBC 410/RBK 410
119	5516500501	GASKET X RBK350
120	5416057000	SRB PROTECTION
121	0230059990	SOCKET X RBC260/410/RBK 410
123	5416503500	RUBBER X RBC350-RBC420
124	5416503600	RUBBER X RBC350-RBC420
125	168587-9	COIL
126	5417001010	POLE WHEEL X RBC/RBK 410
127	0655009940	CAP.CAND.X RBC410/RBK410RBC520
128	324891-8	SPRING CAP CANDLE EBH341
129	168648-5	SPRING X RBC350-RBC420-PB500R
130	6218501500	SCREW X RBC350-RBC420
131	5607005000	CABLE CPL X RBC350-RBC420-HT225
132	0016706160	BOLT M6X16 X RBC/RBK 410
133	0031005000	WASHER X RBC230/410/RBK410
134	0200069920	WASHER M6 X RBC310/410/RBK410
135	0021705000	NUT M5 X RBC415
136	0032006000	ELASTIC WASHER FOR RBC/RBK410-G2400R
137	0043405140	SCREW FOR RBC 410 /RBK 410
138	0140059610	SCREW M5X14 FOR RBC350-RBC420
139	0119059630	BOLT M5X20 FOR PB500R
140	0119059790	BOLT FOR RBC/RBK 410 M5X22
141	0119059660	BOLT FOR RBC350-RBC420 -
142	0119059940	BOLT FOR RBC 410/RBK 410
143	0119069780	BOLT M6X60 FOR RBC350-RBC420
144	0119069990	BOLT FOR RBC 410/RBK 410
145	5415001220	ELASTIC WASHER FOR RBC RBK 410
146	0140069910	SCREW M6X16 FOR RBC350-RBC420
147	0140059550	SCREW M5X14 FOR RBC350-RBC420
148	0140059560	SCREW M5X14 FOR RBC350-RBC420
149	6412001001	CLUTCH COMPLETE RBK350
150	6202500400	BOLT X RBC 410/RBK410
151	0032006000	WASHER ELASTIC X RBC/RBK410-G2400R
152	267429-5	WASHER 6
153	213546-9	OIL SEAL X PB500R-RBC525
154	0600159880	BEARING 6202C3 X PB500R
155	0600159880	BEARING 6202C3 X PB500R
156	213546-9	OIL SEAL X PB500R-RBC525
Pag.3
154	5306009160	PIN.SUPP.GALL X RBC/RBK 410
155	163519-1	NEEDLE CPL X RBC RBK 410
156	346350-2	FLOAT SUPPORT
157	5306018020	MAIN JET X RBC RBK 410
158	5306009020	FLOAT X RBC 410/RBK 410
159	442162-2	GASKET X RBC RBK 410
160	5416001110	SPRING X RBC RBK 410
161	5416001060	ADJUSTMENT SCREW X RBC RBK 410
162	5306009510	SCREW X RBC RBK 410
163	8046001530	SCREW X RBC RBK 410
164	5416001130	FILTER X RBK350
165	442163-0	GASKET
166	140633-0	TAP X RBC RBK 410
167	5416016040	TUBE X RBC RBK 410
168	5416016030	PLATE X RBC RBK 410
169	5306002410	SEAL X RBC RBK 410
170	5306002240	SCREW X RBC RBK 410
171	5413503900	FILTER HOUSING X RBC 410/RBK 410
172	5413503502	FILTER LID X RBC410/RBK410
173	5413503100	SEAL X RBC RBK 410
174	5413500900	FILTER ELEMENT X RBC RBK 410
175	0230059990	COMPASS X RBC260/410/RBK 410
176	0043605580	SCREW M5X58 X RBC RBK 410
177	0043405140	SCREW X RBC 410 /RBK 410
178	0630019871	CONNECTION CABLE RBK350
179	6115503701	ACCELERATOR PROTECTION
207	B-70203	BLADE MS3500
