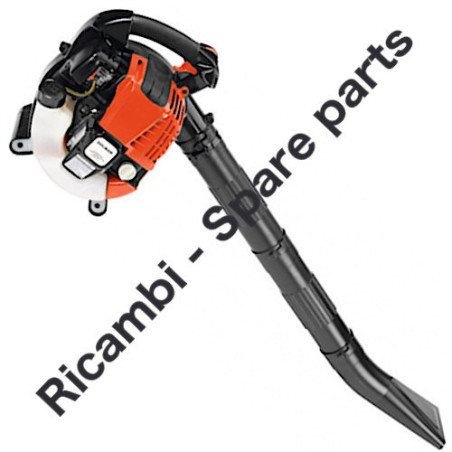

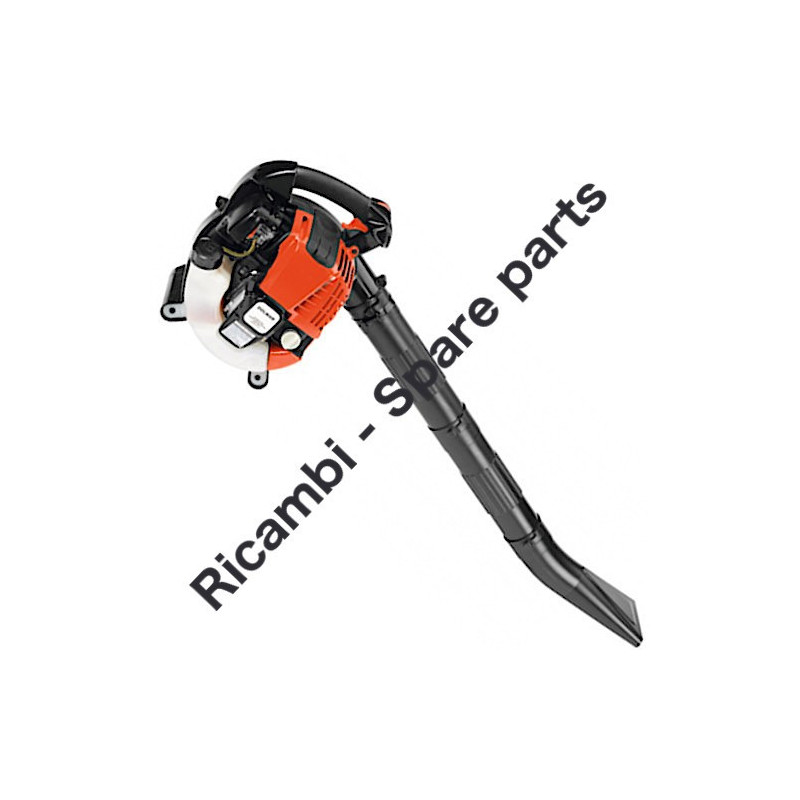

Dolmar Engine Blower PB250.4 Parts
€5.43
Tax included
Dolmar PB250.4 Engine Blower Spare Parts
We are DOLMAR original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for PB250.4 24,5CC 4T Engine Blower.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Dolmar PB250.4 Engine Blower Spare Parts
We are DOLMAR original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for PB250.4 24,5CC 4T Engine Blower.In the following table, look for the model of the Cordless Blower and the respective parts of the code.
| DOLMAR Engine Blower PB250.4 Parts Pag.1 | ||
| # | Part Num. | Description |
| 1 | 0736289980 | CAUTION LABEL |
| 2 | 6659502400 | PROTECTOR LABEL |
| 3 | 6609513200 | CAUTION LABEL |
| 4 | 6655500000 | GRIP |
| 5 | 6655001000 | SWITCH COMPL |
| 6 | 6651500500 | FRICTION PUBBER |
| 7 | 6651014000 | VOLUTE CASE 2 COMPL |
| 8 | 0630029730 | CONTROL CABLE |
| 9 | ||
| 10 | 0043605300 | SCREW ASS'Y |
| 11 | 6651003000 | IMPELLER COMPL |
| 12 | 0043606200 | SCREW M6X20 |
| 13 | 6651010000 | VOLUTE CASE 1 ASSY |
| 14 | 6655500100 | CRUISE LEVER |
| 15 | 6655500200 | SPRING |
| 16 | 0150049840 | TAPPING SCREW 4X16 |
| 17 | 0150059760 | TAPPING SCREW 5X16 |
| 18 | 6601503400 | OUTER SNAPRING |
| 19 | ||
| 20 | 6601503500 | RUBBER WASHER |
| 21 | ||
| 22 | 0150059760 | TAPPING SCREW 5X16 |
| 23 | 0031205003 | WASHER |
| 24 | 6601503001 | SPRING |
| 25 | 6601503100 | SHAFT |
| 26 | 0150059760 | TAPPING SCREW 5X16 |
| 27 | 6656500100 | PLUG COVER |
| 28 | 5926501600 | OIL GUARD |
| 29 | 5926017000 | FUEL TANK CAP ASSY |
| 30 | 0140049770 | SCREW ASSY M4X16(W,SW) |
| 31 | 6249501501 | STRAP |
| 32 | 0851189950 | TUBE |
| 33 | 0561059990 | HOSE CLAMP |
| 34 | 5236503900 | FILTER |
| 35 | 0150059760 | TAPPING SCREW 5X16 |
| 36 | 0031005003 | WASHER |
| 37 | 6653500000 | FUEL TANK |
| 38 | 6656500400 | ENGIN COVER |
| 39 | 0043605160 | SCREW ASS'Y M5X16 (W,SW) |
| 40 | 5921004001 | ROCKER COVER COMPLETE |
| 41 | 0650109950 | SPARK PLUG CMR6A |
| 42 | 5921500800 | ROCKER COVER GASKET |
| 43 | ||
| 44 | 5921501800 | CHECK VALVE |
| 45 | 5926500300 | OIL WEIGHT |
| 46 | 5926500200 | OIL TUBE |
| 47 | 0561059970 | HOSE CLAMP |
| 48 | 0119059510 | SOCKET HEAD BOLT M5X14 |
| 49 | 5921500700 | CAMGEAR COVER GASKET |
| 50 | 5921500502 | CAMGEAR COVER |
| 51 | 0043605140 | SCREW ASS'Y M5X14 |
| 52 | 0240139950 | O RING |
| 53 | 0043605120 | SCREW ASS'Y M5X12 |
| 54 | 5926021000 | OIL PIPE COMPL |
| 55 | 5926501700 | OIL GAUGE |
| 56 | 0213229990 | GASKET |
| 57 | 5926501500 | OIL CAP |
| 58 | 5926500100 | CASE GASKET |
| 59 | 5921501000 | REED VALVE |
| 60 | 5921501100 | RETAINER PLATE |
| 61 | 0119049980 | SOCKET HEAD BOLT M4X10 |
| 62 | 5926500000 | OIL CASE |
| 63 | 0043605180 | SCREW ASS'Y |
| 64 | 5922004000 | PISTON RING SET |
| 65 | 0565089970 | CLIP |
| 66 | 5922500900 | PISTON |
| 67 | 5232502600 | PISTON PIN |
| 68 | 0440129960 | OIL SEAL (L) |
| 69 | 5421500500 | CLIP |
| 70 | 0323039990 | WOODRUFF KEY |
| 71 | 5922003000 | CRANK SHAFT ASS'Y |
| 72 | 0440109970 | OIL SEAL (S) |
| 73 | 5933002000 | ROCKER ARM ASS'Y |
| 74 | 5923500700 | PUSH ROD |
| 75 | 5923501300 | SPRING RETAINER |
| 76 | 5923501200 | VALVE SPRING |
| 77 | 5933500100 | ROCKER SHAFT |
| 78 | 5923501500 | INTAKE VALVE |
| 79 | 5923501400 | EXHAUST VALVE |
| 80 | 5921501400 | SPACER |
| 81 | 5933003000 | CAM GEAR ASS'Y |
| 82 | 5923500501 | CAM GEAR SHAFT |
| 83 | 5923500600 | CAM LIFTER SHAFT |
| 84 | 5923500001 | CAM LIFTER |
| 85 | 5925001002 | STARTER COVER ASS'Y |
| 86 | 5195500000 | PULLEY |
| 87 | 5195002060 | SET SCREW |
| 88 | 5195002100 | SWING ARM |
| 89 | 5195002110 | COLLAR |
| 90 | 5925001030 | REEL |
| 91 | 5215002030 | SPIRAL SPRING |
| 92 | 5225004020 | HANDLE |
| 93 | 5925001050 | STARTER ROPE |
| 94 | 6659502900 | MODEL LABEL |
| 95 | 0140049770 | SCREW ASSY M4X16(W,SW) |
| 96 | 5923501801 | INSULATOR GASKET |
| 97 | 5923013000 | INSULATOR COMPL |
| 98 | 0149069972 | ADJUST SCREW |
| 99 | 0043605180 | SCREW ASS'Y |
| 100 | 5923501900 | CARBURETOR GASKET |
| 101 | 0043605140 | SCREW ASS'Y M5X14 |
| 102 | 5926022000 | CARBURETOR |
| 103 | 5926002060 | PUMP BODY ASS'Y |
| 104 | 5016004010 | INLET SCREEN |
| 105 | 5236046040 | METERING DIAPHRAGM GASKET |
| 106 | 5926008010 | METERING DIAPHRAGM ASS'Y |
| 107 | 5236046140 | AIR PURGE BODY ASS'Y |
| 108 | 5246001150 | PRIMER PUMP |
| 109 | 5236046050 | PRIMER PUMP COVER |
| 110 | 5236046010 | PUMP COVER SCREW |
| 111 | 5206008030 | PAN HEAD SCREW |
| 112 | 5236018040 | SWIVEL |
| 113 | 5426005030 | WASHER |
| 114 | 5316005120 | RING |
| 115 | 5926002020 | PUMP SPRING |
| 116 | 5246001010 | O RING |
| 117 | 5196002020 | JET |
| 118 | 5926002040 | PUMP GASKET |
| 119 | 5246001040 | PUMP DIAPHRAGM |
| 120 | 0561080010 | HOSE CLAMP |
| 121 | 5921500900 | BREATHER PIPE |
| 122 | 5933502100 | PIPE |
| 123 | 5933001000 | CLEANER PLATE ASS'Y |
| 124 | 5923502200 | CHOKE LEVER |
| 125 | 0240159990 | O RING P15 |
| 126 | 5933005000 | AIR CLEANER PLATE COMPLETE |
| 127 | 5923502400 | CHECK VALVE (1) |
| 128 | 0240139970 | O RING P14 |
| 129 | 5923502500 | CHECK VALVE PLATE |
| 130 | 5316500701 | CHECK VALVE |
| 131 | 5923503500 | GASKET SEPARATOR |
| 132 | 5933501600 | SEPARATOR PLATE |
| 133 | 5933500900 | AIR CLEANER ELEMENT |
| 134 | 5933501200 | AIR CLEANER ELEMENT |
| 135 | 5933500800 | AIR CLEANER COVER |
| 136 | 0140059480 | SCREW ASS'Y M5X14 |
| 137 | 5923503100 | SCREW M5X68 (W,SW SUS) |
| 138 | 5923502600 | PLATE |
| 139 | 0213069990 | GASKET |
| 140 | 5923502301 | CHOKE PLATE |
| 141 | 0119059520 | SOCKET HEAD BOLT M5X40 |
| 142 | ||
| 143 | ||
| 144 | 5923504300 | MUFFLER GASKET |
| 145 | 5927010000 | WIER 1 |
| 146 | 5927011000 | WIRE 2 |
| 147 | 5927500100 | PLUG CAP |
| 148 | 0654009931 | PLUG CAP SPRING |
| 149 | ||
| 150 | 0043704200 | SCREW ASS'Y M4X20 |
| 151 | 0130069940 | BOLT ASSEMBLY M6X16(W,SW) |
| 152 | 5927500200 | FLYWHEEL |
| 153 | 6659500901 | PIPE |
| 153 | 6659500900 | PIPE |
| 154 | 6659501100 | END PIPE |
| 154 | 6659501000 | END PIPE |
| 156 | 5923504600 | INTAKE PIPE |
| 157 | 0062610101 | O-RING |
| 1001 | 194717-6 | BOX WRENCH SET |
| 1001 | 6909059000 | TOOL |
| 5001 | 6609508500 | HOSE CLAMP |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
