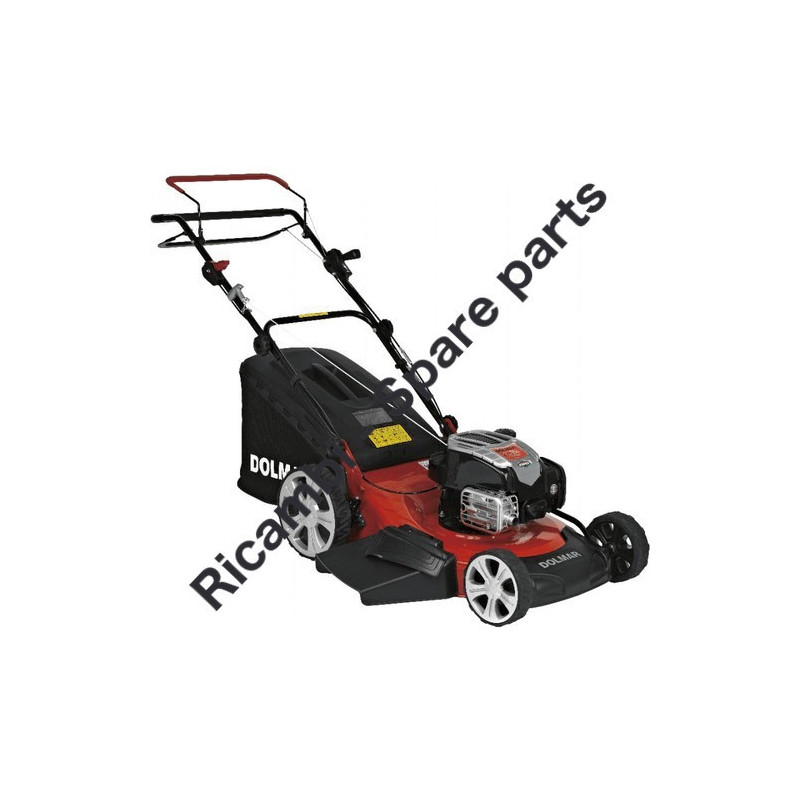

Dolmar Petrol Lawnmower PM5600S3R Parts
€34.71
Tax included
Dolmar Petrol Lawnmower PM5600S3R Parts
Fix Your Petrol Lawnmower PM5600S3R. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Dolmar Petrol Lawnmower PM5600S3R Parts
Fix Your Petrol Lawnmower PM5600S3R. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.In the following table, look for the model of Lawnmower and the respective parts of the code.
| DOLMAR Petrol Lawn Mower PM5600S3R Parts Pag.1 | ||
| # | Part. Num. | Description |
| 001 | 671020120 | LEVER SHEATH RED |
| 002 | 671002293 | ENGINE CLUTCH LEVER |
| 003 | 671002294 | SELF DRIVE CONTROL LEVER |
| 004 | 671020110 | LEVER SHEATH BLACK |
| 005 | DA00000580 | HANDLE SHEATH |
| 006 | 671001868 | UPPER HANDLE BAR ASSY |
| 007 | 671006029 | HEX. FLANGE BOLT M6X45 |
| 008 | 671990001 | ENGINE CLUTCH LEVER BRACKET |
| 009 | 671002025 | PAN. HEAD SCREW M4X8 |
| 010 | 671989001 | ENGINE CLUTCH LEVER END CAP |
| 011 | 671007070 | FLAT WASHER 6 |
| 012 | DA00000575 | HEX.CAP NUT M6 |
| 013 | DA00000575 | HEX.CAP NUT M6 |
| 014 | DA00000574 | FLAT WASHER 6 |
| 015 | DA00000573 | OUTER WIRE STOPPER |
| 016 | DA00000826 | SELF-TAPPING SCREW ST4X12 |
| 017 | 671827001 | SPEED CONTROL BOX UPPER COVER |
| 018 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 |
| 019 | 671001243 | DRIVE SPEED ADJUST WIRE ASSY |
| 020 | 671002279 | DRIVE SPEED ADJUST LEVER |
| 021 | 671828001 | SPEED CONTROL BOX LOWER COVER |
| 022 | DA00000572 | HEX.FLANGE BOLT M6X55 |
| 023 | 671006082 | HEX. FLANGE BOLT M6X50 |
| 024 | DA00000870 | DRIVE SPEED ADJUST GRIP LOWER |
| 025 | DA00000869 | DRIVE SPEED ADJUST GRIP UPPER |
| 026 | DA00000873 | TAPPING SCREW ST4.2X15 |
| 027 | DA00000574 | FLAT WASHER 6 |
| 028 | DA00000575 | HEX.CAP NUT M6 |
| 029 | 671006082 | HEX. FLANGE BOLT M6X50 |
| 030 | 671106202 | THROTTLE CONTROL BOX ASSY |
| 031 | DA00000574 | FLAT WASHER 6 |
| 032 | DA00000576 | SPRING WASHER 6 |
| 033 | DA00000575 | HEX.CAP NUT M6 |
| 034 | DA00000577 | HEX.FLANGE BOLT M6X35 |
| 035 | DA00000579 | STARTER GRIP HOOK |
| 036 | DA00000574 | FLAT WASHER 6 |
| 037 | DA00000576 | SPRING WASHER 6 |
| 038 | DA00000575 | HEX.CAP NUT M6 |
| 039 | 671001242 | CONTROL CABLE (WHEEL DRIVE) X PLM5600 |
| 040 | 671001241 | ENGINE CLUTCH WIRE |
| 041 | 671001869 | LOWER HANDLE POLE |
| 042 | DA00000563 | HEXAGON NUT M8 |
| 043 | DA00000564 | KNOB |
| 044 | DA00000924 | PLASTIC SADDLE WASHER 8 |
| 045 | DA00000569 | SADDLE HEAD BOLT M8X58 |
| 046 | DA00001170 | CABLE CLIP |
| 047 | DA00001170 | CABLE CLIP |
| 048 | DA00000563 | HEXAGON NUT M8 |
| 049 | DA00000564 | KNOB |
| 050 | 671007007 | FLAT WASHER 8 |
| 051 | DA00000880 | SADDLE HEAD BOLT M8X35 |
| 052 | DA00000562 | HEX.FLANGE BOLT M8X16 |
| 053 | 671001829 | RIGHT HANDLE BRACKET RED |
| 054 | DA00000537 | HEX.FLANGE LOCK NUT M8 |
| 055 | 671018270 | LEFT HANDLE BRACKET RED |
| 056 | 671385001 | GRASS LEVEL INSPECTION WINDOW |
| 057 | 671010710 | TAPPING SCREW ST4X12 |
| 058 | 671004613 | REAR FLAP |
| 059 | DA00000543 | HEX.FLANGE LOCK NUT M6 |
| 060 | 671011229 | REAR FLAP TORSION SPRING R |
| 061 | 671001484 | REAR FLAP HINGE ROD |
| 062 | 671011228 | REAR FLAP TORSION SPRING L |
| 063 | DA00000537 | HEX.FLANGE LOCK NUT M8 |
| 064 | 671002019 | TRUSS HEAD SCREW M6X12 |
| 065 | DA00000791 | HEIGHT ADJUSTER STOP PLATE |
| 066 | DA00000543 | HEX.FLANGE LOCK NUT M6 |
| 067 | 671800104 | GROMMET |
| 068 | 671001878 | DECK RED |
| 069 | 671406001 | SIDE DISCHARGE FLAP COVER |
| 070 | 671002010 | PAN.HED SCREW M5X12 |
| 071 | DA00000198 | SPRING WASHER 5 |
| 072 | 671002183 | SIDE FLAP HINGE PLATE |
| 073 | 671111300 | SIDE FLAP TORSION SPRING |
| 074 | 671001019 | SIDE DISCHARGE FLAP HINGE ROD |
| 075 | 671006085 | SCREW M4X10 |
| 076 | DA00000878 | SIDE PROTECTOR LEFT SIDE |
| 077 | DA00000033 | HEX NUT M4 |
| 078 | 671825001 | FRONT AXLE COVER |
| 079 | 671007004 | WASHER 5 |
| 080 | DA00000888 | TAPPING SCREW ST5X12 |
| 081 | 671001037 | TRUSS HEAD TAPPING SCREW 5X16 |
| 082 | DA00000582 | SQUARE WASHER 8 |
| 083 | DA00000617 | SPECIAL HEX.BOLT M8X35/M8X17 |
| 084 | DA00000586 | HEX. BOLT M8X35 |
| 085 | 671003024 | SPECIAL HEX. BOLT M8X60/M8X17 |
| 086 | 671502027 | GEAR ASSY FOR SELF DRIVING |
| 087 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 |
| 088 | DA00000553 | HEX. FLANGE BOLT M6X12 |
| 089 | 671002297 | GEAR BOX MOUNT ANGLE |
| 090 | 671006181 | HEX. FLANGE BOLT M6X17 |
| 091 | 671002065 | V-BELT X PLM5600 |
| 092 | 671002351 | FLAT WASHER |
| 093 | 671004019 | V PULLEY ASSY |
| 094 | 671560001 | BELT PROTECTING COVER |
| 095 | 671008011 | TOOTHED LOCK WASHER 5 |
| 096 | 671001037 | TRUSS HEAD TAPPING SCREW 5X16 |
| 097 | 671007007 | FLAT WASHER 8 |
| 098 | 671005008 | NYLON INSERT HEX.LOCK NUT M8 |
| 099 | 671090002 | FLAT KEY |
| 100 | 671002089 | BLADE SPASER SLEEVE |
| 101 | 671015252 | BLADE BOSS PM5100S3 |
| 102 | 671002532 | BLADE 56CM X PM5600 |
| 102-1 | DA00001275 | BLADE 56 |
| 103 | DA00000529 | DISH SPRING WASHER 10 |
| 104 | 671006065 | BLADE TIGHTEN BOLT 3/8-24 UNF |
| 105 | 671001322 | WHEEL COVER 10 INCH |
| 106 | DA00000537 | HEX.FLANGE LOCK NUT M8 |
| 107 | DA00000538 | BALL BEARING 6201ZZ |
| 108 | 671002021 | WHEEL ASSY 11 INCH |
| 109 | DA00000538 | BALL BEARING 6201ZZ |
| 110 | 671200010 | GEAR WHEEL PM5120-5120S |
| 111 | DA00000603 | TAPPING SCREW ST4X16 |
| 112 | 671007065 | WASHER |
| 113 | 671251800 | DUST-PROOF WHEEL COVER |
| 114 | 671002296 | REAR AXLE |
| 115 | 671002030 | PAN. HEAD SCREW M6X14 |
| 116 | DA00000879 | HEIGHT ADJUSTER HANDLE |
| 117 | DA00001058 | HEIGHT ADJUSTMENT KNOB |
| 118 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 |
| 119 | DA00000604 | STOP RING E-12 |
| 120 | DA00000607 | SPUR GEAR 14 RIGHT |
| 121 | DA00000597 | COLUMN PIN 5X21.5 |
| 122 | DA00000604 | STOP RING E-12 |
| 123 | DA00001029 | BALL BEARING R8ZZ |
| 124 | DA00000610 | DRIVE SHAFT BEARING CASE |
| 125 | DA00000612 | STOP RING E-19 |
| 126 | 671002019 | TRUSS HEAD SCREW M6X12 |
| 127 | DA00000542 | BEARING CASE RETAINER |
| 128 | DA00000543 | HEX.FLANGE LOCK NUT M6 |
| 129 | DA00000605 | SPUR GEAR 14 LEFT |
| 130 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 |
| 131 | 671002292 | LINK ROD |
| 132 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 |
| 133 | DA00000536 | WHEEL COVER 7 INCH |
| 134 | DA00000537 | HEX.FLANGE LOCK NUT M8 |
| 135 | DA00000538 | BALL BEARING 6201ZZ |
| 136 | 671020160 | WHEEL ASSY 8 INCH |
| 137 | DA00000538 | BALL BEARING 6201ZZ |
| 138 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 |
| 139 | 671445001 | FRONT AXLE RETAINER |
| 140 | 671076001 | FRONT AXLE MOUNT |
| 141 | 671006002 | HEX. BOLT M6X65 |
| 142 | 671011087 | HEIGHT ADJUST TENSION SPRING |
| 143 | 671002295 | FRONT AXLE |
| 144 | 671005164 | GRASS CATCHER ASSY DOLMAR |
| D10 | INC. 145-150 | |
| 145 | 671384001 | GRASS CATCHER HANDLE |
| 146 | 671001037 | TRUSS HEAD TAPPING SCREW 5X16 |
| 147 | 671409001 | GRASS CATCHER UPPER BORAD |
| 148 | 671001032 | TAPPING SCREW ST4.2X18 |
| 149 | 671001382 | GRASS CATCHER FRAME |
| 150 | 671137910 | GRASS CATCH SIDE CLOSS SET DOL |
| 151 | 671315001 | MULCHING PLUG BOX |
| 152 | 671011005 | PRESSING BOARD OF LOCKING |
| 153 | 671317001 | COMPRESSION SPRING |
| 154 | 671316004 | LOCKING BUTTON |
| 155 | DA00000603 | TAPPING SCREW ST4X16 |
| 156 | 671065001 | SIDE DISCHARGE OUTLET |
| A01 | 671001078 | BOX WRENCH 21MM |
| A02 | DA00000584 | WRENCH HANDLE |
| B01 | DA00001077 | HEIGHT HANDLE SHEATH ASS'Y |
| D10 | INC. 116,117 | |
