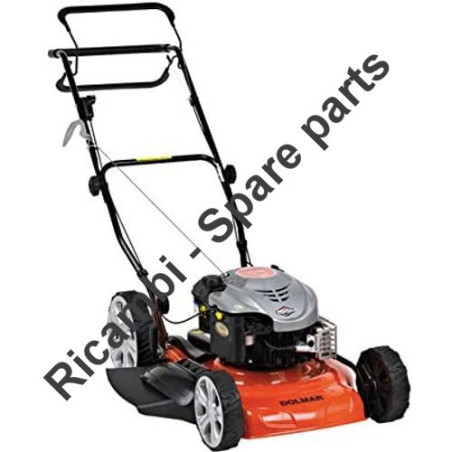

Dolmar Spare Parts for Lawn Mower PM5120S

€8.23
Tax included

Dolmar Spare Parts for Lawn Mower PM5120S

We are DOLMAR original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM5120S.
ITEM CODE: 671006141
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Dolmar Spare Parts for Lawn Mower PM5120S

We are DOLMAR original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower PM5120S.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.

PM5120S MULCHING LAWNMOWER 190CC 51CM DOLMAR
# Part Num. Description
1 671006141 SCREW 3 / 8X55 PM5120-5120S
2 671010730 WASHER D.44.5 / 10.2X2.5
3 671002050 WASHER PM5120-5120S
4 DA00000531 LOWER WASHER PM5120S
5 DA00000944 BLADE 510MM PM5120S
6 671160010 UPPER WASHER PM5120S
7 671002049 BLADE BOSS PM5120-5120S
8 671090002 FLAT KEY PLM4110-4610-4611
9 671319001 WASHER 12 PM5120-5120S
10 671005028 NUT M8 ELM4110
11 671688001 BELT COVER PM5120S-5120
12 671030050 SCREW M6X8 PM5120-5120S
13 DA00000597 PIN
14 671011173 RETURN SPRING PM5120-S
15 671502015 TRACTION GROUP PM5120-5120S
16 671004016 PULLEY PM5120-5120S
17 671020380 BELT 813MM PM5120-5120S
18 671001177 HUB COVER 200 ELM4110
19 671004012 BALL BEARING 6201Z ELM4110
20 671020160 WHEEL 200 PLM4110-4610-4611
21 671002019 SCREW M6X12 ELM4110
22 671001244 PLATE ELM4110
23 671005024 NUT M6 ELM4110
24 671353001 SLEEVE
25 671001811 FRONT AXLE PM5120S
26 671001602 RED DECK PM5120-5120S
27 671011039 SPRING PM5120S
28 671001813 CONNECTION BAR PM5120S
29 671005005 NUT M6 ELM4110
30 671300101 TUBE 3mm.PM5120S
31 671001322 HUB COVER PM5100S3
32 671002021 REAR WHEEL PM5100S3
33 671200010 GEAR PM5120-5120S
34 671001005 SCREW M4X16 ELM3310-3710
35 671180010 DUST SEAL PM5120-5120S
36 671090020 WASHER PLM4110-4610-4611
37 DA00001091 RIGHT PINION PLM4611
38 671007059 WASHER 12.8 PM5120-5120S
39 DA00001029 BALL BEARING FOR ELM4611
40 671002035 BEARING BOX PM5120-S
41 671009003 WASHER D.19X1.5 PLM4611
42 671001812 REAR AXLE PM5120-5120S
44 671010450 KNOB PM5120-5120S
45 671002030 SCREW PM5100S3
46 671006064 SCREW M8X6 ELM4110
47 671001046 SCREW M8X19 PM5120-5120S
48 671314001 SLEEVE PM5120-5120S
49 671689001 TRACTION GROUP COVER
50 671002020 SCREW M6X16
51 671002233 PLATE PM5120S
52 671010300 PIN PM5120S
53 671011135 SPRING 2.8 PM5120S
54 671003003 TUBE DIAM.6MM PM5120S
55 671497001 SIDE COVER PM5120S
56 671254600 PROTECTION COVER PM5120S
57 671006091 SCREW M8X40 PM5120-5120S
58 671006004 SCREW M8X52
59 671611001 CABLE SUPPORT
60 DA00000951 LOWER HANDLE PM5120-5120S
61 671005023 NUT M8
62 671530010 KNOB PLM5600
63 DA00000924 GASKET
64 671012160 MOTOR BRAKE CABLE PM5120-5120S
65 DA00000952 TENSION CABLE PM5120-5120S
66 671001710 GRADUATED SCALE PM5120-5120S
67 671001814 UPPER HANDLE PM5120-5120S
68 671001816 PM5120-5120S ENGINE BRAKE LEVER
69 671687001 HANDLE PM5120-5120S
70 DA00000575 NUT M6
71 671007008 WASHER PLM4110-4610-4611
72 671001647 STOP PM5100S3
73 671006077 SCREW M6X35 PM5120-5120S
74 671010620 THROTTLE LEVER PM5120S-5120
75 671006059 SCREW M6X50 PLM4110-4610-4611
76 671008003 WASHER PLM4110-4610-4611
77 671001817 LEVER PM5120-5120S
78 671101901 RUBBER HOSE PM5120-5120S
79 671002106 GASKET PM5120-5120S
80 671003044 SCREW M8X17X35 PLM4110-4610-11
81 671336001 SUPPORT PLM4110-4610-4611
82 671003024 SCREW M8X60X17 PLM4110-4610-11
83 DA00001090 LEFT PINION PLM4110-4610-4611
84 671001599 LEFT SUPPORT RED PM5120-5120S
85 671001600 RED DX SUPPORT PM5120-5120S
87 671007065 WASHER 20 PM5120-5120S
