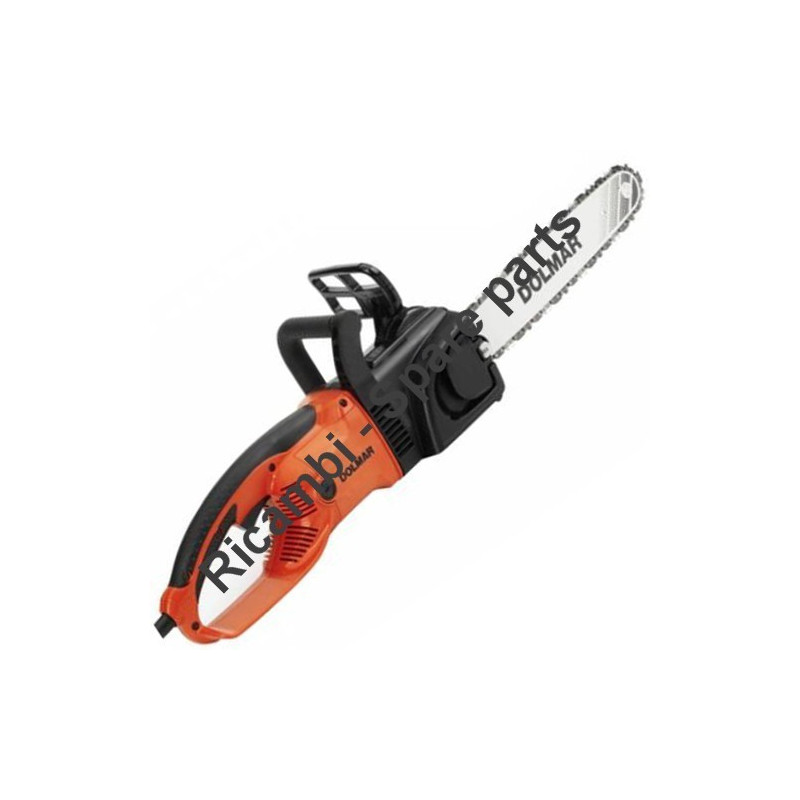

Dolmar Spare Parts for Electric Chain Saw ES2135A
€29.17
Tax included
Dolmar Spare Parts for Electric Chain Saw ES2135A
We have the original Spares Dolmar Spare Parts for Electric Chain Saw ES2135A, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Electric Chain Saw ES2135A. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Dolmar Spare Parts for Electric Chain Saw ES2135A
We have the original Spares Dolmar Spare Parts for Electric Chain Saw ES2135A, the diagram, parts list and tool repair that help you need to get your tools running like new again.
In the following table, look for the model of Electric Saw and the respective parts of the code.
| ES2135A - ELECTRIC CHAIN SAW 2000W 35CM DOLMAR pag.1 | ||
| # | Part Num. | Description |
| 1 | 226310110 | REAR HANDLE RED COL. ES2135A |
| 2 | 810198-3 | LABEL UC3530A-4030A |
| 3 | 416178-3 | LOCKING BUTTON X UC3020A |
| 4 | 233173-6 | COMPRESSION SPRING 4 FOR UC3020A |
| 5 | 419411-2 | SWITCH LEVER UC3530A-4030 |
| 6 | 265995-6 | * SCREW M4X18 X 6408 / 6221DW |
| 7 | 265995-6 | * SCREW M4X18 X 6408 / 6221DW |
| 8 | 265995-6 | * M4X18 X 6408 / 6221DW SCREW |
| 9 | 226111060 | MOTOR CASE ES2135A-2140A |
| 11 | 181044-0 | CARBON BRUSH SET CB-153 (150/52/54) |
| 12 | 643650-4 | CARBON BRUSH HOLDER COVER |
| 13 | 455487-5 | TUBOLAR HANDLE |
| 14 | 266173-1 | SCREW PT 5X30 |
| 15 | 419410-4 | AIR DUCT UC3530A-4030A |
| 16 | 419408-1 | GEAR HOUSING LEFT UC3530A |
| 17 | 266044-2 | SCREW PT.5X60 |
| 18 | 266173-1 | SCREW PT 5X30 |
| 19 | 419412-0 | COVER CPL. |
| 20 | 154870-0 | OIL TANK CAP UC3530A |
| 21 | 421959-2 | GASKET UC3530A-4030A |
| 22 | 419407-3 | OIL TANK UC3530A-4030A |
| 23 | 187573-1 | OIL PUMP CPL - WARNING READ Tech info CT15-2 |
| 24 | 213039-6 | O-RING 6 X AN901 |
| 25 | 421958-4 | SUCTION LINE UC3530A-4030 |
| 26 | 231975-4 | OIL TUBE SPRING X DCS230T |
| 27 | 416274-7 | OIL TUBE CAP X DCS230T |
| 31 | 226741-2 | GEAR WHEEL CPL X UC |
| 32 | 226743-8 | PINION UC3000-3500-4000A |
| 33 | 324662-3 | SPIKE BAR CPL. UC3530A-4030A |
| 34 | 211012-0 | BALL BEARING X 9524NB |
| 35 | 417405-1 | CAM FOR UC3020A |
| 36 | 259034-2 | WASHER X UC |
| 37 | 211107-9 | BALL BEARING 6201 X 9524NB |
| ES2135A - ELECTRIC CHAIN SAW 2000W 35CM DOLMAR pag.2 | ||
| 40 | 226213022 | HAND GUARD UC3530A-4030A |
| 41 | 233174-4 | SPRING X UC |
| 42 | 419413-8 | SWITCH ROD UC3530A-4030 |
| 43 | 318013-0 | GEAR HOUSING RIGHT |
| 44 | 158044-5 | BRAKE SPRING HOLDER CPL. X UC |
| 45 | 234005-0 | SPRING UC3530A-4030A |
| 46 | 213039-6 | O-RING 6 X AN901 |
| 47 | 921452-1 | HEX BOLT 8X30 |
| 48 | 345651-5 | SPIKE BAR CPL. FOR UC3020A |
| 49 | 266173-1 | SCREW PT 5X30 |
| 50 | 168426-3 | BRAKE BAND UC3530A-4030A |
| 56 | 266026-4 | SCREW M4 X 12 |
| 57 | 267195-4 | WASHER 4 X DCS230T |
| 58 | 123886-6 | CLUTCH DRUM 3/8 "UC3530A |
| 59 | 253215-0 | FLAT WASHER 8 6510PBL / LVR |
| 60 | 259033-4 | LOCK WASHER X UC |
| 63 | 187088-8 | CHAIN COVER CPL UC3530A |
| 64 | 154869-5 | SPROCKET GUARD UC3530A-UC4030A |
| 65 | 266007-8 | SCREW M3 X10 HP2030 |
| 66 | 419241-1 | COVER FOR UC3020A |
| 67 | 227496-2 | BEVEL GEAR 14 FOR UC3020A |
| 68 | 227495-4 | BEVEL GEAR 14 FOR UC3020A |
| 69 | 324620-9 | ADJUST SCREW X UC3020A |
| 70 | 324621-7 | ADJUST PIN |
| 71 | 233033-2 | COMPRRESSION SPRING. 4 FOR UC3020A |
| 72 | 216008-6 | BALL 4 |
| 73 | 419233-0 | TENSIONING WHEEL 40 FOR UC3020A |
| 74 | 253874-0 | FLAT WASHER 4 |
| 75 | 915106-0 | SCREW M4X8 FOR UC3020A |
| 76 | 252168-0 | NUT M8-13 FOR UC3020A |
| 77 | 231025-5 | COMPRESSION SPRING 8 X 8411DW |
| 78 | 187089-6 | LEVER CPL UC3530A-4030A |
| 79 | 317977-5 | LEVER SUPPORT FOR UC3020A |
| 80 | 453061-3 | WASHER 20 X UC3020A |
| 81 | 951122-8 | PIN 4-28 FOR UC3020A |
| 82 | 154763-1 | ADJUST LEVER FOR UC3020A |
| 83 | 816853-5 | LABEL UC3030A-UC4030A |
| ES2135A - ELECTRIC CHAIN SAW 2000W 35CM DOLMAR pag.3 | ||
| 101 | 639530-0 | STATOR - FIELD UC3530A-4030A |
| 102 | 616969-4 | ARMATURE UC3530A - UC4030A |
| 103 | 211111-8 | BALL BEARING 6301 X UC |
| 104 | 211057-8 | BALL BEARING 629 X UC |
| 105 | 681666-1 | INSULATING WASHER UC3530A-4030 |
| 106 | 266095-5 | SCREW 5 X 55 HR5001C |
| 107 | 687080-9 | CLAMP X ES-152A |
| 108 | 638455-5 | CABLE WHITE / BLACK |
| 109 | 638456-3 | CABLE YELLOW UC3530A-4030A |
| 110 | 638453-9 | CABLE ORANGE UC3530A-4030A |
| 111 | 970311720 | CABLE ORANGE UC3530A-4030A |
| 112 | 638454-7 | CABLE BLACK UC3530A-4030A |
| 113 | 650577-1 | SWITCH SD-006-BB2AA-AA |
| 114 | 654532-5 | TERMINAL 1P |
| 115 | 631719-6 | CONTROLLER |
| 116 | 651923-1 | SWITCH TG70B X 5903R |
| 117 | 645239-4 | CAPACITOR 4326 |
| 118 | 687124-5 | CABLE CLAMP MT953 |
| 119 | 265995-6 | SCREW * M4X18 X 6408 / 6221DW |
| 120 | 682574-9 | CABLE SLEEVE 10-90 PC5000C |
| 125 | 158024-1 | CABLE CLAMP UH3000 |
| ES2135A - ELECTRIC CHAIN SAW 2000W 35CM DOLMAR pag.4 | ||
| 700 | 412035661 | 3/8" .050" 35cm-14"SPROCKET NOSE BAR |
| 702 | 528092052 | 3/8" .050" 35cm-14"SAW CHAIN |
| 710 | 952100130 | CHAIN PROTECTION COVER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Dolmar websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Dolmar brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
