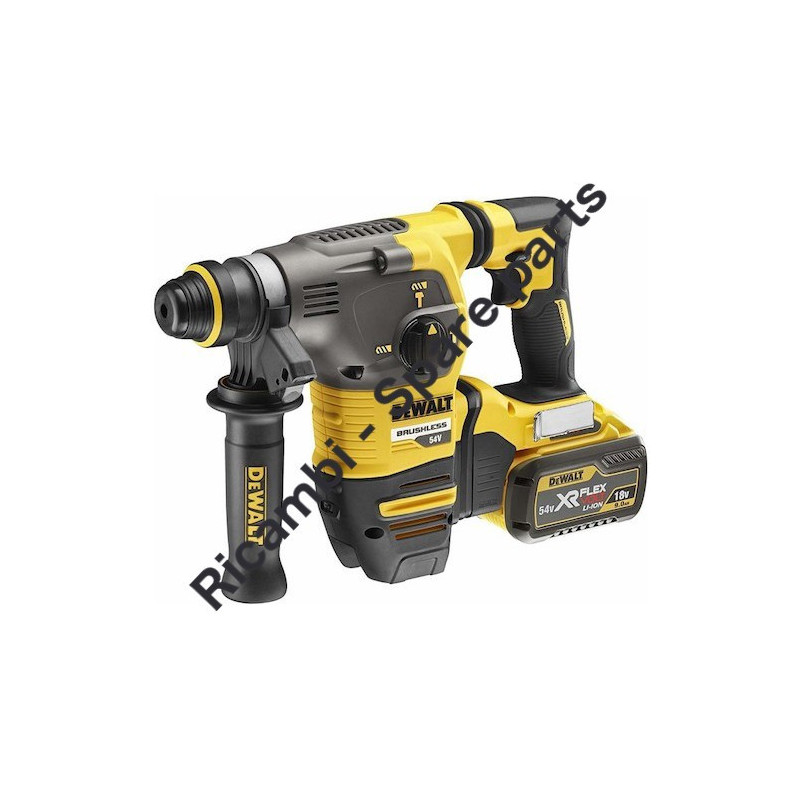

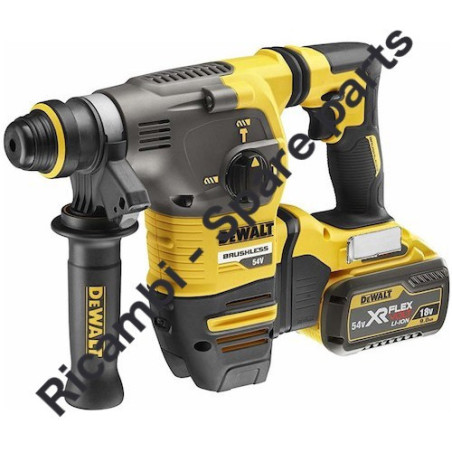

DeWalt DCH333-QW Type 1 Rotary Hammer Parts
€3.33
Tax included
DeWalt DCH333-QW Type 1 Rotary Hammer Spare Parts
DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCH333-QW Type 1 Cordless Rotary Hammer.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
DeWalt DCH333-QW Type 1 Rotary Hammer Spare Parts
DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCH333-QW Type 1 Cordless Rotary Hammer.
Open PDF Drawing in this page to check spare parts you need.
| DCH333-QW Type 1 Rotary Hammer Drill Spare Parts | ||
| Pos. | Codice | Description |
| 1 | 323489-00 | Cap |
| 2 | 579212-00 | RING |
| 3 | N910599 | TUBE - CHUCK COVER |
| 4 | 583890-00 | Ball 7mm |
| 5 | 578387-00 | WASHER |
| 6 | 871690 | SPRING |
| 7 | N606738 | Housing Front |
| 8 | N152623 | Stop |
| 9 | N106188 | COMPRESSION SPRING |
| 10 | N106221-01 | Bellows |
| 11 | N914794 | Handle Sa > 2022-24 |
| 12 | N431292 | BAR |
| 13 | N438439 | INSERT |
| 14 | N438438 | INSERT |
| 15 | N400082 | SPRING |
| 16 | N094649 | PLATE |
| 17 | N122099 | BLOCK |
| 18 | N119679 | SPRING |
| 19 | N427167 | Bellows |
| 20 | N461796 | End Cap |
| 21 | N461797 | End Cap |
| 22 | N159443 | AXIS |
| 23 | N466997 | Motor Housing Sa |
| 24 | N461541 | HOOK |
| 25 | N400130 | Screw |
| 26 | 330019-20 | Screw |
| 27 | 330019-80 | Screw |
| 28 | N829171 | Led Light DC > 2022-24 |
| 29 | N452980 | INDICATOR |
| 30 | 656183-00 | LENS |
| 31 | N267567 | SELECTOR SA |
| 32 | N091381-00 | O-RING |
| 33 | NA384556 | SEAL SA |
| 34 | 324006-15 | SCREW |
| 35 | N038257 | FELT |
| 36 | N423558 | O-RING |
| 37 | N431392 | PLATE |
| 38 | N663642 | SPRING |
| 39 | N433763 | PIN |
| 40 | N390874 | CON ROD |
| 41 | 000000-11 | NO LONGER REQUIRED ON THIS ON THIS UNIT |
| 42 | N517447 | PISTON -- > NA602332 |
| 43 | N394408 | O-RING |
| 44 | N123257 | PIN |
| 45 | N505552 | PISTON KIT----> NEW NA710282 |
| 46 | N616792 | GEARCASE SA |
| 47 | N505553 | RAM SA |
| 48 | N783458 | SPINDLE |
| 49 | N561701 | SPINDLE |
| 50 | N468472 | PIN |
| 51 | N467014 | RETAINER |
| 52 | N459693 | BEAT PIECE |
| 53 | N406771 | BEVEL GEAR |
| 54 | 479478-00 | BEARING,BALL |
| 55 | N412167 | O-RING |
| 57 | N413186 | CIRCLIP |
| 58 | N502900 | WASHER |
| 58 | N502900 | WASHER |
| 59 | N412168 | O-RING |
| 60 | N421627 | O-RING |
| 61 | N395027 | WASHER 30mm |
| 62 | N422601 | CIRCLIP |
| 63 | N605730 | CLUTCH SA |
| 64 | 330004-06 | BEARING NEEDLE |
| 65 | N452829 | CRANKSHAFT |
| 66 | N427179 | BEARING |
| 67 | N453028 | CLIP |
| 68 | N505555 | CRANKSHAFT |
| 70 | N168103 | BEARING |
| 72 | N427177 | BEARING CAGE |
| 73 | N513678 | GEAR SA |
| 74 | N264669 | COLLAR |
| 76 | N433668 | BUSH |
| 77 | 323763-10 | LOCKING RING |
| 78 | N593071 | TRANSMISSION SA |
| 80 | N506028 | MOTOR & SWITCH SA ; DC MOTOR < 2022-24 |
| 80 | NA077212 | MOTOR & SWITCH SA; DC MOTOR > 2022-24 |
| 80 | NA336040 | SERVICE KIT MOTOR SA + HANDLE SA + LED DC < 2022-24 |
| 81 | N186764 | RUBBER PAD |
| 82 | N413662 | HANDLE SIDE SA |
| 83 | 798846-02 | DEPTH STOP |
| 84 | N374339 | INSERT |
| 85 | N487261 | BRAND LABEL |
| 86 | N487262 | BRAND LABEL |
| 87 | N388939 | WASHER |
| 800 | 578970-04 | GREASE 80g |
| 801 | 870889-02 | RENOLIT PARAGON EP GREASE ½ - 90 GRAMS |
| 801 | 870889-03 | RENOLIT PARAGON EP GREASE ½ - 20 GRAMS |
| 821 | NA126910 | RATING LABEL |
| 821 | NA126906 | RATING LABEL |
| 837 | 1003968-99 | S.T.CIRCLIP INSERTER Long |
| 837 | 1003969-99 | S.T.CIRCLIP INSERTER Short |
| 838 | 1003967-99 | S.T.CIRCLIP INSERTER |
| 839 | 1003970-99 | S.T.DIS-ASSEMBLY JIG Removal Piston + Ram |
| 860 | H1400196008 | HANDLE |
| 861 | N445186 | KITBOX DCH333NT |
| 862 | N409477 | LATCH |
| 863 | P910190 | LATCH |
| 864 | N493397 | DCH333NT INSERT |
| 866 | N473851 | BATTERY 3 X 18V - 6.0AH - 108WH |
| 866 | N491552 | BATTERY 3 X 18V - 9.0AH - 162WH DCB547-XJ |
| 867 | N473860 | DCB118-QW BATTERY CHARGER |
| 871 | N462141 | SAFETY HOOD |
| 909 | NA473152 | REPAIR KIT DC < 42 - 2023 ITEM NO. #38&74 |
