DEWALT DWE490 Angle Grinder Spare Parts

€1.65
Tax included

DEWALT DWE490 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DWE490 Angle Grinder Spare Parts.
ITEM CODE: 330045-14
Quantity
on Demand Only

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

DEWALT DWE490 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DWE490 Angle Grinder Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
DWE490 Angle Grinder Spare Parts

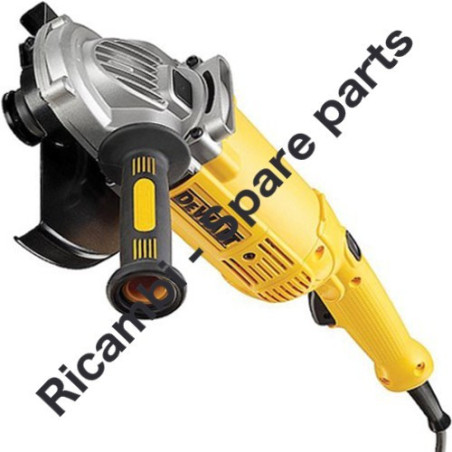

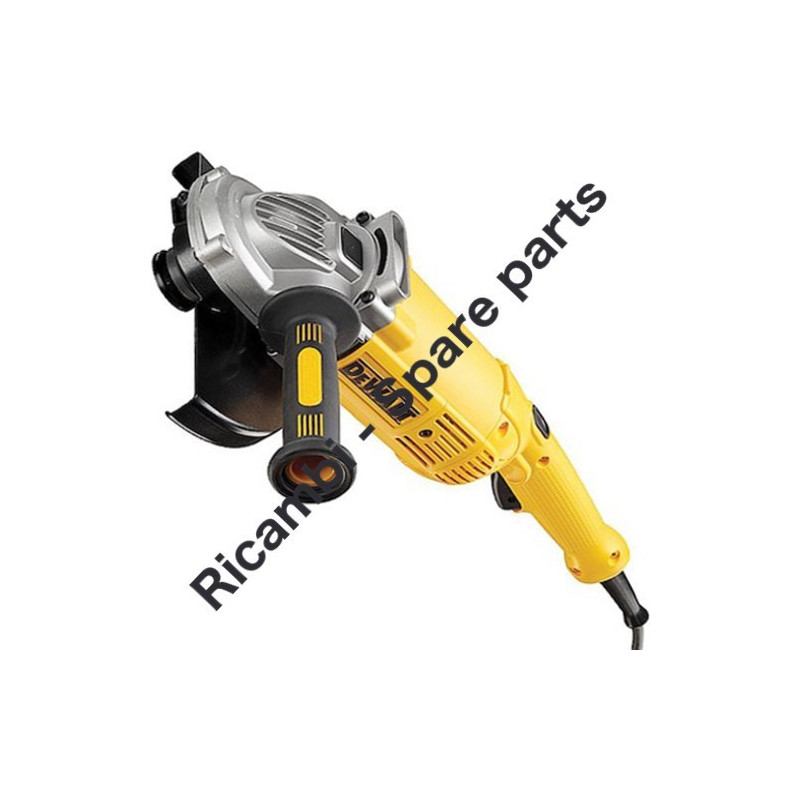

DEWALT DWE490 ANGLE GRINDER 2000 WATT
# Part Num. Description
1 330045-14 SCREW EMS 705
2 330019-26 SCREW
3 330019-19 SCREW
4 330019-11 SCREW, FOR PLASTIC 4.55 X 13 T20
5 330019-50 SCREW
6 330019-32 SCREW
8 176951-00 SCREW
10 N310019 FIELD SA
10 N411251 FIELD 115V
11 N332479 ARMATURE SA
11 N089617 ARMATURE 115V
12 393239-01 FIELD CASE MH286
13 397031-00 O-RINGS
14 N442319 GEARCASE SA
15 N442320 GEARCASE COVER SA
16 N407625 PINION
17 330015-03 NUT
20 645650-00 BRUSH SPRING
21 394387-01 BRUSH COVER
22 N410308 BRUSH HOLDER ASSY
23 N404514 BRUSH PAIR
23 N084455 BRUSH PAIR 120V
24 636499-01 HANDLE AND COVER
25 N015071 SWITCH SA X TYPE 20
25 N035342 SWITCH SA X TYPE 1
26 N219433 CORD PROTECTOR
26 330005-11 CORD PROTECTOR
27 604119-00 CORD CLAMP
28 632218-00 CAPACITOR
29 562226-68 CORDSET
29 N409119 CORDSET (M/PLUG) GB
30 631350-00 BAFFLE FAN
31 393238-00 SHIELD
32 N389509 BALL BEARING
33 N110359 BALL BEARING 608
34 N423473 SUPPRESSOR
36 N033051 SCREW
37 636503-00 BUTTON LOCK-OFF
38 636502-00 SPRING
39 N391190 COVER
40 N427097 RATING PLATE
40 N427104 RATING PLATE
41 403150-01 INNER FLANGE
42 401678-05 OUTER FLANGE
43 609970-00 SLEEVE INSULATING
44 630553-00 CAPACITOR
45 638328-00 SPRING
46 635908-00 RETAINER
47 634589-00 PIN
48 750831 O-RING
52 640591-00 WASHER
53 330045-67 SCREW
60 635261-00 WRENCH PIN
61 N419366 GUARD SA
62 N082712 SCREW
63 651858-01 SIDE HANDLE
70 612273-00 TERMINAL
71 610057-00 TERMINAL
73 053650-00 TERMINAL
800 583534-00 GREASE RHEOLUBE 380-G1
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
