Compa-OMS Spare Parts for Professional Mitre Saw 250 SIT
€48.70
Tax included
Compa-OMS Spare Parts for Professional Mitre Saw 250 SIT
Compa-OMS Original spare parts sourced directly from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair damaged parts for Professional Portable Mitre Saw COMPA HOBBY HORSE Professional Model 250 SIT.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Compa-OMS Spare Parts for Professional Mitre Saw 250 SIT

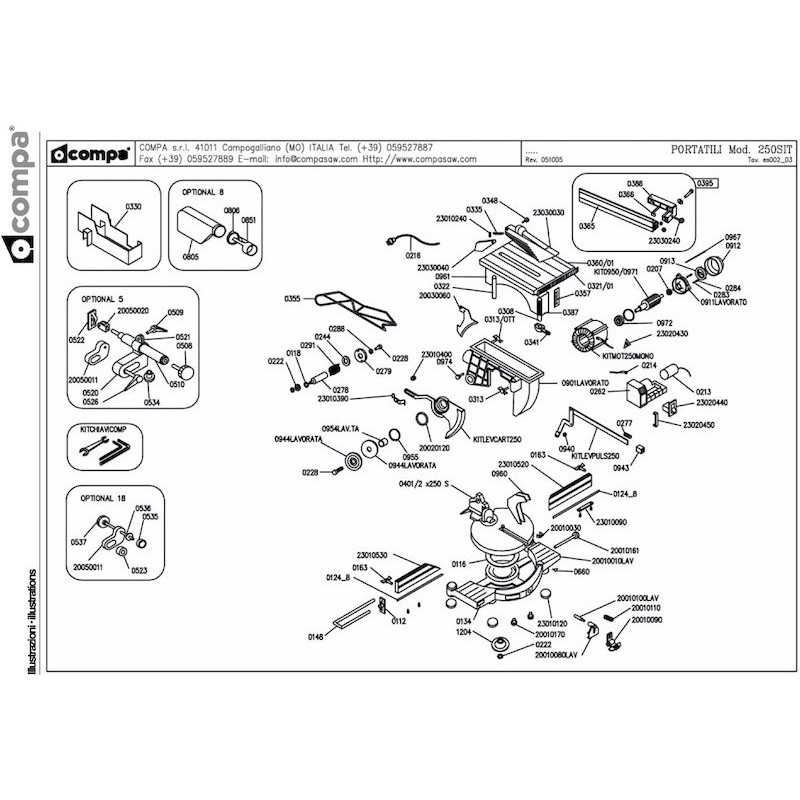

Compa-OMS Original spare parts sourced directly from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair damaged parts for Professional Portable Mitre Saw COMPA HOBBY HORSE Professional Model 250 SIT.In the following table, look for the model of the Cutter-Bending and their spare part.
| Mitre Saw COMPA HOBBY HORSE Professional Model 250 SIT | |
| Part Num. | Description |
| 0395LAV | Upper Guide Assy worked |
| 0365GREZZO | Extruded upper bracket PR.14590 (anodized rod length nt.4,30) |
| 0366 | Locking plate |
| 0386LAVORATO | Extruded cutting and machined team support |
| 23030240 | SOLD OUT Bracket front locking knob (sold out) |
| 0967 | Motor stud x 250 FC M5x153 |
| 0912 | Small motor fan cover Polycarbonate 250/300/2300 |
| 0284 | Spring 'CO.MEC 720 P.32'x brake |
| 0283 | Brake pad |
| 0911LAVORATO | Motor cover 250 WORKED |
| 0913 | Small motor fan 250/300/2300 |
| 0207QUALITY | Bearing 6201 2ZZ mm.12x32x10 |
| KIT0950/0971 | Shaft + rotor 47x90 x 250 |
| 0972 | Bearing 6004 2Z x 250 F / C mm20x42x12 |
| 23020430 | Heat danger plate |
| KITMOT250MONO | 250 mono motor (pack st. + Starter + carc.) V.230 / 50Hz. |
| 0214 | Rubber grommet |
| 0292/2300 | Capacitor 12.5 mF V450 2 cav. |
| 23020440 | ETA switch ABCWF00-U3-AZM02 x2300 / 250 300 / Single phase |
| 23020450 | Spacer for mounting Switch 23020440 (ex 267) on handle 0262 |
| 0262 | Handle 300 JE-JET line |
| 0901LAVORATO | Arm 250 machined (out of stock) |
| 0277 | Return lever return spring |
| 0943 | Crankcase release button 250 FC |
| KITLEVPULS250 | Mounted release levers 250 (0926/7) |
| 0940 | Special nut x 250 F / C High collar |
| 0124-8 | Millimeter rod Right Left mm.260x8 th.0.5 aluminum + adhesive |
| 23010090 | 13.5x5 plate with square stop |
| 0163 | Knob d.20 M6x10 (01TBP20C10) |
| 23010520LAV | Right bracket x mod.250 SIT + BOLTS |
| 0960 | Conveyor / lower protection 250 IN IRON |
| 20010030 | Closing cap |
| 20010161 | Cockerel THP25 M6x102 |
| 20010010LAV | Base type 'S' WORKED |
| 0660 | Index mod. 250 |
| 20010100LAV | WORKING table locking pin |
| 20010090 | Table positioning lever SOLD OUT |
| 20010080LAV | Positioning lever attachment WORKED OUT - NOT FOR SALE |
| 0222 | Thrust bearing 51100 |
| 20010170 | Rubber foot x mod. YES / SIT |
| 23010120 | Rubber foot univ.x 2300 / 1-3000 / 1-3500 |
| 1204 | Deep drawn washer for base 'S' |
| 0112 | Plate for stop hole d.10 |
| 0148 | Curved stop single rod |
| 0163 | Knob d.20 M6x10 (01TBP20C10) |
| 23010530LAV | Left bracket x mod.250SIT + BOLTS |
| 0116 | Teflon washer d.85xd.41x0,3 |
| 23030030 | Upper floor saw protection (spare part: 23030030 COM |
| 0360/01 LAV | Assembled extruded aluminum shelf |
| 0321/01 | Millimeter scale USE 0321/02 (OLD TYPE USE 0321/02) |
| 0357 | Graduated rod for raising the shelf |
| 0387 | Table return spring 250-300 |
| 0341 | Upper floor operating lever |
| 0308 | Worktable guide column |
| 0313/OTT | Wing M5x15 Brass (CSPM5x15) |
| 0322 | Column d.12 hole etc. GALVANIZED |
| 20030060 | Dividing knife 250 NEW TYPE |
| 0961 | Undertop shelter x 250 |
| 23030040 | Language post.x super prot. (Ric. 23030030 C |
| 0216MONO | VVF cable 3x1 mt.2 + SHUKO FR plug. |
| 23010240 | Spring for arm locking pin |
| 0335 | Upper protection return spring and release levers |
| 0348 | Knob d.20 M5 (01TBB20B) |
| 0313 | Wing knob (Chiavet.di Serr.CSP M5x15 iron |
| 0974 | Knob THP30M10x35 conical tip locking 250 |
| 23010400 | Bushing for crankcase lift lever 2300 |
| KITLEVCART250 | Crankcase group + levers x 250 (code 0978 + 0942) |
| 20020120 | Crankcase thickness washer Thickness 0.6 |
| 0955 | UNI7435 ring d36 x 250 FCT |
| 0944LAVORATA | CLAMP WASHER RECTIFIED 250-300 + TC10 |
| 0228 | Saw stop screw VTCEI M10x25 SX Zn |
| 0954LAV.TA | Saw spacer ring 250 FC RECTIF |
| 23010390 | Leaf spring X 2300/1 |
| 0279 | GALVANIZED spring preload washer |
| 0278 | Arm hinged plug NEW |
| 0222 | Thrust bearing 51100 |
| 0118 | Brass washer d.24x10,5x2 |
| 0291 | Spring f.5.5 d.e.50.5 x arm |
| 0244 | Torsion spring shim washer 35x25.2x4.5 X SPRING 0291 |
| 0288 | UNI8842 fan washer for M14 screw |
| 0355 | Plastic pusher for upper surface |
| 0330 | Removable lower protection in plastic |
| 0806 | HOP9 clamp d.40-70 |
| 0851 | Support for suction bag |
| 0805 | Suction bag C216 / G d.60 int + Zipper |
| 0509 | Snap handle (KP i.40 M6x30) |
| 0521GREZZO | Vice pressure holder WITH PRIGION. |
| 0508 | Vice knob (THP knob d.50 M10x35) |
| 0510 | Clamp pressure L.180 (ZS020 00001) |
| 0534 | Lower vice knob 01THB40DM8 |
| 0526 | Snap handle (KP i.79 M10x60) |
| 0520GREZZO | Universal vice support |
| 20050011 | Vice support x 2300/250 FCT RAW !! |
| 0522 | Universal vice presser |
| KITCHIAVICOMP | Complete packaged key kit (0130 + 0131 + 0136) |
| 0536 | Threaded rod for vice 250/2300 |
| 0535 | Pusher for vice 250/2300 |
| 0523 | PVC washer. vise spacer |
| 0537 | THB 50 M10 vice knob |
