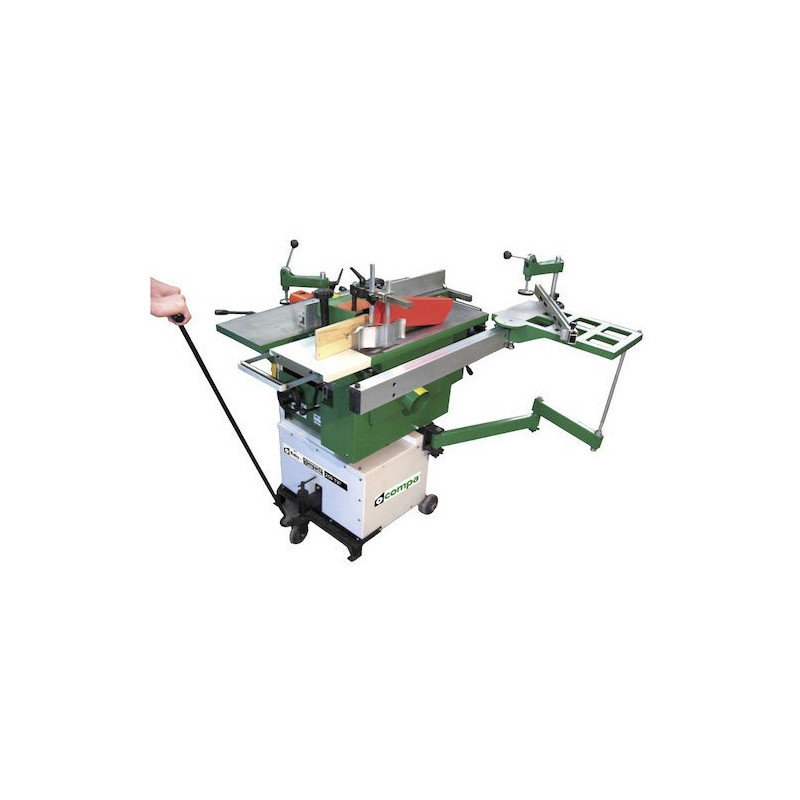

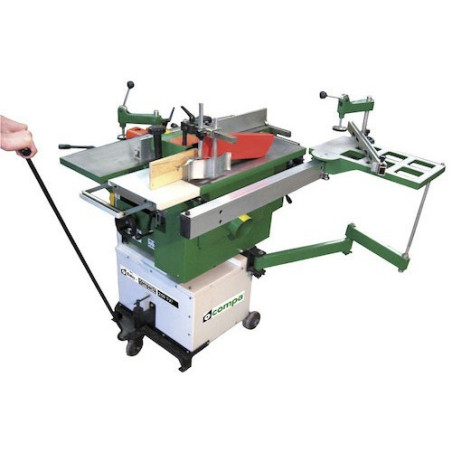

Woodworking Combined Machine Compa Baby Kompacta 250-TV

Name: Woodworking Combined Machine Compa Baby Kompacta 250-TV
Brand: COMPA S.r.l.
SKU: Compa Baby Kompacta 250-TV
Price: 2853.92 EUR
Availability: InStock

€2,853.92

Tax included

Woodworking Combined Machine Compa Baby Kompacta 250-TV

Woodworking Combined Machine with 1500W Brushless Motor Kompacta 200L6.

Description
- Combined machine 6 functions
- Surface planer
- Thickness planer
- Circular saw
- Vertical spindle moulder
- Mortiser
- Sliding table
Baby Kompacta 250-TV EAN: 8032770660971

Quantity

Last items in stock

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details

Woodworking Combined Machine Compa Baby Kompacta 250-TV

Dimensioni imballo	Packaging size	1130x800x620 mm
Peso	Weight	231 Kg
PIALLA FILO	SURFACE PLANER:
Piani di lavoro in ghisa	Working tables of cast iron	250 x 960 mm
Diametro Alero pialla	Diameter Planer shaft	72mm
Coltelli	Number of shaped knives	n3
Dimensioni colteli	Size of shaped knives:	260 x 30 x 3. mm
Altezza minima colteli	Shaped knives min. height	20 mm
Velocità rotazione	Rotation speed	4000 g/min
Asportazione massima	Max. removal	3mm
Diametro Attacco Aspirazione	Diameter Aspirator Connection	100mm
Squadra per pialla inclinabile	Tilting planer fence	0° - 45°
Motore	Motor	2200 W
PIALLA A SPESSORE	THICKNESS PLANER
Piano di lavoro in ghisa	Working table of cast iron	200 x 500 mm
Asportazione massima	Max. removal	3mm :
Velocità avanzamento	Feed speed	6,5 mvimin
Altezza minima lavoro	Min. working height	6mm
Altezza massima lavoro	Max. working height	120 mm
Motore	Motor	1500 W
SEGA CIRCOLARE	CIRCULAR SAW
Diametro Lama sega	Diameter Saw blade	250 x 30 mm
Velocità di rotazione	Rotation speed	3500 giri/min
Altezza di taglio massima a 90°	Max. cutting height at 90°	70mm
Altezza di taglio massima a 45°	Max. cutting height at 45°
Diametro Attacco aspirazione	Diameter Aspirator connection	100mm
Diametro Attacco aspirazione sulla protezione	Diameter Aspirator connection on the protection case	40mm
Motore	Motor	2200W
TOUPIE	MOULDER
Diametro Albero portautensili	Diameter Tool-carrier spindle	20 (30)mm
Velocita di rotazione	Rotation speed	8100 gimin
Corsa utile albero	Spindle useful	40 mm
Diametro Massimo utensile	Diameter Tool max	120mm
Piano di lavoro sega-toupié in ghisa	Moulder saw working table of cast iron	250x850 mm
Motore	Motor	1200W
CAVATRICE	MORTISER
Piano di lavoro	Working table	380x120 mm
Mandrino tipo Westcot®	Westcott-type® spindle	1,5 - 16mm
Massimo codolo utensile	Diameter Tool max	16 mm
Velocita di rotazione	Rotation speed	4000 giri/min
Corse verticale, orizzontale e trasversale	Vertical, horizontal and transversal strokes	70-120-90 mm
Motore	Motor	2200W
CARRO	SLIDING TABLE
Dimensioni pianetto carro	Auxiliary table size	490x300 mm
Corsa carro	Sliding table saw	775 mm
