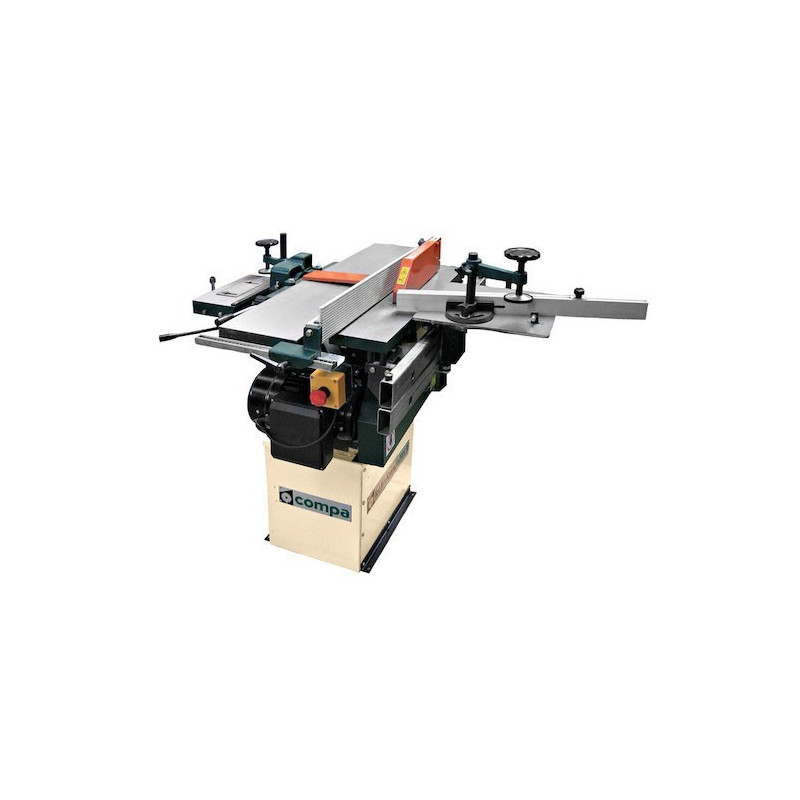

Woodworking Combined Machine Baby Compa Kompacta 200L6

Woodworking Combined Machine Compa Baby Kompacta 200L6

Name: Woodworking Combined Machine Compa Baby Kompacta 200L6
Brand: COMPA S.r.l.
SKU: Compa Baby Kompacta 200L6
Price: 1837.9 EUR
Availability: InStock

€1,837.90

Tax included

Woodworking Combined Machine Compa Baby Kompacta 200L6

Woodworking Combined Machine with 1500W Brushless Motor Baby Kompacta 200L6.

Description
- Combined machine 6 functions
- Surface planer
- Thickness planer
- Circular saw
- Horizontal toupiè
- Mortiser
- Trolley to square
Baby Kompacta 200L6 EAN: 8032770660957

Quantity

Last items in stock

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details

Woodworking Combined Machine Compa Baby Kompacta 200L6

Dimensioni imballo	Packaging size	1100x700x1000 mm
Peso	Weight	115 Kg
PIALLA FILO	SURFACE PLANER:
Piani di lavoro in ghisa	Working tables of cast iron	200 x 850 mm
Diametro Alero pialla	Diameter Planer shaft	72mm
Coltelli	Number of shaped knives	n3
Dimensioni colteli	Size of shaped knives:	210 x 30 x 3. mm
Altezza minima colteli	Shaped knives min. height	20 mm
Velocità rotazione	Rotation speed	3500 g/min
Asportazione massima	Max. removal	3mm
Squadra per pialla inclinabile	Tilting planer fence	0° - 45°
Motore	Motor	1500 W
PIALLA A SPESSORE	THICKNESS PLANER
Piano di lavoro in ghisa	Working table of cast iron	200 x 500 mm
Asportazione massima	Max. removal	3mm :
Velocità avanzamento	Feed speed	6,5 mvimin
Altezza minima lavoro	Min. working height	6mm
Altezza massima lavoro	Max. working height	90 mm
Motore	Motor	1500 W
SEGA CIRCOLARE	CIRCULAR SAW
Diametro Lama sega	Diameter Saw blade	250 x 30 mm
Velocità di rotazione	Rotation speed	3500 giri/min
Altezza di taglio massima a 90°	Max. cutting height at 90°	70mm
Altezza di taglio massima a 45°	Max. cutting height at 45°
Diametro Attacco aspirazione	Diameter Aspirator connection	80mm
Diametro Attacco aspirazione sulla protezione	Diameter Aspirator connection on the protection case	40mm
Motore	Motor	1,5Kw
TOUPIE	MOULDER
Diametro Albero portautensili	Diameter Tool-carrier spindle	20 mm
Velocita di rotazione	Rotation speed	3500 gimin
Corsa utile albero	Spindle useful	100 mm
Diametro Massimo utensile	Diameter Tool max
Piano di lavoro sega-toupié in ghisa	Moulder saw working table of cast iron	70x470 mm
Motore	Motor	1.5 kW
CAVATRICE	MORTISER
Piano di lavoro	Working table	280x160 mm
Mandrino tipo Westcot®	Westcott-type® spindle
Massimo codolo utensile	Diameter Tool max	6-8-12-15-16 mm
Velocita di rotazione	Rotation speed	3500 giri/min
Corse verticale, orizzontale e trasversale	Vertical, horizontal and transversal strokes	90-90-90 mm
Motore	Motor	15kW
CARRO	SLIDING TABLE
Dimensioni pianetto carro	Auxiliary table size	220x320 mm
Corsa carro	Sliding table saw	480 mm
