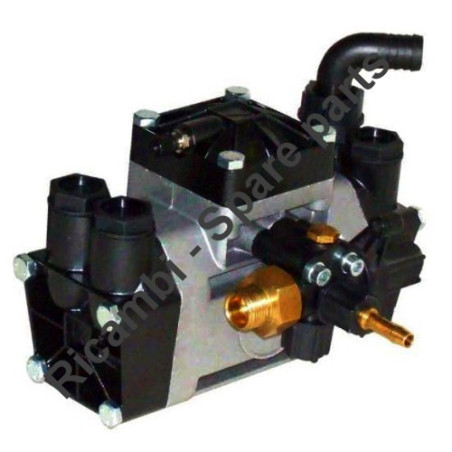

CM Motori Spare Parts for High Pressure Sprayer Pump
€4.71
Tax included
CM Motori Spare Parts for High Pressure Sprayer Pump
CM Motors original spare parts for to replace broken parts for to fix CM High Pressure Sprayer Pump.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
CM Motori Spare Parts for High Pressure Sprayer Pump
CM Motors original spare parts for to replace broken parts for to fix CM High Pressure Sprayer Pump.
In the following table, look for the model of the Motor Pump and the respective parts of the code.
Items will be shipped within 7/10 working days approx.
| SPRAYING PUMP CM | ||
| 1 | P25058F00 | CURVE EXTRACTION D.20 |
| 2 | P25060F00 | WALKER 1/4 |
| 3 | P25842F00 | OR117 |
| 4 | P25011F00 | NIPPLES INTAKE |
| 5 | P25838F00 | OR813 |
| 6 | P25003F00 | SUCTION VALVE SPACER |
| 7 | P25833F00 | OR 19 |
| 8 | P25044F00 | VALVE STAINLESS STEEL 5.5 Hp |
| 9 | P25046F00 | VALVE |
| 10 | P25051F00 | VALVE SPRING |
| 11 | P25006F00 | VALVE PUMP CAGE |
| 12 | P25016F00 | PUMP HEAD |
| 13 | P25010F00 | PLUG VALVE GROUP |
| 14 | P25017F00 | VALVE INLET - OUTLET |
| 15 | P25013F00 | REDUCING VALVE DRAIN DISC |
| 16 | P25004F00 | TANK CAP |
| 17 | P25005F00 | OIL TANK LOAD |
| 19 | P25842F00 | OR 117 |
| 20 | P25050F00 | STOP WASHER |
| 21 | P25047F00 | MEMBRANE BOLT HOLDER |
| 22 | P25002F00 | UPPER DISC MEMBRANE CLAMPING |
| 23 | 3100300F0 | NUT M6 |
| 24 | 7400800F0 | WASHER 0.6 |
| 25 | P25021F00 | PISTON MEMBRANE |
| 26 | P25037F00 | DISC LOWER MEMBRANE |
| 27 | P25048F00 | BUSH |
| 28 | P25030F00 | SHIRT |
| 29 | P25042F00 | PISTON SEGMENT 34.00x2.5 |
| 30 | P25022F00 | SET PISTONS |
| 31 | P25052F00 | PLATE PISTON |
| 32 | P25026F00 | CARTER PUMP |
| 33 | P25020F00 | MEMBRANE ACC. PRESS. |
| 34 | P25018F00 | BATTERY COVER |
| 36 | P25425F00 | BOLT TE 8 x 30 |
| 37 | P25057F00 | AIR VALVE |
| 38 | P25012F00 | KNOB PRESSURE CONTROL |
| 39 | P25053F00 | SPRING ADJUSTMENT |
| 40 | P25579F00 | ROLLER 3X27.8 |
| 41 | P25008F00 | LEVER PRESSURE CONTROL |
| 42 | P25009F00 | PRESSURE CONTROL VALVE BODY |
| 44 | P25036F00 | PLUG GAUGE 1/8 |
| 45 | 9400140F00 | SCREW TCEI 6 x 45 |
| 47 | P25039F00 | RUBBER HOLDER D.8 |
| 48 | P25059F00 | WALKER 1/8 '' |
| 49 | P25001F00 | CAP |
| 50 | P25069F00 | SEAL PRESSURE CONTROL |
| 51 | P25848F00 | OR 006 |
| 52 | P25054F00 | PRESSURE CONTROL VALVE |
| 53 | P25035F00 | SEAT VALVE PRESSURE |
| 54 | M4Z421F00 | BOLT TE 8 x 55 |
| 55 | P25424F00 | BOLT TE 8 x 50 |
| 56 | P25612F00 | BEARING 42 x 15 x 13 |
| 57 | P25652F00 | SEEGER E29 |
| 58 | P25033F00 | BEARING |
| 59 | P25028F00 | ECCENTRIC SHAFT |
| 60 | P25990F00 | KEY 8x12 |
| 61 | P25611F00 | BEARING 52 x 25 x 15 |
| 62 | P25705F00 | SEAL 25 x 52 x 7 |
| 63 | P25014F00 | SEAL GEAR |
| 64 | P25015F00 | PUMP FLANGE |
| 65 | P25427F00 | SCREW TPSEI 8 x 14 |
| 66 | P25063F00 | GEAR Z 43 |
| 67 | 7400900F00 | WASHER 8 x 24 x 2.5 |
| 68 | P25426F00 | BOLT TE 8 x 16 |
| 82 | P25055F00 | FOOT PUMP |
| 87 | P25023F00 | WALKER 1/2 " |
| 88 | P25024F00 | STRAIGHT |
| 89 | P25025F00 | DISTANCE |
| 90 | P25070F00 | CARTER REDUCTION PUMP |
| 91 | 9120500F00 | 1/4 "CAP |
| 92 | P25075F00 | 1/4 "BREATHER CAP EXTENSION |
| 93 | 7401000F00 | FLAT WASHER D.8 |
| 94 | M2T102F00 | RING |
| 95 | P25074F00 | PRESSURE GAUGE |
| P25070F00 | PUMP REDUCTION CARTER | |
| P25071F00 | ENGINE REDUCER GASKET | |
| 7400640F00 | FLYWHEEL WASHER 10x30x2.5 | |
| P25849F00 | OR 113 | |
| P25073F00 | COMPLETE VALVE GROUP | |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s CM Motori snc websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to CM Motori snc brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
