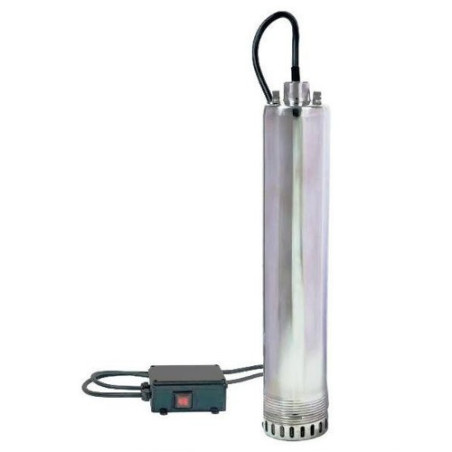

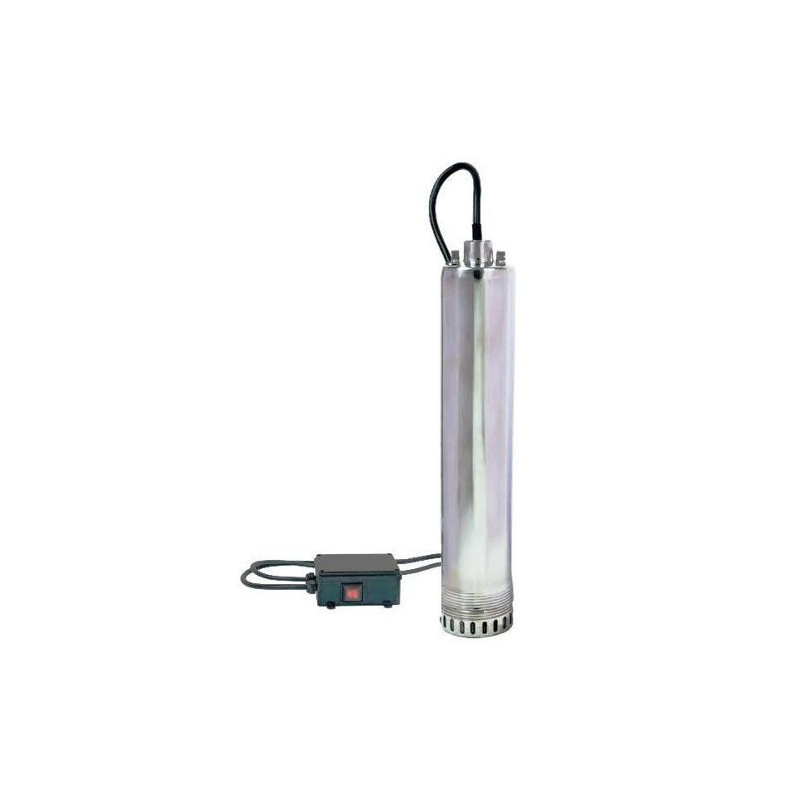

10 Turbine deep well water pump PRPGP900

10 Turbine deep well water pump PRPGP900

10-turbine deep well water pump.
For supplying water in individual houses (toilet, washing machine, heating system etc.).
Body in stainless steel with a diameter of 4'', specially designed for deep sinking well. Output 1'' (26x34).
It can also be used for less deep water sources located far away from the house, such as wells, buried tanks, etc.
Electric cable HO7RN-F 4G 1 mm2, 20 m. Water-resistant electric switching box installed at the end of the cable.
900 W: Max. Flow rate 3000 l/h. Sucks up to 25 mm from ground.
Max. immersion depth of 15 m. Max. discharge height of 50 m.
Max. diameter of particles in suspension is 2 mm.

Features of our pump:

Motor

• Dry 230 V - 50 Hz induction motor,
• Built-in heat protection,
• System is triggered with a watertight switch,
• Carbon steel crankshaft.

Pump

• Polypropylene or stainless steel pump body,
• PPO (Noryl®) turbine,
• Residual hight 5 mm (clean water) 50 mm (dirty water).

Equipment

• Polypropylene switch/fl oat with steel ball on/off system,
• System for setting trigger height by blocking the fl oat cable,
• Polypropylene discharge tip, straight or angled, adaptable for outlets with: - 1“, 1“1/4 and 1“1/2 threading (26x34, 33x42, 40x49) - Ø 25 or Ø 32 hose,

Power cord

3 x 0.75 mm2 HO5RN-F, up to 400 W,
3 x 1.0 mm2 HO5RN-F, up to 550 W,
HO7RN-F with 750 W and above.
10 m length.
