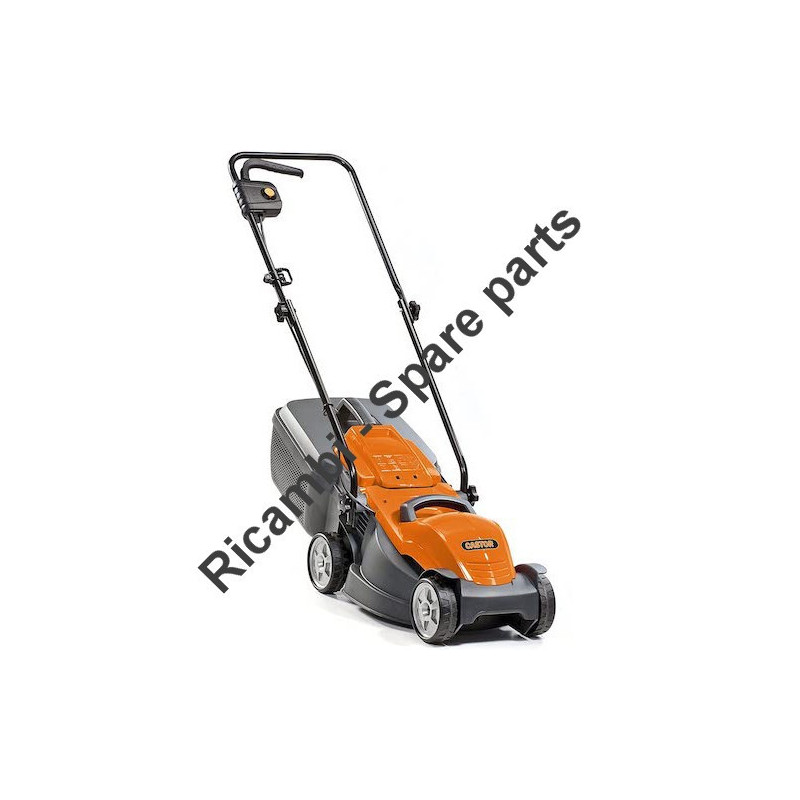

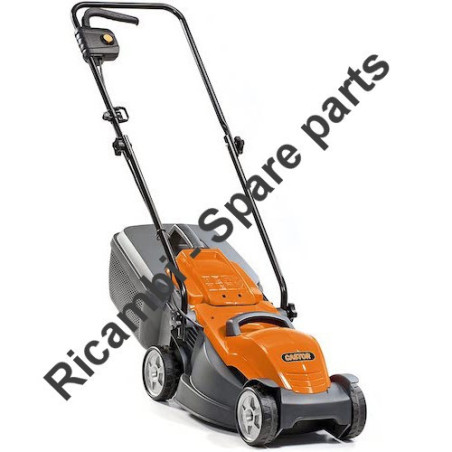

Castor Spare Parts for Electric Lawn Mower JB300
€1.54
Tax included
Castor Spare Parts for Electric Lawn Mower JB300
We supply original CASTOR spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for JB300 - 293320065/CST - 2019.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Castor Spare Parts for Electric Lawn Mower JB300
We supply original CASTOR spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for JB300 - 293320065/CST - 2019.In the following table, look for the model of the Electric Lawn Mower and the respective parts of the code.
| Electric Lawn Mower JB300 | ||
| # | Part Num. | Description |
| 1 | 118810075/0 | Upper Handle |
| 2 | 118810086/0 | Lower plate |
| 3 | 118810087/0 | Upper plate |
| 4 | 112291000/0 | Nut |
| 5 | 118810161/0 | Hook |
| 6 | 112735654/0 | Screw |
| 7 | 112728099/1 | Screw |
| 8 | 118810113/0 | Lever |
| 9 | 118810090/0 | Switchbox lower |
| 10 | 118810080/0 | Spring |
| 11 | 118810061/0 | Pin |
| 12 | 112735654/0 | Screw |
| 13 | 118810065/0 | Capacitor |
| 14 | 118810062/0 | Switch |
| 15 | 123878020/0 | Screw |
| 16 | 2312100 | Washer |
| 17 | 118810089/0 | Upper half-handle Motor protection switch |
| 18 | 118810094/0 | Yellow button |
| 19 | 112728099/1 | Screw |
| 20 | 118810169/0 | Gray cover |
| 21 | 118810162/0 | Motor cover |
| 23 | 112543001/0 | Washer |
| 24 | 118810093/0 | Washer |
| 25 | 118810057/0 | Electric motor |
| 26 | 118810099/0 | Screw |
| 27 | 118810077/0 | Motor pulley |
| 28 | 118810092/0 | Belt |
| 29 | 118810059/0 | Pulley |
| 30 | 118810071/0 | Bearing |
| 31 | 118810084/0 | Motor plate |
| 32 | 118810069/0 | Bearing |
| 33 | 112000955/0 | Circlip |
| 34 | 118810072/0 | Washer |
| 35 | 118810064/0 | Compressor |
| 36 | 118810158/0 | Temperature sensor |
| 38 | 118810060/0 | Cable |
| 39 | 118810164/0 | Stone guard |
| 40 | 118810121/0 | Knob |
| 41 | 112291000/0 | Nut |
| 42 | 112000930/0 | Benzing ring |
| 43 | 112727784/0 | Screw |
| 44 | 118810144/0 | Handle |
| 45 | 118810146/0 | Lower Handle |
| 46 | 118810145/0 | Bag, Upper Part |
| 47 | 118810085/0 | knob |
| 48 | 118810143/0 | Lower grassbox, grey |
| 49 | 118810096/0 | Spring |
| 50 | 118810160/0 | Screw |
| 51 | 118810139/0 | Gray deck |
| 52 | 118810073/0 | Lower handle |
| 53 | 118810078/0 | Spring |
| 54 | 118810067/0 | Rear Wheel Axle |
| 55 | 118810081/0 | Wheel |
| 56 | 118810168/0 | Hubcap |
| 57 | 112604898/0 | Crown Fixator |
| 58 | 118810066/0 | Front wheel axle |
| 59 | 118810002/0 | Lama |
| 60 | 122671651/0 | Washer |
| 61 | 112793312/0 | Screw 8x1x25 |
| 62 | 118810163/0 | Front Handle, Gray |
| 63 | 118810170/0 | Screws |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castor websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castor brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Castor JB300 293320065/CST 2019
