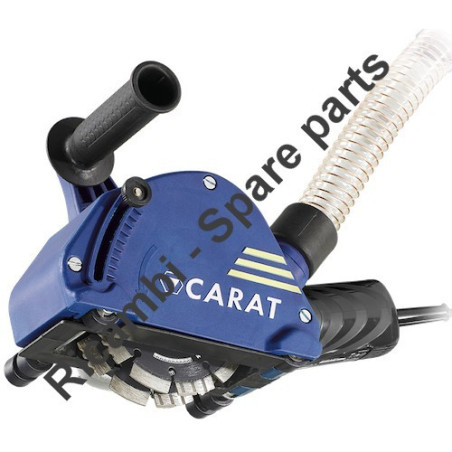

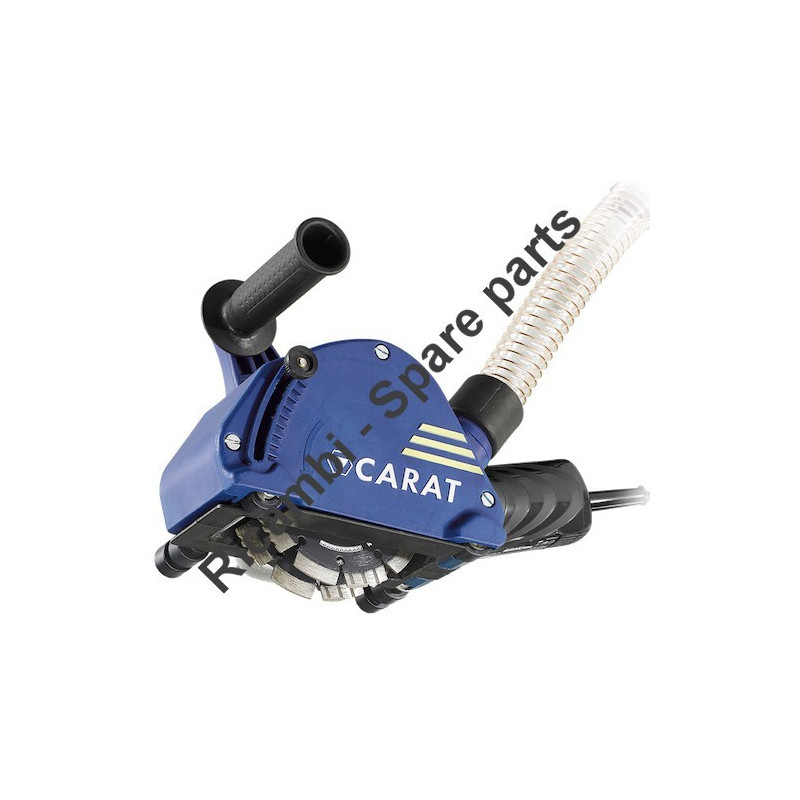

Carat Spare Parts for Wall Chaser Machine SL-1253

Carat Spare Parts for Wall Chaser Machine SL-1253 Dustec®

Carat service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Wall Chaser SL-1253 Dustec®

In the following table , look for the model of the Angle Grinder and their respective spare parts.

WALL CHASER MACHINE TYPE SL-1253 DUSTEC®
1	XHI-6C4055	SCREW
2	XHI-6C4068	BEVEL GEARS
3	XHI-6C4058	SCREW
4	XHI-6C4063	COMPLETE GEAR CASE
6	XHI-6C4016	SPECIAL NUT M6
7	XHI-6C4012	OIL SEAL
8	XHI-6C4006	WASHER
9	XHI-6C4053	BALL BEARING 629T12DDC3PS2
10	XHI-6C4013	URETHANE RING
11	XHI-6C4020	COVER
12	XHI-6C4014	ARMATURE
13	XHI-6C4021	FAN GUIDE
14	XHI-6C4059	SCREW
15	XHI-6C4030	FIELD
16	XHI-6C4019	WASHER
17	XHI-6C4017	DUST COVER
18	XHI-6C4052	BALL BEARING (608VVC2PS2L)
19	XHI-6C4018	MAGNET
21	XHI-6C4056	SCREW
22	XHI-6C4005	COVER
23	XHI-6C4054	BALL BEARING (6201DDCMPS2L)
24	XHI-6C4011	FELT RING
25	XHI-6C4002	PACKING GLAND
26	XHI-6C4057	SCREW
27	XHI-6C4023	SHAFT
28	XHI-6C4028	WOODRUFF KEY 3X3X8
29	XHI-6C4025	DISC HOLDER
31	XHI-6C4004	HOUSING
32	XHI-6C4029	BUTTON
33	XHI-6C4071	CARBON BRUSH HOLDER
34	XHI-6C4034	CARBON BRUSHE SET
35	*	SEE DETAIL 34
36	XHI-6C4031	URETHANE RING
37	XHI-6C4069	INNER WIRE
38	XHI-6C4037	SLIDING BAR
39	XHI-6C4036	SPRING
40	XHI-6C4060	SCREW
41	XHI-6C4038	ELECTRONIC CARD
42	XHI-6C4043	CONNECTOR 50091
43	XHI-6C4040	TERMINAL
44	XHI-6C4039	SWITCH (S-42)
45	XHI-6C4061	SCREW
46	XHI-6C4042	STRAIN RELIEF
47	XHI-6C4062	FLANGED SCREW
48	XHI-6C4003	REAR COVER
49	XHI-6C4067	POWER CORD CPL.
50	XHI-6C4027	CORD GUARD
51	XHI-6C4064	FLANGED SCREW
52	XHI-6C4026	CLAMP RING
SL-1253 SUCTION COVER
1	XAM-6C370040	INNER COVER
2	XAM-6C370120	HOUSING
3	XAM-6C370030	HOUSING COVER
4	XAM-6C370090	SPACER
5	XAM-6C370060	SPACER
6	XAM-6C370220	FLANGE 12.2MM
7	XAM-6C370230	FLANGE 6MM
8	XAM-6C370240	FLANGE 9MM
9	XAM-FX4014A0	FLANGED SCREW 4X14-POZIDRIV
10	XAM-N14027	KNOB
11	XST-FM120000	HEX NUT
12	XAM-FB2030	HEX BOLT M12X30
13	XAM-FBE816	FLANGED HEX NUT M8X16
14	XAM-6C570070	TUBE
15	XAM-6C170120	KNOB M5 BI
16	XAM-6C170130	KNOB M5X10
17	XAM-6C3350	FLANGE
18	XAM-6C370210	SHAFT
19	XAM-N14040	SCREW 4,0X20
20	XAM-FR2080	C-RING
21	XAM-FV06T	C-RING
22	XAM-FZ0325	SCREW
23	XAM-6C370110	SPRING
24	XAM-6C57008
25	XAM-6C170060	FITTING 38MM
26	XAM-FS0600	SPACER
27	XST-FS100000	WASHER
28	XAM-6C370070	WHEEL
29	XAM-6C370080	ROD
30	XAM-E4004C	O-RING
31	XAM-6C57010
32	XAM-6C400A	COMPLETE MACHINE BODY
33	XAM-6C64065
34	XAM-6C4066	ADHESIVE PLATE
35	XAM-6C4072	ADHESIVE PLATE
36	XAM-G10540	RING / SPANNER 13MM
37	XAM-6C4050	LOCK NUT WRENCH
38	XAM-G1052	CHISEL
42	ZVMKSL1253	ALU SUITCASE SL-1253
