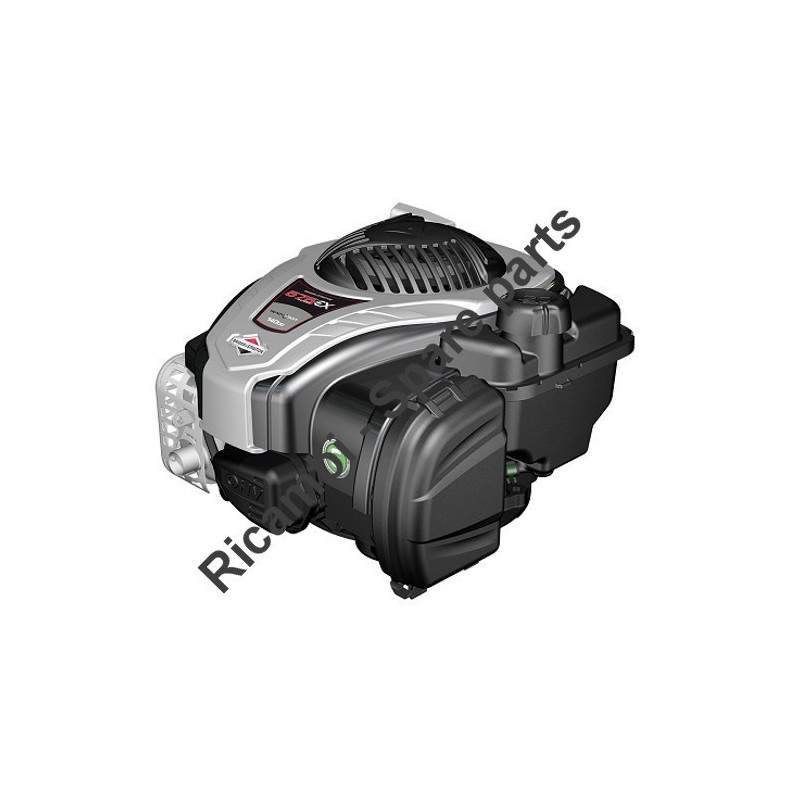

Briggs & Stratton Spare Parts for Engine 575EX Series™ OHV-Shaft 22x60

575EX Series™ Cod. 09P702-0060-H1 (Shaft 22x60)
Performance and value where it counts.

The 575EX Series™ engine ensures smooth handling of the lightweight, yet powerful EX Series engines with best-in-class torque-to-weight ratio, reduced vibration and quieter operation.

ITEM CODE: 19619

590523
690661
591947
791850
793480
590530
690813
592362
593235
793515
590535
691024
691027
593872
797669
590545
590549
691061
593961
799580
799586
590566
691588
594581
594636
222698S
590580
691915
595341
299819S
590589
692076
591104
692390
595355
591113
697124
590512
596457
590521
690272
591292
699659
590526
690662
592005
793006
592709
793500
590531
690859
593260
794467
590537
691025
590546
691028
593959
799187
590553
691146
593962
799581
594632
799587
590569
691664
594729
270344S
590585
692046
692135
595349
391483S
590740
591108
692551
19619
595516
591114
697478
590516
596458
590522
690340
591492
791766
590529
690798
592050
793453
592968
793514
590533
690959
593330
796210
590544
691026
590547
691031
593960
799579
590557
691487
594281
799585
594633
799716
590572
691876
595191
281434S
590586
692051
590763
692310
595350
591109
692577
100106
595658
596522
591120
697799
590518

Quantity

on Reservation Only

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details
Attachments

Briggs & Stratton Spare Parts for Engine 575EX Series™ OHV-Shaft 22x60

Briggs & Stratton 09P702-0060-H1
Air Cleaner, Cylinder Head
5	595351	Head-Cylinder
7	799586	Gasket-Cylinder Head
11	590522	TUBE, Breather
13	590512	Screw \| (Cylinder Head)
33	590531	Valve-Exhaust
34	590530	Valve-Intake
35	590532	Spring-Valve \| (Intake)
36	590532	Spring-Valve \| (Exhaust)
40	590528	Retainer-Valve
45	590514	Tappet-Valve
155	590529	Plate-Cylinder Head
163	799580	Gasket-Air Cleaner
192	590535	Adjuster-Rocker Arm
238	590533	Cap-Valve
318	793480	SCREW \| (Mounting Bracket)
356A	592711	Wire-Stop
445	593260	FILTER, A/C Cartridge
528	793006	Hose-Primer \| (Cut To Required Length)
535	799579	Filter-Air Cleaner Foam
535A	595191	FILTER, Air Cleaner Foam
623	799581	Seal-O Ring \| (Carburetor Spacer)
868	590534	Seal-Valve \| (Intake)
875	590553	Base-Air Cleaner \| Used Before Code Date 16051600
875	595661	Base-Air Cleaner \| Used After Code Date 16051500
875A	595662	Base-Air Cleaner \| Used After Code Date 16051500
875A	590557	Base-Air Cleaner \| Used Before Code Date 16051600
914	591103	Screw \| (Rocker Cover)
968	595658	Cover-Air Cleaner
971	590552	SCREW \| (Air Cleaner Base to Carburetor/Throttle Body)
976	594281	Primer-Carburetor
1022	595341	Gasket-Rocker Cover
1023	595349	Cover-Rocker
1026	590515	Rod-Push
1029	590526	Arm-Rocker
1029A	590527	Arm-Rocker
Armature, Controls, Electrical System, Governor Spring, Ignition, Spark Plug
188	793480	SCREW \| (Control Bracket)
202	590517	Link-Mechanical Governor
209	596459	Spring-Governor \| Used Before Code Date 16071100
209	596238	Spring-Governor \| Used After Code Date 16071000
222	590560	Bracket-Control
222A	596458	Bracket-Control \| Used After Code Date 17010100
222A	596458	Bracket-Control \| Used Before Code Date 17010200
222B	596465	Bracket-Control
227	590520	Lever-Governor Control
236	591292	Link-Lockout
265	690798	Clamp-Casing
265A	691024	CLAMP, Casing
267	692577	Screw \| (Casing Clamp)
268	691025	CASING, Control Wire \| (Cut To Required Length)
269	691026	WIRE, Control \| (Cut To Required Length)
270	691027	NUT \| (Control Wire Casing)
271	691028	Lever-Control
333	593872	Armature-Magneto
334	691061	SCREW \| (Magneto Armature)
337	692051	Plug-Spark \| (Resistor)
356	692390	Wire-Stop
356A	592711	Wire-Stop
383	19576S	WRENCH, Spark Plug
505	793515	NUT \| (Governor Control Lever)
562	793514	Bolt \| (Governor Control Lever)
621	692310	Switch-Stop
635	692076	BOOT, Spark Plug
745	691146	Screw \| (Brake)
745A	690859	Screw \| (Brake)
843	593215	Sleeve-Lever
922	692135	Spring-Brake
923	691487	Brake
Blower Housing, Rewind Starter
58	591108	Rope-Starter
60	691915	GRIP, Starter Rope
60A	281434S	Grip-Starter Rope
60B	799716	Grip-Starter Rope
304	593961	Housing-Blower
304A	593962	Housing-Blower
304D	596457	Housing-Blower
305	590586	Screw \| (Blower Housing)
455	590545	Cup-Flywheel \| Used Before Code Date 14082500
455A	593960	Cup-Flywheel \| ( Used on 608) After Code 14082400
608	593959	Starter-Rewind \| (Used on 455A) (Not on 455) After Code 14082400
770D	595355	Kit-Rewind/Blower Housing
857	591113	Trim-Blower Housing Cover
857A	591114	Trim-Blower Housing Cover
930	590585	Guard-Rewind \| Used Before Code Date 15041300
Camshaft, Crankshaft, Cylinder, Gasket Set, Piston/Rings/Connecting Rod, Sump, Warning Label
1	590519	Cylinder Assembly
3	299819S	SEAL, Oil \| (Magneto Side)
4	590569	Sump-Engine
7	799586	Gasket-Cylinder Head
12	799587	Gasket-Crankcase
16	590537	Crankshaft
20	391483S	Seal-Oil \| (PTO Side)
22	692551	Screw \| (Crankcase Cover/Sump)
22A	590763	Screw \| (Crankcase Cover/Sump)
24	222698S	KEY, Flywheel
25	590521	Piston Assembly \| (Standard)
26	590523	Ring Set \| (Standard)
27	691588	Lock-Piston Pin
28	699659	Pin-Piston \| (Standard)
29	590518	Rod-Connecting
32	691664	Screw \| (Connecting Rod)
43	697799	Slinger-Governor/Oil \| Used Before Code Date 16071100
43	594560	Slinger-Governor/Oil \| Used After Code Date 16071000
46	592968	Camshaft
163	799580	Gasket-Air Cleaner
227	590520	Lever-Governor Control
358	595350	Gasket Set-Engine
404	690272	WASHER \| (Governor Crank)
505	793515	NUT \| (Governor Control Lever)
522	590580	Plug-Dipstick/Fill
523	796503	DIPSTICK
524	691876	Seal-O Ring
562	793514	Bolt \| (Governor Control Lever)
598	593291	Shim-End Play \| (Crankshaft or Camshaft Bearing)
615	690340	RETAINER, Governor Shaft
616	590516	CRANK, Governor
623	799581	Seal-O Ring \| (Carburetor Spacer)
718	690959	PIN, Locating \| (Crankcase Cover/Sump)
741	796210	Gear-Timing \| (Plastic)
842	691031	SEAL, O-Ring \| (Dipstick Tube)
847	590572	Dipstick/Tube Assembly
868	590534	Seal-Valve \| (Intake)
1022	595341	Gasket-Rocker Cover
1263	697124	REED, Breather
1264	793453	SCREW \| (Breather Reed)
1319	794467	LABEL, Warning
1319A	797669	LABEL, Warning
Carburetor
104	590558	Pin-Float Hinge
105	594581	Valve-Float Needle
117	596522	Jet-Main \| (Standard)
118	592688	Jet-Main \| (High Altitude)
121	590589	Kit-Carburetor Overhaul \| Used Before Code Date 15030900
121	594636	KIT, Carburetor Overhaul \| Used After Code Date 15030800
122	590549	Spacer-Carburetor
125	591109	Carburetor
133	591120	Float-Carburetor
137	593235	Gasket-Float Bowl \| (Pack of 5) Used Before Code Date 15030900
137	594633	Gasket-Float Bowl \| (Pack of 5) Used After Code Date 15030800
163	799580	Gasket-Air Cleaner
216	590547	Link-Choke
217	590740	Spring-Choke Return
493	593330	Bracket-Mounting \| (Carburetor)
617	270344S	Seal-O Ring \| (Intake Manifold)
623	799581	Seal-O Ring \| (Carburetor Spacer)
724	697478	Retainer-Seal
951	591104	Lever-Choke
975	591492	Bowl-Float \| Used Before Code Date 15030900
975	594632	Bowl-Float \| Used After Code Date 15030800
1127	590554	Screw \| (Float Bowl to Carburetor Body)
1238	590562	SCREW \| (Carburetor Spacer)
Exhaust System, Fuel Supply
187	791766	LINE, Fuel \| (Cut To Required Length)
300B	590565	Muffler
300C	592362	Muffler \| Used Before Code Date 16012800
300G	595516	Muffler \| Used After Code Date 16012700
601	791850	CLAMP, Hose
613	590562	SCREW \| (Muffler)
676A	799187	Deflector-Muffler
832	590566	Guard-Muffler
832B	592709	Guard-Muffler
836	690661	SCREW \| (Muffler Guard)
836A	793500	Screw \| (Muffler Guard)
957	799585	Cap-Fuel Tank \| (Black) Used Before Code Date 16100300
957B	692046	Cap-Fuel Tank
972A	591947	Tank-Fuel
994	690813	Arrestor-Spark
Flywheel
23	590544	Flywheel
23A	592005	Flywheel
37	594729	Guard-Flywheel
78	793480	SCREW \| (Flywheel Guard)
332	690662	Nut \| (Flywheel)
363	19619	PULLER, Flywheel
455	590545	Cup-Flywheel \| Used Before Code Date 14082500
455A	593960	Cup-Flywheel \| (To Be Used With Reference 608) Used After Code Date 14082400
668	590546	Spacer \| (Flywheel)
850	100106	SEALANT, Liquid
1005	592050	Fan-Flywheel
