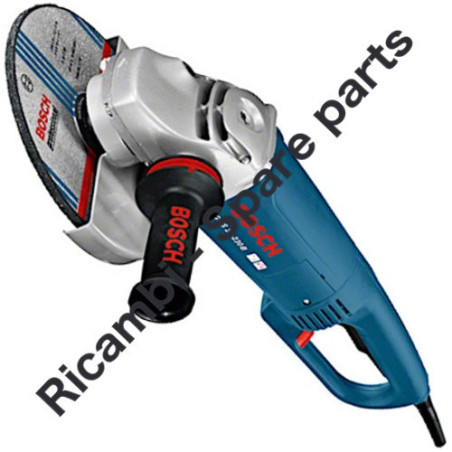

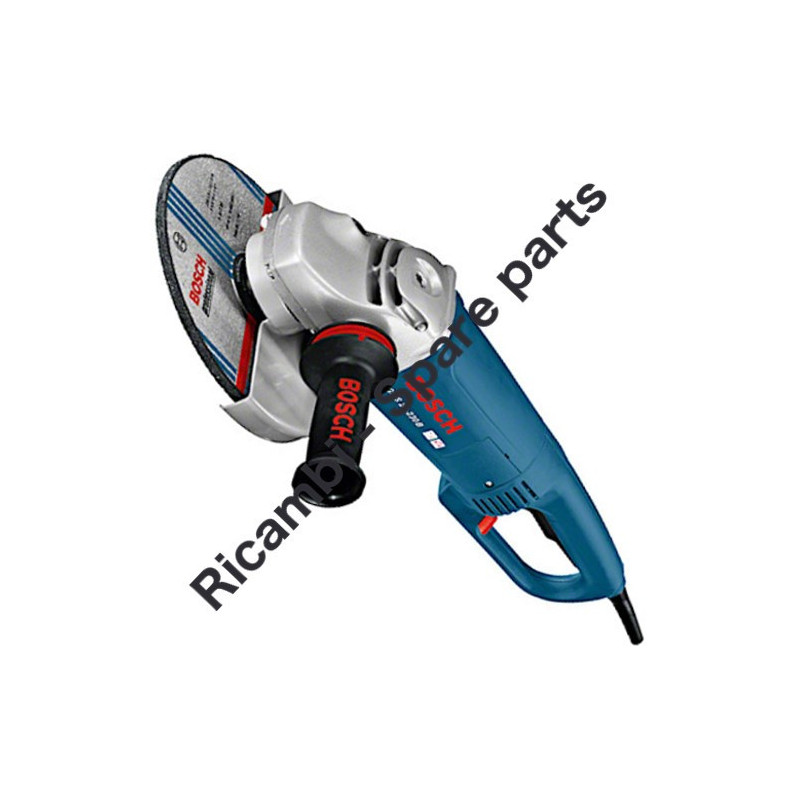

Bosch GWS 24-230 B Parts
€26.60
Tax included
Bosch Spare Parts for Angle Grinder GWS 26-230 B
We are BOSCH original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder GWS 26-230 B - 0601856050.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Angle Grinder GWS 26-230 B
We are BOSCH original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder GWS 26-230 B - 0601856050.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder GWS 26-230 B - 0601856050 | ||
| # | Part Num | Description |
| 1 | 1605108190 | Motor Housing BLUE |
| 2 | 160422051P | Field |
| 5 | 1604460128 | Power supply cord EU 4,15M 2 X 1,5MM H07RN-F |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0x100 MM |
| 7 | 1601302018 | Fastening Clamp |
| 9 | 1601118C93 | Manufacturer's nameplate |
| 14 | 1600905028 | groove ball bearing |
| 23 | 1618B00802 | Sealing cap |
| 24 | 1605132130 | Handle BLUE |
| 25 | 160312305U | Grinding Spindle |
| 28 | 1600210033 | O-Ring 79,0x1,78 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 30 | 1600591029 | Air Distributor |
| 31 | 1600591075 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 34 | 1600190020 | Shim 0,15 MM THICK |
| 34 | 1600190021 | Shim 0,3 MM THICK |
| 34 | 1600190022 | Shim 0,1 MM THICK |
| 34 | 1600190037 | Shim 0,2 MM THICK |
| 34 | 1600190038 | Shim 0,25 MM THICK |
| 34 | 1600190039 | Shim 0,35 MM THICK |
| 34 | 1600190040 | Shim 0,4 MM THICK |
| 35 | 1600205034 | Felt Washer |
| 37 | 1600290036 | Seal Ring BLACK |
| 38 | 1600206020 | Rubber Ring 7 MM WIDE |
| 39 | 1600206030 | Rubber Ring |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 53 | 1605190068 | Socket Housing |
| 60 | 1603435023 | Thread-forming tap. Screw TT M5x18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8x38-C-Z-ST |
| 63 | 1603410014 | Pan head screw M4x10 MM |
| 64 | 1603435042 | Plastic-Cutting Screw St3,9x12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9x19-C-Z-ST |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 68 | 1601006011 | Sealing Plate |
| 101 | 1601990004 | Catch Slide |
| 102 | 1604616022 | Compression Spring |
| 103 | 1602388035 | Cable routing |
| 651 | 1605510217 | Protective Cover Ø230 MM |
| 803 | 1604010BC1 | Armature |
| 804 | 1607000967 | Switch BLACK |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607000480 | Carbon-Brush Set 10 X 1 607 014 171 |
| 810 | 1607014171 | Carbon-Brush Set |
| 813 | 1600905011 | groove ball bearing 8x22x7 |
| 816 | 1604336048 | Brush Holder |
| 821 | 1607000C03 | Gear Housing |
| 822 | 1607000C05 | Bearing Flange Ø230 MM |
| 826 | 1600A003FE | Parts Set |
| 833 | 1600290064 | Rotary shaft lip seal 16 MM BLUE |
| 833/1 | 1600290013 | Rotary shaft lip seal 18,7 MM RED |
| 835 | 1600A00J93 | Fan |
| 840 | 1607000354 | Push-Button |
| 846 | 1607000C3E | Retaining Washer |
| 848 | 1600119010 | Spring retaining ring |
| 850 | 1600905026 | groove ball bearing 17X40X12 |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 891 | 1602025051 | Auxiliary Handle M14 BLACK |
| 891/1 | 16020250A1 | Auxiliary Handle |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 894 | 1603345043 | Round Nut M14 |
| 896 | 1600A016PP | Fast Locking Flange |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GWS 26-230 B
6 Items
Data sheet
- SHIPPING IN:
- RESERVATION ONLY
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
