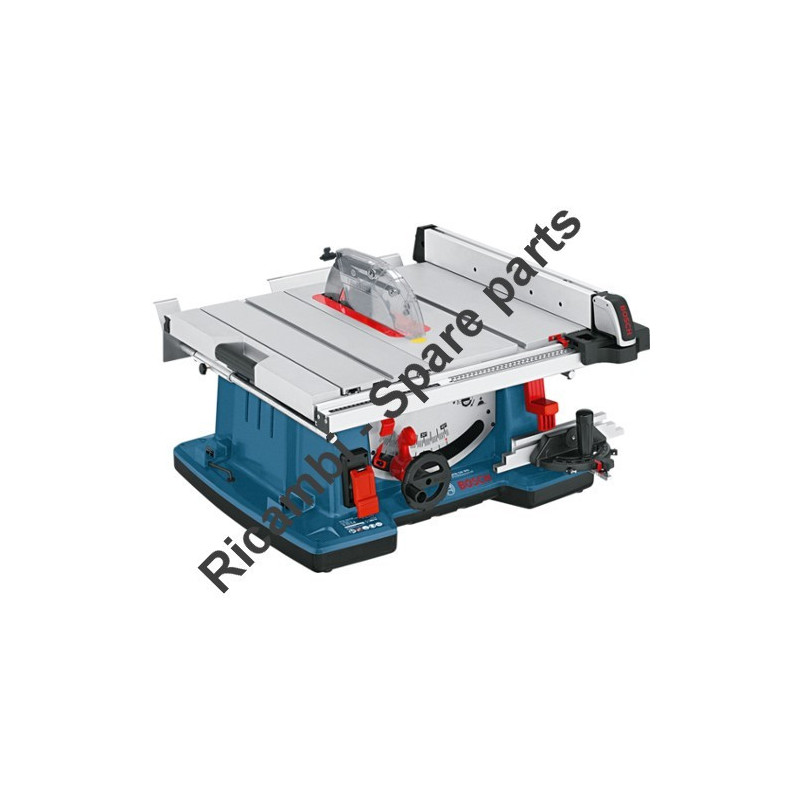

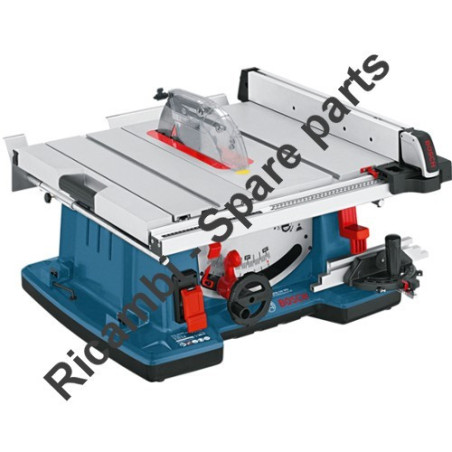

Bosch Spare Parts for Table Saw GTS-10-XC
search
  • Bosch Spare Parts for Table Saw GTS-10-XC
  • Bosch Spare Parts for Table Saw GTS-10-XC
  • Bosch Spare Parts for Table Saw GTS-10-XC
  • Bosch Spare Parts for Table Saw GTS-10-XC

Bosch Spare Parts for Table Saw GTS-10-XC

€1.76
Tax included

Bosch Spare Parts for Table Saw GTS-10-XC

We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Table Saw GTS-10-XC /230 V/EU - 3601M30401.

Bosch GTS-10-XC - 3601M30401
ITEM CODE: 2610996917
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Bosch Spare Parts for Table Saw GTS-10-XC

We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Table Saw GTS-10-XC /230 V/EU - 3601M30401.

In the following table, look for the model of the Bench Saw and the respective parts of the code.
Bosch GTS-10-XC - 3601M30401

GTS-10-XC - 3601M30401 pag.1
# Part Num. Description
22 2610996913 Pin
23 2610996917 Plate
24 2610997274 Pin
25 2610937292 Guide Pin
26 2610911896 Nut
27 2610996912 Fixing Plate
28 2610950076 Mounting Rail
29 2610950075 Mounting Rail
30 2610303029 Screw
31 2610018218 Handle Cover
32 2610018219 Handle Cover
33 2610018580 Screw
34 2610950126 Mounting Bracket
35 2610950070 Bushing
36 2610950127 Mounting Bracket
37 2610998575 Screw
98 2610950427 Set screw
100 2610328617 Screw
104 2610018236 Holding Spring
105 2610018237 Screw
134 2610937291 Mounting Bracket
135 2610018244 Linkage
136 2610937293 Retaining ring
137 1619P03473 Washer
138 2610018245 Clamping Lever
164 1609203L05 Screw
165 1609203L06 Knob
166 2610018263 Plain Washer
172 1609203L10 Plain Washer
187 2610018275 Profile Rail
188 2610018276 End stop
189 2610950133 Screw
190 2610950135 Washer
191 2610950134 Bolt
192 2610018277 Stamped Part
193 2610018278 Screw
194 2610018279 Profile Rail
195 2610997218 Cover
196 2610997216 Cover
197 2610018280 Table top
198 2610950086 mounting plate
199 2610950136 Mounting Bracket
200 2610018597 Mounting Bracket
201 2610018283 Screw
202 2610950087 Screw
203 1609902042 Washer
204 2610304772 Nut
205 2610950121 End stop
206 2610018284 End stop
207 2610018285 Sticker
208 2610950078 Pointer
209 2610320339 Screw
210 2610018286 Table top
211 2610018287 Slide Rail
213 2610018288 Slide Rail
214 2610014697 Screw
215 2610018289 Bushing
234 2610018290 Fixing Plate
235 2610011716 Holding Spring
236 2610997283 Stud
237 1609902055 Screw
242 2610018293 Edge Guide
243 2610018294 Clamping Plate
244 2610997249 Shoulder Screw
245 2610950102 Bracket
246 2610950143 Lens
247 2610951946 Screw
248 2610018295 Clamping Plate
249 2610997240 Clamping Piece
250 2610997245 Adjusting Screw
251 2610950098 Clamping Plate
252 2610997288 Pin
253 2610996889 Cam
254 2610996890 Lever
255 2610997289 Pin
256 2610950095 Housing
257 2610950094 Handle Cover
258 2610950096 Bolt
259 2610950097 Bolt
260 2610018296 Cover
261 2610967422 Screw
262 2610018297 Edge Guide
263 2610303023 Screw
264 2610358802 Washer
265 2610018298 Bracket
266 2610911577 Retaining Pin
267 2610996888 Spring
268 2610950107 Edge Guide
269 2610018299 Cover
270 2610997293 Screw
271 2610998593 Spring
272 2610018300 Washer
273 2610018301 End stop
280 1609203L00 Sticker
284 1609203L38 End stop
285 2610018307 Guide Bar
286 2610018308 Clamp Handle
288 2610909178 Plain Washer
289 2610018309 Pointer
290 2610997215 End stop
291 2610358519 Screw
292 2610908272 Nut
294 2610997213 Base Support
295 2610358832 Screw
296 2610015065 Screw
297 1609203L08 Bolt
298 1609203L04 Clamping Plate
299 1609902047 Round Nut
300 2610993221 Plain Washer
301 1609203L07 Profile Rail
302 2610018313 Knob
303 2610018315 Table top
304 2610018316 Profile Rail
305 2610018317 Screw
306 2610018318 End stop
307 2610018319 Screw
308 2610018320 Mounting Bracket
309 2610018321 Clamping Lever
310 2610018322 Spring
311 2610018323 Pin
312 2610018324 Locking Pin
313 2610018325 Axle
314 2610018326 Spring retaining ring
315 2610018327 Screw
316 2610996921 Holding Bracket
317 2610908271 Tapping Screw
318 2610996914 Gusset
319 2610996918 Set screw
320 2610997275 Pin
321 2610996920 Connecting Nut
322 2610018567 Bracket
323 2610996915 Clamping Piece
325 2610028342 Cap Nut
802 2610018329 Edge Guide
803 2610015508 Mitre Fence
820 2610018333 Clamp Handle
821 2610018334 Rod
822 2610018335 Locking clamps
GTS-10-XC - 3601M30401 pag.2
1 1619PA5589 Motor Housing
2 2610016834 Field 230V
3 2610016833 Armature 230V
13 2610004595 Ball Bearing
14 2610911927 Ball Bearing
16 2610013003 Brush Holder new
38 2610018220 Holding Plate
39 2610950052 Guiding bolt
40 2610992380 Spring retaining ring
41 2610018221 Threaded Rod
42 2610996896 Toothed Gear
43 2610910796 Bolt
44 2610358149 Nut
45 2610018223 Plain Washer
46 2610018224 Shaft
47 2610997212 Mounting Bracket
49 2610997222 Bushing
50 2610997277 Spring retaining ring
51 2610997276 Spring retaining ring
52 2610996938 Bushing
53 2610996933 Threaded Bushing
54 2610303026 Screw
55 2610018225 Gear Housing
57 2610018226 Baffle
63 1609902054 Set screw
65 2610911569 Insert
67 2610911929 Screw
68 2610996948 Rubber Ring
69 2610358932 Connector
70 2610018227 Cover
72 2610017110 Washer
73 2610998571 Screw alt
74 2610018228 Support bracket
75 2610223019 Speed governor
77 2610998587 Screw
78 2610916802 Brush-Cover Ø 22mm
81 2610911924 Spring Washer
82 2610018231 Shaft
83 2610997210 Ball Bearing
84 2610997282 Spring retaining ring
85 2610018232 Gear Cover
86 2610996949 Ball Bearing
87 2610993102 Woodruff Key
88 2610997208 Toothed Gear
89 2610997281 Spring retaining ring
90 2610996932 Bearing Sleeve
91 2610355923 Screw
92 2610996875 Torsion Spring
93 2610996874 Locking Lever
94 2610996876 Shoulder Screw
95 2610998588 Screw
96 2610018233 Bushing
97 2610998573 Spring retaining ring
99 2610018230 Screw
101 2610303020 Plain Washer
102 2610018234 Cover Plate
103 2610018235 End stop
216 2610950062 Pointer
217 2610355278 Screw
218 2610018337 Mounting Bracket
219 2610018338 Riving Knife
220 2610018339 Holding Plate
221 2610018340 Bolt
222 2610018341 Detent
223 2610018342 Washer
224 2610998580 Screw
225 1609902058 Nut
226 2610018354 Bolt
324 2610018350 Plain Washer
358 1619PA9309 Shrinkable Tube
801 2610018328 Protective Cover
804 2610018330 Protective Cover
810 2610018332 Carbon-Brush Set
GTS-10-XC - 3601M30401 pag.3
4 2610018210 On-Off Switch
5 2610018211 Power supply cord EU
6 2610915699 Rubber Bushing
7 2610358842 Clamp
9 2610018213 Label
12 2610018216 Suppression Filter
18 2610018217 Screw
19 2610358844 Screw
48 2610297323 Screw
66 2610356706 Nut
71 1609203K96 Cable Clip
76 1609902050 Cable Strap
106 2610018238 Front Panel
107 2610950118 Screw
108 2610018239 End stop
109 2610018599 Screw M5x0,8Px10L
110 2610997271 Spring
111 2610998550 Plain Washer
112 2610997299 Plain Washer
113 2610997298 Nut
114 2610950056 Clamping Lever
115 2610950129 Plain Washer
116 2610341465 Washer
117 2610950115 Spring
118 2610950057 Handwheel
121 2610950059 Handle
122 2610997270 Shoulder Screw
123 2610355325 Spring Washer
124 1609902669 Set screw
125 1609203K93 Clamping Flange
127 2610950046 Washer
128 2610358858 Nut
129 2610018241 Cover Plate
130 2610018242 Cover Plate
131 2610018243 Screw
132 2610358869 Retaining snap ring
133 1609902699 Screw
139 2610018246 Housing
140 2610018247 Clamp
141 2610998574 Screw
142 2610996930 Pickup Clip
143 2610910047 Screw
144 2610018248 Screw
145 2610018249 Nut
146 2610018250 Holding Spring
147 2610018251 Holding Spring
148 2610018252 Company Logo
150 2610018254 Hexagon Socket Screw Key
151 2610911920 Rubber Bushing
156 2610990504 Cable Clip
157 2610018255 Mounting Bracket
158 2610018256 Holding Spring
159 2610018257 Suction Socket
160 2610018258 Chain
161 2610018259 Clip
162 2610016560 Stud bolt
163 2610018262 Pin
167 2610018264 Washer
168 1609203L09 Guard Plate
169 2610018265 Screw
170 1609902052 Spring Washer
171 1609902053 Plain Washer
173 1609203L11 Nut
174 2610018266 Sleeve
175 2610997297 Screw
176 2610355570 Washer
178 2610018267 Switch Cover
180 2610018268 Housing
181 1609902684 Hex Nut
182 2610018269 Guard Plate
183 2610018270 Retaining ring
184 2610018271 Screw
185 2610018272 Rubber Bushing
186 2610358846 Rubber Bushing
212 2610018384 Connecting Cable
238 2610018291 Sliding Rail
239 2610996944 Guide Bracket
240 2610018292 Spring retaining ring
241 2610998585 Knob
274 2610996880 Box Wrench
275 2610018302 Insert
276 2610018303 Nut
277 2610015022 Workpiece Pusher
281 2610018304 Table top
282 2610029674 Washer
326 2610998567 Clamp Bushing
327 2610015078 Screw
328 2610018579 Grommet
808 1619PB2542 Nameplate
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GTS-10-XC - 3601M30401
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
New

Download

Drawing Bosch GTS-10-XC

Drawing Bosch GTS-10-XC

Download (865.67KB)
