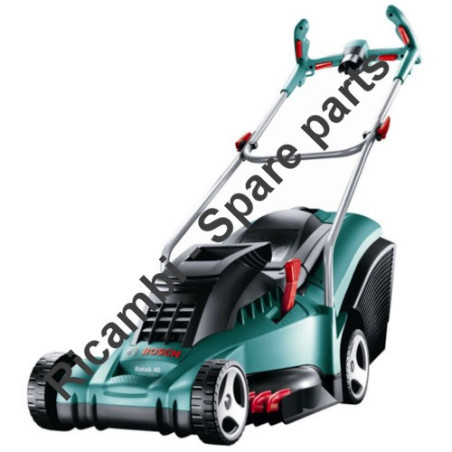

Bosch Spare Parts for Lawnower Rotak 40/3 600 H81 C00
€5.83
Tax included
Bosch Spare Parts for Lawnower Rotak 40/3 600 H81 C00
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower Rotak 40 - 3600H81C00.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Lawnower Rotak 40/3 600 H81 C00
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower Rotak 40 - 3600H81C00.
In the following table, look for the model of the Lawnmower and the respective parts of the code.
| Lawnower Rotak 40/3 600 H81 C00 | ||
| # | Part Num. | Description |
| 1-17 | F016L65108 | Drive Shaft |
| 1-21 | F016L65109 | Drive Belt |
| 32 | F016L37433 | Self-Cutting Screw |
| 40 | F016L66159 | Mower deck |
| 41/01/02 | F016L64387 | Bearing 6003 |
| 42 | F016L66040 | Cover Panel |
| 43 | F016L65159 | Motor Hood |
| 52/01 | F016L65931 | Axle |
| 52/02 | F016L90582 | Lever |
| 52/03 | F016L90583 | Spacer |
| 55 | F016L65923 | Cutter Blade |
| 59 | F016104350 | Screw and washer assembly |
| 61/02 | F016L90581 | Lever |
| 61/01 | F016L65163 | Axle |
| 61/03 | F016L90585 | Spacer |
| 64 | F016L66463 | Ratchet Cap 9 MM |
| 75/01 | F016L66181 | Handle |
| 75/4 | F016L65739 | Switch Housing |
| 75/5 | F016L66235 | Switch Housing |
| 75/6 | F016T49630 | Cable Cleat |
| 75/9 | F016T49845 | Spring Lever |
| 75/10 | F016L66237 | Push-Button |
| 75/11 | F016T49226 | Compression Spring |
| 75/14 | F016T49429 | Self-Cutting Screw 4x19 MM |
| 75/27 | F016L90575 | Cable Clip |
| 80 | F016L64304 | Collector Box Bottom L/H |
| 81 | F016L64338 | Collector Box Bottom R/H |
| 82 | F016L66137 | Guard Flap |
| 83/84 | F016L66441 | Handle BLACK |
| 85 | F016L66165 | Spring |
| 99 | F016L59327 | Spring |
| 100 | F016L65790 | Spring |
| 101 | F016L65971 | Link Piece |
| 106 | F016L90579 | Wire Guide |
| 107 | F016L65539 | Filter Housing |
| 108 | F016L67627 | Bearing cover |
| 110 | F016L65709 | Filter Housing |
| 452 | F016L66272 | Company Logo |
| 501 | F016T48185 | Plain Washer Ø8,15 BLACK |
| 504 | F016T49429 | Self-Cutting Screw 4x19 MM |
| 505 | F016L65803 | Screw |
| 506/1 | F016L59277 | Bolt M6x50 |
| 506/2 | F016L66136 | Wing Nut |
| 681 | 3601398000 | Strain-Relief Clamp |
| 801 | F016103596 | Motor |
| 801/1/20 | F016L64594 | Bearing |
| 841 | F016103599 | Housing |
| 841/1 | F016104317 | Cover |
| 850 | F016103992 | Wheel |
| 860 | F016103994 | Wheel |
| 875/02 | F016104086 | Power supply cord EU |
| 875/03 | F016103602 | Connecting Cable |
| 875/7 | F016103607 | On-Off Switch |
| 875/18 | F016103601 | Control Bar |
| 878 | F016L65166 | bottom handle |
| 883 | F016103608 | Cover |
| 893 | F016103605 | Thermal protector |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch Rotak 40 - 3600H81C00
12 Items
Data sheet
- SHIPPING IN:
- RESERVATION ONLY
- MORE INFO:
- CALL US FOR AVAILABILITY AND SHIPPING TIMES
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
