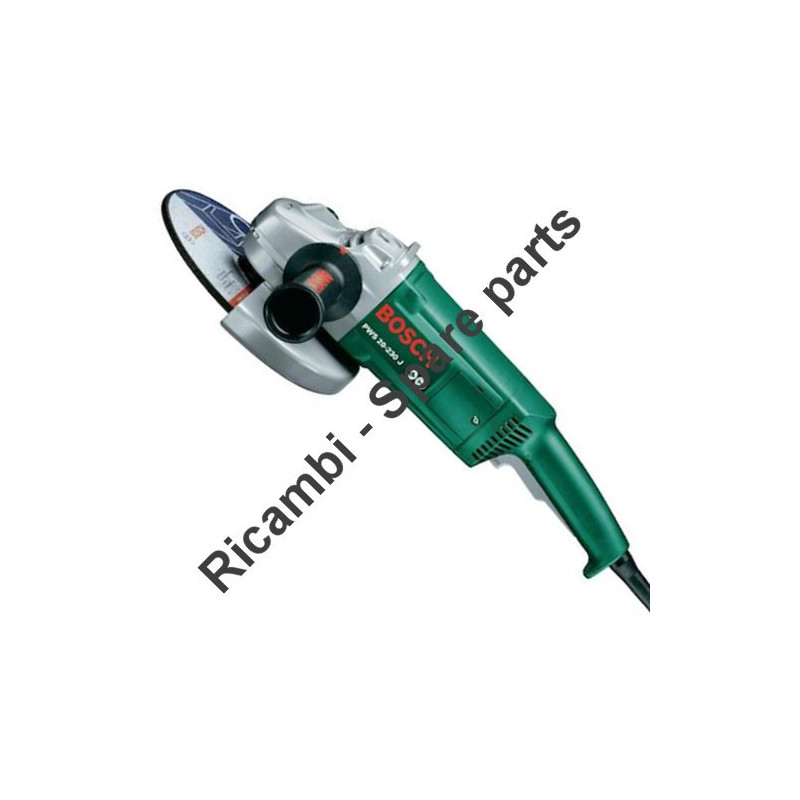

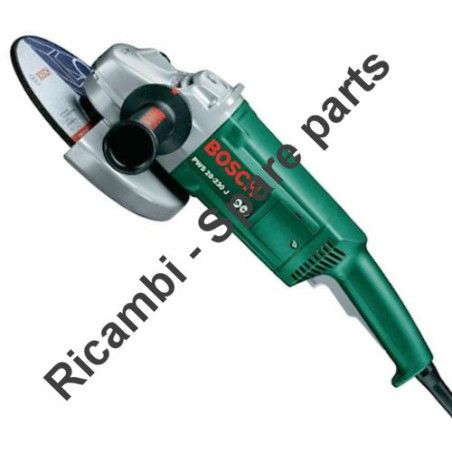

Bosch Spare Parts for Angle Grinder PWS 20-230
Bosch genuine spare parts or replacements parts for to repair Angle Grinder PWS 20-230 - 0603249103
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder PWS 20-230/0 603 249 103 | ||
| 1 | 1605108146 | Motor Housing GREEN |
| 2 | 1604220380 | Field 220-240V |
| 3/50 | 1606610127 | Fan |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0x100 MM |
| 1600703022 | Grommet Ø7,9-Ø12,0x120 MM | |
| 1600703024 | Grommet Ø8,8-Ø9,0x70 MM | |
| 7 | 1601302018 | Fastening Clamp |
| 9 | 1601118053 | Manufacturer's nameplate |
| 12 | 1607328035 | Suppression Filter |
| 13 | 1900905018 | Deep-Groove Ball Bearing 7x22x7 |
| 14 | 1600905025 | Deep-Groove Ball Bearing 10x35x11 |
| 16 | 1604336021 | Brush Holder |
| 23 | 1605500151 | Sealing cap GREEN |
| 24 | 1605132118 | Handle GREEN |
| 25 | 1603523100 | Grinding Spindle M14, SW17 |
| 28 | 1600210033 | O-Ring 79,0x1,78 MM |
| 30 | 1600591010 | Air-Deflector Ring |
| 31 | 1600591011 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal 18,7 MM RED |
| 1600290064 | Rotary shaft lip seal 16 MM BLUE | |
| 34 | 1600190020 | Shim 0,15 MM THICK |
| 1600190021 | Shim 0,3 MM THICK | |
| 1600190022 | Shim 0,1 MM THICK | |
| 35 | 1600205034 | Felt Washer |
| 36 | 1604652015 | Spiral Spring |
| 37 | 1600290036 | Seal ring BLACK |
| 38 | 1600206020 | Rubber Ring 7 MM WIDE |
| 39 | 1600206030 | Rubber Ring |
| 44 | 1601334008 | Holding Bracket |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 48 | 1600119010 | Spring retaining ring |
| 50 | 3600905134 | Deep-Groove Ball Bearing |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 52 | 1602388027 | Cable routing |
| 53 | 1605190038 | Socket Housing |
| 55 | 1602388028 | Storage Ledge GREEN |
| 60 | 1603435023 | Thread-forming tap. Screw TT M5x18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8x38-C-Z-ST |
| 62 | 1603435024 | Tapping Screw C4,8x63 MM |
| 63 | 1603410014 | Pan head screw M4x10 MM |
| 64 | 1603435042 | Self-Cutting Screw St3,9x12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9x19-C-Z-ST |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9x16-F |
| 70 | 1601110984 | Manufacturer's nameplate WORKING INSTRUCTIONS |
| 650/30/20 | 1600210039 | O-Ring 20,35x1,78 MM |
| 700 | 1607000251 | Parts Set Ø230 MM |
| 700/10 | 1605510223 | Protective Cover Ø230 MM |
| 700/20 | 1608135003 | Guide Block |
| 700/20/30 | 2910281244 | Round-Head Bolt DIN 603-M 8x25 |
| 700/20/40 | 2915191007 | Wing Nut DIN 315-M8-GT-C |
| 700/20/50 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 700/20/60 | 1604643003 | Compression Spring |
| 701 | 1608135003 | Guide Block |
| 702 | 1605510180 | Protective Cover Ø230 MM |
| 703 | 1607000247 | Strap-Shaped Handle |
| 703/20 | 2603450007 | Hex Screw M14x16x1,5 MM |
| 704 | 1605510181 | Protective Cover Ø110 MM |
| 730 | 1608601006 | Backing Pad Ø180 MM |
| 730/20 | 1603345004 | Round Nut M14 |
| 730/30 | 2916011022 | Plain Washer DIN 125-A15-ST |
| 740 | 1601329013 | Protecting Cover |
| 750/10 | 2602025075 | Auxiliary Handle M14x1,5 MM BLACK |
| 750/20 | 1607950048 | Pin-Type Face-Wrench |
| 750/30 | 1605703099 | Clamping-Flange Ø22,2x42 MM |
| 750/40 | 1603340040 | Clamping Nut M14 |
| 751/5 | 1605510223 | Protective Cover Ø230 MM |
| 752 | 1603340027 | Fast Locking Flange M14, SDS-CLIC |
| 763 | 1600793007 | Suction Bend Ø 35 MM |
| 764 | 1607950004 | Pin-Type Face-Wrench |
| 804 | 1607200103 | Switch |
| 810 | 1607014171 | Carbon-Brush Set |
| 821 | 1607000920 | Gear Housing |
| 822 | 1607000985 | Bearing Flange Ø230 MM |
| 822/01 | 1607000932 | Bearing Flange Ø230 MM BLACK |
| 822/02 | 1607000922 | Bearing Flange Ø 230 MM SILVER |
| 826 | 1600A005BH | Assembly Of Service Parts |
| 830/03 | 1604011148 | Armature 230-240V |
| 835 | 1607000228 | Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F |
| 840 | 1607000206 | Push-Button BLACK |
| 846 | 1607000C3E | Retaining Washer |
| 851 | 2600910001 | Needle bearing Ø14 MM |
| 888 | 1601106032 | Targhetta 26x52 MM |
