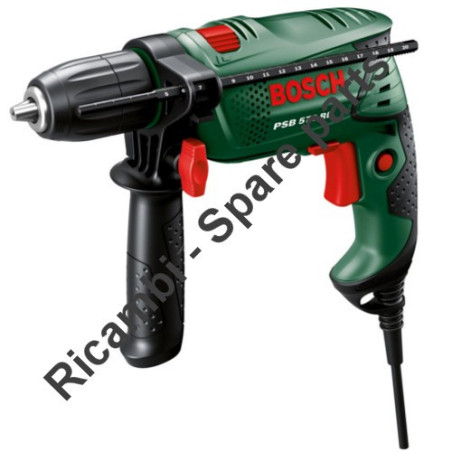

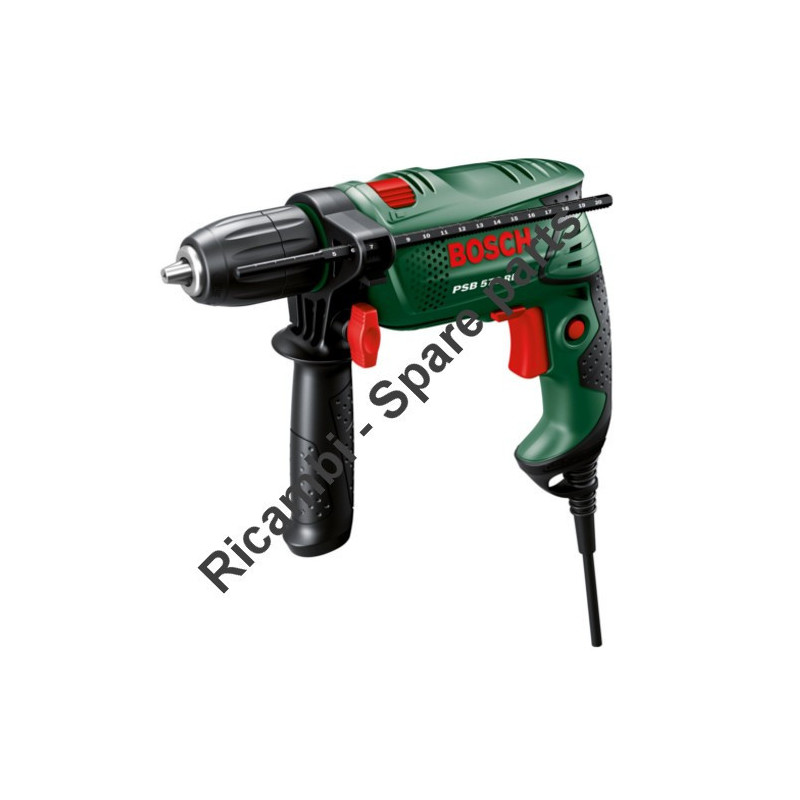

Bosch Spare Parts for Percussion Drills PSB 570 RE
€16.19
Tax included
Bosch Spare Parts for Percussion Drills PSB 570 RE
Bosch original spare parts for to replace broken parts for to fix Percussion Drill PSB 570 RE - 0603338503.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Percussion Drills PSB 570 RE
Bosch original spare parts for to replace broken parts for to fix Percussion Drill PSB 570 RE - 0603338503.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Percussion Drill PSB 570 RE/0 603 338 503 | ||
| # | Part Num. | Description |
| 1 | 2605104560 | Housing Section GREEN |
| 2 | 2604220594 | Field 220-240V |
| 3 | 2604011154 | Armature 220-240V |
| 3/50 | 2606610029 | Fan |
| 4 | 2607200556 | Switch |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9x90 MM |
| 9 | 2601119308 | Percussion Drill PSB 570 RE/0 603 338 503+E1:G40 |
| 16 | 2604337059 | Brush Plate |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2x9,5-C-H |
| 24 | 1900210000 | O-Ring 5,0x1,5 MM |
| 25 | 2602098008 | Change-Over Switch RED |
| 35 | 2600914019 | Needle bearing |
| 37 | 2600301052 | Porous Bearing |
| 38 | 2601990010 | Indexing Disk BLACK |
| 39 | 2601074004 | Pressure Plate |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 41 | 2604616006 | Compression Spring |
| 42 | 2600101047 | Shim 0,3 MM |
| 45 | 2604610047 | Compression Spring |
| 46 | 2608571053 | Key Chuck |
| 46/7 | 2607950007 | Chuck Wrench SG2 |
| 47 | 2608040120 | Frame |
| 48 | 2600390031 | Sleeve |
| 53 | 2601329043 | Contact Strap |
| 54 | 2601119602 | Reference Plate RED |
| 55 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 654 | 2602025094 | Auxiliary Handle |
| 655 | 2609005615 | Depth-Gauge |
| 805 | 1607000388 | Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F |
| 808 | 2601119620 | Nameplate |
| 813 | 2600905032 | groove ball bearing 7x19x6 |
| 816/04 | 2607014017 | Carbon-Brush Set |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9x13-C-H |
| 826 | 2910611006 | Tapping Screw DIN 7981-ST2,9x13-C-H |
| 831 | 2606135929 | Drilling Spindle 1/2" |
| 833 | 2605807932 | Bearing Bracket |
| 834 | 2603231040 | Push-Button BLACK |
| 836 | 2605808922 | Gear Cover GREEN |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3x5 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
