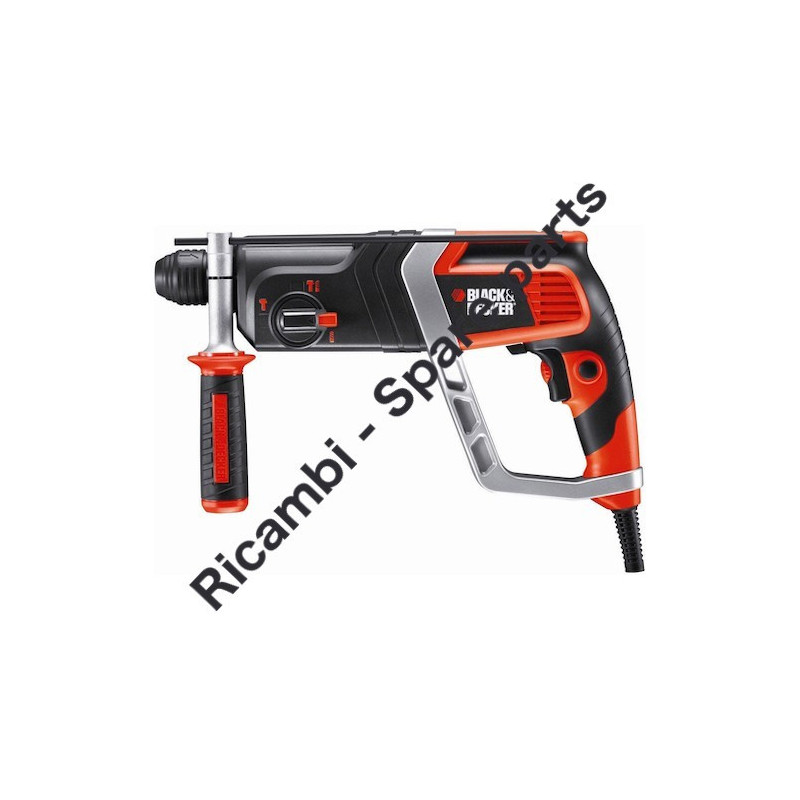

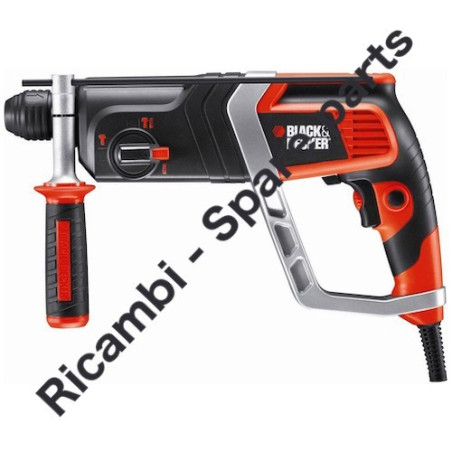

Black&Decker KD990-QS Type 1 SDS Hammer Drill Parts
search
  • Black&Decker KD990-QS Type 1 SDS Hammer Drill Parts
  • Black&Decker KD990-QS Type 1 SDS Hammer Drill Parts - Drawing

Black&Decker KD990-QS Type 1 SDS Rotary Hammer Parts

€2.13
Tax included

Black&Decker KD990-QS Type 1 SDS Rotary Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KD990-QS TYPE 1 SDS Rotary Hammer Spare Parts.
ITEM CODE: 90524563
Quantity
on Demand Only Call Us Before

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Black&Decker KD990-QS Type 1 SDS Rotary Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Black&Decker KD990-QS TYPE 1 SDS Rotary Hammer Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
Black&Decker KD990-QS TYPE 1 SDS HAMMER DRILL
BLACK&DECKER KD990-QS ROTARY HAMMER TYPE 1 Spare Parts
# Part Num. Description
1 90524563 TIP
2 90524565 COLLAR
3 90553468 CLIP
4 90553469 TOOL HOLDER
5 90553470 SPRING
6 90524523 GEARCASE
7 90553471 BRAKE
8 90553472 SCREW
9 90524526N SELECTOR
10 90553473 SPRING
11 90524525 KNOB - DISCONTINUED
12 90553474 SEAL
13 90553475 BEARING
14 90553476 WASHER
15 90553477 RING
16 90553478 RING
17 90553479 SPRING
18 90553480 SLEEVE
19 90553481 GEAR
20 90553482 SPRING
21 90553483 RING
22 90553484 RING
23 90550363 STEEL BALL 7MM
24 90553486 SHAFT
25 90553487 PIN
26 90553488 WASHER
27 90553674 SEAL
28 90553490 BLOCK
29 90553491 COLUMN
30 90553492 SLEEVE
31 90553493 O-RING
32 90553494 O-RING
33 90553495 SLEEVE
34 90553496 WIRE STEEL
35 90553497 RAM
36 90553505 O-RING
37 90553506 CYLINDER
38 90549884 WASHER
39 90553557 PIN
40 90553558 BEARING
41 90553559 WASHER
42 90553508 RING
43 90553509 RING
44 90553510 CLUTCH
45 90553511 SPRING
46 90553512 TRANSMISSION SA
47 90553513 BEARING
48 90553514 WASHER
49 90553515 GEAR
50 90553516 BEARING
51 90553517 BEARING
52 90553518 PLATE
53 90553519 KNOB
54 90553520 STOPPING RING
55 90553521 BRONZINA
56 90553522 HOLDER
57 90553523 O-RING
58 90553524 RUBBER SEAL
59 90553525 BEARING
60 90534211 ARMATURE SA
62 90592921-01 BRUSH & HOLDER 230V
64 90553593 BEARING
65 90524500 BAFFLE FAN
66 90534218 FIELD SA
67 330065-11 SCREW
68 330065-16 SCREW
69 90528090 HANDLE LH
70 90528089 HANDLE RH
71 330065-07 SCREW
72 90524494 BODY
73 330065-07 SCREW
74 90524495 HANDLE RH
75 90606284N SWITCH SA
76 330065-05 SCREW
77 329301-00 CORD CLAMP
78 90552756 PCB SA
79 629648-00 CORD PROTECTOR
80 N615231 CORDSET
81 580787-00 DEPTH STOP
82 90533273 SIDE HANDLE
83 352065 ADAPTER
84 621050-00 CHUCK 13MM
85 621400-00 CHUCK KEY 13MM
86 1005216-00 SCREW
90 90553594 SLEEVE BEARING
816 90524542 BRAND LABEL
821 90524536 RATING PLATE
