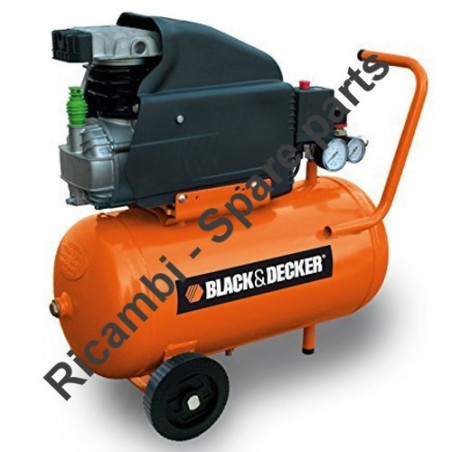

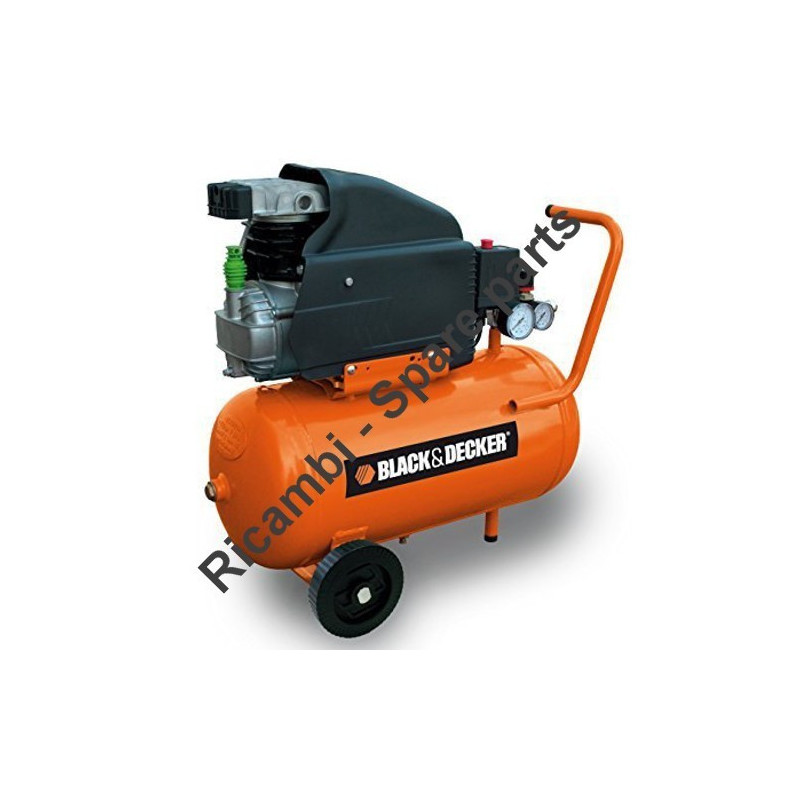

Black&Decker Air Compressor CP2525 GM145 Parts
€10.95
Tax included
Black&Decker Air Compressor CP2525 91081100000 Spare Parts
Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 2525 91081100000 S/N: 621204230C.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Black&Decker Air Compressor CP2525 91081100000 Spare Parts
Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 2525 91081100000 S/N: 621204230C.
In the following table, look for the type of the air compressor and the respective parts of the code.
| Black&Decker CP 2525 91081100000 - S/N: 621204230C GM145 Pag.1 |
||
| # | Part Num. | Description |
| A | 9101721000 | PUMP UNIT GM 142 ALUMINIUM V230/50 H75 |
| A1 | 7181150000 | Oil dipstick |
| 50 | 5153950008 | 24lt tank - Cod.9100010550 |
| 51 | 9100010750 | Cap M1/2" |
| 52 | 9100010380 | Rubber Footh |
| 53 | 9700000324 | Drain Valve 3/8" |
| 54 | 9100010450 | WHEEL FOR 24LT. |
| 55 | 9100010390 | wheel Pin |
| 56 | 7020080000 | Nut M10 UNI-5588 |
| 57 | 7030040000 | Washer Ø10 UNI-6592 |
| 58 | 7012290000 | Screw M5X20 TAP-TITE |
| 59 | 9100010400 | power cable |
| 60 | 7190180000 | Check valve MM 1.2"x3/8" -sX |
| 61 | 7230010000 | Rilsan tube Ø6X4 |
| 62 | 9700000327 | Nut 3/8" |
| 63 | 9700000342 | tube feeding |
| 64 | 9700000325 | nut M10 |
| 65 | 7041070000 | Ogiva tube Ø10 |
| 66 | 9700000303 | Safety Valve M1 / 4-9 bar |
| 67 | 9700000388 | pressure |
| 68 | 9700000330 | Fitting MM 1/4" |
| 69 | 7100640000 | Pressure reducer |
| 71 | 9700000276 | universal tap |
| 72 | 7110240000 | Gauge Ø40-1/8" |
| 73 | 7110300000 | Gauge Ø50-1/4" |
| FIAC 9109840000 GM145 Pump Pag.2 |
||
| 1 | 7011220000 | Screw M6x40 |
| 1A | 9700010186 | washer D6 |
| 2 | 7084040000 | Joint |
| 3 | 7458340000 | Plate |
| 4 | 7210010000 | Filtering element |
| 5 | 7210430000 | Intatake filter |
| 6 | 7012100000 | Screw ST4.2x19 |
| 7 | 7196010000 | START valve 1.5bar |
| 8 | 9101410070 | Head |
| 9 | 9101410080 | Gasket |
| 10 | 9100010240 | Valve plate |
| 11 | 9100010080 | Gasket 0.2mm |
| 12 | 9100010370 | Valve |
| 13 | 9101410090 | Gasket 0.5mm |
| 14 | 9101410060 | Cylinder Ф42 |
| 15 | 7020070000 | Nut M8 |
| 16 | 9100590060 | Gasket 1.5mm |
| 17 | 4080010000 | Piston ring Ф42 |
| 18 | 9100580050 | Piston Ф42 |
| 19 | 9100580090 | Piston pin Ф12x34 |
| 20 | 7041010000 | Internal snapring D12 Seeger D12 |
| 21 | 5050150008 | Con rod |
| 22 | 7640060000 | Rear Cover |
| 23 | 7060200000 | Bearing 6204 |
| 25 | 9101410050 | Counter weight |
| 27 | 9700010061 | Oil dipstick |
| 27A | 9700010089 | Plastic Cover |
| 28 | 9101410020 | Carter cover |
| 29 | 7012160000 | Screw M6x12 |
| 30 | 9700010187 | Screw M5x14 |
| 31 | 9700000016 | O-ring |
| 32 | 9100270150 | Oil seal d20xD47x7 |
| 33 | 9700001865 | Cranckcase |
| 34 | 9700002512 | Rotor |
| 35 | 9700002515 | Stator 230V/50Hz |
| 36 | 7060010000 | Bearing 6203-2RS/2RZ |
| 37 | 7310320000 | Capacitor |
| 38 | 9700010188 | Nut M8 |
| 38A | 9700010184 | Washer D8 |
| 40 | 9700002831 | Tension rod M6x110 |
| 41 | 9100010200 | Fan |
| 42 | 9700002031 | Screw ST4.2x9.5 |
| 42A | 9700010183 | Washer D4 |
| 43 | 9100010050 | Stud bolt M8x36 |
| 64 | 9700000325 | Nut M16 |
| 65 | 7041070000 | Ogive |
| 100 | 4094470000 | Filter kit |
| 101 | 7459480000 | Valve plate kit |
| 102 | 4082390000 | Seal kit |
| 103 | 4190330000 | Conrod-Piston kit |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
