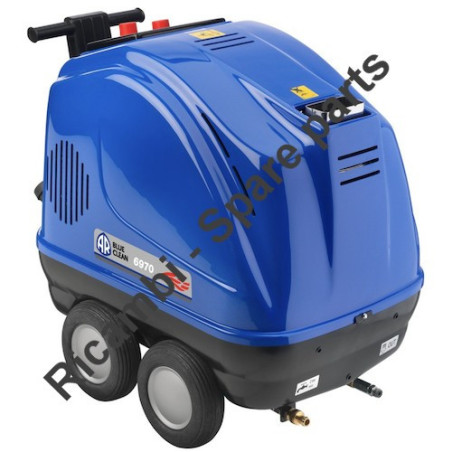

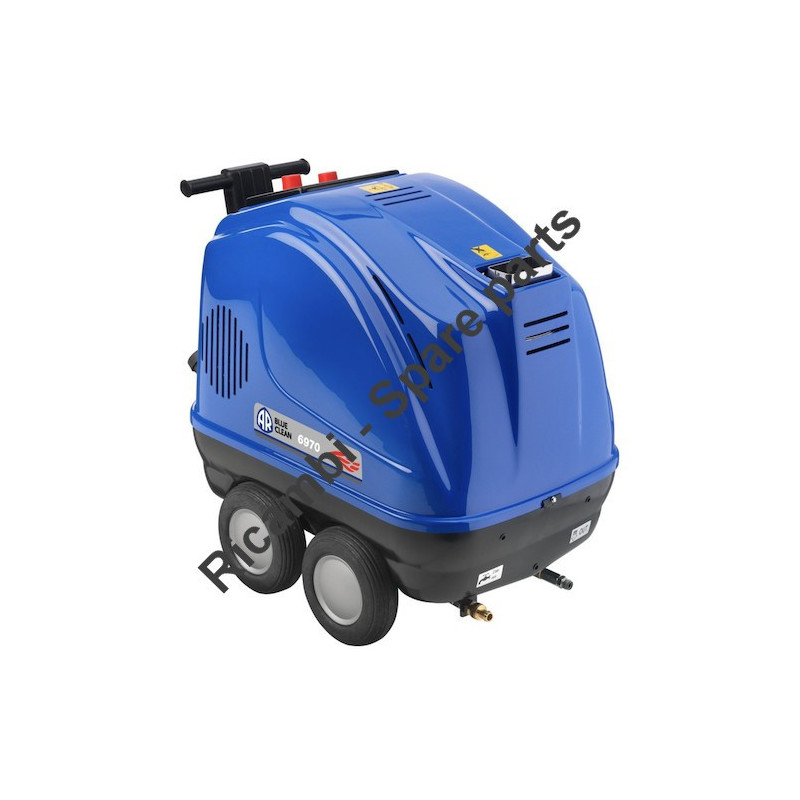

Annovi & Reverberi Parts for Hot Pressure Washer AR6970-N
€18.08
Tax included
Annovi Reverberi Parts for Hot Pressure Washer AR6970-N
Annovi Reverberi Original Spare Parts at Special Prices for Repair or Maintenance the High Pressure Professional Pressure Washer for Large Surfaces AR6970-N - 25276.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Annovi Reverberi Parts for Hot Pressure Washer AR6970-N
Annovi Reverberi Original Spare Parts at Special Prices for Repair or Maintenance the High Pressure Professional Pressure Washer for Large Surfaces AR6970-N - 25276.
Open PDF File in this page to check Spare Parts for Hot Pressure Washer AR6970-N.
| Pressure Washer AR Blue Clean 6970-N - 25276 | ||
| Casing Pag.1 |
||
| # | Part Num. | Description |
| 1 | 3164170 | Blue casing |
| 2 | 3160100 | Accessories carrier |
| 3 | 2100300 | Screw |
| 4 | 3160110 | Accessories carrier |
| 5 | 3164180 | Support |
| 6 | 3164190 | Support |
| 7 | 3164200 | Support |
| 8 | 3164210 | Frame |
| 9 | 3161070 | Gland |
| 10 | 3161900 | Plate |
| 11 | 3163140 | Handle |
| 12 | 3163150 | Cover |
| 13 | 3164220 | Tank |
| 14 | 3164230 | Tank |
| 15 | 3161920 | Plug |
| 16 | 3164380 | Wheel |
| 17 | 3162010 | Ring |
| 18 | 3161940 | Guard |
| 19 | 3160130 | Door |
| Pump Pag.2 | ||
| 1 | 960090 | Plug |
| 2 | 960160 | O-ring |
| 3 | 1389051 | Complete valve |
| 4 | 800860 | Screw |
| 5 | 1381850 | Washer |
| 6 | 3220020 | Head |
| 7 | 180101 | O-ring |
| 8 | 820361 | Plug |
| 9 | 50069 | Box |
| 10 | 3220280 | Ring |
| 11 | 1981210 | Bearing |
| 12 | 200390 | Ring |
| 13 | 1780140 | Ring |
| 14 | 1780720 | Water seal |
| 15 | 3200250 | Ring |
| 16 | 3220130 | Piston guide |
| 17 | 3200142 | Gasket |
| 18 | 3200260 | Ring |
| 19 | 770260 | O-ring |
| 20 | 3220120 | Piston guide |
| 21 | 1260110 | Nut |
| 22 | 1260100 | Washer |
| 23 | 1780080 | Piston |
| 24 | 1260091 | Plate |
| 25 | 1260460 | Oil seal |
| 26 | 3220010 | Pump body |
| 27 | 880130 | Plug |
| 28 | 480480 | O-ring |
| 29 | 3220060 | Piston |
| 30 | 3220070 | Pin |
| 31 | 3220040 | Connecting-rod |
| 32 | 651540 | O-ring |
| 33 | 3220030 | Cover |
| 34 | 3200220 | Screw |
| 35 | 820510 | O-ring |
| 36 | 880581 | Plug |
| 37 | 1200430 | Screw |
| 38 | 3200070 | Support |
| 39 | 880830 | O-ring |
| 40 | 3220080 | Level gauge |
| 41 | 3200090 | Plate |
| 42 | 650560 | O-ring |
| 43 | 200390 | Ring |
| 44 | 1981210 | Bearing |
| 45 | 1080550 | Ring |
| 46 | 3229200 | Head assembly |
| 47 | 24194 | Pump |
| 48 | 3220310 | Shaft |
| 49 | 3200230 | Key |
| 50 | 50068 | Gasket |
| 51 | 44754 | Motor |
| A | 2864 | Valve kit |
| B | 2746 | Piston kit |
| C | 42547 | Oil seal kit |
| E | 42549 | Water seal kit |
| F | 42550 | Gasket kit |
| G | 2745 | Support ring kit |
| Valve Pag.3 | ||
| 1 | 1560580 | Plug |
| 2 | 540290 | Screw |
| 3 | 1660210 | Nut |
| 4 | 1560400 | Knob |
| 5 | 1080070 | Pin |
| 6 | 1560420 | Screw |
| 7 | 1560410 | Guide |
| 8 | 1560440 | Wobble plate |
| 9 | 1560350 | Spring |
| 10 | 1080610 | Wobble plate |
| 11 | 1080660 | Pin |
| 12 | 1080540 | Piston |
| 13 | 391000 | O-ring |
| 14 | 1080640 | Ring |
| 15 | 1560150 | O-ring |
| 16 | 1560100 | Shutter |
| 17 | 1560140 | Spring |
| 18 | 180101 | O-ring |
| 19 | 1540272 | Screw |
| 21 | 1560010 | Valve body |
| 22 | 1080550 | Ring |
| 23 | 480480 | O-ring |
| 24 | 1560280 | Washer |
| 25 | 1560320 | Piston |
| 26 | 880270 | O-ring |
| 27 | 1560051 | Fitting |
| 28 | 390080 | O-ring |
| 29 | 1560510 | Nut |
| 30 | 1560530 | Fitting |
| 31 | 1560520 | Spring |
| 32 | 1250280 | Ball |
| 33 | 480480 | O-ring |
| 34 | 1560490 | Hose tail |
| 35 | 1540020 | Suction fitting |
| 36 | 1540120 | Washer |
| 37 | 1540090 | Fitting |
| 38 | 1560290 | Washer |
| 39 | 20082 | Complete valve |
| F | 2611 | Gasket kit |
| Water Circuit Pag.4 | ||
| 1 | 50713 | Filter |
| 2 | 3160480 | Fitting |
| 3 | 3161180 | Fitting |
| 4 | 3161300 | Pipe |
| 5 | 3161150 | Fitting |
| 6 | 3160470 | Fitting |
| 7 | 3161160 | Fitting |
| 8 | 3161400 | Safety valve |
| 9 | 3160430 | Fitting |
| 10 | 3161490 | Nut |
| 11 | 3162040 | Washer |
| 12 | 3161490 | Nut |
| 13 | 3161340 | Pipe |
| 14 | 3160210 | Fitting |
| 15 | 740290 | O-ring |
| 16 | 3161570 | Pipe |
| 17 | 3163560 | Filter |
| 18 | 3163810 | Pipe |
| 19 | 3161050 | Gland |
| 20 | 3164300 | Pressure switch |
| 21 | 3164250 | Pipe |
| 22 | 3161260 | Fitting |
| 23 | 3164070 | Fitting |
| 24 | 3161040 | Pressure gauge |
| 25 | 3164110 | Fitting |
| 26 | 3164310 | Pressure switch |
| 27 | 3161010 | Ring nut |
| 28 | 3161140 | Fitting |
| 29 | 3164430 | Fitting |
| 30 | 3162300 | Gasket |
| Fuel Circuit Pag.5 | ||
| 1 | 3161650 | Pipe |
| 2 | 3161820 | Fan |
| 3 | 3163540 | Screw |
| 4 | 3161050 | Gland |
| 5 | 3163490 | Motor |
| 6 | 3160320 | Solenoid |
| 7 | 3161440 | Cable |
| 8 | 3160310 | Pump |
| 9 | 3163770 | Stud bolt |
| 10 | 3160330 | Fitting |
| 11 | 3160340 | Hose tail |
| 12 | 3162000 | Guard |
| 13 | 3163780 | Pipe |
| 14 | 3161660 | Pipe |
| 15 | 3161580 | Pipe |
| 16 | 3162060 | Clamp |
| 17 | 3161510 | Filter |
| 18 | 3161600 | Pipe |
| 19 | 3160300 | Coupling |
| Electric Circuit Pag.6 | ||
| 1 | 3161980 | Knob |
| 2 | 3160840 | Switch |
| 3 | 3164260 | Gland |
| 4 | 3164270 | Plate |
| 5 | 3164280 | Support |
| 6 | 3164160 | Control PCB - ALB 529 |
| 7 | 3161800 | Thermostat |
| 8 | 3163720 | Fuse holder |
| 9 | 3160920 | Fuse |
| 10 | 3164290 | Box |
| 11 | 3160860 | Gland |
| 12 | 3160870 | Gland |
| 13 | 3160810 | Cable |
| 14 | 3161970 | Knob |
| Boiler Pag.7 | ||
| 1 | 3162370 | Guard |
| 2 | 3161100 | Fitting |
| 3 | 3162030 | Ring |
| 4 | 3161860 | Glass |
| 5 | 3161230 | Fitting |
| 6 | 3161840 | Plate |
| 7 | 3163960 | Nut |
| 8 | 3163940 | Washer |
| 9 | 3161790 | Cover |
| 10 | 3161780 | Cover |
| 11 | 3161870 | Nozzle holder |
| 12 | 3162830 | Nozzle |
| 13 | 3161560 | Support |
| 14 | 3161890 | Electrode |
| 15 | 3161770 | Cover |
| 16 | 3161830 | Plate |
| 17 | 3161430 | Ring |
| 18 | 3162040 | Washer |
| 19 | 3161760 | Pipe coil |
| 20 | 3161480 | Boiler |
| 21 | 3161470 | Boiler |
| 22 | 50717 | Danfoss/Fida transformer |
| 23 | 3160820 | Cable |
| Accessories Pag.8 | ||
| 1 | 41089 | Gun |
| 2 | 3160160 | High pressure hose |
| 3 | 40826 | Lance |
| 4 | 3086 | Nozzle |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
