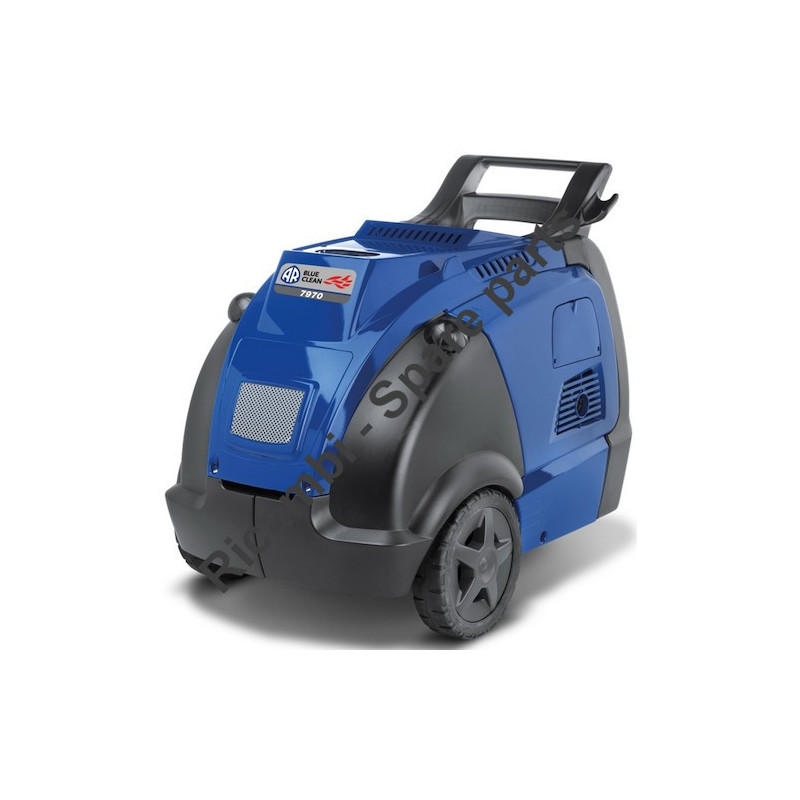

Annovi & Reverberi Parts for Pressure Washer AR 7970 BC

€2.81
Tax included

Annovi Reverberi Parts for Pressure Washer AR 7970 BC

Annovi Reverberi Genuine spare parts or replacement parts for to repair Pressure Washer Annovi Reverberi AR 7970 BC - 26640.

Pressure Washer Annovi Reverberi AR 7970 BC - 26640
ITEM CODE: 2745
Quantity
on 10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Annovi Reverberi Parts for Pressure Washer AR 7970 BC

Annovi Reverberi Genuine spare parts or replacement parts for to repair Pressure Washer Annovi Reverberi AR 7970 BC - 26640.

In the following tables, look for the spare part and its respective code.
Pressure Washer Annovi Reverberi AR 7970 BC - 26640

Pressure Washer Annovi Reverberi AR 7970 BC - 26640
Casing Pag.1
# Part Num. Description
1 3523740 Guard
2 3523610 Tank
3 3521000 Washer
4 3520990 Plug
5 3523630 Ring nut
6 3522470 Plug
7 3522330 Wheel
8 3600031 Guard
9 3520240 Washer
10 3520910 Wheel
11 3523580 Frame
12 3523800 O-ring
13 3523810 O-ring
14 3523620 Tank
15 3523790 Door
16 3523750 Guard
17 3523760 Blue casing
18 3523770 Guard
19 3523650 Support
20 3523660 Support
21 3520260 Gland
22 3520220 Blue casing
23 3523780 Plug
24 3523250 Cable
Pump Pag.2
1 960090 Plug
2 960160 O-ring
3 1389051 Complete valve
4 800860 Screw
5 1381850 Washer
6 3220020 Head
7 180101 O-ring
8 820361 Plug
9 740290 O-ring
10 1980740 Plug
11 880581 Plug
12 820510 O-ring
13 1780140 Ring
14 1780720 Water seal
15 3200250 Ring
16 3220130 Piston guide
17 3200142 Gasket
18 3200260 Ring
19 770260 O-ring
20 3220120 Piston guide
21 1260110 Nut
22 1260100 Washer
23 1780080 Piston
24 1260091 Plate
25 1260460 Oil seal
26 3220010 Pump body
27 880130 Plug
28 480480 O-ring
29 3220060 Piston
30 3220070 Pin
31 3220040 Connecting-rod
32 651540 O-ring
33 3220030 Cover
34 3200220 Screw
35 820510 O-ring
36 880581 Plug
37 1200430 Screw
38 3200070 Support
39 3523940 Motor
40 3220080 Level gauge
41 3200090 Plate
42 650560 O-ring
43 200390 Ring
44 1981210 Bearing
45 1080550 Ring
46 3229200 Head assembly
47 23507 Pump
48 3220310 Shaft
49 3200230 Key
50 1981210 Bearing
51 200390 Ring
52 3220280 Ring
53 880830 O-ring
A 2864 Valve kit
B 2746 Piston kit
C 42547 Oil seal kit
E 42549 Water seal kit
F 42550 Gasket kit
G 2745 Support ring kit
Valve Pag.3
1 1560760 Fitting
2 1560290 Washer
3 1660210 Nut
4 1540120 Washer
5 2500550 Split pin
6 1560420 Screw
7 1560410 Guide
8 1560440 Wobble plate
9 1560350 Spring
10 1080610 Wobble plate
11 1080660 Pin
12 1080540 Piston
13 391000 O-ring
14 1080640 Ring
15 1560150 O-ring
16 1560100 Shutter
17 1560140 Spring
18 180101 O-ring
19 1540272 Screw
20 1540110 Washer
21 1560010 Valve body
22 1080550 Ring
23 480480 O-ring
24 1560280 Washer
25 1560320 Piston
26 880270 O-ring
27 1560051 Fitting
28 390080 O-ring
29 1560940 Fitting
30 480440 O-ring
31 1540020 Suction fitting
32 1540260 Screw
33 24411 Complete valve
34 540290 Screw
F 2813 Gasket kit
Boiler Pag.4
1 3524070 Pipe coil
2 3524200 Transformer
3 3523130 Ring
4 3523100 Clamp
5 3524080 Body
6 3523110 Plate
7 3520540 Ring
8 3521480 O-ring
9 3521500 Nut
10 3524090 Body
11 3523260 Electrode
12 3521620 Fitting
13 3524130 Nozzle holder
14 3523470 Nozzle
15 3524120 Support
16 3523270 Element
17 3524110 Stud bolt
18 3524280 Pipe
19 3521650 Cable
20 3521660 Cable
Fuel Circuit Pag.5
1 3523450 Detergent hose
2 3521380 Clamp
3 3521170 Pipe
4 3521170 Pipe
5 3523460 Detergent hose
6 3522450 Filter
7 3521170 Pipe
8 3521850 Clamp
9 3521870 Fitting
10 3521910 Solenoid
11 3524160 Cable
12 3522170 Coupling
13 3523440 Pump
14 3521730 Lock
15 3521800 Hose tail
16 3522070 Body
17 3522090 Fan
18 3522100 Bushing
19 3522110 Plate
20 3522120 Bushing
21 3522140 Fan
22 3524140 Body
23 3522080 Valve
24 3523190 Conveyor
25 3522060 Gasket
Water Circuit Pag.6
1 3521420 Spring
2 3521410 Fitting
3 3523980 Pipe
4 3522940 Pipe
5 3523970 Fitting
6 3520580 Washer
7 3523480 Valve
8 3523960 Fitting
9 3523950 Pipe
10 3521930 Pressure switch
11 3523850 Pipe
12 3523090 Clamp
13 3523830 Pipe
14 3521430 Washer
15 3521260 Filter
16 3521270 Nut
17 3521250 Gasket
18 3521240 Fitting
19 3523840 Float
20 3521500 Nut
21 3522830 Pressure gauge
22 3524010 Pipe
23 3524000 Fitting
24 3524030 Detergent hose
25 3521380 Clamp
26 3522650 Pipe
27 3522650 Pipe
28 3522640 Body
29 3522630 O-ring
30 3522620 O-ring
31 3522610 Washer
32 3522750 Washer
33 3522600 Spring
34 3523870 Fitting
35 3520360 Fitting
36 3520370 Fitting
37 3523880 Filter
38 3524060 Fitting
39 3523890 Pipe
40 3524050 O-ring
41 3522730 Fitting
42 3522720 Spring
43 3522710 Ball
44 3522700 O-ring
45 3522680 Hose tail
46 3524020 Valve
47 3523900 Washer
48 3523910 Screw
49 3523860 Fitting
50 3522670 Pressure switch
51 3524270 Coupling
52 3524240 Screw
53 3524260 Bushing
54 3524230 Coupling
55 3524250 Key
56 3524220 Coupling
Electric Circuit Pag.7
1 3521150 Knob
2 3522460 O-ring
3 3521140 Element
4 3521200 Spacer
5 3520290 O-ring
6 3521130 Element
7 3523730 Plug
8 3524210 Transformer
9 3521950 Thermostat
10 3523710 Plate
11 3523700 Support
12 3523690 Bracket
13 3524190 Filter
14 3521900 Electromagnetic switch
15 3523430 Relay
16 3524180 Sensor
17 3523670 Box
18 3523200 Circuit breaker
19 3522910 Switch
20 3523680 Gasket
21 3520350 Fuse holder
22 3520830 Fuse
23 3523720 Cover
24 3524170 Board
Accessories Pag.8
1 3523320 Gun
2 3523340 High pressure hose
3 3523330 Extension
4 3523354 Nozzle
5 391000 O-ring
6 2000570 O-ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Annovi Reverberi 7970 BC 26640
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
New

Download

Diagram Annovi 7970 BC

Diagram Annovi 7970 BC

Download (1.42MB)
