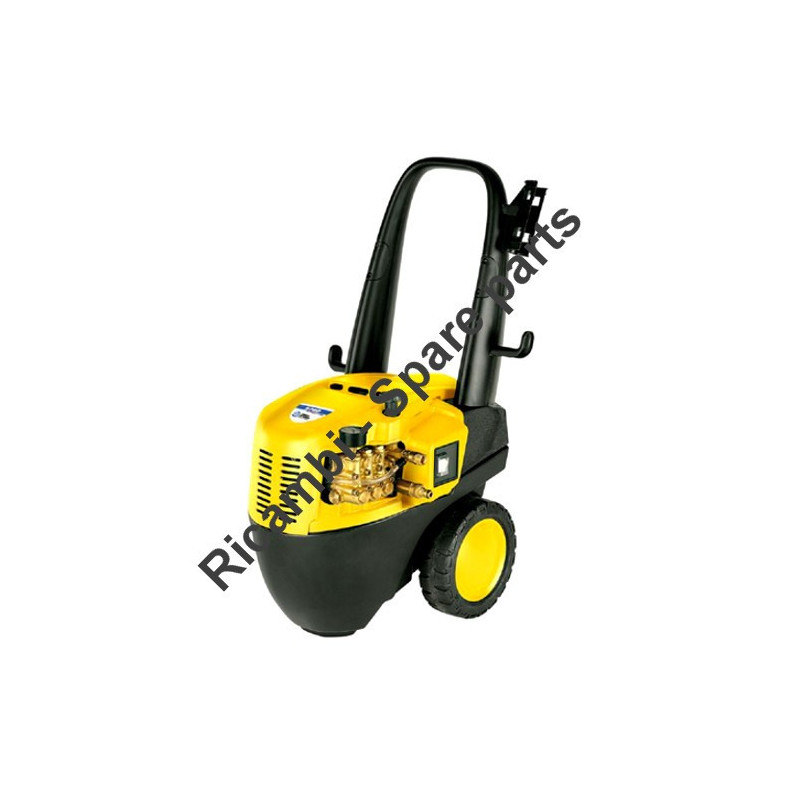

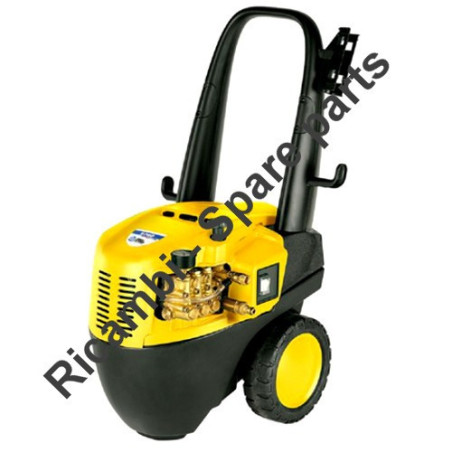

AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920
€11.93
Tax included
AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920
We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer XPRO SK 920 TSS - 24605.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AR Farmer's Division Parts for Pressure PROLINER XPRO SK 920
We supply AR Farmer's Division original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pressure Washer XPRO SK 920 TSS - 24605.
In the following tables, look for the spare part and its respective code.
| Casing 920 TSS - 24605 Pag.1 |
||
| 1 | 2360541 | Yellow Casing |
| 2 | 2360760 | Knob |
| 3 | 1270910 | Stopper |
| 4 | 850250 | Screw |
| 5 | 2360020 | Handle |
| 6 | 2360360 | Screw |
| 7 | 2360300 | Cork |
| 8 | 2360090 | Hook |
| 9 | 2360170 | Cork |
| 10 | 2360100 | Support |
| 11 | 2100300 | Screw |
| 12 | 2360720 | Knob |
| 13 | 850250 | Screw |
| 14 | 2360551 | Yellow Hood |
| 15 | 2360780 | Antivibration |
| 16 | 2360570 | Wheel |
| 17 | 380620 | Washer |
| 18 | 2360560 | Axle |
| 19 | 1470220 | Screw |
| 20 | 2360010 | Base |
| 21 | 91680930 | Cork |
| 22 | 2000110 | Screw |
| 23 | 2360040 | Black Hood |
| 24 | 2360370 | Gasket |
| 25 | 2360580 | Standoff |
| 26 | 380240 | Nut |
| 27 | 2360052 | Plate |
| 28 | 2360110 | Clamp |
| 29 | 2360710 | Screw |
| 30 | 1270960 | Tube Cleaner |
| 31 | 2000230 | Filter |
| 32 | 2000240 | O-Ring |
| 33 | 1682420 | Cork |
| 34 | 380570 | Washer |
| Pump 920 TSS - 24605 Pag.2 |
||
| 1 | 960090 | Stopper |
| 2 | 960160 | O-Ring |
| 3 | 1389051 | Complete Valve |
| 4 | 880830 | O-Ring |
| 5 | 880581 | Stopper |
| 6 | 820510 | O-Ring |
| 7 | 820150 | Screw |
| 8 | 1381850 | Washer |
| 9 | 1381071 | Head |
| 10 | 180101 | O-Ring |
| 11 | 820361 | Stopper |
| 12 | 1980740 | Stopper |
| 13 | 740290 | O-Ring |
| 15 | 1381580 | Manometer |
| 16 | 960110 | Ring |
| 17 | 1382740 | Watertight |
| 18 | 1380090 | Piston Guide |
| 19 | 961240 | O-Ring |
| 20 | 880330 | Watertight |
| 21 | 1383130 | Ring |
| 22 | 1382770 | Pump Housing |
| 23 | 1980740 | Stopper |
| 24 | 880130 | Stopper |
| 25 | 2280340 | Bearing |
| 26 | 640030 | O-Ring |
| 27 | 1380120 | Thickness 0.10 Mm |
| 27 | 1380130 | Thickness 0.20 Mm |
| 27 | 1380530 | Thickness 0.25 Mm |
| 27 | 1382810 | Thickness 0.05 Mm |
| 28 | 1380050 | Support |
| 29 | 850370 | Screw |
| 30 | 2280060 | Tree |
| 31 | 1380520 | Tab |
| 32 | 1383140 | Bearing |
| 33 | 180340 | Ring |
| 34 | 1380040 | Support |
| 35 | 962010 | Nut |
| 36 | 962000 | Washer |
| 37 | 1380940 | Piston |
| 38 | 1380950 | Disk |
| 39 | 600180 | O-Ring |
| 40 | 1080401 | Ring |
| 41 | 1380920 | Piston |
| 42 | 1380060 | Plug |
| 43 | 1383050 | Piston Rod |
| 44 | 1780510 | O-Ring |
| 45 | 1260430 | Ring |
| 46 | 1780690 | Disk |
| 47 | 1260250 | Level Indicator |
| 48 | 1140450 | O-Ring |
| 49 | 1789010 | Cover |
| 50 | 1343510 | Screw |
| 51 | 1389270 | Pre-Assembly Head |
| 52 | 20897 | Pre-Installing Pump |
| A | 2864 | Valve Kit |
| B | 2757 | Piston Kit |
| C | 1855 | Oil Seals Kit |
| E | 1857 | Water Seal Kit |
| G | 1829 | Kit Support Rings |
| Valve 920 TSS - 24605 Pag.3 |
||
| 2 | 392840 | Screw |
| 3 | 1980300 | Nut |
| 4 | 2500540 | Insert |
| 5 | 1980220 | Disk |
| 6 | 1271070 | Spring |
| 7 | 1080041 | Piston |
| 8 | 1080070 | Plug |
| 9 | 1080401 | Ring |
| 10 | 1080250 | O-Ring |
| 11 | 2500550 | Cotter Pin |
| 12 | 1980210 | Piston Guide |
| 13 | 740290 | O-Ring |
| 14 | 800560 | O-Ring |
| 15 | 880830 | O-Ring |
| 16 | 1271170 | Ring |
| 17 | 1080190 | O-Ring |
| 18 | 1271160 | Piston |
| 19 | 2460420 | Office |
| 20 | 1080250 | O-Ring |
| 21 | 1540272 | Screw |
| 22 | 390080 | O-Ring |
| 23 | 1540660 | Valve Body |
| 24 | 1140450 | O-Ring |
| 25 | 1460430 | O-Ring |
| 26 | 1540170 | Shutter |
| 27 | 1080091 | Spring |
| 28 | 394280 | O-Ring |
| 29 | 1560660 | Ring |
| 30 | 1560680 | Knob |
| 31 | 480560 | O-Ring |
| 32 | 800560 | O-Ring |
| 34 | 1560650 | Hose |
| 35 | 480480 | O-Ring |
| 36 | 1250280 | Ball |
| 37 | 1560520 | Spring |
| 38 | 1540570 | Junction |
| 39 | 1540300 | Nut |
| 41 | 1540280 | Collector |
| 42 | 1540630 | O-Ring |
| 44 | 880270 | O-Ring |
| 45 | 2260420 | Screw |
| 46 | 480440 | O-Ring |
| 47 | 1560900 | Junction |
| 48 | 40393 | Junction |
| 50 | 1340260 | Filter |
| 52 | 1981190 | Screw |
| 53 | 1260820 | O-Ring |
| 54 | 1540881 | Piston |
| 55 | 1981320 | Spring |
| 56 | 2022201 | Fork |
| 57 | 2029758 | Pre-Assembly Box TSS |
| 58 | 660190 | O-Ring |
| 59 | 880840 | O-Ring |
| 60 | 1540870 | Stopper |
| 61 | 22335 | Complete Valve |
| 62 | 1123960 | Junction |
| 63 | 1569206 | Pre-Assembly IDR |
| 64 | 1120681 | O-Ring |
| 65 | 42458 | Kit TSS |
| 66 | 1080192 | O-Ring |
| F | 42451 | Seal Kit |
| Motor 920 TSS - 24605 Pag.4 |
||
| 1 | 50068 | Gasket |
| 2 | 1700080 | Plate |
| 3 | 1940410 | O-Ring |
| 4 | 2360850 | Mini-Contactor |
| 5 | 1261570 | Screw |
| 6 | 2360840 | Card |
| 7 | 1460460 | Screw |
| 8 | 1700590 | Nut |
| 9 | 2021560 | Cable |
| 10 | 1700930 | Cover |
| 11 | 2360730 | Switch |
| 12 | 880270 | O-Ring |
| 13 | 1382380 | Strain Relief |
| 14 | 1261560 | Screw |
| 15 | 1080190 | O-Ring |
| 16 | 1381640 | Cable |
| 17 | 44296 | Engine |
| 18 | 1341140 | Gasket |
| Accessories 920 TSS - 24605 Pag.5 |
||
| 1 | 3086 | Nozzle |
| 2 | 40541 | Lance + Head Without Nozzle |
| 3 | 40651 | Lance + Nozzle |
| 4 | 41045 | Gun |
| 5 | 1700980 | High Pressure Tube |
| 6 | 2000770 | O-Ring |
