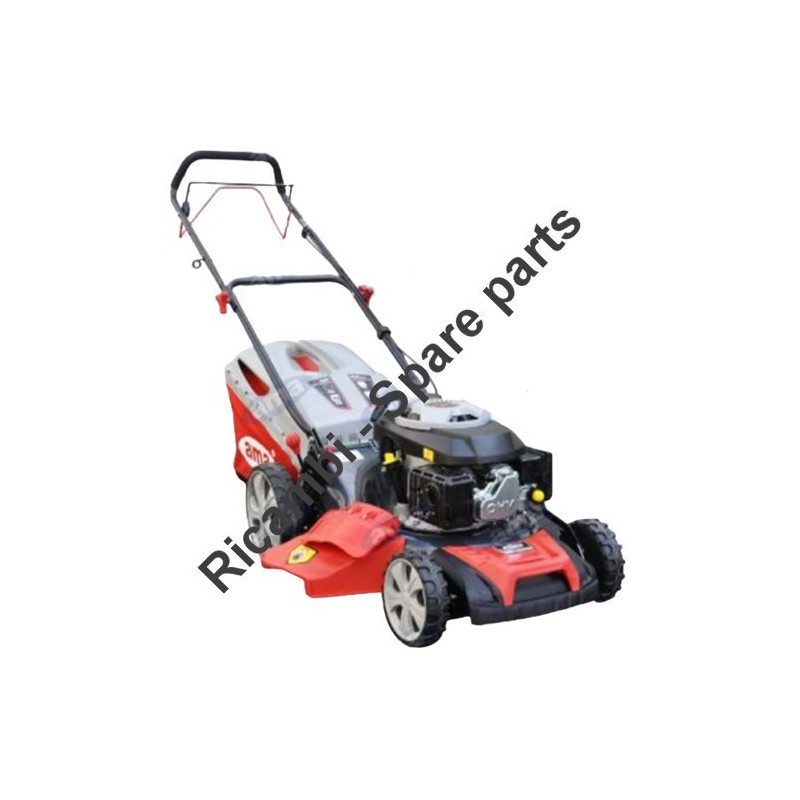

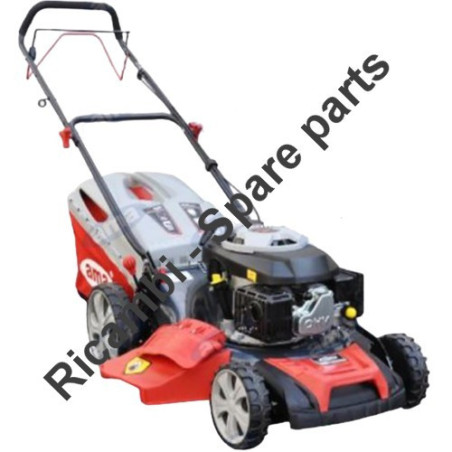

Ama Spare Parts for Lawnmower NRT-465
€11.90
Tax included
Ama Spare Parts for Lawnmower NRT-465
We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Self-Propelled Lawnmower Mod. NRT-465 - 92620.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Ama Spare Parts for Lawnmower NRT-465
We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Self-Propelled Lawnmower Mod. NRT-465 - 92620.
In the following table, look for the model of the Lawnmower and the respective parts of the code.
| Self-Propelled Lawnmower Mod. NRT-465 - 92620 pag.1 | ||
| # | Part Num. | Description |
| 1 | 88566 | Foam Rubber handle grip |
| 2 | 89398 | Stop lever |
| 3 | 92562 | Self-propelled Lever |
| 4 | 84959 | Upper handrail |
| 5 | 88568 | Rope Guide |
| 7 | 84822 | Brake Cable Assy plate |
| 10 | 89399 | Plastic stopper |
| 11 | 84971 | Brake cable |
| 12 | 84836 | Selfpropelled cable |
| 13 | 89893 | Heterotypic carriage bolts |
| 15 | 92504 | Triangle knob |
| 17 | 84973 | Lower handrail |
| 18 | 88247 | Fastener |
| 20 | 88571 | Half round head square neck bolts |
| 22 | 92503 | Triangle knob |
| Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.2 | ||
| 1 | 92564 | Deck welding assy. |
| 3 | 89447 | Inlet |
| 4 | 90504 | Pipe connector nut |
| 5 | 89515 | Cable stopper |
| 6 | 88572 | Left handle bracket |
| 7 | 88573 | Right handle bracket |
| 10 | 88574 | Height adjustment board |
| 13 | 73221 | Pull Spring for Pull Rod |
| 14 | 89390 | Height Adjustment Pull Rod |
| 15 | 88625 | R type pin |
| 18 | 84842 | Mulching cap |
| 20 | 92558 | Bracket plate for defelctor |
| 21 | 92541 | Mulching board |
| 22 | 92509 | Side discharge cover |
| 23 | 88583 | Mulch Shaft |
| 24 | 88584 | Mulch board spring |
| 25 | 92543 | Front mask |
| 26 | 92542 | Front mask |
| 30 | 92550 | Fixed block holder |
| 31 | 92555 | Limit block spring |
| 32 | 92547 | The side row overlays |
| 33 | 92554 | The side row covers |
| Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.3 | ||
| 1 | 88581 | Front drive assy. |
| 2 | 89885 | Wheel assy. |
| 3 | 92552 | Resilient washer |
| 4 | 89450 | Self-locking nut |
| 5 | 92530 | Outer cover of hub |
| 6 | 89875 | Inner cover of hub |
| 7 | 90261 | Front bracket fastener |
| Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.4 | ||
| 1 | 89451 | Rear drive assy |
| 1.1 | 92545 | Height adjustment ball |
| 2 | 90365 | Selfpropelled assy |
| 3 | 92529 | Bush |
| 4 | 92560 | Rear Plate L |
| 5 | 84938 | Rear Plate R |
| 6 | 92549 | Inner cover of hub |
| 7 | 79423 | Spring washer |
| 8 | 89889 | Selfpropelled ratchet washer |
| 9 | 89919 | Ratchet Wheel L |
| 10 | 89920 | Ratchet Wheel R |
| 11 | 90304 | Ratchet pin |
| 12 | 89887 | Wheel assy. |
| 14 | 89450 | Self-locking nut |
| 15 | 92532 | Outer cover of hub |
| 16 | 92537 | Selfpropelled spring |
| 17 | 84845 | V-belt |
| 18 | 90314 | Brake spring |
| Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.5 | ||
| 1 | 92556 | Fabric metal frame |
| 2 | 92507 | Top of grass box |
| 3 | 92551 | Filter net of grass bag |
| 4 | 92527 | Fabric grass bag |
| 5 | 92548 | Rear discharge cover |
| 6 | 88419 | Shaft for rear discharge cover |
| 7 | 84987 | Cover spring |
| 9 | 88575 | Rear discharge cover dust proof board |
| 10 | 88625 | R type pin |
| 11 | 90513 | Blade washer |
| Self_Propelled Lawnmower Mod. NRT-465 - 92620 pag.6 | ||
| 1 | 84844 | Blade Adapter Assy |
| 2 | 84843 | Double-edge blade |
| 3 | 73223 | Blade washer |
| 4 | 84815 | Inch hex flange bolts |
| 5 | 88628 | Hex flange bolts |
| 8 | 84846 | Belt cover |
| 9 | 92595 | Petrol Engine |
| Petrol Engine MVG-T6 OHV 146 cc - 92595 Pag.7 |
||
| 1 | 88564 | Cap nut |
| 2 | RMG65070100000 | Pull starter assy. |
| 3 | RMG25170110000 | Fuel tank cap |
| 4 | RMGP65050106000 | Fuel tank cap sponge |
| 5 | RMGP65050102000 | Fuel Tank Cap seal gasket |
| 6 | 92486 | Connect cable of fuel cap |
| 7 | Standard | Hex flange nuts |
| 8 | RMG60190310000 | The oil tank mount big washer |
| 9 | RMG25310030000 | Fuel Tank Cap seal gasket |
| 10 | RMG25180230000 | Fuel tank body |
| 11 | RMGP65050500000 | Filtering Net Duct of Fuel |
| 12 | RMGP65050600000 | Fuel pipe lock clamp I |
| 13 | RMGP70B05050000 | Fuel pipe |
| 14 | 92489 | Fuel pipe lock clamp II |
| 15 | RMG60240250000 | Fuel tank mounting bushing |
| 16 | RMG25190250000 | The transparent cover |
| 17 | RMG60140050000 | Hex flange nuts |
| 18 | RMGP65070200000 | Starter hub |
| 19 | RMG25040110000 | Fan |
| 20 | RMG75390240000 | Flywheel assy |
| 21 | RMGP65010109000 | Oil seal |
| 22 | RMG60080230000 | Dual-head bolts |
| 23 | 88621 | Bolt |
| 24 | RMG75330070000 | Main bracket of fuel tank |
| 25 | Standard | Bolt |
| 26 | Standard | Bolt |
| 27 | RMG75380900000 | Detent ass’y |
| 28 | RMGP65010601000 | Valve spring |
| 29 | RMG75160060000 | Handspike of Valve |
| 30 | RMGP65010105000 | Rate-limiting rocker arm shaft |
| 31 | RMG60200490000 | Gasket |
| 32 | RMGP65010112000 | Oil seal |
| 33 | Standard | R type pin |
| 34 | 92496 | Bolt |
| 35 | RMGP65010603003 | Throttle rocker arm |
| 36 | Standard | Clip |
| 37 | RMGP70B01060000 | Single phrase throttle assy. |
| 38 | RMGP65010606004 | Throttle control spring |
| 39 | RMGV510009000 | Clockwise gear gasket |
| 40 | RMGP65080300000 | Pin |
| 41 | RMG75470020000 | Camshaft assy. |
| 42 | RMGP65020400000 | Respirator head gasket |
| 43 | RMG60280030000 | Spacing pin |
| 44 | 92478 | Rate-limiting gear assy. |
| 45 | RMGP65010202000 | Sliding Sleeve |
| 46 | RMG60200060000 | Gasket |
| 47 | RMG75280020000 | Rate-limiting gear shaft clamp |
| 48 | RMGV410001000 | Rate-limiting gear shaft |
| 49 | RMG75240120000 | Crank box cover |
| 50 | RMGP65010210000 | Oil seal 25x38x7 |
| 51 | Standard | Bolt |
| 52 | 92498 | Oil drain bolt gasket |
| 53 | 92497 | Oil drain bolt |
| 54 | RMG25200130050 | Lubricating Gauge Assy |
| 55 | Standard | Bolt |
| 56 | RMG25120060000 | Air Filter Cover |
| 57 | RMG25300120000 | Foam filter |
| 58 | RMG25020050000 | Vent groove cover plate |
| 59 | RMG25110100000 | An air filter base. |
| 60 | RMG25030070000 | Waste pipe |
| 61 | RMGP65030500000 | Air filter paper pad |
| 62 | RMG75410410000 | Carburetor |
| 63 | RMGP65051000001 | Primer button II |
| 64 | RMG75730030000 | Carburetor paper pad Ⅱ |
| 65 | RMG25090010000 | Air Inlet Pipe |
| 66 | RMG75730020000 | Carburetor paper pad Ⅰ |
| 67 | RMG60080030000 | Dual-head bolts |
| 68 | RMG75130130000 | Piston Ring I |
| 69 | RMG75130140000 | Piston Ring II |
| 70 | RMG75090060000 | Guide Rail |
| 71 | RMG75000070000 | Bushing Ring |
| 72 | RMG60310010000 | Piston pin |
| 73 | RMG60400020000 | Piston Pin circlip |
| 74 | RMG75120090000 | Piston |
| 75 | RMG75460070000 | Connecting rod assy. |
| 76 | RMG75510750000 | Crankshaft assy. |
| 77 | RMG75500160000 | Crankshaft box assy. |
| 78 | RMGP65020400000 | Cylinder head gasket |
| 79 | RMG60280020000 | Spacing pin |
| 80 | RMG75190040000 | Exhaust Valve |
| 81 | RMG75170040000 | IntakeValve |
| 82 | RMG75490090000 | Cylinder head assy. |
| 83 | Standard | Locking bolt |
| 84 | 92517 | Spring Coil of Exhaust Valve |
| 85 | RMG75350030000 | Push rod |
| 86 | RMG75290050000 | Valve rocker shaft |
| 87 | RMG75080040000 | Cylinder head cover |
| 88 | RMG75720300000 | Cylinder head gasket |
| 89 | RMG75230031000 | xhaust valve rocker combinatio |
| 90 | RMG60240240000 | Washer |
| 91 | RMG75230030000 | ir intake door rocker combinatio |
| 92 | RMGP65081100000 | Top Cover of Exhaust Valve |
| 93 | RMG75180010000 | Spring Coil of Intake Valve |
| 94 | RMGP70B08080000 | valve spring |
| 95 | RMGP65020600000 | Oil seal assy |
| 96 | 75140010000 | Spark plug |
| 97 | Standard | Self-locking nut |
| 98 | 92523 | Muffler cover assy. |
| 99 | RMG75540030000 | Muffler assy. |
| 100 | RMGP65060200000 | Muffler insulating pad |
| 101 | RMG75030110000 | Wind shield |
| 102 | RMGV510010000 | Respirator valve plate |
| 103 | RMG75720310000 | Respirator head gasket |
| 104 | RMG75400030000 | Valve rocker shaft |
| 105 | RMG75370070000 | Ignition assy. |
| 106 | Standard | Bolt |
| 107 | 92524 | Single speed control panel |
| 108 | Standard | Bolt |
| 109 | RMG25190210086 | The transparent cover |
