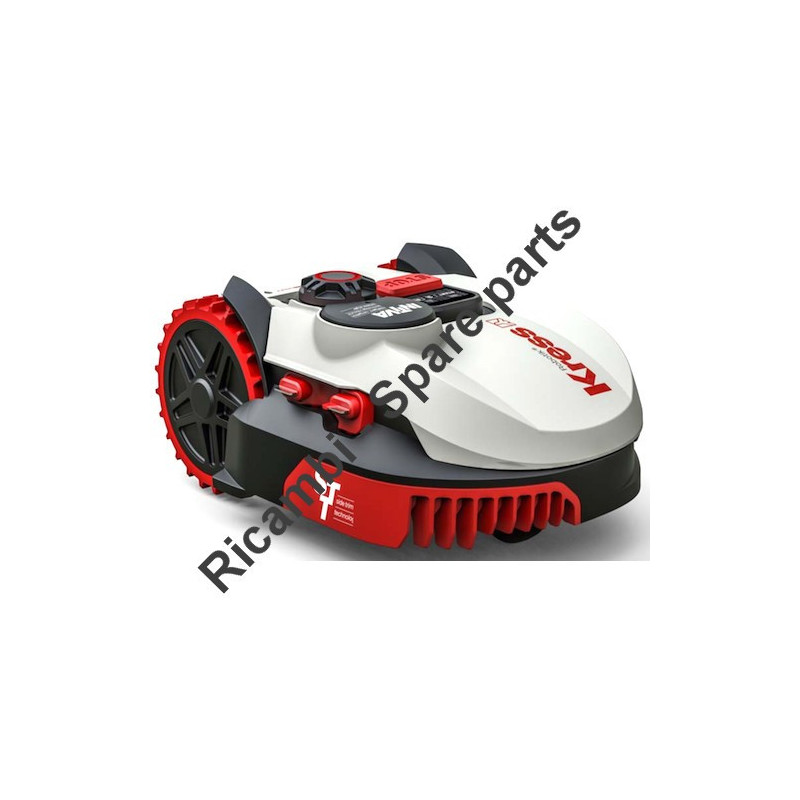

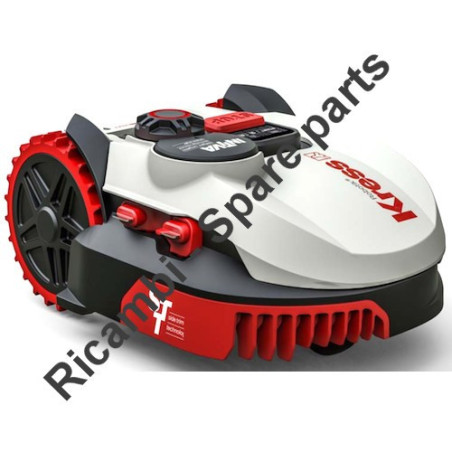

Ama Spare Parts for Robot Lawn Mower Kress Nano KR100

Name: Ama Spare Parts for Robot Lawn Mower Kress Nano KR100
Brand: A.M.A. S.p.A.
SKU: AMA Kress Nano KR100 - 92700
Availability: OutOfStock

€0.00

Tax included

Ama Spare Parts for Robot Lawn Mower Kress Nano KR100

Ama genuine spare parts or replacements parts for to repair Robot Lawn Mower Kress Nano KR100 - 92700.

Quantity

Out-of-Stock

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Ama Spare Parts for Robot Lawn Mower Kress Nano KR100

Ama genuine spare parts or replacements parts for to repair Robot Lawn Mower Kress Nano KR100 - 92700.

In the following table, look for the model of the Robot and the respective parts of the code.

Robot Lawn Mower Kress Nano KR100 - 92700
Top Cover
#	Part Num.	Description
7	KR59000146	Screw
8	KR59000189	Depth Adjustment Knob
9	KR59000162	Micro Switch
10	KR59000177	Battery Plug
11	KR59000128	Sheath II
12	KR59000127	Washer
13	KR59000133	Switch
14	KR59000152	Washer
15	KR59000182	Connection Panel
80	KR59000165	Screw
93	KR59000140	Transfer board harness
94	KR59000188	Stop harness
96	KR59000149	Top Cover (KRESS)
101	KR59000126	Power supply harness
110	KR59000129	Light Body
200	KR59000295	Top cover set
Chassis
7	KR59000146	Screw
14	KR59000152	Washer
16	KR59000139	Motor Bracket
17	KR59000120	Compression Spring
18	KR59000183	Stud
19	KR59000171	Chassis
25	KR59000192	O-Ring
26	KR59000173	Driving Motor
28	KR59000190	O-Ring
29	KR59000193	Screw
30	KR59000186	Washer
31	KR59000195	Spring Washer
32	KR59000132	Nut
33	KR59000147	Wheel cover
34	KR59000151	Washer
35	KR59000251	Front Roller Shaft
36	KR59000145	Detent Block
37	KR59000252	Bearing 619/8
38	KR59000250	Front Wheel
39	KR59000196	Washer
40	KR59000141	Stop block
42	KR59000148	Roller Guard
43	KR59000257	Battery Pack (Li-ion,2.9Ah,20V)
44	KR59000160	Top Housing
45	KR59000121	Cover
46	KR59000158	Lifted up sensor
47	KR59000194	Magnet
48	KR59000123	Magnet box
51	KR59000117	Boundary sensor
53	KR59000184	Circuit board
54	KR59000174	Dustproof Cover
55	KR59000114	Position Piece
56	KR59000157	Knob Set
61	KR59000153	Guard
68	KR59000175	Rain sensor harness
91	KR59000166	Sensor harness
97	KR59000187	Rear Wheel
98	KR59000122	Front Wheel
99	KR59000275	Front wheel (included wheel axle)
100	KR59000137	Bump sensor
102	KR59000134	Motor harness
103	KR59000254	Chassis set
108	KR59000185	Buzzer
109	KR59000135	Cable clip
303	KR59000256	Motor Set
305	KR59000276	Main PCB (with SN&Mac address)
Charger
7	KR59000146	Screw
70	KR59000253	Torsional Spring
73	KR59000155	Clip Plate
74	KR59000164	Base Plate
80	KR59000165	Screw
81	KR59000159	Ornament Cover
83	KR59000172	Switch Box
85	KR59000258	Charger (100-240V,20V,38W)
104	KR59000255	Terminal with red wire
105	KR59000222	Base Holder
106	KR59000259	Power Supply Board Assembly
107	KR59000294	Charging station
115	KR59000261	Terminal with black wire
304	KR59000296	Improved charging PCB ass’y
Accessories
62	KR59000115	Turning disc
65	KR59000144	Spacer II
66	KR59000130	Screw Washer Assmbly
84	KR59000178	Cable clips (Hook 210)
87	KR59000116	Screw
88	KR59000119	Screw
95	KR59000131	Boundary wire(150m)
112	KR59000170	Boundary wire connecter
302	KR59000260	Cutting blades and screws (3pcs)
