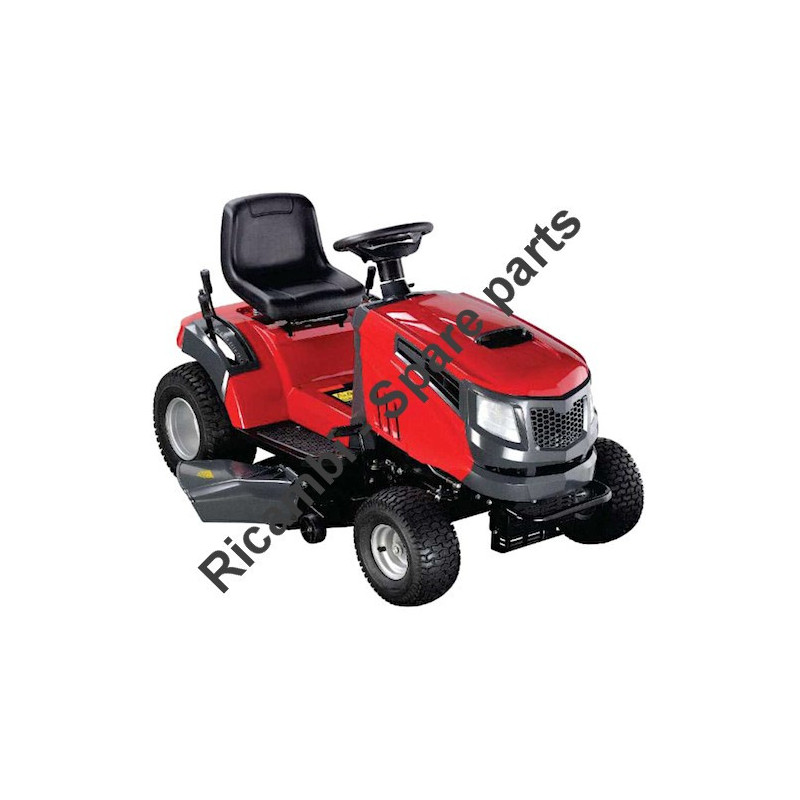

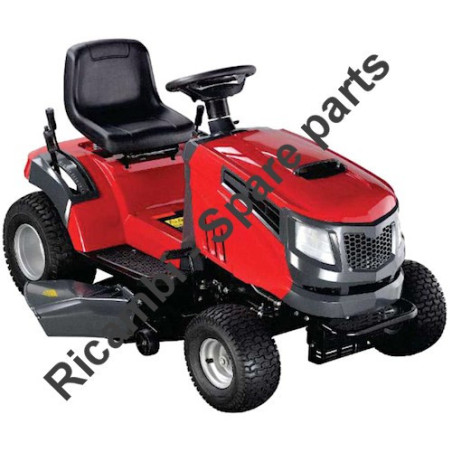

Ama Spare Parts for Lawn Tractor ATS98L – 90030
Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATS98L – 90030.For Availability and order management times, call our telephone numbers.
In the following table, look for the model of the Lawn Tractor and the respective parts of the code.
| Lawn Tractor ATS98L – 90030 | ||
| Muffler Pag.1 | ||
| # | Part Num. | Description |
| 1 | BOLT M6×16 | |
| 2 | SPRING WASHER 6 | |
| 3 | BIG WASHER 6 | |
| 4 | RZJ0186 | MUFFLER ROD |
| 5 | WASHER 8 | |
| 6 | SPRING WASHER 8 | |
| 7 | BOLT M8×16 | |
| 8 | FLANGE BOLT M6×20 | |
| 9 | RZJ0490 | FRONT SHIELD |
| 10 | FLANGE NUT M6 | |
| 11 | RZJ0187 | BRACKET |
| 12 | FLANGE LOCK NUT M6 | |
| 13 | FLANGE BOLT M8×20 | |
| 14 | BIG WASHER 8 | |
| 15 | RZJ0517 | MUFFLE |
| Frame Pag.2 | ||
| 1 | RZJ0269 | FLANGE BOLT M10×1.25×25 |
| 2 | RZJ0188 | REAR BRACKET |
| 3 | RZJ0189 | LEFT BRACKET |
| 4 | FLANGE BOLT M8×16 | |
| 5 | RZJ0190 | SEAT BRACKET |
| 6 | BUCKLE NUT M6 | |
| 7 | RZJ0191 | RIGHT BRACKET |
| 8 | RZJ0192 | STEERING BRACKET |
| 9 | BOLT M8×20 | |
| 10 | SPRING WASHER 8 | |
| 11 | BIG WASHER 8 | |
| 12 | RZJ0193 | BUMPER |
| 13 | RZJ0194 | FRAME |
| 14 | RZJ0361 | MAT L |
| 15 | RZJ0195 | FOOT BOARD L |
| 16 | FLANGE BOLT M6×25 | |
| 17 | RZJ0362 | MAT R |
| 18 | FLANGE BOLT M6×16 | |
| 19 | RZJ0196 | FOOT BOARD R |
| 20 | RZJ0197 | BUSHING |
| 21 | RZJ0198 | FOOT BRACKET |
| 22 | FLANGE LOCK NUT M6 | |
| 23 | RZJ0275 | U BOLT M8 |
| 25 | FLANGE BOLT M8×20 | |
| 26 | FLANGE NUT M10×1.25 | |
| Engine Loncin Pag.3 | ||
| 1 | SCREW M4×16 | |
| 2 | WASHER 4 | |
| 3 | RZJ0006 | THROTTLE CABLE |
| 4 | NUT M4 | |
| 5 | CLIP | |
| 6 | ENGINE | |
| 7 | WASHER 10 | |
| 8 | SPRING WASHER 10 | |
| 9 | RZJ0265 | TAPPING SCREW 3/8"-16-1 1/2" |
| 10 | RZJ0297 | FLAT KEY 6.35×30 |
| 11 | RZJ0015 | STEP PULLEY |
| 12 | WASHER 6 | |
| 13 | FLANGE LOCK NUT M6 | |
| 14 | RZJ0041 | BOLT 7/16"-20 - 1" |
| 15 | SPRING WASHER 12 | |
| 16 | RZJ0158 | SCREW 5/16"-18 -3/4" |
| 17 | SPRING WASHER 8 | |
| 18 | WASHER 8 | |
| 19 | RZJ0036 | GASKET |
| 20 | RZJ0199 | EXHAUST PIPE |
| Tank Pag.4 | ||
| 1 | RZJ0309 | FUEL TANK CAP LEVER |
| 2 | O RING | |
| 3 | RZJ0068 | FUEL TANK CAP |
| 4 | RZJ0308 | FUEL TANK CAP FILTER |
| 5 | RZJ0301 | FUEL TANK CAP SEAL |
| 6 | RZJ0300 | GASKET 6×25×1.5 |
| 7 | RZJ0433 | FUEL TANK CAP SPRING |
| 8 | WASHER 5 | |
| 9 | SPLIT PIN | |
| 10 | RZJ0069 | FILTER CAP |
| 11 | RZJ0083 | FUEL TANK |
| 12 | CLIP φ9.5 | |
| 13 | FUEL HOSE | |
| 14 | RZJ0276 | FUEL TANK BOLT |
| 15 | CLIP φ10 | |
| 16 | FLANGE BOLT M8×20 | |
| 17 | BOLT M8×16 | |
| 18 | RZJ0200 | FUEL TANK SUPPORT |
| 19 | FLANGE LOCK NUT M8 | |
| 20 | BUCKLE NUT M8 | |
| Steering Pag.5 | ||
| 1 | RZJ0274 | FLANGE BOLT M10×1.25×35 |
| 2 | WASHER φ10.1×φ20×4 | |
| 3 | RZJ0293 | JOINT BEARING SIJK10C L |
| 4 | RZJ0282 | LUCK NUT M10×1.25 |
| 5 | RZJ0042 | NUT M10 L |
| 6 | RZJ0203 | PULL ROD |
| 7 | RZJ0294 | JOINT BEARING SIJK10C |
| 9 | RZJ0292 | JOINT BEARING M10 |
| 11 | RZJ0204 | LINK ROD |
| 12 | RZJ0205 | DOUBLE HOLE BOARD |
| 14 | SCREW | |
| 15 | PIN 6×26 | |
| 16 | RZJ0016 | BUSHING |
| 17 | RZJ0017 | STEERING SECTOR GEAR |
| 18 | RETAINER RING 12 | |
| 19 | RZJ0082 | BUSHING |
| 20 | RZJ0313 | HEXAGON BUSHING |
| 22 | RZJ0018 | GEAR |
| 23 | RZJ0206 | STEERING SHAFT |
| 24 | RZJ0314 | HATCH BUSHING |
| 25 | SNAP RING 16 | |
| 26 | RZJ0207 | STEERING CONNECT SHAFT |
| 30 | RZJ0208 | SQUARE HOLE BOARD |
| 33 | RZJ0087 | STEERING WHEEL |
| 34 | RZJ0088 | STEERING WHEEL CAP |
| Seat Pag.6 | ||
| 1 | FLANGE LOCK NUT M8 | |
| 2 | RZJ0154 | SEAT SPRING |
| 3 | BIG WASHER | |
| 4 | FLANGE BOLT M8×20 | |
| 5 | RZJ0344 | SPRING CAP |
| 6 | RZJ0165 | SPRING FLAKE |
| 7 | SCREW M5×12 | |
| 8 | SCREW M6×16 | |
| 9 | RZJ0142 | SEAT |
| 10 | RZJ0201 | SEAT BRACKET |
| 11 | RZJ0202 | PIN |
| 12 | RETAINER RING 6 | |
| 13 | RZJ0437 | SEAT SWITCH CONTACT |
| 14 | FLANGE LOCK NUT M6 | |
| 15 | FLANGE LOCK NUT M5 | |
| Traction Pag.7 | ||
| 1 | BOLT M8×20 | |
| 2 | RZJ0209 | LEFT ROD |
| 4 | RZJ0066 | V BELT 48X920 (AKX2337) |
| 5 | RZJ0284 | FLANGE LOCK NUT M10×1.25 |
| 6 | RZJ0210 | RIGHT ROD |
| 7 | RZJ0019 | DRIVING TENTION ARM |
| 8 | RZJ0020 | CONNECTING ROD |
| 10 | SPRING PIN | |
| 11 | RZJ0021 | TENTION PULLEY SHAFT |
| 12 | RZJ0022 | TENTION PULLEY |
| 13 | BEARING 6301-2RS | |
| 14 | SNAP RING 37 | |
| 15 | LOCK NUT M10×1.25 | |
| 16 | RZJ0270 | FLANGE BOLT M10×1.25×30 |
| 17 | RZJ0023 | DRIVING TENTION ARM BUSHING |
| 18 | WASHER φ12×φ18×δ0.4 | |
| 19 | RZJ0431 | GEAR SHIFT PIN |
| 20 | BIG WASHER 10 | |
| 21 | RZJ0266 | FLANGE BOLT M10×1.25×40 |
| 22 | RZJ0480 | TENTION PULLEY BUSHING |
| 23 | RZJ0139 | TIGHTENER PULLEY |
| 24 | RZJ0278 | FLANGE NUT M10×1.25 |
| 25 | RZJ0211 | REAR ROD R |
| 26 | RZJ0212 | REAR ROD L |
| 27 | RZJ0024 | SPRING |
| Blade Pag.8 | ||
| 1 | RZJ0067 | V BELT 48X900（AKX2279） |
| 3 | RZJ0062 | BRAKE SHOE |
| 4 | RZJ0213 | CUTTING ARM |
| 6 | RZJ0025 | IDLENESS PULLEY |
| 7 | RZJ0214 | BUSHING |
| 8 | WASHER φ17.3×φ55×δ4 | |
| 9 | RZJ0284 | FLANGE LOCK NUT M10×1.25 |
| 10 | RZJ0139 | TIGHTENER PULLEY |
| 11 | RZJ0480 | TENTION PULLEY BUSHING |
| 12 | SNAP RING 13 | |
| 14 | RZJ0026 | BRAKE SPRING R |
| 15 | OIL INJECTION NOZZLE | |
| 17 | RZJ0215 | BRAKE ARM R |
| 18 | RZJ0266 | FLANGE BOLT M10×1.25×40 |
| 19 | FLANGE LOCK NUT M12×1.25 | |
| 20 | RZJ0305 | BUSHING |
| 21 | WASHER φ16×φ21×δ0.4 | |
| 22 | RZJ0216 | IDLENESS PULLEY SHAFT |
| 23 | RZJ0217 | CUTTING ROD R |
| 24 | RZJ0363 | HANDLE |
| 25 | RZJ0218 | CLUTCH LEVER |
| 26 | RZJ0027 | BRAKE SPRING L |
| 27 | RZJ0028 | CUT DRIVE CABLE |
| 28 | RZJ0219 | CLUTCH LEVER SPRING |
| 29 | RZJ0364 | HATCH BUSHING |
| Electrical System (Loncin) Pag.9 | ||
| 1 | GROUND CABLE | |
| 3 | RZJ0053 | STAR RELAY |
| 4 | BOLT M5×16 | |
| 5 | POWER CABLE | |
| 6 | FRONT LIGHT | |
| 7 | LIGHT WIRING | |
| 8 | CLIP | |
| 9 | TAPPING SCREW ST4.8×16 | |
| 10 | TIE BAND | |
| 11 | WIRING | |
| 12 | RZJ0051 | WIRING SWITCH |
| 13 | RZJ0049 | ROTARY SWITCH |
| 14 | SCREW M6×16 | |
| 15 | TAPPING SCREW ST4.2×13F | |
| 16 | FLANGE BOLT M6×16 | |
| 18 | RZJ0262 | SWITCH BRACKET R |
| 20 | RZJ0047 | Double normally closed switch |
| 21 | RZJ0048 | OPEN CLOSE SWITCH |
| 22 | RZJ0261 | SWITCH BRACKET L |
| 23 | RZJ0220 | BATTERY BOLT |
| 24 | BATTERY CABLE | |
| 25 | RZJ0303 | ROBBER PLATE |
| 26 | 32660 | BATTERY 12V 18Ah |
| 27 | RZJ0114 | Switch contact chip |
| 28 | RZJ0318 | Insulating strip |
| Gear Pag.10 | ||
| 1 | RZJ0363 | HANDLE |
| 2 | RZJ0221 | SHIFT LEVER |
| 3 | FLANGE BOLT M8×105 | |
| 4 | RZJ0224 | TORSION SPRING φ3×φ18 |
| 5 | RETAINER RING 12 | |
| 6 | RZJ0314 | HATCH BUSHING |
| 7 | FLANGE LOCK NUT M8 | |
| 8 | RZJ0223 | SHIFT AXLE |
| 9 | RZJ0222 | SHIFT ROD |
| 10 | RZJ043 | GEAR SHIFT PIN |
| 11 | WASHER 8（δ1） | |
| 12 | SPRING PIN | |
| Cover Pag.11 | ||
| 1 | SCREW M6×16 | |
| 2 | RZJ0371 | LIFT COVER |
| 3 | RZJ0372 | REAR COVER |
| 4 | RZJ0373 | SHIFT COVER |
| 5 | SCREW ST4.8×16 | |
| 6 | RZJ0374 | METER FACE |
| 7 | RZJ0375 | STEERING SHAFT CAP |
| 8 | RZJ0376 | LEFT COVER |
| 9 | RZJ0380 | LEFT WINDOW |
| 10 | RZJ0378 | ENGINE COVER |
| 11 | RZJ0382 | FRONT FACE |
| 12 | RZJ0245 | REFLECTOR L |
| 13 | RZJ0089 | LIGHT COVER L |
| 14 | RZJ0090 | LIGHT COVER R |
| 15 | RZJ0246 | REFLECTOR R |
| 16 | RZJ0381 | RIGHT WINDOW |
| 17 | PIN φ10×60 | |
| 19 | SPRING PIN | |
| 20 | RZJ0377 | RIGHT COVER |
| 21 | RZJ0383 | AIR INPUT OPENING |
| 25 | RZJ0367 | AIR direction barrel |
| 26 | RZJ0384 | COVER AFTER STEERING SHAFT |
| 27 | RZJ0379 | MIDST COVER |
| 28 | RZJ0385 | RIGHT PLATE |
| 29 | RZJ0386 | LEFT PLATE |
| Traction Axle Pag.12 | ||
| 1 | RZJ0128 | HUB COVER |
| 2 | RETAINER RING 15 | |
| 3 | RZJ0478 | WASHER φ20×φ43×3 |
| 4 | RZJ0002 | REAR WHEEL ASSEMBLY |
| 5 | RZJ0225 | PLATE |
| 6 | RZJ0004 | GEAR BOX |
| 7 | FLANGE LOCK NUT M8 | |
| 8 | RZJ0045 | FLAT KEY 4.85×60 |
| 9 | FLANGE BOLT 8×65 | |
| 10 | RZJ0029 | DRIVING PASSIVE WHEEL |
| 11 | SNAP RING 16 | |
| 12 | RZJ0268 | BOLT 1/4"-28 -3/4" |
| 13 | SPRING WASHER 6 | |
| 14 | BIG WASHER 6 | |
| 15 | RZJ0226 | GEAR SHIFT ARM |
| 16 | FLANGE BOLT 8×20 | |
| 17 | RZJ0227 | CONNECTING PLATE |
| 18 | WASHER 8 | |
| 19 | RZJ0264 | TAPPING SCREW 5/16 - 18 - 3/4 |
| Flat Lifting Pag.13 | ||
| 1 | RZJ0284 | FLANGE LOCK NUT M10×1.25 |
| 3 | RZJ0228 | FRONT ROD |
| 4 | RZJ0229 | PUSHING ROD R |
| 8 | RZJ0230 | FRONT ARM R |
| 11 | RZJ0232 | PUSHING ROD L |
| 12 | RZJ0231 | FRONT ARM L |
| 13 | RZJ0282 | LOCK NUT M10×1.25 |
| 14 | RZJ0233 | ADJUSTING PIN |
| 15 | RZJ0278 | FLANGE NUT M10×1.25 |
| 16 | RZJ0234 | ADJUSTING ROD FRONT L |
| 17 | RZJ0235 | ADJUSTING ROD FRONT R |
| 18 | RZJ0447 | ADJUSTING PIN |
| 19 | RZJ0236 | REAR ARM |
| 20 | RZJ0313 | HEXAGON BUSHING |
| 22 | RZJ0312 | LIFT HANDLE |
| 23 | RZJ0365 | BUTTON |
| 24 | RZJ0237 | PUSHING SPRING |
| 26 | RZJ0238 | BOLT |
| 27 | RZJ0239 | SPRING ROD |
| 28 | RZJ0240 | PIN |
| 29 | RZJ0241 | LEVER |
| 30 | RZJ0314 | HATCH BUSHING |
| 31 | RZJ0242 | ROD L |
| 32 | RZJ0243 | LIFT ROD |
| 33 | RZJ0244 | REAR ADJUSTING ROD |
| Dish 98 cm Pag.14 | ||
| 3 | RZJ0509 | PIVOT TUBE |
| 4 | RZJ0084 | WHEEL |
| 6 | RZJ0247 | STUD |
| 7 | RZJ0248 | POST |
| 8 | RZJ0249 | PIVOT FOR RIGHT BRAKE |
| 9 | WASHER 12 | |
| 10 | RZJ0250 | CABLE BRACKET |
| 13 | O RING 11.2×2.65 | |
| 14 | WATER NOZZLE | |
| 15 | RZJ0251 | DECK |
| 16 | RZJ0043 | NUT FOR BLADE AXLE |
| 17 | RZJ0105 | PULLEY |
| 18 | RZJ0295 | FLAT KEY C6×18 |
| 19 | RZJ0107 | BLADE SPINDLE |
| 20 | BEARING 6204-2RZ | |
| 21 | RZJ0091 | BLADE BOSS |
| 22 | SNAP RING 19 | |
| 23 | RZJ0296 | KEY 4×16 |
| 24 | RZJ0092 | BLADE HUB |
| 25 | RZJ0039 | Bolt |
| 27 | RZJ0117 | DISH WASHER |
| 28 | RZJ0030 | BLADE |
| 31 | RZJ0252 | STUD SCREW |
| 32 | SCREW M6×25 | |
| 33 | RZJ0285 | FLANGE LOCK NUT M12×1.25 |
| Dish 98 cm Pag.15 | ||
| 1 | SPRING PIN | |
| 3 | RZJ0289 | PIN φ8×163 |
| 4 | RZJ0387 | DISCHARGE GUARD |
| 5 | RZJ0224 | TORSION SPRING φ3×φ18 |
| 6 | BOLT M6×16 | |
| 7 | BOLT M6×25 | |
| 8 | RZJ0253 | HINGE |
| 9 | FLANGE LOCK NUT M6 | |
| 10 | RZJ0356 | REAR SHIELD |
| 11 | BUCKLE NUT M6 | |
| 12 | SCREW M6×16 | |
| 13 | RZJ0357 | FRONT SHIELD |
| 14 | SCREW M6×12 | |
| 15 | RZJ0358 | HEXAGONAL ROD |
| 16 | SPRING WASHER | |
| 17 | WASHER φ10.1×φ20×4 | |
| 18 | BOLT M8×20 | |
| 19 | RZJ0359 | BRACKET |
| 21 | RZJ0355 | RIGHT SHIELD |
| 22 | RZJ0354 | LEFT SHIELD |
| 25 | SPRING WASHER | |
| Cap Mulching Pag.16 | ||
| 1 | NUT M6×13.5 | |
| 2 | WASHER 10 | |
| 3 | RZJ0263 | HOOK |
| 4 | RZJ0368 | BELT |
| 5 | WASHER 6 | |
| 6 | RZJ0369 | MULCH COVER |
| 7 | SCREW M6×16 | |
| Front Axle Pag.17 | ||
| 1 | RZJ0128 | HUB COVER |
| 2 | SNAP RING 19 | |
| 3 | RZJ0478 | WASHER φ20×φ43×3 |
| 4 | RZJ0470 | WASHER |
| 5 | BEARING 61904-2RZ | |
| 6 | RZJ0001 | FRONT WHEEL ASSEMBLY |
| 7 | RZJ0031 | LEFT STUB AXLE |
| 8 | WASHER 20 | |
| 9 | RZJ0071 | BUSHING |
| 10 | WASHER | |
| 11 | SPRING WASHER 8 | |
| 12 | BOLT M8×20 | |
| 13 | OIL INJECTION NOZZLE | |
| 14 | RZJ0254 | FRONG AXLE |
| 15 | RZJ0426 | LINER TUBE |
| 16 | RZJ0272 | FLANGE BOLT M12×1.25×60 |
| 17 | RZJ0475 | TURNNG ARM 2 |
| 18 | FLANGE BOLT M8×50 | |
| 19 | RZJ0476 | TURNNG ARM 1 |
| 20 | RZJ0032 | RIGHT STUB AXLE |
| 21 | FLANGE LOCK NUT M8 | |
| 22 | RZJ0285 | FLANGE LOCK NUT M12×1.25 |
| Brake Pag.18 | ||
| 1 | RZJ0033 | BRAKE SHOE RETURN SPRING |
| 2 | RZJ0034 | BRAKE SPRING |
| 3 | RZJ0255 | BRAKE ROD |
| 4 | RZJ0314 | HATCH BUSHING |
| 5 | PEDAL | |
| 6 | RZJ0328 | BRAKE LEVER |
| 7 | RZJ0256 | SPRING PIN |
| 8 | WASHER | |
| 9 | FLANGE BOLT M8×45 | |
| 10 | BIG WASHER | |
| 11 | RZJ0257 | PARKING HOOK |
| 12 | RZJ0366 | PARKING HANDLE |
| 13 | FLANGE LOCK NUT M8 | |
| 14 | RZJ0258 | PARKING ROD |
| 15 | RETAINER RING 12 | |
>All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama ATS98L – 90030
4 Items
Data sheet
- SHIPPING IN:
- RESERVATION ONLY
- MORE INFO:
- CALL US FOR AVAILABILITY AND SHIPPING TIMES
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
16 other products in the same category:
Ama Spare Parts for Lawn Tractor ATS98L – 90030
Ama genuine spare parts or replacements parts for to repair Lawn Tractor ATS98L – 90030.For Availability and order management times, call our telephone numbers.
