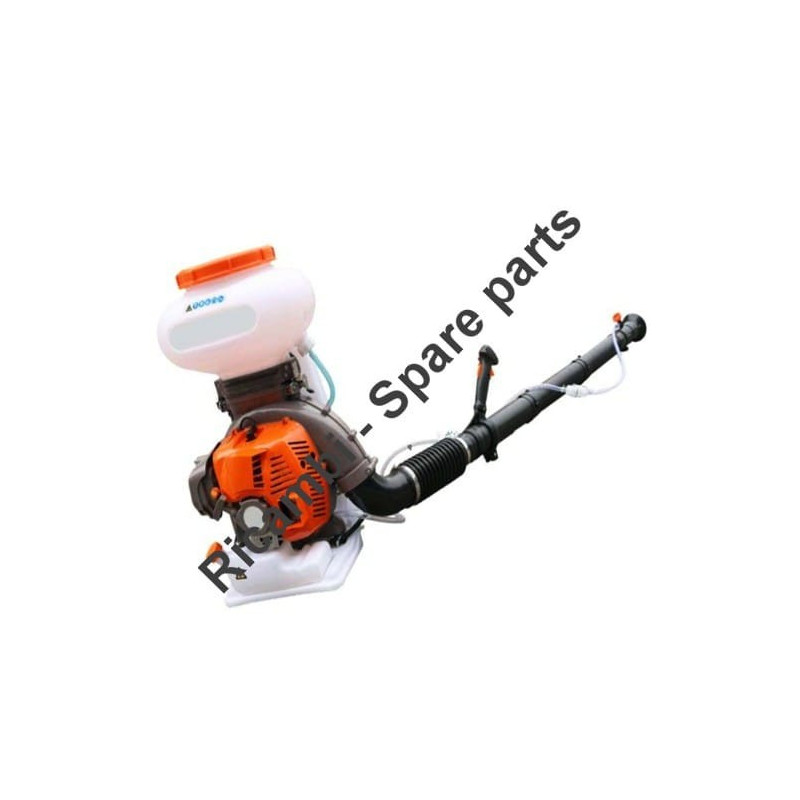

Ama Spare Parts for Backpack Mist Duster ATO-380
search
  • Ama Spare Parts for Backpack Mist Duster ATO-380
  • Ama Spare Parts for Backpack Mist Duster ATO-380
  • Ama Spare Parts for Backpack Mist Duster ATO-380
  • Ama Spare Parts for Backpack Mist Duster ATO-380

Ama Spare Parts for Backpack Mist Duster ATO-380

€5.90
Tax included

Ama Spare Parts for Backpack Mist Duster ATO-380

Ama Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for BACKPACK ATO-380 MIST DUSTER ATO-380 code. 90730.
ITEM CODE: 10660
Quantity
on Demand Only Call Us Before

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Ama Spare Parts for Backpack Mist Duster ATO-380

Ama Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for BACKPACK ATO-380 MIST DUSTER ATO-380 code. 90730.

In the following table, look for the model of the Blower and the respective parts of the code.
Ama ATO-380 - 90730
MIST DUSTER ATO 380 - 90730
Engine Pag.1
# Part Num. Description
1 Standard Screw M5×16
2 88786 Starter Assy
5 88789 Case
6 64081 Spring
7 88790 Reel
9 88791 W hell
10 88792 Guide Slice
11 92436 Nut M10×1
12 88793 Start Reel
13 88794 Seal
14 88795 Back Crankcase
15 Standard Bearing 6202/P6
16 88796 Crankshaft
17 90974 Bearing
18 88264 Key 3×5×13
19 88796 Gasket
20 Standard Bearing 6203
21 88799 Pin 4h8×10
22 88800 Front Cankcase
23 Standard Screw M5×35
24 88801 Flywheel
25 Standard Washer 10
26 Standard Washer 10
27 88802 Ignition Coil Assy
28 88803 W asher
29 Standard Screw M4×20
30 88660 Block
31 88804 Shield
32 88805 Piston Pin Circlip
33 88806 Pistin pin
34 88807 Piston
35 88808 Piston Rings
36 88809 Cylinder Gasket
37 88810 Cylinder Assy
38 Standard Screw M6×20
39 10660 Spark Plug
40 88812 Intake Manifold-Cylinder Gasket
41 88813 Insulator
42 Standard Screw M5×25
43 88814 Gasket
44 88815 Carburetor
45 88816 Ring 8
46 90167 Fuel Tube (100mm)
47 88818 Carburator-Air Filter Gasket
48 88819 Inside cover
49 Standard Screw M5×80
50 88820 Gasket
51 Standard Screw M5×8
52 Standard Washer 5
53 Standard Screw M5×12
54 88821 Muffler
55 88822 Shield
56 90975 Bolt
57 Standard Nut M8
Mist Duster Pag.2
1 Standard Screw M5×16
2 88823 Engine Cover
3 92427 Supporting Plate
4 88556 Vitta Plug
5 92433 Fuel Tank Assy
6 88675 Fuel Tank Assy
7 88857 Filter
8 90167 Fuel tube (350mm)
9 90054 Fuel Tube (180mm)
10 13758 Cap Assy
11 90167 Fule tube (100 mm)
12 90054 Fuel Tube (80mm)
13 88853 Joint
14 Standard Screw 6×12
15 Standard Washer 6
16 Standard Nut M6
17 92429 Frame Base
18 90978 Support Column
19 92435 Support plate
20 88825 Support plate
21 Standard Screw M6×25
23 90967 Fan Assy
24 92434 Elbow
26 92406 Volute Case
27 90968 Impeller
28 92409 Sealing Strip
30 92407 Volute Cover
32 92418 Leak Pipe Assy
33 92419 Sealing Washer
34 92422 Right locking handle assy
35 90976 Rubber Pillar
37 92421 Left locking handle assy
40 92405 Plastic Tie-In
41 90966 Pump Assy
43 Standard Screw M6×25
44 92428 Frame
45 92408 Pad
46 90982 Clip
47 88670 Band Assy
48 88773 Pipe III
49 88772 Pipe III
50 88771 Pipe
51 Standard φ59-φ82
52 90943 Hose
53 Standard φ78-φ101
54 Standard Bolt M6×45
55 88774 Handle
56 Standard Nut M6
57 88861 Lever Set
58 88783 STOP Switch
59 88863 Cable
60 88785 Tube
62 88775 Push Button
63 88776 Spring
64 88777 Left Manipulator
65 92431 Pin
66 88328 Spring
67 88327 Lever Set
68 88321 Lever, throttle
69 88322 Long Spring
70 88782 Right Manipulator
74 90959 Tank Cap
75 90998 Air Valve
76 90961 Sealing Washer
77 92430 Chemical tank
79 90977 Spring
81 92413 Leakplate
82 92416 Clamp
84 92414 Sealing Washer
85 92417 Fix Piece
87 92411 Dusting Plate
88 92420 Plug
90 92410 Plate
91 92412 Rocker Shaft
92 Standard Sealing Washer 6.9×1.8
94 90657 Pin
95 92426 Pilling Rod
96 Standard Nut M5
97 92403 Connector
98 90981 Plate
99 92423 Connecting Rod Assy
100 92425 Pin Shaft
101 90992 Screw
102 92424 Connecting Beam
103 90995 Armor Plate
104 90988 Handle
105 Standard Screw M5×16
106 90993 Nut
107 Standard Washer 8
108 90997 Spring
109 90996 Screw
110 90994 Craduator
111 92432 Tube (270mm)
112 90979 Handle
113 90989 Dust Plate
Mist Duster Pag.3
114 90965 Connector Lid
115 90964 Link Pipe
116 92404 Sealing Washer
117 90987 Plate
118 90984 Dado
119 92402 Tube
120 90969 Chemical Tank
121 90983 Screw Shaft
122 Standard Tube 1.8×1.5×500
123 90963 Filter
124 90961 Sealing Washer
125 90959 Tank Cap
126 92416 Clamp
127 Standard Nut M6
128 92414 Sealing Washer
129 92417 Fix Piece
130 Standard Screw M5×10
131 92415 Misting Plate
132 Standard Screw M6×45
133 92401 Clip
134 Standard Tubo LS10X1.5X650
135 90962 Cock Assy
142 Standard Tube LS10X1.5X550
143 90944 Filter Assy
148 90958 Nozzle Assy
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
