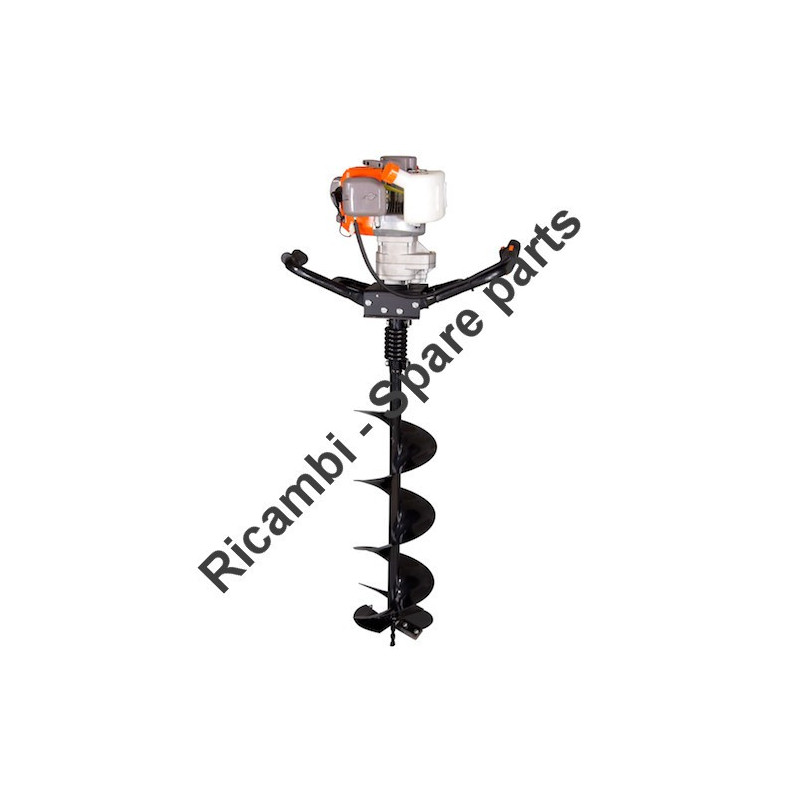

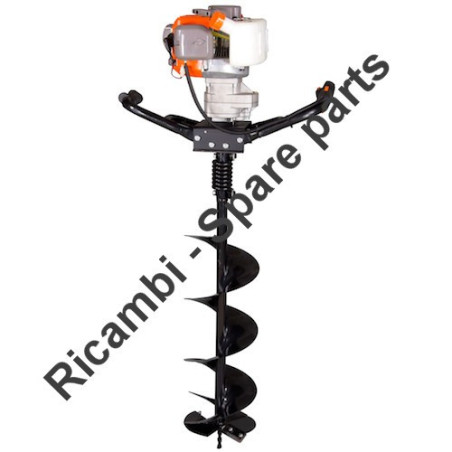

Ama Spare Parts for Auger E3WT-300A
€5.90
Tax included
Ama Spare Parts for Auger E3WT-300A
Original parts AMA, with fast delivery and low prices, we are an after-sales centre able to quickly solve maintenance and repair problems for Auger E3WT-300A - 90380.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Ama Spare Parts for Auger E3WT-300A
Original parts AMA, with fast delivery and low prices, we are an after-sales centre able to quickly solve maintenance and repair problems for Auger E3WT-300A - 90380.
In the following table, look for the model of the Auger and the respective parts of the code.
| Auger E3WT-300A - 90380/Engine Pag.1 | ||
| # | Part Num. | Description |
| 2 | 88309 | Ratchet |
| 3 | 90478 | Starter rope reel |
| 5 | 90479 | Recoil spring |
| 10 | 88310 | Spring |
| 11 | 90482 | Start pole |
| 12 | 90483 | Starter |
| 13 | 88299 | Gasket |
| 14 | 90484 | Start reel |
| 15 | 13554 | Oil-Seal |
| 16 | 88422 | Crank case |
| 17 | 88423 | Gasket |
| 18 | Bearing 6202/P5 | |
| 19 | 88424 | Crank shaft |
| 20 | 88645 | Key 3X5X13 |
| 21 | 88799 | Pin B4 X 10 |
| 22 | 88425 | Crank case |
| 24 | 88799 | Pin B4 X 10 |
| 26 | 90629 | Magneto rotor |
| 34 | 90630 | Spring |
| 35 | 90631 | Expander |
| 36 | 13789 | W asher |
| 37 | 90632 | screw pin |
| 38 | 90633 | Fan cover |
| 39 | 88643 | Oil-Seal |
| 41 | 79347 | Bearing |
| 42 | 79348 | Ring |
| 43 | 88432 | Piston |
| 44 | 88426 | Piston Pin |
| 45 | 88431 | Piston Ring |
| 46 | 88430 | Gasket |
| 47 | 88429 | Cylinder |
| 49 | 90634 | Guide cover ass'y |
| 50 | 10660 | Spark plug |
| 51 | RSOF5 | Spring |
| 52 | 13821 | Plug Cap |
| 53 | 38421 | Cap |
| 54 | 88262 | Plug |
| 55 | 79353 | Cover |
| 56 | 79354 | Gasket |
| 57 | 90635 | Muffler |
| 59 | 90636 | Cover |
| 62 | 79356 | Gasket |
| 63 | 79357 | Intake Manifold thermic |
| 64 | 79358 | Carburator Gasket |
| 65 | 79359 | Carburetor |
| 66 | 13754 | Choker handle |
| 69 | 13751 | Cleaner inside cover |
| 71 | 88311 | Choker |
| 73 | 13715 | Filter net |
| 74 | 79339 | Cleaner outside cover |
| 75 | 13748 | Screw |
| 76 | 88297 | Stand |
| 77 | 88298 | Rubber cover |
| 78 | 88857 | Cleaner cover |
| 79 | 88342 | Fuel pipe 3 x 1 x 80 |
| 80 | 13568 | Plug |
| 81 | Fuel pipe 3 x 1 x 80 | |
| 83 | 79361 | Fuel tank |
| 90 | 13758 | Lid ass'y |
| 91 | 88301 | Tank Damper |
| 92 | 90637 | Stand |
| Auger E3WT-300A - 90380/Gear Box - Handle Pag.2 | ||
| 1 | 90638 | Gear Box |
| 2 | 90639 | Clutch Drum Comp. |
| 3 | 90640 | Vent-plug |
| 4 | 90641 | Wheel Box |
| 5 | Fuel Cup M6 | |
| 6 | Bearing 6002-2Rs/P5 | |
| 7 | Bushing | |
| 8 | Stop Ring 32 | |
| 9 | Stop Ring 15 | |
| 10 | 90642 | Gear |
| 11 | 90643 | Key |
| 12 | 90644 | Gear Shaft |
| 13 | 90645 | Gasket |
| 14 | 90646 | Wheel Box |
| 15 | Screw M6 X 30 | |
| 16 | Bearing 6004-2RS/P5 | |
| 17 | 90647 | Gear |
| 18 | 90643 | Key |
| 19 | 90648 | Shaft |
| 20 | 90649 | Gasket |
| 21 | Bearing 6000-2RS/P5 | |
| 22 | 90650 | Case Cover |
| 23 | Screw M6 X 55 | |
| 24 | 90651 | Handle |
| 25 | 90652 | Rubber Ringer |
| 26 | 90653 | Rubber Washer |
| 27 | 90654 | Spacer |
| 28 | 90655 | Brace I |
| 29 | Nut M5 | |
| 30 | 90656 | Shaft |
| 31 | 90657 | Pin |
| 32 | 90658 | Rubber Pole |
| 33 | 90659 | Cushion |
| 34 | 90660 | Brace II |
| 35 | Screw M8 X 20 | |
| 36 | 90661 | Handle |
| 37 | 90662 | Lever Ass'y |
| 39 | 90663 | Stop Button Comp. |
| 40 | 90664 | Cable Comp. |
| 45 | 90665 | Handgrip |
| 46 | 90666 | Spring |
| 47 | 90667 | Handgrip |
| 50 | 90381 | Drill for auger Ø 80 mm. |
| 501 | 90379 | Drill for auger Ø 100 mm. |
| 502 | 90382 | Drill for auger Ø 150 mm. |
| 503 | 90383 | Drill for auger Ø 200 mm. |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
