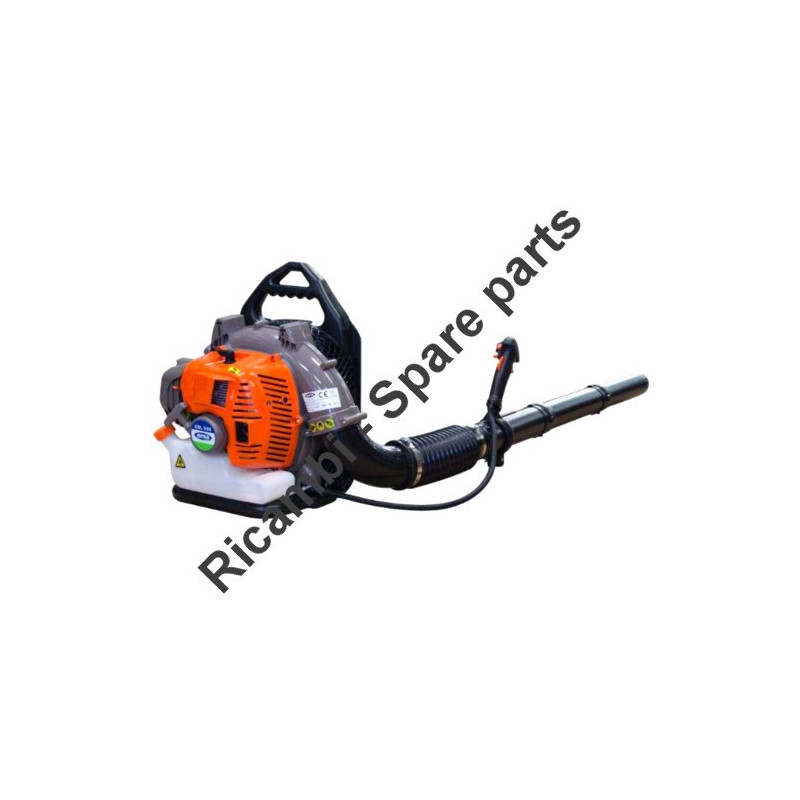

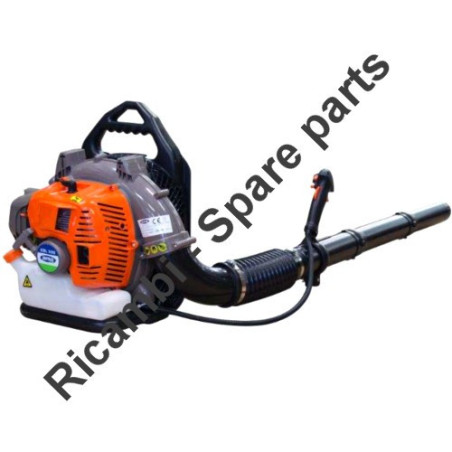

Ama Spare Parts for Blower KBL-500

€1.32
Tax included

Ama Spare Parts for Blower KBL-500

Ama original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components for Blower KBL-500 - 88601.

ITEM CODE: 13554
Quantity
on Demand Only Call Us Before

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Ama Spare Parts for Blower KBL-500

Ama original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components for Blower KBL-500 - 88601.

In the following table, look for the model of the Blower and the respective parts of the code.
Ama KBL-500 - 88601

Blower KBL-500 - 88601 Engine Pag.1
# Part Num. Description
1 89642 Starter
2 89495 Case
3 13728 Recoil spring
4 89496 Starter rope reel
6 89497 Start wheel
8 88639 Guide slice
12 88640 Ratchet
13 13554 Oil-Seal
14 88422 Crank case
15 88423 Gasket
16 Bearing 6202/P6
17 88641 Crank shaft
18 Bearing 6202/P6
19 88642 Crank case
20 88643 Oil-Seal
21 88644 Magneto rotor
25 79347 Bearing
26 88645 Key 3X5X13
27 88799 Pin
28 79348 Ring
29 88426 Piston Pin
30 88432 Piston
31 88431 Piston Ring
32 88431 Piston Ring
33 88430 Gasket
34 88646 Cylinder
36 88647 Mantle
37 56438 Spark plug
38 88648 Cap
39 88649 Gasket
40 88650 Muffler
42 88651 Cover
43 Screw M6 x 60 -12,9
44 79356 Gasket
45 88652 Admitting pipe
47 88653 Gasket
48 88654 Carburetor
49 88655 Cleaner inside cover
50 Screw M5 x 55
51 88656 Filter net
52 88657 Cleaner outside cover
53 13748 Screw
54 88658 Ignition coil compl.
57 88659 Shield
59 88803 W asher
61 Baffle
Soffiatore KBL-500 - 88601 Frame Pag.2
2 88662 Protection
4 88663 Volute case
5 88664 Impeller
7 88665 Volute case
10 88666 Protect net
11 Back Clip
12 88667 Support
13 88668 Frame
16 88669 Back Mat
17 88670 Band
19 88556 Vitta plug
20 90054 Fuel tube
21 90167 Fuel tube
22 13569 Filter
23 88675 Fuel Tank
24 13758 Fuel tank lid
30 88767 Line
31 88768 Pan joint
32 88769 Rubber plug
33 Clip (78 -101)
34 88770 Hose
35 Clip (59 -82)
36 88771 Pipe
37 88772 Pipe
38 88773 Pipe
39 88774 Handle
42 Nut M6
44 88775 Push Button
45 88776 Spring
46 88777 Left manipulator
47 Pin
48 88328 Spring
49 88327 Handle
50 88321 Handle
51 88322 Long Spring
52 88782 Right manipulator
55 88783 STOP switch
56 88784 Fuel throttle
57 88785 Tube
61 88671 Support
