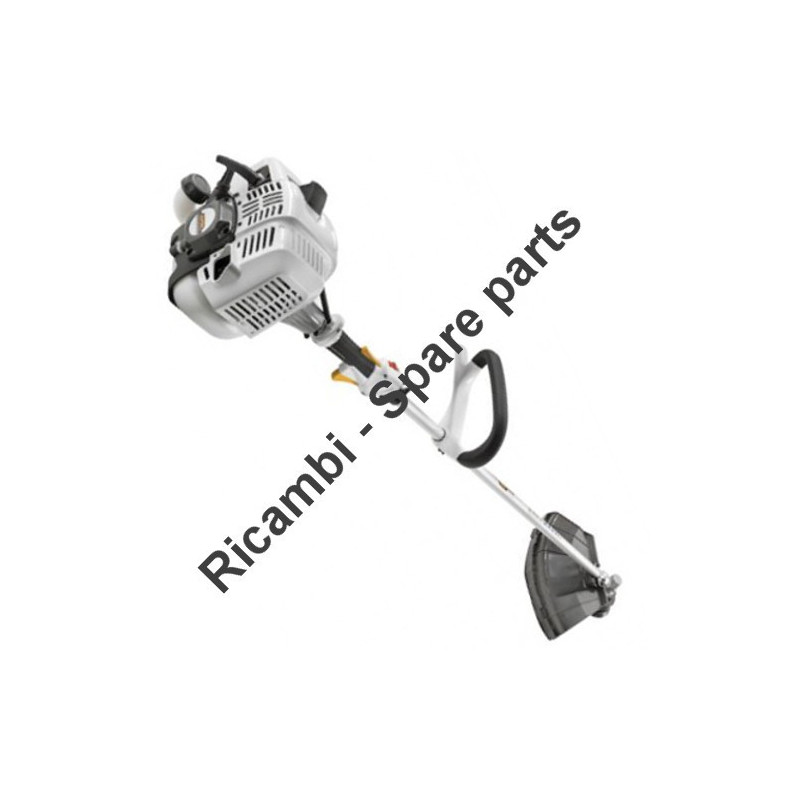

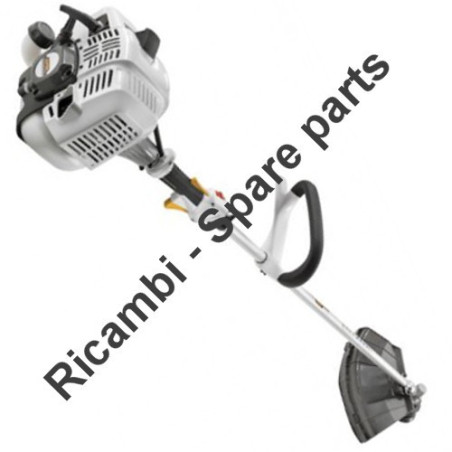

Alpina Spare Parts for Brushcutter B 42
€1.74
Tax included
Alpina Spare Parts for Brushcutter B 42
Alpina Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brushcutter B 42 287320000/16 - Season 2018.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Brushcutter B 42
Alpina Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Brushcutter B 42 287320000/16 - Season 2018.
In the following table, look for the model of the Brushcutter and the respective parts of the code.
| ALPINA B 42 287320000/16 - Season 2018 Brushcutter Pag.1 Engine |
||
| # | Part Num. | Description |
| 1 | 118804038/0 | Screw |
| 2 | 118804045/0 | Washer |
| 3 | 118804000/0 | Clutch |
| 4 | 112789008/0 | Screw |
| 5 | 118804033/0 | Flywheel Cover |
| 6 | 118804046/0 | Washer |
| 7 | 112293200/0 | Nut |
| 8 | 112369500/0 | Elastic Washer |
| 9 | 112521350/0 | Washer |
| 10 | 118804013/0 | Flywheel |
| 11 | 2135130 | Screw |
| 12 | 118804025/0 | Crank Case |
| 13 | 118803989/0 | Crankshaft |
| 14 | 118804079/0 | Crankcase Gasket |
| 15 | 118804027/0 | Crank Case |
| 16 | 118804018/0 | Needle Bearing |
| 17 | 118804028/0 | Piston |
| 18 | 118804039/0 | Piston Pin |
| 19 | 118804049/0 | Circlip |
| 20 | 118804022/0 | Piston Ring |
| 21 | 118804080/0 | Cylinder Gasket |
| 22 | 118804034/0 | Cylinder |
| 23 | 118804085/0 | Muffler Gasket |
| 24 | 118803992/0 | Muffler |
| 25 | 118804048/0 | Muffler Guard |
| 26 | 2135180 | Screw |
| 27 | 112521330/0 | Washer |
| 28 | 112582100/0 | Grower |
| 29 | 118801180/0 | Screw |
| 30 | 118804081/0 | Gasket |
| 31 | 118804064/0 | Intake Manifold |
| 32 | 6981102 | Outfit, Screws |
| 33 | 118804083/0 | Carburetor Gasket |
| 34 | 118804008/0 | Carburetor |
| 35 | 118804063/0 | Air Cleaner Base |
| 36 | 112521320/0 | Washer |
| 37 | 112581500/0 | Grower |
| 38 | 2135250 | Screw |
| 39 | 118804074/0 | Air Filter Sponge Element |
| 40 | 118803963/0 | Filter Cover |
| 41 | 118803174/0 | Knob, Grey |
| 42 | 118803996/0 | Starter Cup |
| 43 | 118804051/0 | Gasket |
| 44 | 118803994/0 | Starter Assy |
| 45 | 112727356/0 | Screw |
| 46 | 3210024 | Spark Plug |
| 47 | 322055542/0 | White Cylinder Cover |
| 48 | 112727796/0 | Screw |
| 50 | 118801188/0 | Seal Ring |
| 51 | 3112040 | Ball Bearing |
| 52 | 118804020/0 | Seal Ring |
| 53 | 123072002/0 | Flywheel Key |
| 54 | 118804010/0 | Ignition Coil Assy |
| 56 | 2135110 | Screw |
| 57 | 118804055/0 | Wire Clamp |
| 58 | 112760475/0 | Screw |
| 59 | 118804004/0 | Fuel Tank Assy |
| 60 | 118803962/0 | Support |
| 61 | 118804087/0 | Air Guide |
| 62 | 112727815/0 | Screw |
| 63 | 112727790/0 | Screw |
| 64 | 112523020/0 | Washer |
| 65 | 118803975/0 | Starter Cam |
| 66 | 118804061/0 | Starter Spring |
| 67 | 118803976/0 | Starter Pulley |
| 68 | 118804060/0 | Spring |
| 69 | 118804071/0 | White Starter Plate |
| 70 | 118803984/0 | Starter Handle |
| 71 | 118804068/0 | Rope Guide |
| 72 | 118803163/0 | Spark Plug Cap |
| 73 | 322735152/0 | Fuel tank Cap |
| 74 | 118804005/0 | Fuel Hose |
| 75 | 118803181/0 | Starter Cord |
| ALPINA B 42 287320000/16 - Season 2018 Brushcutter Pag.2 Transmission |
||
| 1 | 118804001/0 | Support Transmission Assy |
| 2 | 118804042/0 | Drive shaft |
| 3 | 118803959/0 | Transmission Pipe |
| 4 | 6981145 | Screw |
| 5 | 2132180 | Screw |
| 6 | 112727801/0 | Screw |
| 8 | 118804057/0 | Harness Support |
| 9 | 2135180 | Screw |
| 10 | 118803956/0 | White Front Handgrip Assy |
| 11 | 118803998/0 | Gear Case Assy |
| 12 | 118804054/0 | Plastic Protection Guard Plate |
| 14 | 2132180 | Screw |
| 15 | 118803954/0 | Safety cover Assy |
| 16 | 1911-9227-01 | Line Cutter Head |
| 17 | 118801125/0 | Teeth Disc |
| 19 | 118804015/1 | Harness |
| 20 | 118804037/0 | Clutch Drum |
| 21 | 118803967/0 | White Left Handgrip |
| 22 | 118803973/0 | White Right Handgrip |
| 23 | 118803149/0 | Switch |
| 24 | 118803147/0 | Switch |
| 25 | 118803150/0 | Throttle Lever, Yellow |
| 26 | 118803146/0 | Clamp |
| 28 | 118803151/0 | Spring |
| 29 | 118803148/0 | Spring |
| 30 | 112727810/0 | Screw |
| 31 | 112726388/0 | Screw |
| 32 | 118804014/0 | Switch |
| 33 | 118803985/0 | Throttle Cable |
| 34 | 118803155/0 | Stop Wire |
| 36 | 2452090 | Nut |
| 37 | 118804050/0 | Case Dust Cover |
| 38 | 118804044/0 | Lower Ring Nut |
| 39 | 118804043/0 | Upper Ring Nut |
| 41 | 112727815/0 | Screw |
| 42 | 118803202/0 | Support |
| 43 | 118804056/0 | Line Cutter Blade |
| 44 | 6981149 | Screw |
| 45 | 112728531/0 | Screw |
| 46 | 118804058/0 | Guard |
| 50 | 118804890/0 | Line Retainer |
| 51 | 118804889/0 | Spring |
| 52 | 118804888/0 | Cover + Knob |
| 55 | 118804956/0 | Ass. Handle Yellow |
| 56 | 118804957/0 | Ass'y Cable |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
