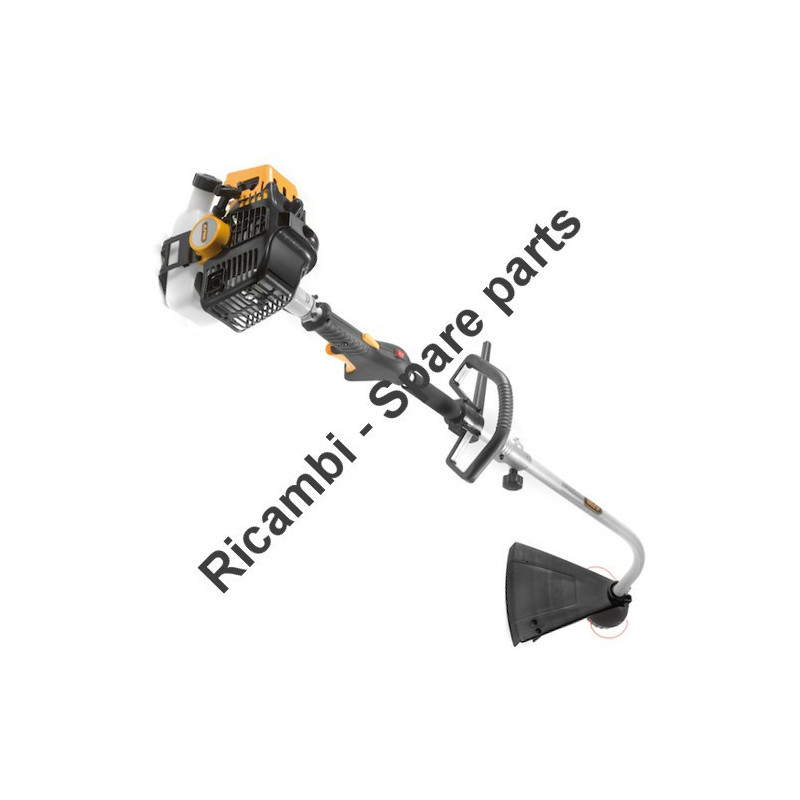

Alpina Spare Parts for Brushcutter TR 250 J
€2.43
Tax included
Alpina Spare Parts for Brushcutter TR 250 J
ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter TR 250 J/2013_20130116_TR250J.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Brushcutter TR 250 J
ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter TR 250 J/2013_20130116_TR250J.
In the following table, look for the model of the Brushcutter and the respective parts of the code.
| TR 250 J - AIPL2013_20130116 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 118802113/0 | Clutch Ass'y |
| 2 | 112523050/0 | Washer |
| 3 | 112789008/0 | Screw |
| 4 | 118802080/0 | Transm. Support Case |
| 5 | 112293202/0 | Nut |
| 6 | 112583500/0 | Washer |
| 7 | 112521350/0 | Washer |
| 8 | 118802073/0 | Fly Wheel |
| 9 | 2135050 | Screw |
| 11 | 118802078/0 | Crank Case |
| 12 | 118802072/0 | Ignition coil set |
| 13 | 118801188/0 | Seal Ring |
| 14 | 119216035/0 | Bearing |
| 15 | 118802066/0 | Crankshaft |
| 16 | 3151050 | Key |
| 17 | 118802090/0 | Crankcase Gasket |
| 18 | 118802079/0 | Crank Case |
| 19 | 118804858/0 | Starter Cup |
| 20 | 118802068/0 | Starter Assy |
| 21 | 118802156/0 | Starter Handle |
| 22 | 118802157/0 | Starter Pulley |
| 23 | 118802158/0 | Starter Spring |
| 24 | 118802087/0 | Grommet |
| 25 | 118802083/0 | Fuel Tank Support |
| 26 | 2132060 | Screw |
| 27 | 118802075/0 | Needle Bearing |
| 28 | 118802084/0 | Circlip |
| 29 | 118802081/0 | Piston Pin |
| 30 | 118802076/0 | Piston |
| 31 | 118802077/0 | Piston Ring |
| 32 | 118802091/0 | Cylinder Gasket |
| 33 | 118802074/0 | Cylinder |
| 34 | 2135060 | Screw |
| 35 | 3210024 | Spark Plug |
| 36 | 118802085/0 | Washer |
| 37 | 112523020/0 | Washer |
| 38 | 2135040 | Screw |
| 39 | 123878020/0 | Screw |
| 40 | 2135250 | Screw |
| 41 | 2330020 | Washer |
| 42 | 112521320/0 | Washer |
| 43 | 118802082/0 | Muffler Shield |
| 44 | 118802067/0 | Muffler |
| 45 | 118802093/0 | Muffler Gasket |
| 46 | 118802092/0 | Intake-Manifold Gasket |
| 47 | 118802086/0 | Intake Manifold |
| 48 | 118802089/0 | Carburetor Gasket |
| 49 | 118802071/0 | Carburettor |
| 50 | 118802159/0 | Air Filter |
| 51 | 118801525/0 | Deflector |
| 52 | 118801526/0 | Filter |
| 53 | 118802110/0 | Plate |
| 54 | 118802160/0 | Filter Cover, Yellow |
| 55 | 118801528/0 | Knob Screw |
| 56 | 2122210 | Screw |
| 57 | 118802070/0 | Fuel Tank Assy |
| 58 | 118802096/0 | Fuel Pipe |
| 59 | 118802097/0 | Fuel Cap |
| TR 250 J - Shaft Pag.2 | ||
| 1 | 118802060/0 | Support Transm. |
| 2 | 118802095/0 | Cluth drum |
| 3 | 2135060 | Screw |
| 4 | 2135180 | Screw |
| 5 | 2132180 | Screw |
| 6 | 118802061/0 | Shaft |
| 7 | 118802098/0 | Joint Chair Ass'Y |
| 8 | 118802052/0 | Transmission Shaft Ass.Y |
| 9 | 118802114/0 | Connecting Head Assy new 118802052/0 |
| 10 | 118802046/0 | Transmission Pipe Ass.Y |
| 11 | 118802051/0 | Blade |
| 12 | 112789000/0 | Screw |
| 13 | 112154320/0 | Nut |
| 14 | 112792425/0 | Screw |
| 15 | 112530060/0 | Washer |
| 16 | 112292100/0 | Nut |
| 17 | 118801753/0 | Line Cutter Head |
| 18 | 118802103/0 | Handle Assy |
| 19 | 112154320/0 | Nut |
| 20 | 118802104/0 | Spring |
| 21 | 118802105/0 | Throttle Lever |
| 22 | 118802106/0 | Safety Lever |
| 23 | 2135060 | Screw |
| 24 | 118802107/0 | Stop Switch |
| 25 | 112728099/1 | Screw |
| 26 | 118802088/0 | Blocker |
| 27 | 118802108/0 | Coil-Switch Cable |
| 28 | 118802109/0 | Wire Ass.Y |
| 29 | 112727815/0 | Screw |
| 30 | 118802102/0 | Front Handgrip Ass'y |
| 31 | 2122270 | Screw |
| 32 | 118802047/0 | Safety Cover Ass.Y |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina TR 250 J/2013_20130116
