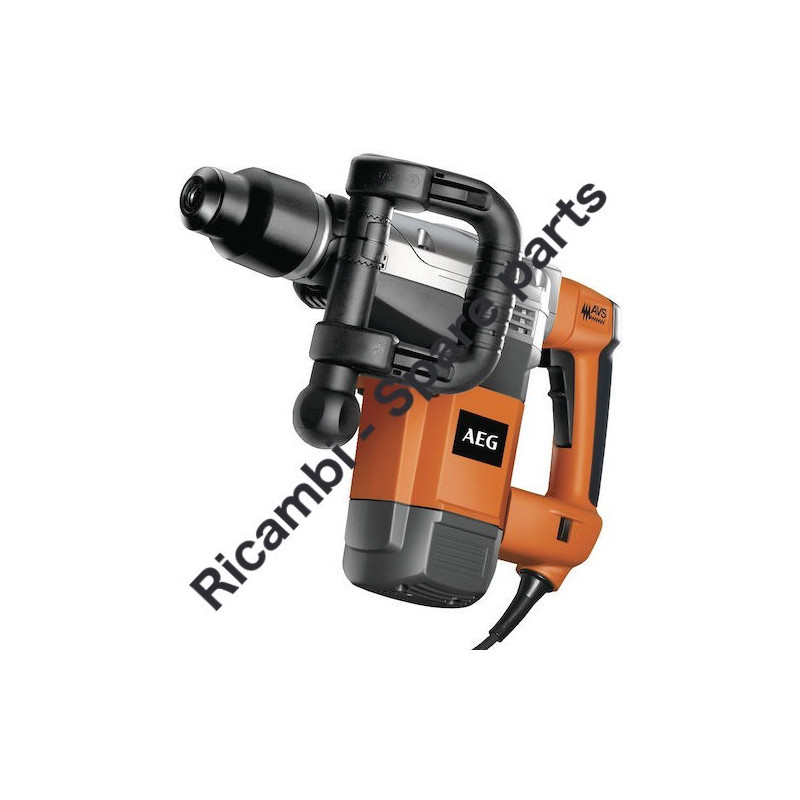

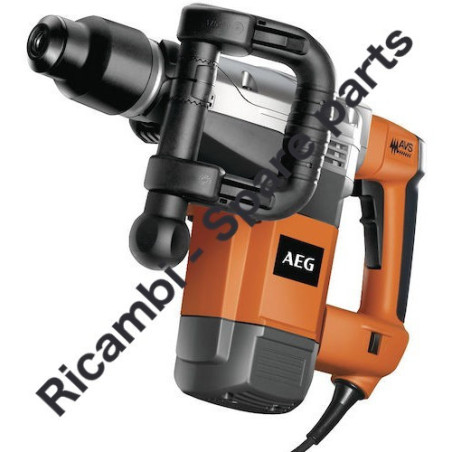

AEG MH5E Demolition Hammer Parts
€20.90
Tax included
AEG MH5E Demolition Hammer Spare Parts
Fix Your Demolition Hammer MH5E. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AEG MH5E Demolition Hammer Spare Parts
Fix Your Demolition Hammer MH5E. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Drill Driver and their spare part.
| AEG MH5E SDS-M DEMOLITION HAMMER IN2 Spare Parts 4935412361 - MH5E - 4000442187 |
||
| # | Part Num. | Description |
| 4 | 4931624585 | CONNECTION CABLE |
| 8 | 4931442190 | RATING PLATE - Discontinued |
| 9 | 4931412349 | RATING PLATE |
| 12 | 4931398272 | STRIP-BAND |
| 14 | 4931398238 | HANDLE COMPL. |
| 100 | 4931412340 | MOTOR HOUSING |
| 105 | 4931442747 | ELECTRIC FIELD |
| 106 | 4931442685 | ARMATURE |
| 107 | 4931398185 | FAN |
| 110 | 4931398508 | DUST SEAL |
| 111 | 4931426441 | BEARING END PLATE |
| 112 | 4931624541 | SCREW |
| 114 | 4931890311 | LOCKING RING |
| 115 | 4931398198 | SEAL RING |
| 116 | 4931398205 | AIR DEFLECTOR RING |
| 118 | 4931398006 | MOTOR CAP |
| 119 | 4931624565 | SCREW D7500-1CE M6X38 T30 Tapt.2000 SW B |
| 120 | 4931412338 | PAIR HANDLE SHELLS |
| 121 | 4931339996 | SCREW |
| 122 | 4931432207 | GEAR BOX INSULATION |
| 123 | 4931624263 | WIRE |
| 124 | 4931624538 | SCREW |
| 125 | 4931256500 | CABLE COLLAR |
| 126 | 4931624538 | SCREW |
| 128 | 4931398131 | SLIDER |
| 129 | 4931624517 | SCREW N874101-1 SHR H-K4X22 T15 |
| 130 | 4931381694 | BRUSH HOLDER |
| 131 | 4931624504 | SCREW |
| 132 | 4931409100 | ELECT.CIRCUIT BOARD |
| 133 | 4931398114 | LIGHT PIPE |
| 135 | 4931375458 | SWITCH |
| 156 | 4931398095 | BEARING |
| 158 | 4931398746 | BEARING BOLT |
| 200 | 4931412369 | GEAR BOX |
| 212 | 4931426456 | GEAR BOX COVER |
| 214 | 4931624555 | SCREW |
| 236 | 4931409600 | Crank Wheel |
| 237 | 4931398026 | SPINDLE |
| 238 | 4931417457 | SPINDLE SLEEVE |
| 239 | 4931398031 | BACK-PRESSURE RING |
| 241 | 4931398032 | DISC |
| 246 | 4931455433 | PERCUSSION BODY |
| 258 | 4931398747 | PISTON COMPL. |
| 268 | 4931398078 | SET COLLAR |
| 270 | 4931621847 | NEEDLE BEARING |
| 273 | 4931398154 | ADJUSTING PIECE |
| 274 | 4931398075 | LOCKING PLATE |
| 275 | 4931398626 | SWITCH |
| 282 | 4931624479 | RING |
| 288 | 4931398091 | THRUST COLLAR |
| 290 | 4931624499 | DISC |
| 291 | 4931398658 | LATCH PLATE |
| 292 | 4931624236 | SCREW |
| 293 | 4931398097 | THRUST PIECE |
| 294 | 4931624499 | DISC |
| 295 | 4931398099 | PRESSURE SPRING |
| 297 | 4931624535 | DISC |
| 305 | 4931398065 | SLEEVE |
| 306 | 4931426248 | INTERLOCK SLEAVE |
| 309 | 4931398856 | PRESSURE SPRING |
| 310 | 4931426013 | INTERLOCK ELEMENT |
| 406 | 4931449971 | ARMATURE |
| 700 | 4931412328 | CARRYING CASE |
| 1200 | 4931398232 | MAINTENANCE SET |
| 1201 | 4931398132 | CARBON BRUSH SET |
| 1204 | 4931622166 | O-RING N874701 26X3 |
| 1205 | 4931393422 | PROTECTING COVER |
| 1207 | 4931398748 | DAMPING ELEMENT |
| 1208 | 4931398101 | SEALING SLEEVE |
| 1209 | 4931398085 | RUBBER SLEEVE |
| 1210 | 4931624440 | SEAL RING |
| 1212 | 4931398578 | SNAP DIE |
| 1213 | 4931398297 | O-RING (FKM) |
| 1216 | 4931398539 | SEAL |
| 1219 | 4931398105 | DAMPING ELEMENT |
| 1220 | 4931398033 | CORE LIFTER RING |
| 1221 | 4931398073 | RING |
| 1222 | 9170319040 | SPRING RING |
| 1223 | 4931398068 | INTERLOCK ELEMENT - Discontinued |
| 1224 | 4931398034 | SEAL RETAINER |
| 1225 | 4931398080 | INTERLOCK DISC |
| 1226 | 4931624495 | SEAL RING |
| 1227 | 4931398064 | RUBBER CAP |
| 1228 | 4931409768 | HOLDING-DOWN DEVICE |
| 1230 | 4931426013 | REPAIR KIT |
| 1231 | 4931398298 | WASHER |
| 1234 | 4931398189 | GROOVED BALL BEAR. |
| 1235 | 4931341741 | BALL BEARING |
| 1236 | 4931426570 | MAGNETIC DISC |
| 1238 | 4931409781 | STOP WASHER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AEG MH5E
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 7/10 BUSINESS DAYS APPROX
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK AEG S/N:
- AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
