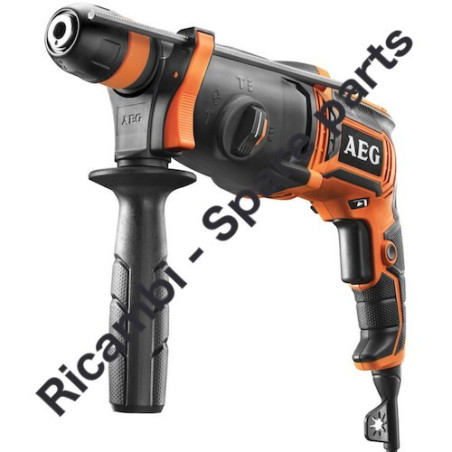

AEG Combi Hammer KH24IXE Parts
€3.48
Tax included
AEG Combi Hammer KH24IXE Spare Parts
Fix Your Combi Rotary Hammer KH24IXE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
AEG Combi Hammer KH24IXE Spare Parts
Fix Your Combi Rotary Hammer KH24IXE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.In the following table, look for the model of the Drill Driver and their spare part.
| KH24IXE SDS+ COMBI HAMMER IN2 4935451553 - KH24IXE - 4000456761 |
||
| # | Part Num. | Description |
| 3 | 4931454439 | COVER |
| 4 | 4931454440 | DATA PLATE Discontinued |
| 5 | 4931454441 | FELT |
| 6 | 4931454442 | O-RING |
| 8 | 4931454443 | BUSH |
| 9 | 633516001 | WASHER |
| 10 | 4931454444 | SEAL |
| 11 | 4931454445 | BUSH |
| 12 | 4931454446 | NEEDLE BEARING |
| 13 | 4931454447 | NEEDLE BEARING |
| 14 | 633514001 | COMPENSATING WASHER |
| 15 | 4931454448 | HOUSING |
| 23 | 4931454449 | SCREW |
| 24 | 4931454450 | BOLT |
| 25 | 4931454451 | WASHER |
| 26 | 4931454452 | CYLINDER |
| 27 | 561994001 | O-RING |
| 28 | 4931454453 | PERCUSSION BODY - DISCONTINUED |
| 29 | 672632001 | CIRCLIP |
| 30 | 4931454454 | O-RING |
| 31 | 4931454509 | SNAP DIE |
| 32 | 633518001 | WASHER |
| 33 | 562595001 | O-RING |
| 34 | 692722001 | SLEEVE |
| 35 | 4931454456 | O-RING |
| 36 | 4931436819 | O-RING |
| 37 | 692724001 | STOP WASHER |
| 38 | 4931436804 | HOLDING RING |
| 39 | 611405001 | BALL |
| 40 | 4931454458 | CLUTCH |
| 41 | 4931454459 | GEARWHEEL SET |
| 42 | 4931454460 | COUPLING RING |
| 43 | 633517001 | WASHER |
| 44 | 4931454510 | SPINDLE SLEEVE Discontinued |
| 45 | 672634004 | RETAINING RING |
| 46 | 632420001 | WASHER |
| 47 | 4931454779 | SPRING |
| 48 | 522187001 | RING |
| 49 | 681486001 | BALL |
| 50 | 692726001 | STOP WASHER |
| 51 | 522186002 | SLEEVE |
| 52 | 4931454462 | CAPACITOR |
| 53 | 4931454463 | SWITCH |
| 54 | 4931454464 | RUBBER CAP |
| 55 | 4931454465 | BALL BEARING |
| 56 | 4931454466 | MOTOR |
| 57 | 4931454467 | BALL BEARING |
| 58 | 4931454468 | SCREW |
| 59 | 661286001 | LOCKING SCREW |
| 60 | 4931436821 | SCREW |
| 61 | 4931454469 | BALL BEARING Discontinued |
| 62 | 4931454470 | WASHER |
| 63 | 4931454471 | WORM GEAR WHEEL |
| 64 | 4931454472 | REDUCT. GEAR SHAFT |
| 65 | 4931466370 | WOBBLE DRIVE |
| 66 | 4931454474 | COUPLING SLEEVE |
| 67 | 4931454475 | SPRING |
| 68 | 4931454499 | COUPLING SLEEVE |
| 69 | 4931454500 | PINION |
| 70 | 633525001 | WASHER |
| 71 | 4931454501 | RETAINING PLATE |
| 72 | 4931454502 | SPRING PLATE |
| 75 | 4931454476 | RETAINER Discontinued |
| 76 | 4931454477 | POWER CORD |
| 78 | 4931454479 | LEVER |
| 79 | 660570005 | SCREW |
| 84 | 660024045 | SCREW |
| 89 | 4931384434 | DEPTH GAUGE |
| 90 | 4931454480 | HANDLE HALF |
| 91 | 4931454481 | GEAR BOX |
| 93 | 4931454482 | BUTTON |
| 94 | 4931454503 | GEAR BOX ASSY |
| 95 | 4931454484 | CYLINDER |
| 96 | 4931454485 | SNAP DIE |
| 97 | 4931454486 | SPINDLE KIT |
| 98 | 4931454512 | FIXTEC-SET |
| 99 | 4931454488 | DRIVE MOTOR |
| 100 | 4931454505 | WOBBLE DRIVE |
| 103 | 4931454497 | HANDLE COMPL. |
| 115 | 4931454513 | CHUCK |
| 116 | 692738001 | SPRING |
| 117 | 621194001 | CHUCK ADAPTER |
| 118 | 4931454514 | RATING PLATE |
| 119 | 4931454496 | CARBON BRUSH SET |
| 120 | 4931454490 | HANDLE COMPL. |
| 121 | 4931454494 | SWITCH |
| 122 | 4931454495 | PLATE |
| 700 | 4931454517 | CARRYING CASE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
